analog

Model 3453C

couriertm 56k* business modem

V.Everything® and V.Everywhere™ Technology

Incredible

Compatibility and

Flexibility

• V.Everything® Technology provides support for all key communications protocols

• V.Everywhere™ Technology so that one, highly reliable hardware platform supports connections

with most international phone systems

• Synchronous/Asynchronous, and leased-line support

• Supports all major operating systems: DOS, Windows 3.1/95/98/Me/NT 4.0/2000/2003/XP/

Vista, Win 7, UNIX, Linux – any operating system that supports an RS-232 serial port

• Universal power adapter automatically handles global power variations from 100 V to 240 V

Integrated

Multilayered

Security

• Dial security:

• Autopass works with up to 79 users, and automates logging in between two Couriers by

including the password in the V.42 error-control request

• Password Prompting, works with any type of modem, where the host Courier requests a

password from those dialing in

• Dialback security checks incoming calls for password authorization and then dials back

predened numbers to assure only appropriate users establish connections

Rock-solid Reliability • Carrier Loss Redial automatically senses, redials, and re-establishes dropped remote connections

– creates a virtual leased-line connection between two modems, over regular dial-up lines

• Advanced Line Probing technology nds the fastest connection and maintains connections

under poor line conditions

• Brown-out Protection assures you stay connected even in areas with poor power facilities

• Robust, business-oriented design, component selection, testing, and experience to support non-

stop operation

Powerful

Management Tools

• Remote Management lets you congure or troubleshoot from almost anywhere

• Instant Update† automatically checks the USRobotics web site for code updates when you’re

online and downloads new features at your convenience

• Remote Flash capability lets you upgrade Courier modems at remote locations from a central site

The USRobotics Courier 56K Business Modem with V.Everything and

V.Everywhere technology is the latest in the distinguished Courier line.

Many modems claim reliability, but few match the real-world performance

of Courier modems. Even fewer offer the multitude of advanced business

features found on this modem: global usage, Carrier Loss Redial, and Dial

and Dialback Security. Remote management capabilities let you conﬁgure,

set up, update or troubleshoot your modems from almost anywhere. When

failure is not an option, you need the world-class capabilities that only come

from the top of the USRobotics product line.

Mission critical dial-up connectivity for Business

Model 3453C

couriertm 56k* business modem

Target Country/Region USR SKU

United Kingdom USR013453A-ACC

Australia/ New Zealand USR043453A-ACC

Japan/ Korea USR053453A-ACC

South Africa USR093453A-ACC

TBR-21 W. Europe USR243453A-ACC

E. Europe/ Middle East USR563453A-ACC

India USR723453A-ACC

Courier Accessory Kits

(Include components required to use Couriers in

various countries - cords, jack adapters, etc.)

Dial and Dialback Security

Password is entered and

call is disconnected

Minimum System Requirements

Hardware

• Supports all major operating systems: DOS, Windows

3.1/95/98/Me/NT 4.0/2000/2003/XP/Vista/Win 7,

UNIX, Linux, and any operating system that supports an

RS-232 serial port**

• Available RS-232 serial port

• 56K compatible local analog phone line

Software (ICN/Instant Update)

• IBM compatible PC with 486DX or Pentium processor or

equivalent

• Internet Call Notication (ICN) supports Windows 95/98/

Me/2000/XP

Telco/PTT

• V.90 requires a V.90 56K ITU standard capable service

provider

• V.92 requires a V.92 56K ITU standard capable service

provider

• V.92 Call Notication feature requires Call Waiting service

from your local phone company

• V.92 Call Identication feature requires Call Waiting/Caller

ID services from your local phone company

Package Contents

• USRobotics Courier 56K Business Modem

• RJ-11 phone cord (6 ft/2.13 m)

• Universal power adapter (100 V – 240 V)

• RS-232 serial cable (3 ft/0.91 m)

• Quick Installation Guide

• Quick Reference Card

• Installation CD-ROM

Warranty

• Lifetime limited manufacturer warranty

* Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to

FCC regulations on power output, receiving speeds are limited to 53.3 Kbps. Actual speeds may vary. V.92 and

V.90 features require compatible phone service and support from your Internet Service Provider (ISP). U.S. Robotics

modems featuring V.92 enhancements are backward compatible and will negotiate the highest possible speed when

connecting to an ISP.

** Support for 64 bit operating systems requires a driver update (available in the support section of www.usr.com).

† Requires Windows operating system.

• ITU V.92/V.90 up to 56 Kbps downloads

• Data: V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, and

V.21

• ITU V.34 at 33.6 Kbps or 28.8 Kbps

• V.32 at 19.2 Kbps (21.6 Kbps between Courier modems with

ASL)

• ITU V.32bis at 14.4 Kbps

• HST at 16.8 Kbps

• Compatible with most ITU and Bell standards down to 300 bps

• Data Error Control; Compression: V.42/V.42bis and MNP2-4/5

• Fax: ITU V.17 at 14.4 Kbps, ITU V.29 at 9600 bps, ITU V.27ter

at 7200 bps, Group III, TIA/EIA 578 Class 1, and TIA/EIA

592 Class 2.0

• Caller ID and distinctive ring (require service from your local

phone company/Caller ID may not be supported in some

countries)

Environmental

• Temperature: Operating Temperature conditions: 0 to 50

degrees C, Non-Operating Temperature conditions: -20 to 70

degrees C

• Humidity: Operating Humidity conditions: 20% to 80% non-

condensing, Non-Operating Humidity conditions: 5% to 95%

non-condensing

Regulatory

• FCC approved (Part 15/Part 68)

• IC approved (ICES-003/CS-03)

• UL/CUL listed

• CE approved (Class B)

Package Dimensions/Weight

• 11.25 x 4.5 x 7.0 in. (28.58 x 11.43 x 17.78 cm)

• 3.4 lb (1.54 kg)

Product Dimensions/Weight

• 5.1 x 10.2 x 1.2 in. (13 x 26 x 3 cm)

• 1.1 lb (0.5 kg)

For connection to the Public Switched Telephone Network (PSTN)

Speciﬁcations & Standards

IC Approved

Apprové par IC

RoHS

2002/95/EC

Ce manuel convient aux modèles suivants

Autres manuels US Robotics Modem

US Robotics

US Robotics 5630G - Manuel utilisateur

US Robotics

US Robotics SureConnect 9000 Manuel utilisateur

US Robotics

US Robotics USR5699C Manuel utilisateur

US Robotics

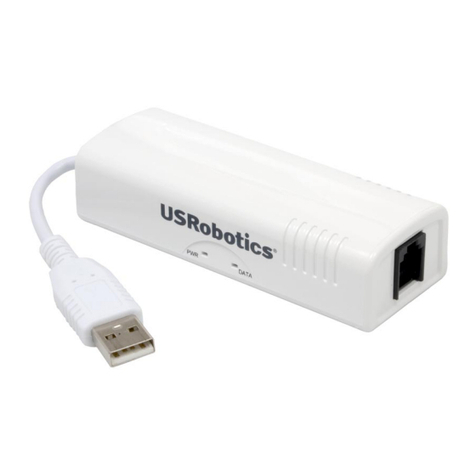

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuel utilisateur

US Robotics

US Robotics USR5695 Manuel utilisateur

US Robotics

US Robotics USR5660A Manuel utilisateur

US Robotics

US Robotics SPORTSTER FLASH X2 Guide de configuration

US Robotics

US Robotics 5686 Manuel utilisateur

US Robotics

US Robotics Sportster Manuel utilisateur

US Robotics

US Robotics USR5610B Manuel utilisateur

US Robotics

US Robotics 56K PCI FAXMODEM - QUICK REV 1 Manuel utilisateur

US Robotics

US Robotics 005689-03 Manuel utilisateur

US Robotics

US Robotics SureConnect 9001 Manuel utilisateur

US Robotics

US Robotics 56K SERIAL CONTROLLER FAXMODEM Manuel utilisateur

US Robotics

US Robotics 3CP5699A Manuel utilisateur

US Robotics

US Robotics USR5686D Manuel utilisateur

US Robotics

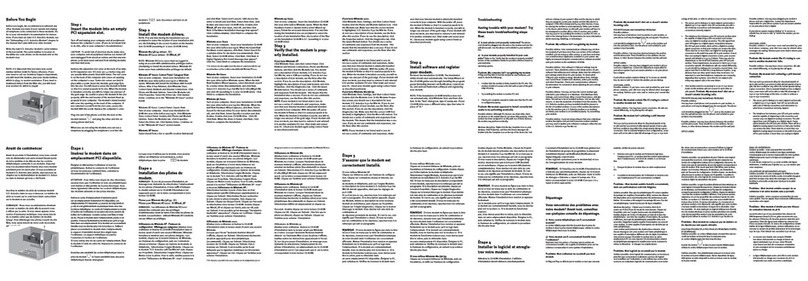

US Robotics USR5699B Manuel utilisateur
