Moxa EtherDevice Switch

EDS-G205

Hardware Installation Guide

Second Edition, April 2009

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802002051011

- 2 -

Overview

The EDS-G205 series is equipped with 5 Gigabit Ethernet ports, making it an

ideal and economical solution for demanding, high bandwidth Gigabit Ethernet

applications. In addition, the built-in relay warning function alerts system

administrators when power failures or port breaks occur. The EDS-G205 series

includes 2 models: one with an operating temperature range of 0 to 60°C, and

the other one with extended operating temperature range of -40 to 75°C. These

2 models have passed a 100% burn-in test to ensure that they fulfill the special

needs of industrial automation control. The EDS-G205 series can be easily

installed with DIN-Rail mounting as well as distribution boxes.

NOTE Throughout this Hardware Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

Package Checklist

Your EDS is shipped with the following items. If any of these items is missing

or damaged, please contact your customer service representative for assistance.

yMoxa EtherDevice™ Switch

yHardware Installation Guide

yMoxa Product Warranty booklet

Features

High Performance Network Switching Technology

y10/100/1000BaseT(X) (RJ45), auto negotiation speed, F/H duplex mode

yIEEE 802.3/802.3u/802.3ab.

yStore and Forward switching process type, 8K MAC address entries.

Industrial Grade Reliablity

yPower failure, port break alarm by relay output

yRedundant dual 12/24/48VDC power inputs

Rugged Design

yOperating temperature range of 0 to 60°C, or extended operating

temperature of -40 to 75°C for (-T) models

yIP30, rugged high-strength case

yDIN-Rail or panel mounting ability

- 3 -

Panel Layout of EDS-G205

ON DIP

12345

Front Panel View

Top Panel View

Rear Panel View

FAULT

1. Grounding screw

2. Terminal block for power input

(PWR1, PWR2) and relay output

3. Power input PWR1 LED

4. Power input PWR2 LED

5. Fault LED

6. TP port’s 10/10/1000 Mbps LED

7. Port number

8. 10/100/1000BaseT(X) Port

9. Model Name

10. DIP switches

11. Heat dissipation orifices

12. Screw hole for wall mounting kit

13. DIN-Rail Kit

- 4 -

Mounting Dimensions (unit = mm)

PWR2

PWR1

FAULT

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the back

panel of the EDS when you take it out of the box. If you need to reattach the

DIN-rail attachment plate, make sure the stiff metal spring is situated towards

the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN-rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-rail attachment unit will

snap into place as shown below.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the DIN-rail from the EDS, simply reverse Steps 1 and 2.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the EDS on the

wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN-rail attachment plate

from the EDS’s rear panel,

and then attach the wall

mount plates, as shown in

the figure. ⇒

- 5 -

STEP 2:

Mounting the EDS on the wall requires 4 screws. Use the

switch, with wall mount plates attached, as a guide to

mark the correct locations of the 4 screws. The heads of

the screws should be less than 6.0 mm in diameter, and

the shafts should be less than 3.5 mm in diameter, as

shown in the figure at the right.

6.0 mm

3.5 mm

NOTE Before tightening screws into the wall, make sure the screw head

and shank size are suitable by inserting the screw into one of the

keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

STEP 3:

Once the screws are fixed in

the wall, insert the four screw

heads through the large parts

of the keyhole-shaped

apertures, and then slide the

EDS downwards, as indicated.

Tighten the four screws for

added stability.

⇒

Wiring Requirements

WARNING

Safety First!

Turn the power off before disconnecting modules or wires. The

proper power supply voltage is listed on the product label. Check

the voltage of your power source to make sure you are using the

correct voltage. Do NOT use a voltage greater than what is

specified on the product label.

These devices must be supplied by an AELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

- 6 -

You should also pay attention to the following items:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring with

similar electrical characteristics can be bundled together.

yKeep input wiring and output wiring separated.

yIt is strongly advised that you label wiring for all devices in the system

when necessary.

Grounding Moxa EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

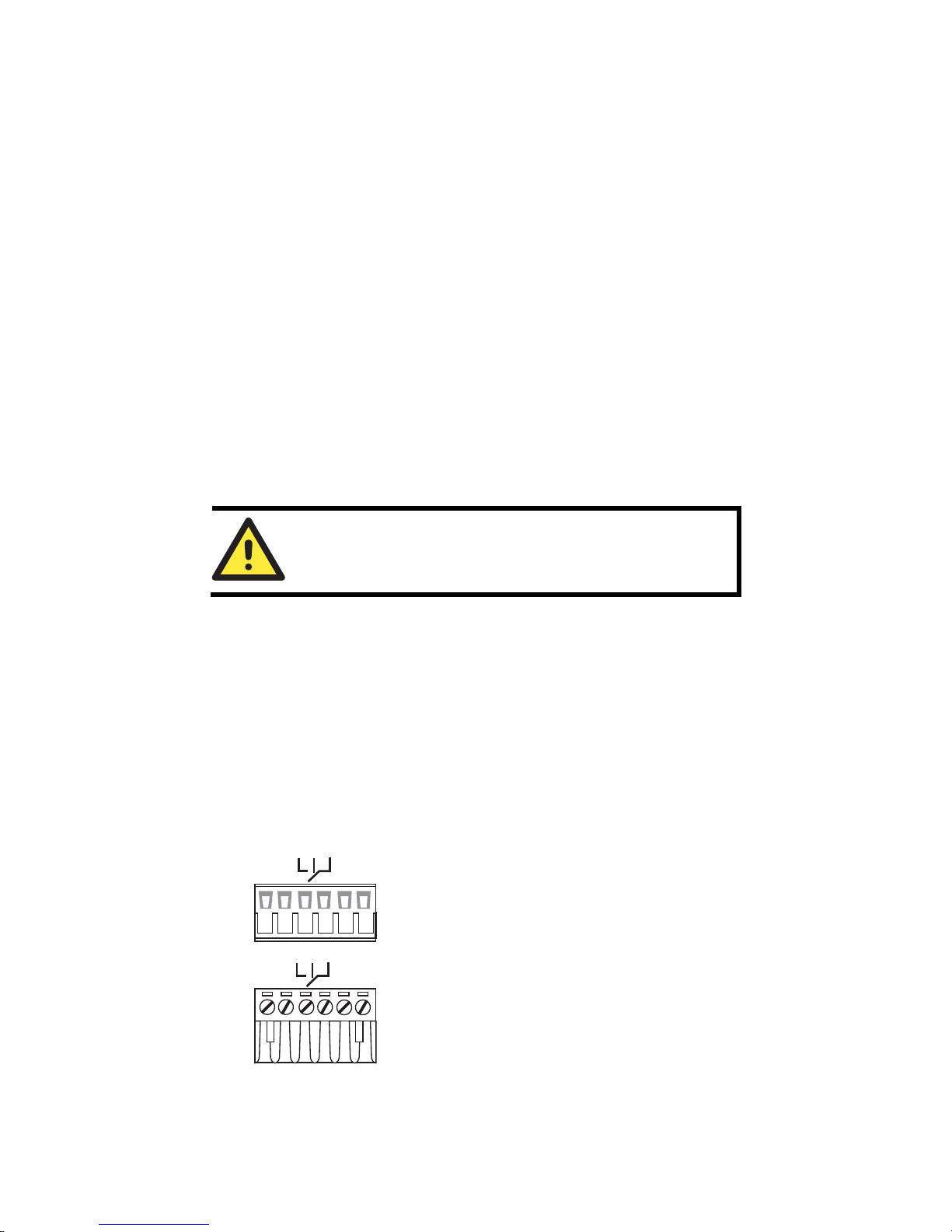

Wiring the Alarm Contact

The Alarm Contact consists of the two middle contacts of the terminal block on

the EDS’s top panel. You may refer to the next section for detailed instructions

on how to connect the wires to the terminal block connector, and how to attach

the terminal block connector to the terminal block receptor.

In this section, we explain the meaning of the two contacts used to connect the

Alarm Contact.

FAULT

Top View

Front View

FAULT: The two middle contacts of the

6-contact terminal block connector are used to

detect both power faults and port faults. The

two wires attached to the Fault contacts form

an open circuit when:

1. EDS has lost power from one of the DC

power inputs.

2. The PORT ALARM DIP switch for one of

the ports is set to ON, but the port is not

connected properly.

If neither of these two conditions is satisfied,

the Fault circuit will be closed.

- 7 -

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact terminal

block connector on the EDS’s top panel are used for the EDS’s DC inputs. Top

and front views of one of the terminal block connectors are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC

wires into the V-/V+ terminals.

STEP 2: To keep the DC wires from

pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp

screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on EDS’s top

panel.

ATTENTION

Before connecting the EDS to the DC power inputs, make sure

the DC power source voltage is stable.

Communication Connections

EDS-G205 Models have 5 10/100/1000BaseT(X) Ethernet ports

10/100/1000BaseT(X) Ethernet Port

Connection

The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s front

panel are used to connect to Ethernet-enabled devices. Most users will choose

to configure these ports for Auto MDI/MDI-X mode, in which case the port’s

pinouts are adjusted automatically depending on the type of Ethernet cable

used (straight-through or cross-over), and the type of device (NIC-type or

HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10 /100Base T(x) RJ45 Pinouts

MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45

Pin Signal Pin Signal

1 Tx+ 1 Rx+

2 Tx- 2 Rx-

3 Rx+ 3 Tx+

6 Rx- 6 Tx-

- 8 -

1000BaseT RJ45 Pinouts

Pin MDI MDI-X

1 BI_DA+ BI_DB+

2 BI_DA- BI_DB-

3 BI_DB+ BI_DA+

4 BI_DC+ BI_DD+

5 BI_DC- BI_DD-

6 BI_DB- BI_DA-

7 BI_DD+ BI_DC+

8 BI_DD- BI_DC-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

Straight-Through Cable

RJ45 Plug Pin 1

Switch Port

RJ45

Connector RJ45

Connecto

Tx+

Tx-

Rx+

Rx-

DD+

DD-

DC+

DC-

NIC Port

Cable Wiring Rx+

Rx-

Tx+

Tx-

DC+

DC-

DD+

DD-

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

Cross-Over Cable

RJ45 Plug Pin 1

Switch Port

(NIC Port)

RJ45

Connector RJ45

Connector

Tx+

Tx-

Rx+

Rx-

(Rx+)

(Rx-)

(Tx+)

(Tx-) DC+

DC-

DD+

DD-

(DD+)

(DD-)

(DC+)

(DC-)

(Tx+)

(Tx-)

(Rx+)

(Rx-)

Switch Port

(NIC Port)

Cable Wiring

Rx+

Rx-

Tx+

Tx- (DC+)

(DC-)

(DD+)

(DD-)

DD+

DD-

DC+

DC-

Redundant Power Inputs

Both power inputs can be connected simultaneously to live DC power sources.

If one power source fails, the other live source acts as a backup, and

automatically supplies all of the EDS’s power needs.

- 9 -

Alarm Contact

The Moxa EtherDevice Switch has one Alarm Contact located on the top panel.

For detailed instructions on how to connect the Alarm Contact power wires to

the two middle contacts of the 6-contact terminal block connector, see the

Wiring the Alarm Contact section on page 6. A typical scenario would be to

connect the Fault circuit to a warning light located in the control room. The

light can be set up to switch on when a fault is detected.

The Alarm Contact has two terminals that form a Fault circuit for connecting to

an alarm system. The two wires attached to the Fault contacts form an open

circuit when (1) EDS has lost power from one of the DC power inputs, or (2)

one of the ports, for which the corresponding PORT ALARM DIP switch is set

to ON, is not properly connected.

If neither of these two conditions occurs, the Fault circuit will be closed.

DIP Switch Settings

ON DIP

12345

----

BSP

PORT

ALARM

ONOFF

OFF ON

The default setting for each DIP switch is OFF. The

following table explains the effect of setting the

DIP switches to the ON positions.

DIP Switch Setting Description

ON Enables broadcast storm protection

BSP OFF Disables broadcast storm protection

ON Enables jumbo frame function

----

refers to Jumbo

Frame OFF Disables jumbo frame function

ON Enables the corresponding PORT Alarm. If

the port’s link fails, the relay will form an

open circuit and the fault LED will light up.

PORT Alarm

OFF Disables the corresponding PORT Alarm.

The relay will form a closed circuit and the

Fault LED will never light up.

ATTENTION

To actively update DIP switch settings, power off and then power

on the EDS.

- 10 -

LED Indicators

The front panel of the Moxa EtherDevice Switch contains several LED

indicators. The function of each LED is described in the table below.

LED Color State Description

On Power is being supplied to power input

PWR1

PWR1 AMBER

Off Power is not being supplied to power input

PWR1

On Power is being supplied to power input

PWR2

PWR2 AMBER

Off Power is not being supplied to power input

PWR2

On When the corresponding PORT alarm is

enabled, and the port’s link is inactive.

FAULT RED

Off

When the corresponding PORT alarm is

enabled and the port’s link is active, or

when the corresponding PORT alarm is

disabled.

On TP port’s 10/100 Mbps link is active

Blinking Data is being transmitted at 10/100 Mbps

AMBER

Off TP Port’s 10/100 Mbps link is inactive

On TP port’s 1000 Mbps link is active

Blinking Data is being transmitted at 1000 Mbps

10/100/

1000M

GREEN

Off TP Port’s 1000 Mbps link is inactive

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect the EDS’s

10/100/1000BaseT(X) ports to any kind of Ethernet device, without paying

attention to the type of Ethernet cable being used for the connection. This

means that you can use either a straight-through cable or cross-over cable to

connect the EDS to Ethernet devices.

Triple Speed Functionality and

Switching

The EDS’s 10/100/1000 Mbps RJ45 switched port auto negotiates with the

connected device for the fastest data transmission rate supported by both

devices. The EDS is a plug-and-play device, so software configuration is not

required at installation or during maintenance.

The half/full duplex mode for the RJ45 switched ports is user dependent and

changes (by auto-negotiation) to full or half duplex, depending on which

transmission speed is supported by the attached device.

Autres manuels pour EtherDevice Switch EDS-G205

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies EtherDevice EDS-205 Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-405A Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-7828 Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE-1GSFP Manuel

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE-P24-T Manuel utilisateur

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE Manuel

Moxa Technologies

Moxa Technologies NPort S8000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP-T Manuel

Moxa Technologies

Moxa Technologies EDS-G308 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-510E Series Manuel

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuel utilisateur

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuel

Moxa Technologies

Moxa Technologies EDS-2005-EL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-508A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5308-LV Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A-T Manuel

Moxa Technologies

Moxa Technologies PT-7710 Series Manuel

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuel

Moxa Technologies

Moxa Technologies PT-7728 Series Manuel

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
