Moxa Technologies EtherDevice EDS-305-T Manuel

P/N: 1802003050031

EDS-305

Hardware Installation Guide

Moxa EtherDevice Switch

Ninth Edition, April 2014

- 2 -

Overview

Moxa’s EtherDevice™ EDS-305 are smart Ethernet switches that provide

an economical solution for your Ethernet connections. As an added bonus,

the built-in smart alarm function helps system maintainers monitor the

health of your Ethernet network.

The EDS-305 have a wide operating temperature range of -40 to 75°C,

and are designed to withstand a high degree of vibration and shock. The

rugged hardware design makes either model perfect for ensuring that

your Ethernet equipment can withstand critical industrial applications,

and complies with FCC and CE Standards.

NOTE

Throughout this Hardware Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice

Switch:

EDS = Moxa EtherDevice Switch

Package Checklist

Your EDS is shipped with the following items. If any of these items is

missing or damaged, please contact your customer service

representative for assistance.

•Moxa EtherDevice™ Switch

•Hardware Installation Guide

•Moxa Product Warranty booklet

•Protective caps for unused ports

Features

High Performance Network Switching Technology

•10/100BaseT(X) (RJ45), 100BaseFX (SC/ST-type, Multi/Single

mode)

•IEEE802.3/802.3u/802.3x

•Store and Forward switching process type, with 1024 address entries

•10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing

Industrial Grade Reliability

•Power failure, port break alarm by relay output

•Redundant dual DC power inputs

Rugged Design

•Operating temperature range from 0 to 60°C, or extended operating

temperature from -40 to 75°C for “-T” models

•IP30, rugged high-strength case

•DIN-rail or panel mounting ability

WARNING

The

power for this product is intended to be supplied by a Listed

Power Supply, with output marked LPS, and rated to deliver 12 to

48 VDC at a maximum of 0.6A.

The DC

jack should be used with an LPS unit that is rated to

deliver 12 to 48 VDC at a minimum of 1.1A. The product should

not be disassembled by operators or service people.

- 3 -

Panel Layout

1. Grounding screw

2. Terminal block for power inputs

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input PWR1 LED

6. Power input PWR2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10.

TP port’s 10 Mbps LED

11.

Model Name

12.

Screw holes for wall mounting kit

13.

DIN-Rail Kit

- 4 -

Panel Layout (SC-type)

NOTE: The appearance of

EDS

-305-S-SC is identical to

EDS

-305-M-SC

1. Grounding screw

2. Terminal block for power inputs

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input PWR1 LED

6. Power input PWR2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10.

TP port’s 10 Mbps LED

11.

Model Name

12.

100BaseFX Port

13.

FX port’s 100 Mbps LED

14.

Screw holes for wall mounting kit

15.

DIN-Rail Kit

- 5 -

Panel Layout (ST-type)

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input PWR1 LED

6. Power input PWR2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10.

TP port’s 10 Mbps LED

11.

Model Name

12.

100BaseFX Port

13.

100 Mbps LED for FX port

14.

Screw hole for wall mounting kit

15.

DIN-Rail Kit

- 6 -

Mounting Dimensions

Unit = mm (inch)

- 7 -

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the

back panel of the EDS when you take it out of the box. If you need to

reattach the DIN-rail attachment plate, make sure the stiff metal spring is

situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN

-rail into

the slot just

below the stiff metal

spring.

STEP 2:

The DIN

-rail attachment unit will

snap into place as shown below.

To remove the EDS from the DIN-rail, simply reverse Steps 1 and 2

above.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the EDS on the

wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the EDS’s rear panel,

and then attach the wall

mount plates, a

s shown in

the diagram below.

STEP 2:

Mounting the EDS on the wall requires 4 screws. Use

the

witch, with wall mount plates attached, as a guide

to mark the correct locations of the 4 screws. The

heads of the screws should be less than 6.0 mm

diameter, and the shafts should be less than 3.5

mm in

diameter, as shown in the figure at the right.

NOTE

Before tightening screws into the wall, make sure the screw head

and shank size are suitable by inserting the screw into one of the

keyholeshaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

- 8 -

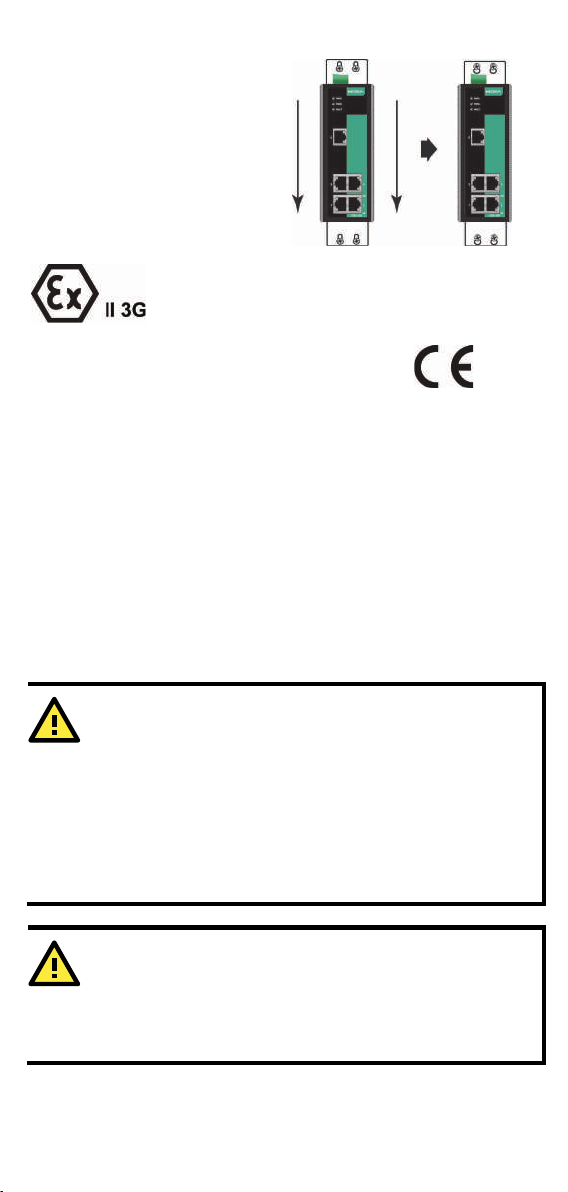

STEP 3:

Once the screws are fixed in the

wall, insert the four screw heads

through the large parts of the

keyhole

-shaped apertures, and

then slide the EDS downwards, as

indicated. Tighten the four

screws for

added stability.

ATEX Information

1. Certificate number DEMKO 08 ATEX 0812123x

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nA nC IIC T4 Gc)

4. Standards covered ( EN 60079-0:2012, EN 60079-15:2010)

5. The conditions of safe usage:

•

The Ethernet Communication Devices are to be mounted in an

IP54 enclosure and used in an area of not more than pollution

degree 2 as defined by IEC 60664-1.

•A 4mm2conductor must be used when connection to the

external grounding screw is utilized.

•Conductors suitable for use in an ambient temperature of 93°

must be used for the Power Supply Terminal.

Provisions shall be

made to prevent the rated voltage being exceeded by the

transient disturbances of more than 40%.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless the power supply has

been switched

off or the area is known to be non-hazardous.

The

devices may only be connected to the supply voltage shown on

the type plate.

The devices are designed for operation with a

Safety Extra-Low

Voltage. Thus, they may only be connected to the supply voltage

onnections and to the signal contact with the Safety Extra-L

Voltages (SELV) in compliance with IEC950/ EN60950/ VDE0805.

WARNING

Substitution of components may impair suitability for Class

Division 2

, and Zone 2. These devices must be supplied by an

SELV source as defined in Low Voltage Directive 73/23/EEC and

93/68/EEC.

- 9 -

WARNING

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment

enclosing the unit must

comply with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

- 10 -

Wiring the Alarm Contact

The Alarm Contact consists of the two middle contacts of the terminal

block on EDS’s top panel. You may refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector,

and how to attach the terminal block connector to the terminal block

receptor. In this section, we explain the meaning of the two contacts used

to connect the Alarm Contact.

FAULT:

The two middle contacts of the

-contact terminal block connector

are used to

detect both power faults and port

faults. The

two wires attached to the Fault contacts

form

n open circuit when:

1. The EDS has lost power from one of the

DC power inputs.

2. One of the ports for which the

corresponding PORT ALARM DIP Switch is

set to ON is not properly connected.

neither of these two conditions is satisfied,

the Fault circuit will be closed.

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact

terminal block connector on the EDS’s top panel are used for the EDS’s

two DC inputs. Top and front views of one of the terminal block

connectors are shown here.

STEP 1:

Insert the negative/positive DC wires into the

-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose, use a

small flat

-blade screwdriver to tighten the

wire

clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block connector

prongs into the terminal block receptor, which

located on the EDS’s top panel.

ATTENTION

Before connecting

the

EDS to the DC power inputs, make sure the

DC power source voltage is stable.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuel

Moxa Technologies

Moxa Technologies OnCell G3111 Manuel utilisateur

Moxa Technologies

Moxa Technologies ICS-G7526A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PN Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509 Manuel

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-F-24 Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-528E Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuel

Moxa Technologies

Moxa Technologies EDS-G4008 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-516A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-600 Series Manuel

Moxa Technologies

Moxa Technologies EDS-510E Series Manuel

Moxa Technologies

Moxa Technologies PT-7528 Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuel

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE Manuel

Moxa Technologies

Moxa Technologies TN-G6512 Serie Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-208 series Manuel utilisateur

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manuel

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5305-T Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
