Moxa Technologies OnCell G3111 Manuel utilisateur

P/N: 1802031011012

*1802031011012*

OnCell G3111/G3151-HSPA

Series

Quick Installation Guide

Edition 3.0, February 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



All manuals and user guides at all-guides.com

all-guides.com

- 2 -

Overview

The OnCell G3111/G3151-HSPAs are cellular IP gateways that can

conveniently and transparently connect your devices to a 3G cellular

network, allowing you to connect to your existing Ethernet and serial

devices with only basic configuration. With the integrated GuaranLink

feature, you can be confident that your device will always stay connected

and recover from any unexpected interference. With Moxa’s industrial

design, higher EMS level are tested to ensure the highest reliability for

any harsh environment. The G3111/G3151-HSPA cellular IP gateways

are the most compact, simple, and robust industrial 3G solution.

Package Checklist

Moxa’s OnCell G3111/3151-HSPA is shipped with the following items. If

any of these items is missing or damaged, please contact your customer

service representative for assistance.

Standard Accessories

•Omni 1.5 dBi Rubber SMA antenna

(Model name: ANT-WCDMA-ASM-1.5)

•DIN-rail kit

•3-pin terminal block

•Rubber stand

•Quick installation guide (printed)

•Warranty card

Optional Accessories

•Five-band GSM/GPRS/EDGE/UMTS/HSPA antennas for OnCell

G3111/G3151-HSPA series (Impedance = 50 ohms):

ANT-WCDMA-AHSM-04-2.5m: Omni 4 dBi (peak)/11 cm,

magnetic SMA five-band antenna (Impedance = 50 ohms), 2.5 m

ANT-WCDMA-ANF-00: Omni 0 dBi (peak)/42 cm, N-type female

five-band antenna (Impedance = 50 ohms)

All manuals and user guides at all-guides.com

- 3 -

Hardware Introduction

All manuals and user guides at all-guides.com

- 4 -

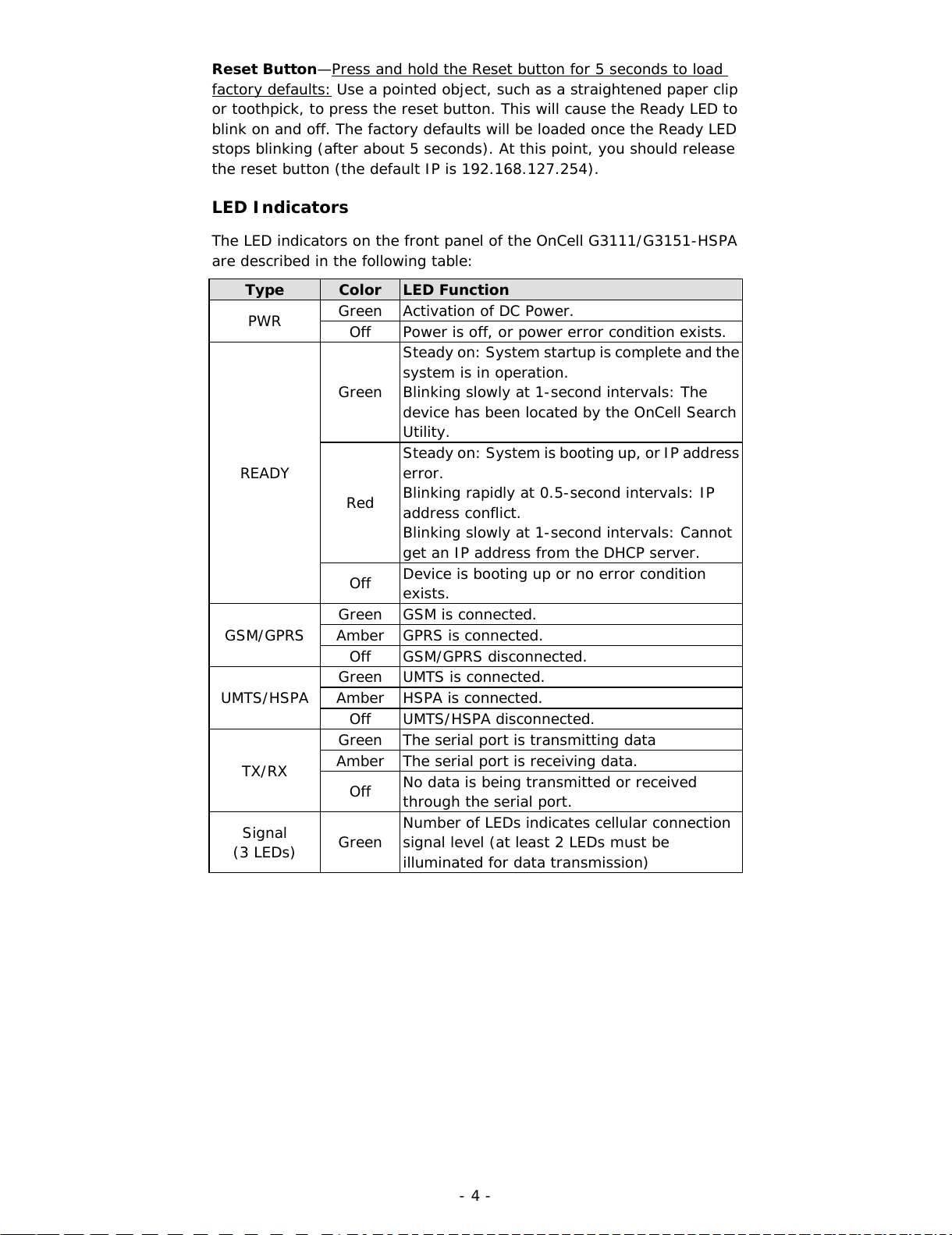

Reset Button—Press and hold the Reset button for 5 seconds to load

factory defaults: Use a pointed object, such as a straightened paper clip

or toothpick, to press the reset button. This will cause the Ready LED to

blink on and off. The factory defaults will be loaded once the Ready LED

stops blinking (after about 5 seconds). At this point, you should release

the reset button (the default IP is 192.168.127.254).

LED Indicators

The LED indicators on the front panel of the OnCell G3111/G3151-HSPA

are described in the following table:

Type

Color

LED Function

PWR

Green

Activation of DC Power.

Off

Power is off, or power error condition exists.

READY

Green

Steady on: System startup is complete and the

system is in operation.

Blinking slowly at 1-second intervals: The

device has been located by the OnCell

Utility.

Red

Steady on: System is booting up, or IP address

error.

Blinking rapidly at 0.5-second intervals: IP

address conflict.

Blinking slowly at 1-second intervals: Cannot

get an IP address from the DHCP server.

Off

Device is booting up or no error condition

exists.

GSM/GPRS

Green

GSM is connected.

Amber

GPRS is connected.

Off

GSM/GPRS disconnected.

UMTS/HSPA

Green

UMTS is connected.

Amber

HSPA is connected.

Off

UMTS/HSPA disconnected.

TX/RX

Green

The serial port is transmitting data

Amber

The serial port is receiving data.

Off No data is being transmitted or received

through the serial port.

Signal

(3 LEDs) Green

Number of LEDs indicates cellular connection

signal level (at least 2 LEDs must be

illuminated for data transmission)

All manuals and user guides at all-guides.com

- 5 -

Adjustable Pull High/Low Resistor for RS-485 Port

(OnCell G3151-HSPA Only)

DIP switches on the bottom of the

OnCell G3151

HSPA are used to set

the pull high/low resistor value for

each serial port.

Pull High

Pull Low

Terminator

–

1 k

Ω

1 k

Ω

120

Ω

–

OFF

150 kΩ

–

NOTE

When using RS-232 mode, ALL resistors need to be set to OFF.

Hardware Installation Procedure

STEP 1: Open the SIM cover, and insert the SIM card in the SIM card slot.

STEP 2: Wire the terminal block with 12-48 VDC power and connect the

power.

STEP 3: To configure the OnCell, use an Ethernet cable to connect the

OnCell directly to your computer’s Ethernet interface.

DIN-Rail Mounting

The OnCell G3111/G3151-HSPA series are provided with

built

-in mounting ears for attaching the

IP gateway to a

wall or the inside of a cabinet. We suggest using two

screws per ear to attach the IP gateway to a wall or the

inside of a cabinet. The heads of the screws should be

less than 6.0 mm in diameter, and the shafts should be

less than 3.5 mm in

diameter, as shown in the figure at

the right.

All manuals and user guides at all-guides.com

- 6 -

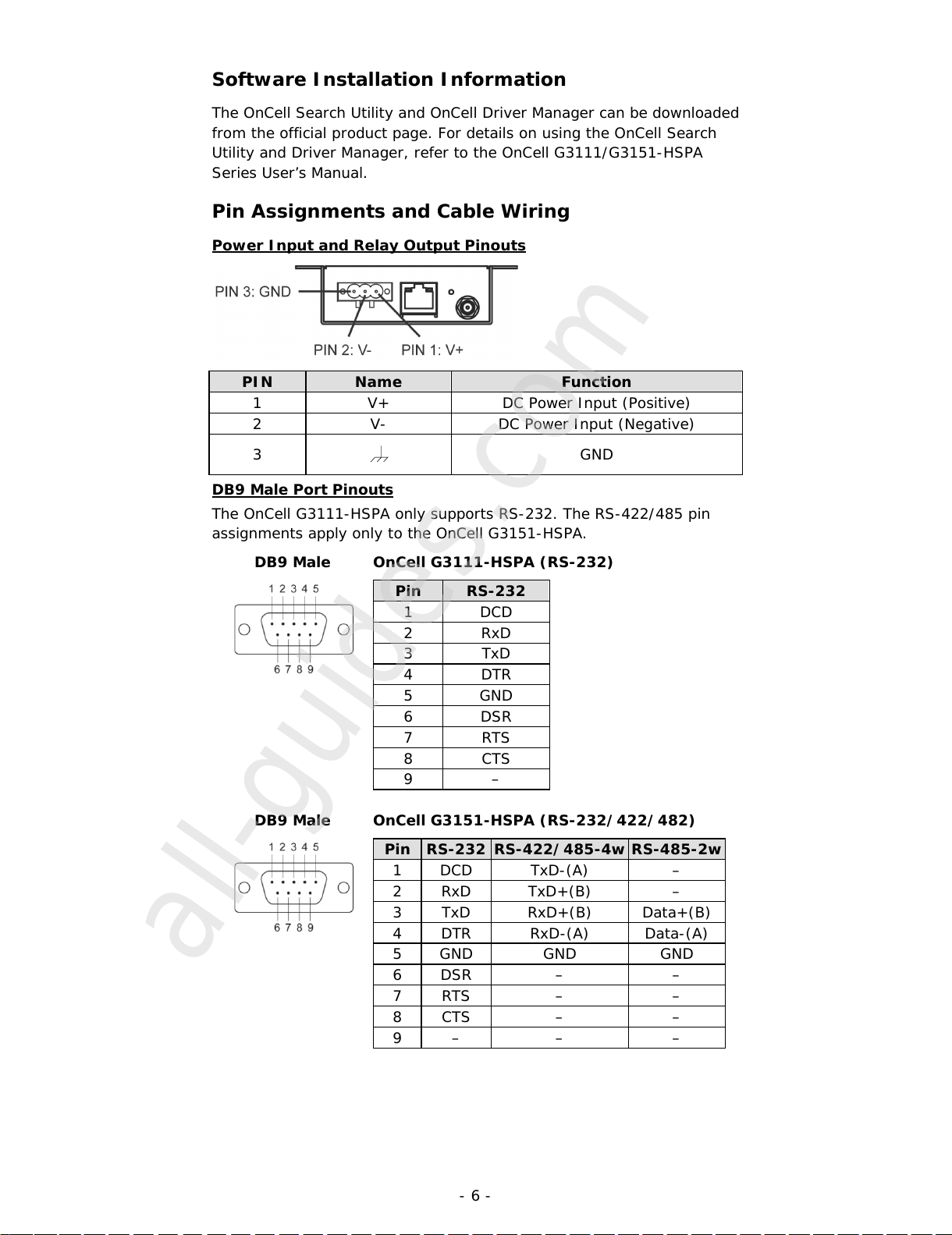

Software Installation Information

The OnCell Search Utility and OnCell Driver Manager can be downloaded

from the official product page. For details on using the OnCell Search

Utility and Driver Manager, refer to the OnCell G3111/G3151-HSPA

Series User’s Manual.

Pin Assignments and Cable Wiring

Power Input and Relay Output Pinouts

Name

Function

V+

DC Power Input (Positive)

V-

DC Power Input (Negative)

3 GND

DB9 Male Port Pinouts

The OnCell G3111-HSPA only supports RS-232. The RS-422/485 pin

assignments apply only to the OnCell G3151-HSPA.

DB9 Male

OnCell G3111-HSPA (RS-232)

RS-232

DCD

RxD

TxD

DTR

GND

DSR

RTS

CTS

–

DB9 Male

OnCell G3151-HSPA (RS-232/422/482)

RS-232

RS-422/485-4w

RS-485-2w

DCD

TxD-(A)

–

RxD

TxD+(B)

–

TxD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

Specifications

Cellular Interface

Standards

GSM/GPRS/EDGE/UMTS/HSPA

Band Options: Five-band UMTS/HSPA 850/800, 900, 1900, and

2100 MHz

Quad-band GSM/GPRS/EDGE 850/900/1800/1900

MHz

HSPA Data Rate

DL: max. 14.4 Mbps, UL: max. 5.76 Mbps

EDGE Data Rate EDGE Class 12

DL: max. 237 kbps, UL: max. 237 kbps

GPRS Data Rate

GPRS Class 12

DL: max. 85.6 kbps, UL: max. 85.6 kbps

SIM Interface

Number of SIMs: 1 full-sized (1FF)

SIM Control: 3 V

Antenna Interface Number of Antenna Ports: 1

Connector: SMA (female)

LAN Interface

Number of Ports

Ethernet

10/100 Mbps, RJ45 connector, Auto MDI/MDIX

Serial Interface

Number of Ports

Serial Standards

G3111-HSPA: 1 RS-232 port, DB9 male

G3151-HSPA: 1 RS-232/422/485 port, DB9 male

Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422: Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w: Data+, Data-, GND

Serial Operation

Modes

Operation Modes: TCP Server, TCP Client, UDP,

RFC2217

Operation Modes (Moxa Proprietary): Real COM,

Reverse Real COM, SMS Tunnel Mode

Windows Real COM Drivers: Windows

2000/XP/2003/Vista/7/Server 2008, Windows

XP/2003/Vista/7/Server 2008 x64/Windows

8/Windows 10

Fixed TTY Drivers: SCO Unix, SCO OpenServer 5,

SCO OpenServer 6, UnixWare 7, SVR4.2, QNX 4.25,

QNX 6, Solaris 10, FreeBSD 5, FreeBSD 6

Serial

Communication

Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2 (when parity = None)

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF

Baudrate: 50 bps to 921.6 Kbps

All manuals and user guides at all-guides.com

- 8 -

Software Specification

Network Protocols

ICMP, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP,

HTTP, HTTPS, SMTP, SNTP, ARP, SSH

Router/Firewall

NAT, Port Forwarding, WAN IP filtering

Authentication

Local user-name and password

Security

Accessible IP list

Configuration and

Management

Options

SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3,

Web/Telnet/Serial Console, Remote SMS Control,

Caller ID

Others

DDNS, Auto IP Report

Software Specification (Moxa Proprietary)

GuaranLink feature

Reliable and persistent cellular connectivity

OnCell Central

Management

support

Private cellular IP communication and central device

management

OnCell Search

Utility

Device configuration and management

Physical Characteristics

Housing

Aluminum, providing IP30 protection

Weight

165±5 g

Dimensions

111 x 77 x 26 mm (4.37 x 3.03 x 1.02 in)

Environmental Limits

Operating

Temperature

-30 to 55°C (-22 to 131°F)

Storage

Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative

Humidity

5 to 95% (30°C, non-condensing)

Power Requirements

Input Voltage

12 to 48 VDC

Connector

3-pin removable terminal block

Power Consumption

12 to 48 VDC, 350 mA (Idle), 900 mA (max.)

Reverse Polarity

Protection

Present

Standards and Certifications

Safety

UL 60950-1

EMC

EN 55032 Class A, EN 55024, FCC Part 15 Subpart B

Class A

Radio

EN 301 489-1, EN 301 489-7, EN 301 511/4

Warranty

Warranty Period

5 years

Details

See www.moxa.com/support/warranty.aspx

All manuals and user guides at all-guides.com

Autres manuels pour OnCell G3111

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Porte

Moxa Technologies

Moxa Technologies MGate 4101-MB-PBS-T Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3180 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3170 Manuel utilisateur

Moxa Technologies

Moxa Technologies 4101I-MB-PBS-T Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate-4101-MB-PBS Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3180 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5105-MB-EIP Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3000 Modbus Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5102-PBM-PN-T Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5109 Manuel utilisateur

Moxa Technologies

Moxa Technologies AIG-100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3110 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5105-MB-EIP Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate EIP3000 Manuel utilisateur

Moxa Technologies

Moxa Technologies Mgate MB3660 Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8580 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8580-T-CT-LX Instructions d'utilisation

Moxa Technologies

Moxa Technologies MGate 5109 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5600-8-DTL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies CCG-1500 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6110 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3280 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3170I Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3470A-LTE-EU-T Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
