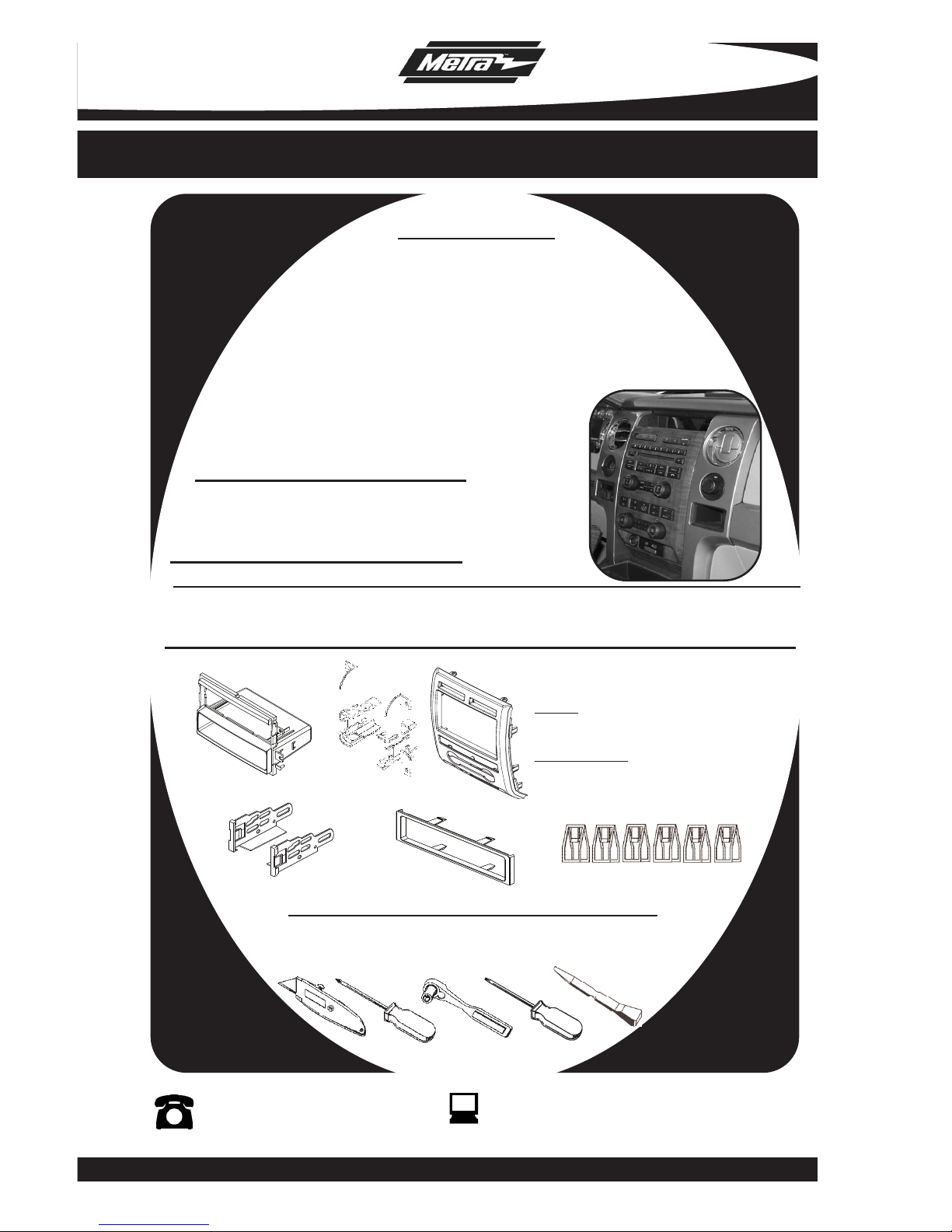

INSTALLATION INSTRUCTIONS FOR PART 99-5822B
KIT FEATURES
•DIN Radio Provision With Pocket
•ISO Mount Radio Provision With Pocket
• Painted or Wood Grain
•A) Radio Housing • B) Radio Housing Brackets
•
C) Radio Housing Trim Panel
•D) ISO Brackets • E) ISO Trim Plate • F) (6) U Style Panel Clips
KIT COMPONENTS
1-800-221-0932
©COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
A
•Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver
•Panel Removal Tool
BC
F
TOOLS REQUIRED:
DE
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
•Please see www.metraonline.com for
specific interface harness
Antenna Adapter:
•40-CR10 - Chrysler antenna adapter 02-up
99-5822AS – PLATINUM / ASH SATIN
99-5822CM - KING RANCH / CURLY MAPLE
99-5822MM – LARIAT / MILANO MAPLE
99-5822B - BLACK
APPLICATIONS
2009-10 FORD F-150
LARIAT / KING RANCH / PLATINUM MODELS
(Not for NAV Equipped Models)
Dash Disassembly
-
FORDF-1502009-10 ..............................
. 1,2
Kit Preparation
-
FORDF-1502009-10................................
.3
Kit Assembly
-DIN Radio Provision With Pocket ............................. 4
-ISO Mount Radio Provision With Pocket . . . . . . . . . . . . . . . . . . . . . . . 5
Final Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TABLE OF CONTENTS
99-5822B
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS
P
OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake steps
toward abetter tomorrow.

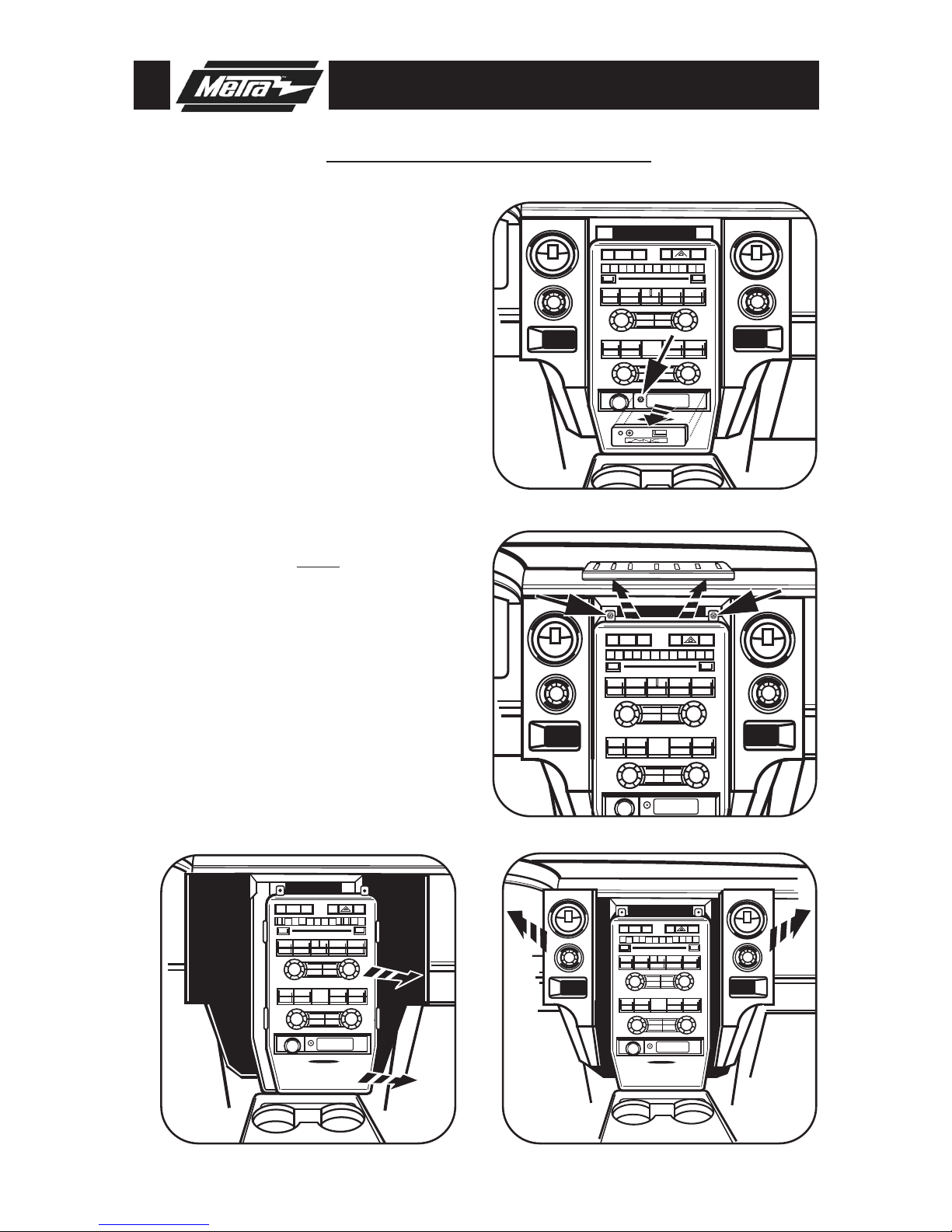

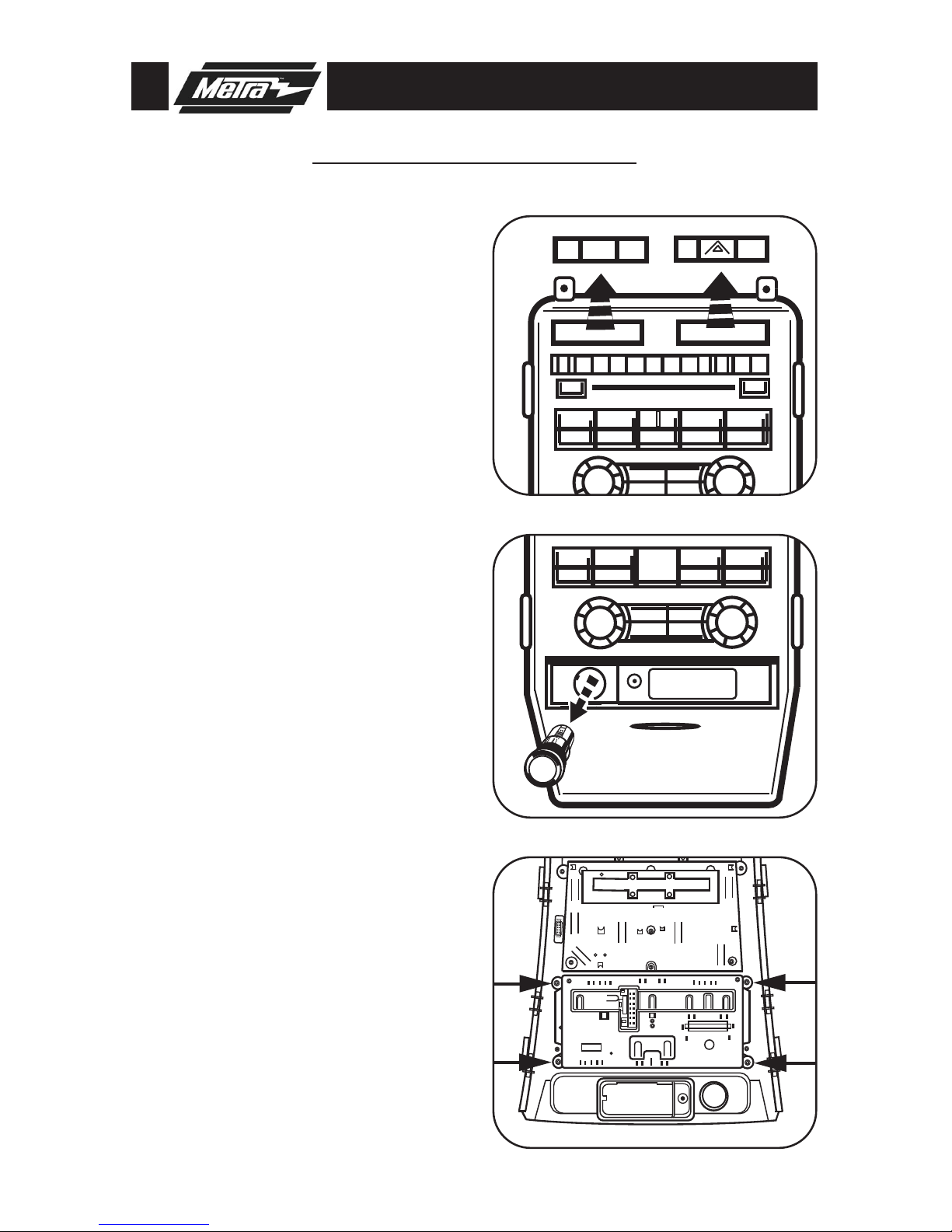

99-5822B DASH DISASSEMBLY
FORD F-150 2009-10
A
B
C
D
1
1
Remove the rubber pad at the top of
the radio trim panel then remove the
(2) 9/32” screws exposed. (
Figure B)
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip and remove the switch panel
to the right of the cigarette lighter
then remove the (1) 9/32” screw
exposed. (
Figure A)
2
Unclip and pull the side panels con-
taining the a/c vents away from the
radio trim panel. Note: It is not nec-
essary to remove the panels com-
pletely. (
Figure C)
4
Unclip and remove the radio trim
panel. (
Figure D)
5
Continued on page 2.
99-5822B DASH DISASSEMBLY
FORD F-150 2009-10
G
FACTORY RADIO TRIM PANEL-REAR VIEW
2
Remove (4) Torx screws securing the
factory climate control to the radio
trim panel. (
Figure G)
8
Unclip and remove the cigarette
lighter socket from the radio trim
panel. (
Figure F)
7
Remove (4) 9/32” screws to remove
the factory radio.
9
Unclip and remove the hazard/airbag
switchand driver info switch assem-
blies from the factory radio trim
panel. (
Figure E)
6
Continue to kit preparation.
E
F

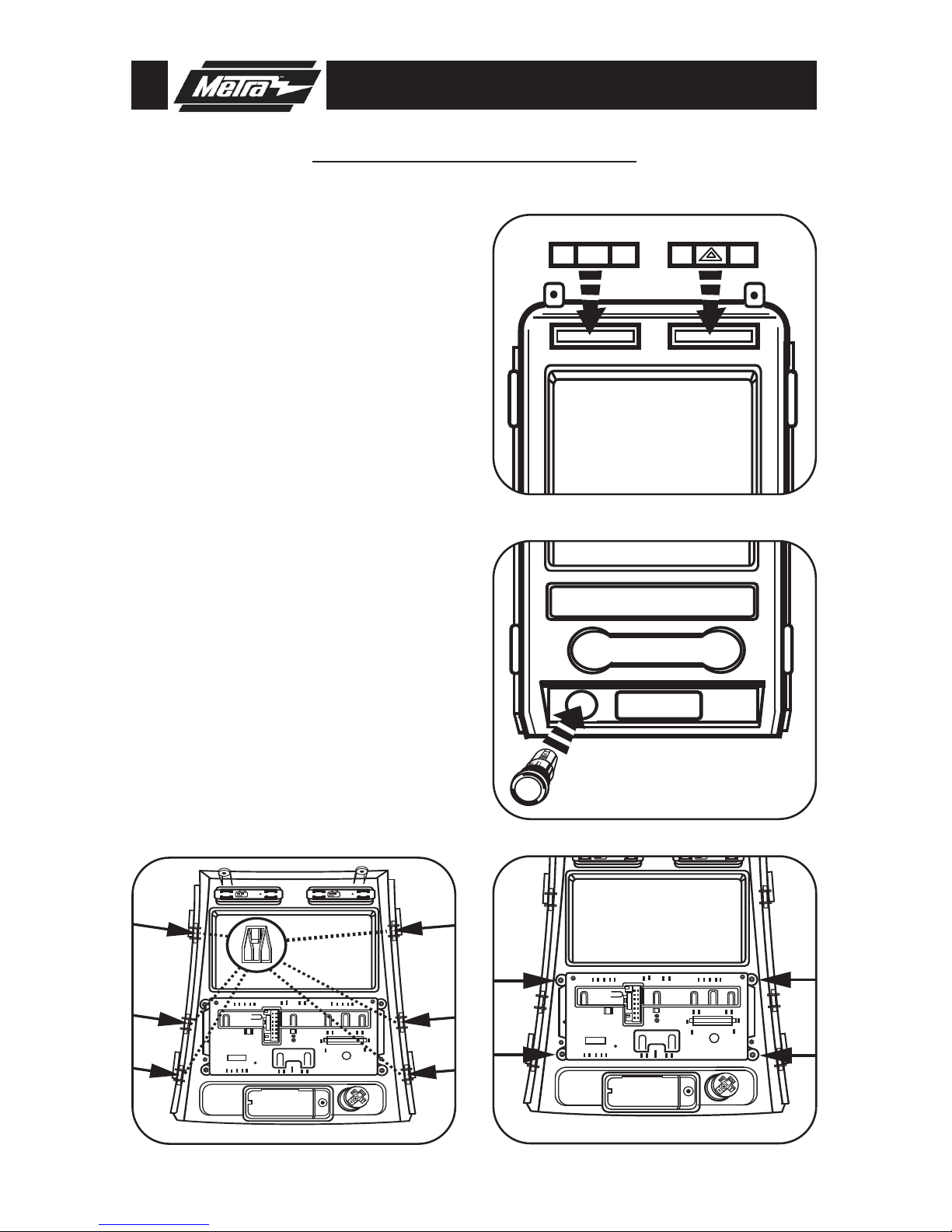

99-5822B KIT ASSEMBLY
FORD F-150 2009-10
A
B
C
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
D
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
3
Secure the climate control into the
radio housing using the factory
hardware in the same location as
the factory radio trim panel. (
Figure C)
3
Clip the cigarette lighter socket into
the radio housing in the same loca-
tion as the factoryradio trim panel.
(
Figure B)
2
Attach the (6) U style panel clips to
the radio housing in the same
location as the factory radio trim
panel. (
Figure D)
4
Clip the hazard/airbag switch and
driver info switch assemblies into
the radio housing in the same loca-
tion as the factory radio trim panel.
(
Figure A)
1
Continue to kit assembly.

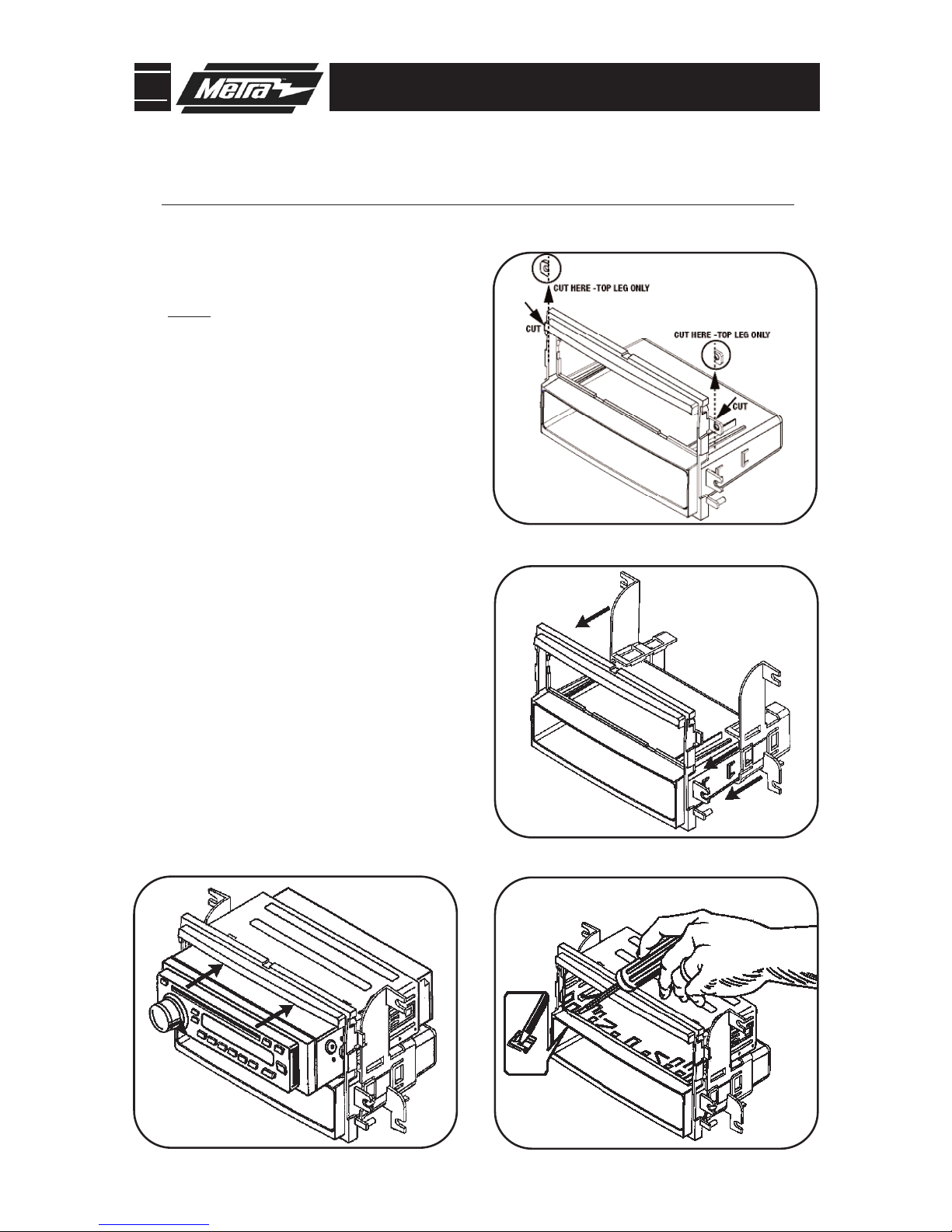

99-5822B KIT ASSEMBLY
4
DIN RADIO PROVISION WITH POCKET
Cut and remove the top (2) mounting
holes off of the radio housing.
Note: The notch in the housing
should be on top.
(Figure A)
1
Slide the included brackets onto the
sides of the radio housings pocket
from the back of the housing
forward.
(Figure B)
2
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down.
(Figure C)
3
Slide the aftermarket head unit into
the cage and secure.
(Figure D)
4
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
A
B
C
D
99-5822B KIT ASSEMBLY
5
ISO MOUNT RADIO PROVISION WITH POCKET
Cut and remove the top (2) mounting
holes off of the radio housing.
Note: The notch in the housing
should be on top.
(Figure A)
1
Slide the included brackets onto the
sides of the radio housings pocket
from the back of the housing
forward.
(Figure B)
2
Mount the ISO Brackets to the head
unit with the screws supplied with
the unit.
(Figure C)
3
Slide the head unit into the radio
opening until the side clips engage.
(Figure D)
4
Snap the trim plate into the Radio
Housing.
(Figure D)
5
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
A
B
C
D

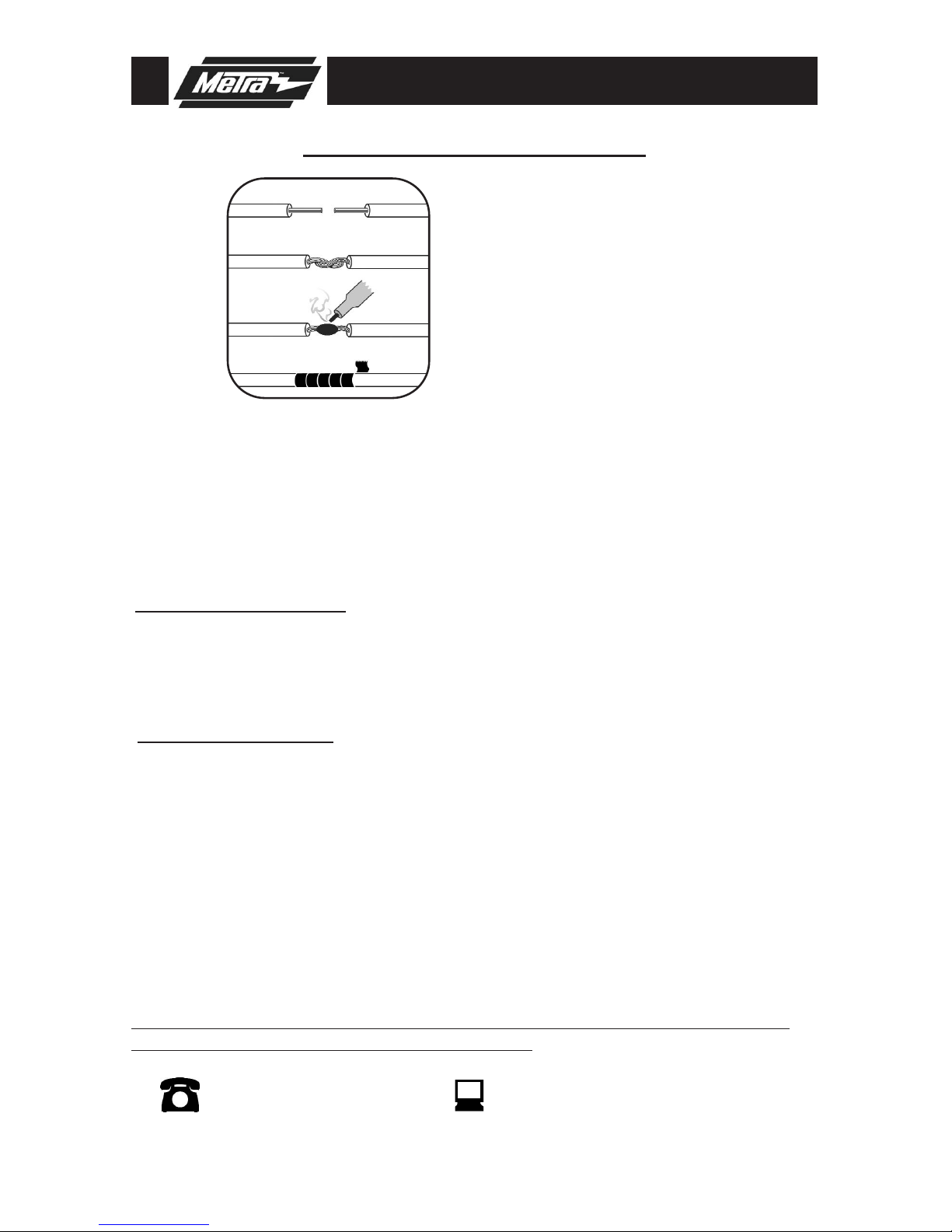

99-5822B FINAL ASSEMBLY
FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factorywiring harness in the dash. Metra recommends using the proper mating
adapter and making the connections as shown. (Isolate and individually tape off the ends of
any unused wires to prevent electrical short circuit).
Re-connect the negative batteryterminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly using the
99-5822B radio housing in place of the factory radio trim panel.
1
2
3
Make wiring connections using the EIA color code chart shown below and the instructions
included with the head unit. Metra recommends making connections shown below; Strip, Splice,
Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short
circuit.
FINAL WIRING CONNECTIONS
METRA / EIA WIRING CODE
12V Ignition / Acc..........Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna............Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE:
When a Blackwireis not present, ground radio to vehicle chassis. All colors may not be
present on all leads due to manufacturer’sspecifications.
1-800-221-0932
REV. 05/21/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST99-5822B
www.metraonline.com
