APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 5/16/2014 INST99-7603
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 99-7603
• A) Radio housing • B) ISO brackets • C) Single DIN trim plate • D) Double DIN trim plate

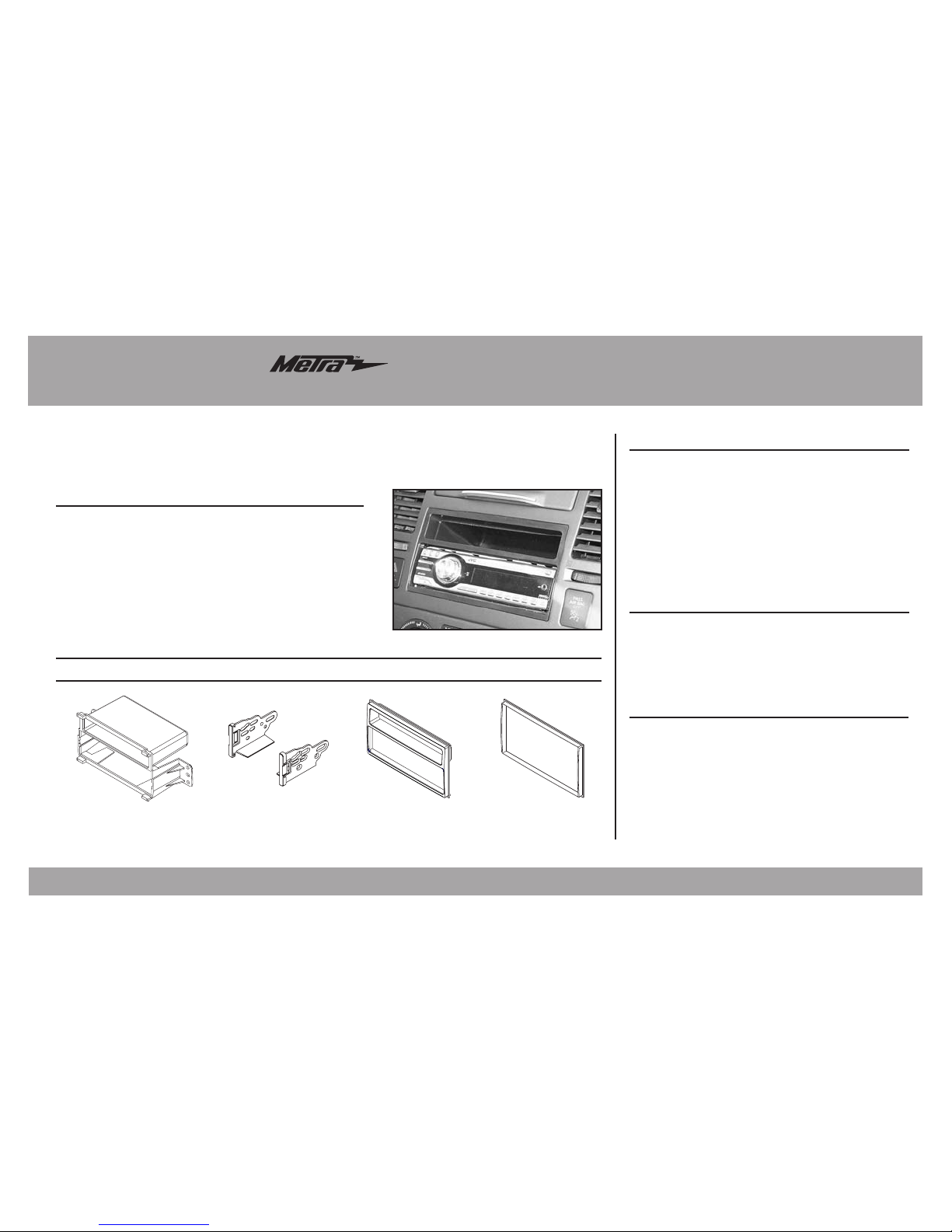

KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-7552 - Nissan wiring harness power/
4 speaker 2007-up
• 70-7553 - Nissan amplifier integration
harness 2007-up
Antenna Adapter:
• 40-NI12 - Aftermarket radio to Nissan 2007-up
• Small flat blade screwdriver • Panel removal tool
• Phillips screwdriver
TOOLS REQUIRED
A
• DIN radio provision with pocket
• ISO radio provision with pocket
• Double DIN radio provision
KIT FEATURES
Nissan Versa 2007-2011
99-7603
BCD
99-7603
2
Dash Disassembly
– Nissan Versa 2007-2011 ................................................................................2-3
Kit Assembly
– DIN radio provision with pocket ......................................................................... 3
– ISO radio provision with pocket .......................................................................... 4
– Double DIN radio provision ................................................................................. 5
Table of Contents

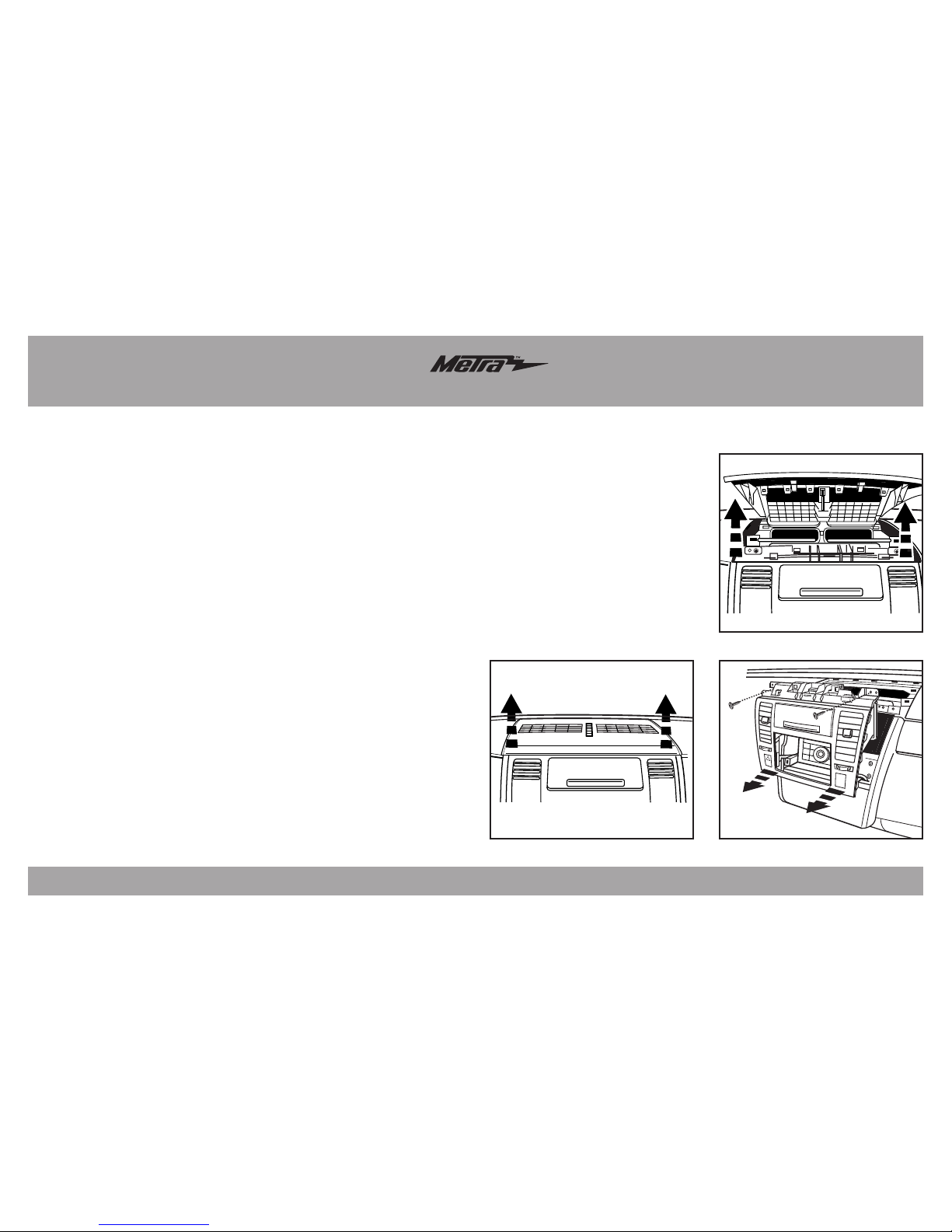

1. Unclip and remove the panel above
the radio. (Figure A, B)
2. Remove (2) Phillips screws
securing the radio trim panel then
unclip and remove the entire panel
surrounding the radio and A/C
controls. (Figure C)
Continued on next page
Nissan Versa 2007-2011
(Figure C)(Figure A)
(Figure B)
3
Dash Disassembly 99-7603
3. Remove (4) Phillips screws
securing radio, unplug and remove
radio. (Figure D)
4. Remove (4) Phillips screws
securing each bracket to factory
radio. (Figure E)
Note: Retain these brackets to be
re-used during double DIN or
stacked ISO kit assembly.
Continue to kit assembly
Nissan Versa 2007-2011
(Figure E)
Note: You will need to remove the
aftermarket radio’s trim ring if equipped.
1. Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs outward.
(Figure A)
2. Slide the aftermarket radio into the
cage until it snaps into place.
(Figure B)
3. Attach the trim plate supplied with
the kit to the front of the radio
housing assembly. (Figure B)
4. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the radio for
proper operation.
5. Reassemble dash in reverse order
of disassembly.
DIN radio provision with pocket
(Figure D)
VOL
CD
LOAD
SCRL
AUDIO
SCAN
CAT CH
AUX
6CD CHANGER
RPT
RDM
DISP CLOCK
RADIO
PRESET A-B-C
SEEK
TRACK
FILE
TUNE
FF-REW
FOLDER
PWR
PUSH
1
2
3
4
5
6
(Figure B)
(Figure A)
Kit Assembly 99-7603
4
Kit Assembly 99-7603
ISO radio provision with pocket

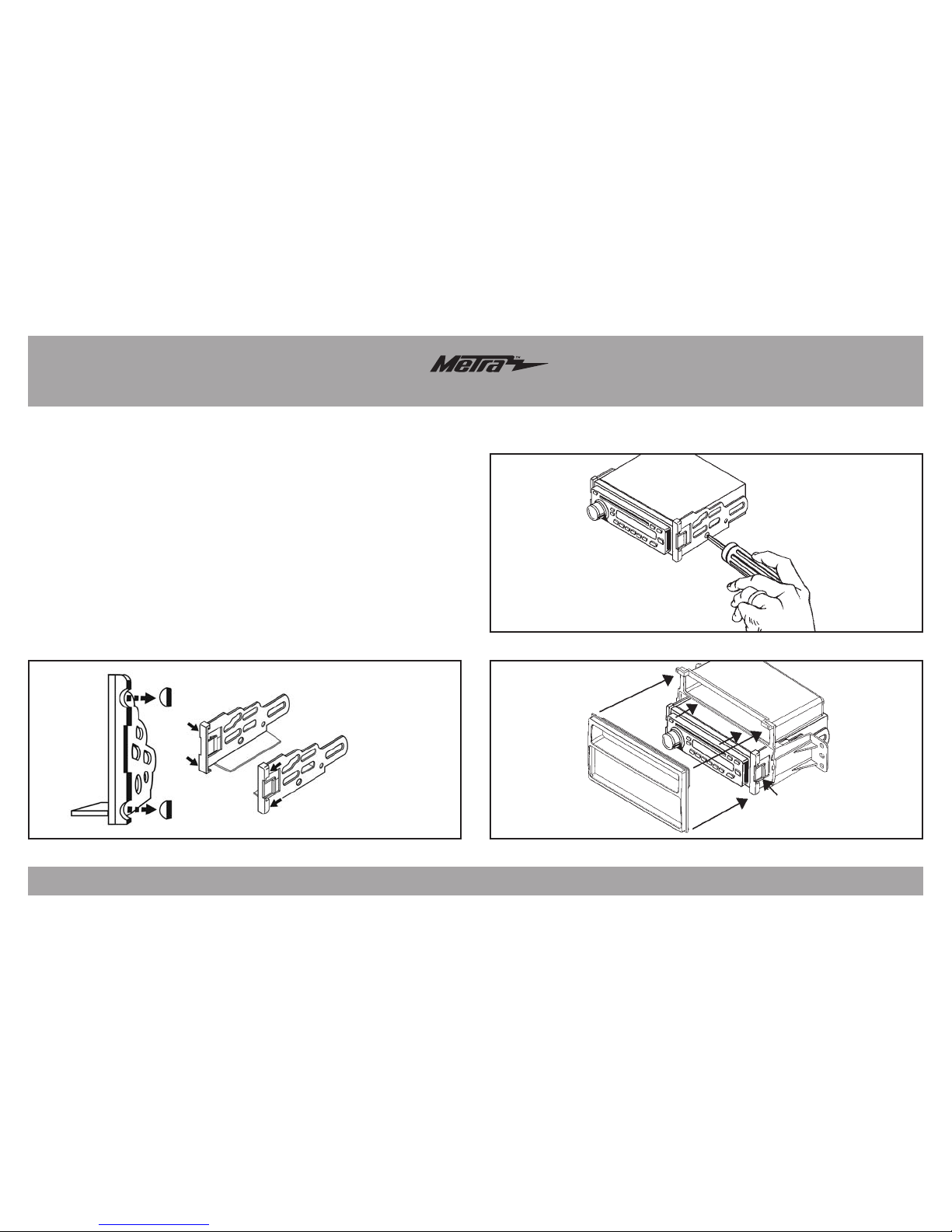

Note: The following modification will
need to be made to both ISO brackets
when using the ISO radio provision. Cut
or trim the area shown from the ISO
bracket. (Figure A)
1. Mount the ISO Brackets to the
aftermarket radio using the screws
supplied with the radio. (Figure B)
2. Slide the radio into the radio housing
until it snaps into place. (Figure C)
3. Attach the trim plate supplied with
the kit to the front of the radio
housing assembly. (Figure C)
4. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Re-connect the
negative battery terminal and test
the radio for proper operation.
5. Reassemble dash in reverse order
of disassembly.
(Figure A) (Figure C)
(Figure B)
Front face-right
side bracket
Right side clip
5
Kit Assembly 99-7603
Double DIN radio provision
1. Mount the factory brackets
(removed from factory radio during
disassembly) to the sides of the
double DIN radio using screws
supplied with the double DIN radio.
(Figure A)
2. Place the double DIN trim plate on
the front of the double DIN radio.
(Figure B)
3. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the radio for proper operation.
4. Reassemble dash in reverse order
of disassembly.
(Figure B)
(Figure A)
Notes
Notes
Notes
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 5/16/2014 INST99-7603
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
INSTALLATION INSTRUCTIONS FOR PART 99-7603
APLICACIONES
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 5/16/2014 INST99-7603
PRECAUCIÓN: Metra recomienda desconectar el terminal
negativo de la batería antes de comenzar cualquier
instalación. Todos los accesorios, interruptores y,
especialmente, las luces indicadoras de airbag deben
estar enchufados antes de volver a conectar la batería o
comenzar el ciclo de ignición.
NOTA: Remítase a las instrucciones incluidas con el
radio de postventa.
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7603
• A) Carcasa del radio • B) Soportes ISO • C) Placa de moldura DIN individuales • D) Placa de moldura doble DIN
COMPONENTES DEL KIT
• Destornillador de hoja plana pequeño • Herramienta
de remoción de panel • Destornillador Phillips
HERRAMIENTAS REQUERIDAS
CABLEADO Y CONEXIONES DE ANTENA
Arnés de cableado:
• 70-7552 - Arnés para Nissan 2007 y más
• 70-7553 - Amplificador de arnés de la integración
Nissan 2007 y más
Adaptador de antena:
• 40-NI12 - Radio de mercado secundario Nissan
2007 y más
(se venden por separado)
A
• Provisión de radio DIN con bolsillo
• Provisión de radio ISO con bolsillo
• Provisión de radio doble DIN
CARACTERÍSTICAS DEL KIT
Nissan Versa 2007-2011
99-7603
BCD
99-7603
2
Desmontaje del tablero
– Nissan Versa 2007-2011 ................................................................................2-3
Ensamble del kit
– Provisión de radio DIN con bolsillo ..................................................................... 3
– Provisión de radio ISO con bolsillo ..................................................................... 4
– Provisión de radio doble DIN .............................................................................. 5
Indice
1. Desenganche y quite el panel
de moldura de arriba del radio.
(Figura A, B)
2. Quite los (2) tornillos Phillips que
sostienen el panel de la moldura
del radio y luego desenganche
y quite todo el panel que rodea
el radio y los controles del aire
acondicionado. (Figura C)
Continúa en la página
Nissan Versa 2007-2011
(Figura C)(Figura A)
(Figura B)
