INSTALLATION INSTRUCTIONS FOR PART 99-7320

1-800-221-0932 www.metraonline.com

KIT FEATURES

• DIN head unit provision

A) Radio Housing

KIT COMPONENTS

TOOLS REQUIRED:

99-7320

APPLICATIONS

Hyundai Sonata

2006-2008

Phillips Screwdriver • Small Flat Blade Screwdriver

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

• 70-5520 - Ford harness 2003-up

Antenna Adapter:

• Not required

Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TABLE OF CONTENTS

99-7320

NOWLEDGE IS

OWER

Enhance your installation and fabrication skills

by enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com

or call 800-354-6782 for more information

and take steps toward a better tomorrow.

99-7320

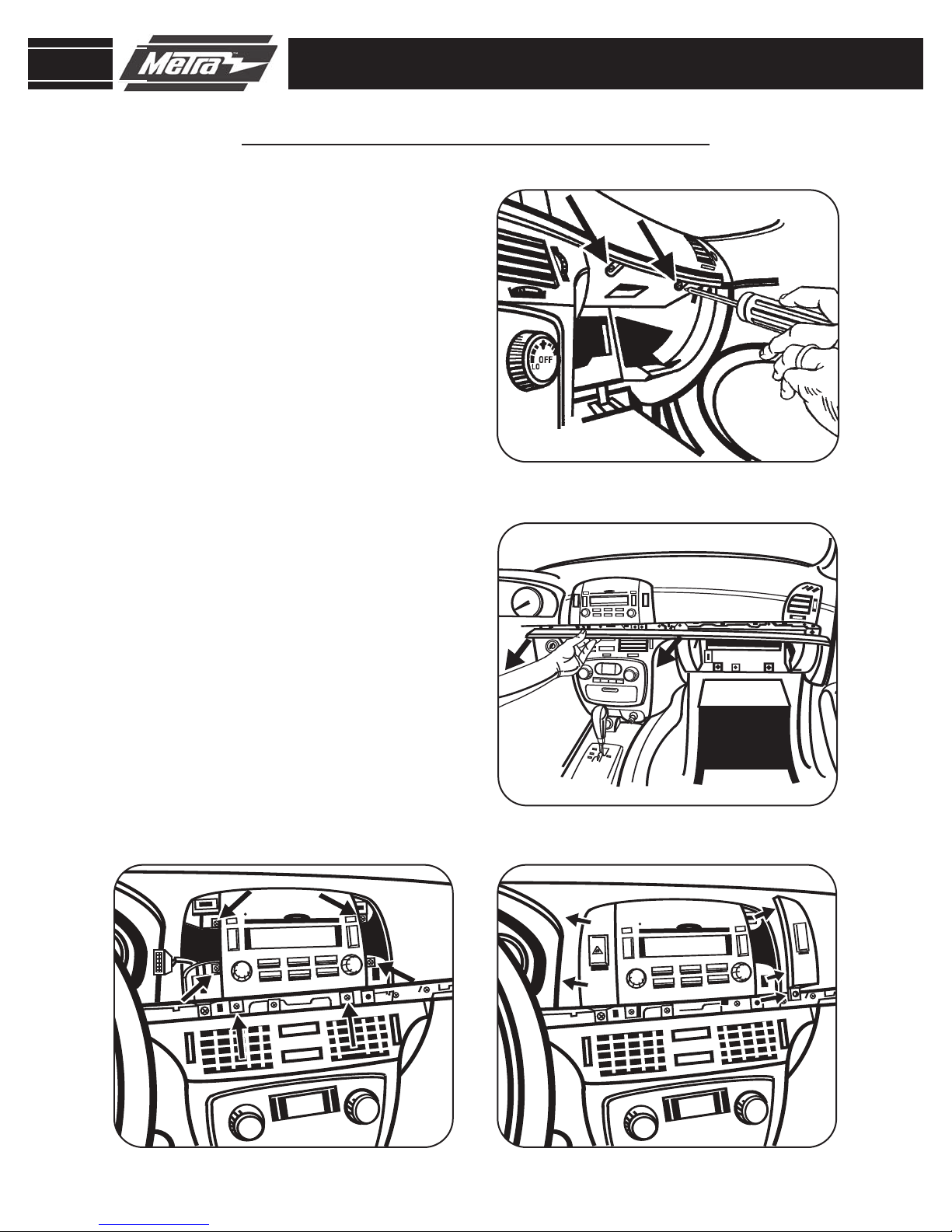

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Open glove box and remove (2)

Phillips screws from top edge of

glove box opening and bottom edge

of wood trim below radio.

(Figure A)

HYUNDAI SONATA 2006-2008

Unclip and remove wood trim from

below radio and above glove box.

(Figure B)

Remove (1) Phillips screw per side

panel next to radio then unclip and

remove panels.

(Figure C)

Remove (6) Phillips screws from

radio to extract from sub dash.

(Figure D)

DASH DISASSEMBLY

OFF

AUTO

FM1 95.7

2 14

FM1 95.7

2 14

99-7320

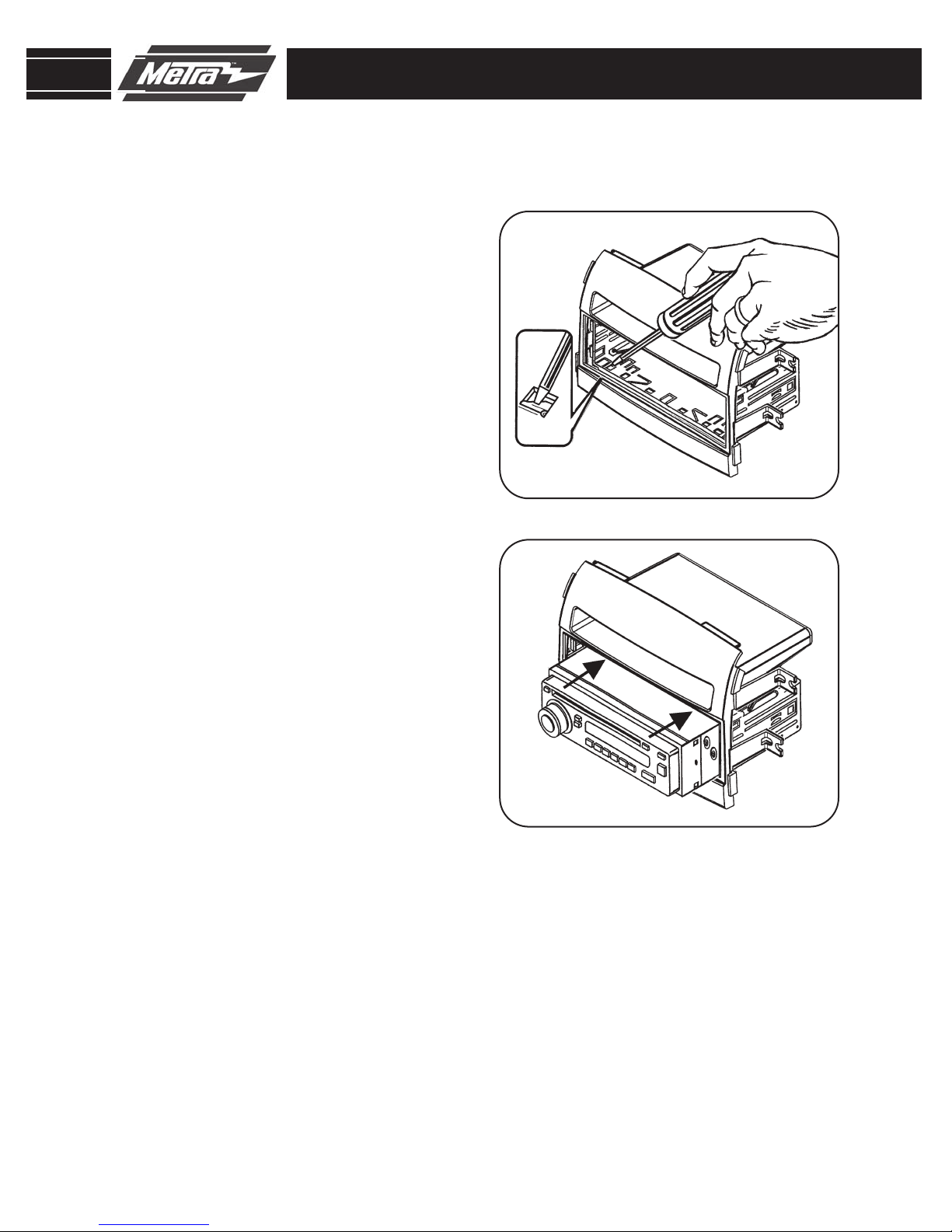

KIT ASSEMBLY

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage and secure. (

Figure B)

DIN HEAD UNIT PROVISION

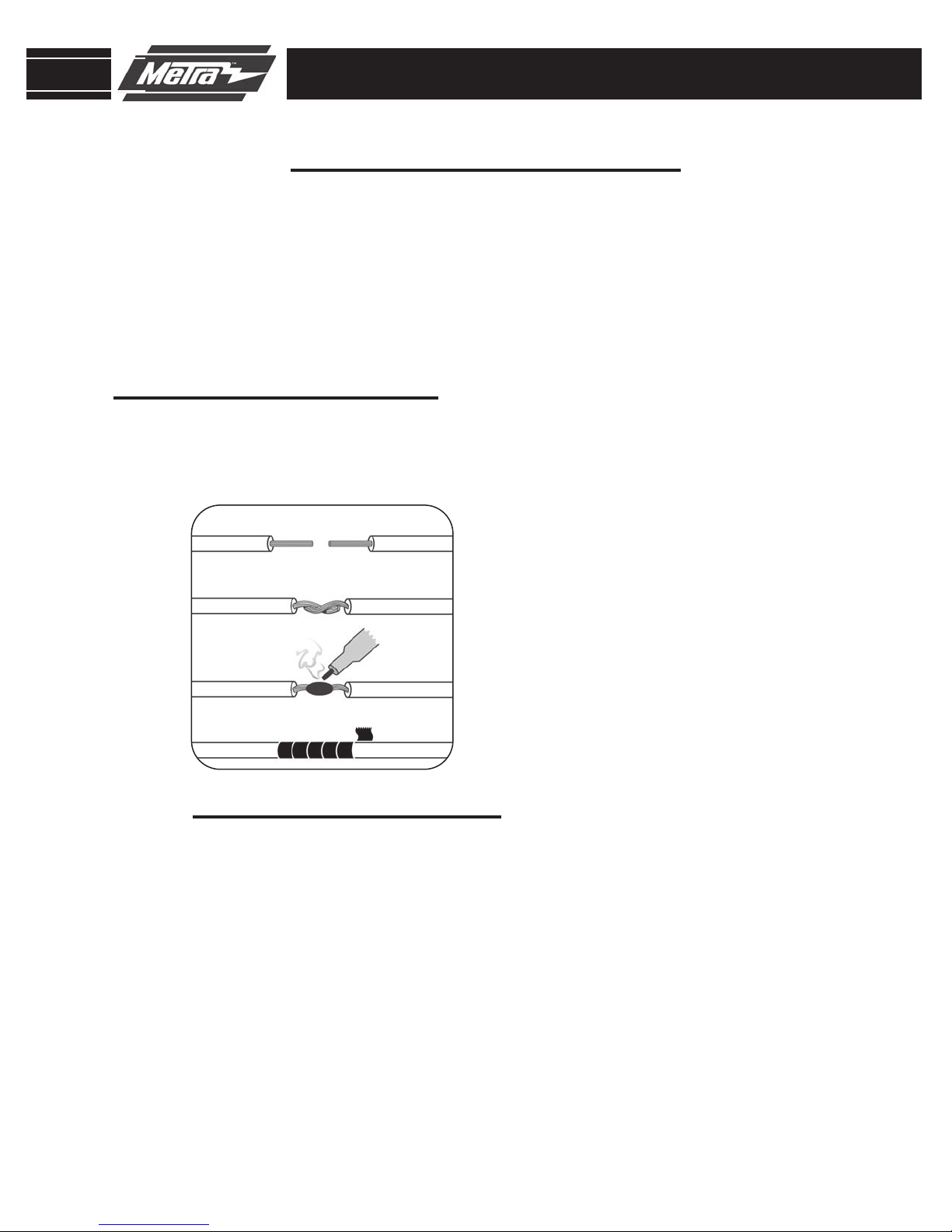

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-) . . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-7320

KIT ASSEMBLY

99-7320 INSTRUCTIONS

1-800-221-0932 www.metraonline.com

INST99-7320

REV. 06/19/09
