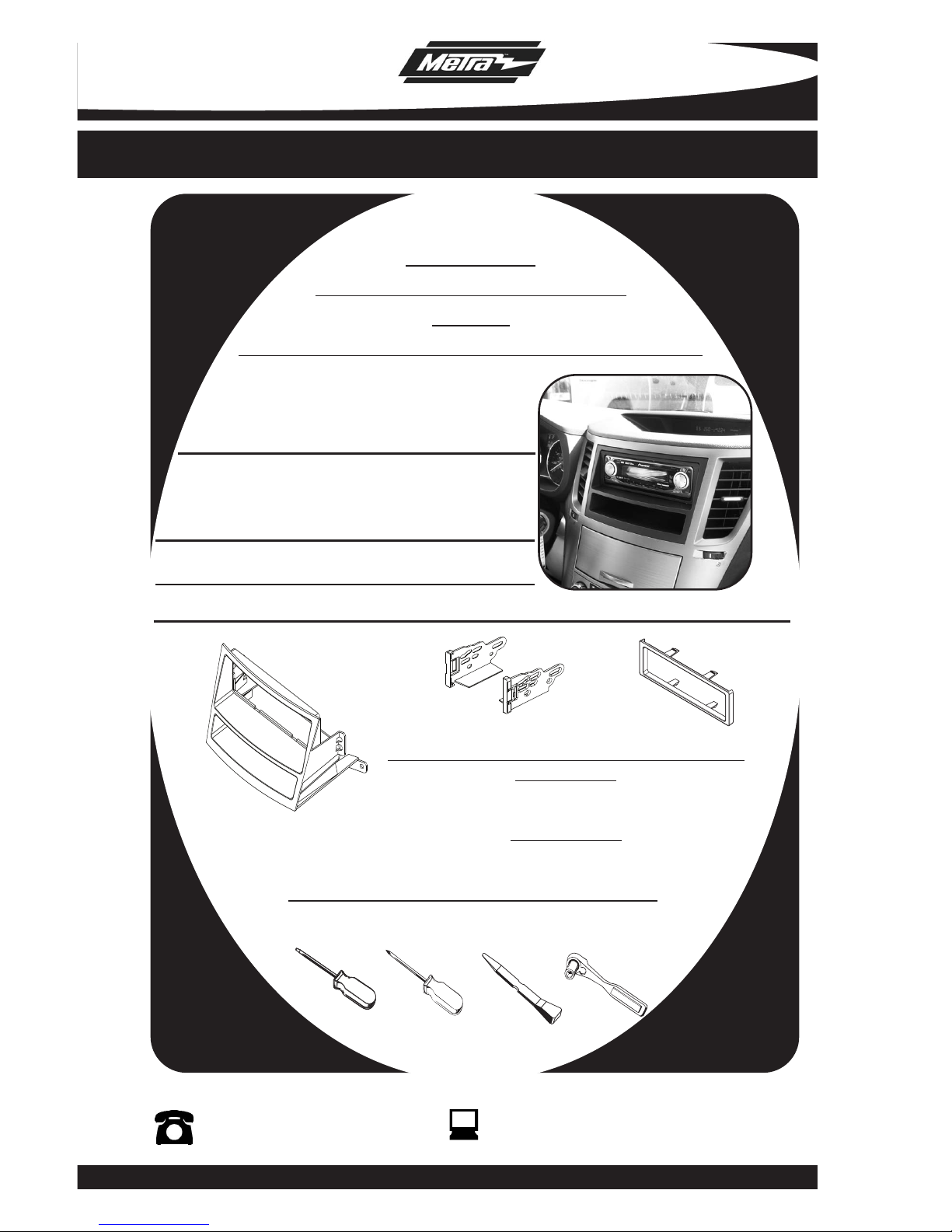

INSTALLATION INSTRUCTIONS FOR PART 99-8903B

APPLICATIONS

SUBARU

LEGACY & OUTBACK

2010

(FOR NON-NAVIGATION RADIOS ONLY)

KIT FEATURES

•DIN radio provision with pocket

•ISO radio provision with pocket

•Painted scratch resistant matte black

A) Radio Housing B) ISO Brackets C) Trim plate

KIT COMPONENTS

TOOLS REQUIRED:

•Small Flat Blade Screwdriver • Phillips Screwdriver

•Panel Removal Tool • Socket Wrench

1-800-221-0932

www.metraonline.com

99-8903B

METRA. THE WORLD’S BEST KITS.™

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

•70-8901 Subaru Harness 1990-Up

•70-7552 Nissan Harness 2007-Up

Antenna Adapter:

•40-SB10 Subaru Antenna Adapter 2005-Up

Dash Disassembly

-2010 Subaru Legacy . . . . . . . . . . .

..........................

-2010 Subaru Outback . . . . . . . . . .

..........................

Kit Assembly

-DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TABLE OF CONTENTS

99-8903B

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

Metra recommends MECP certified

technicians.

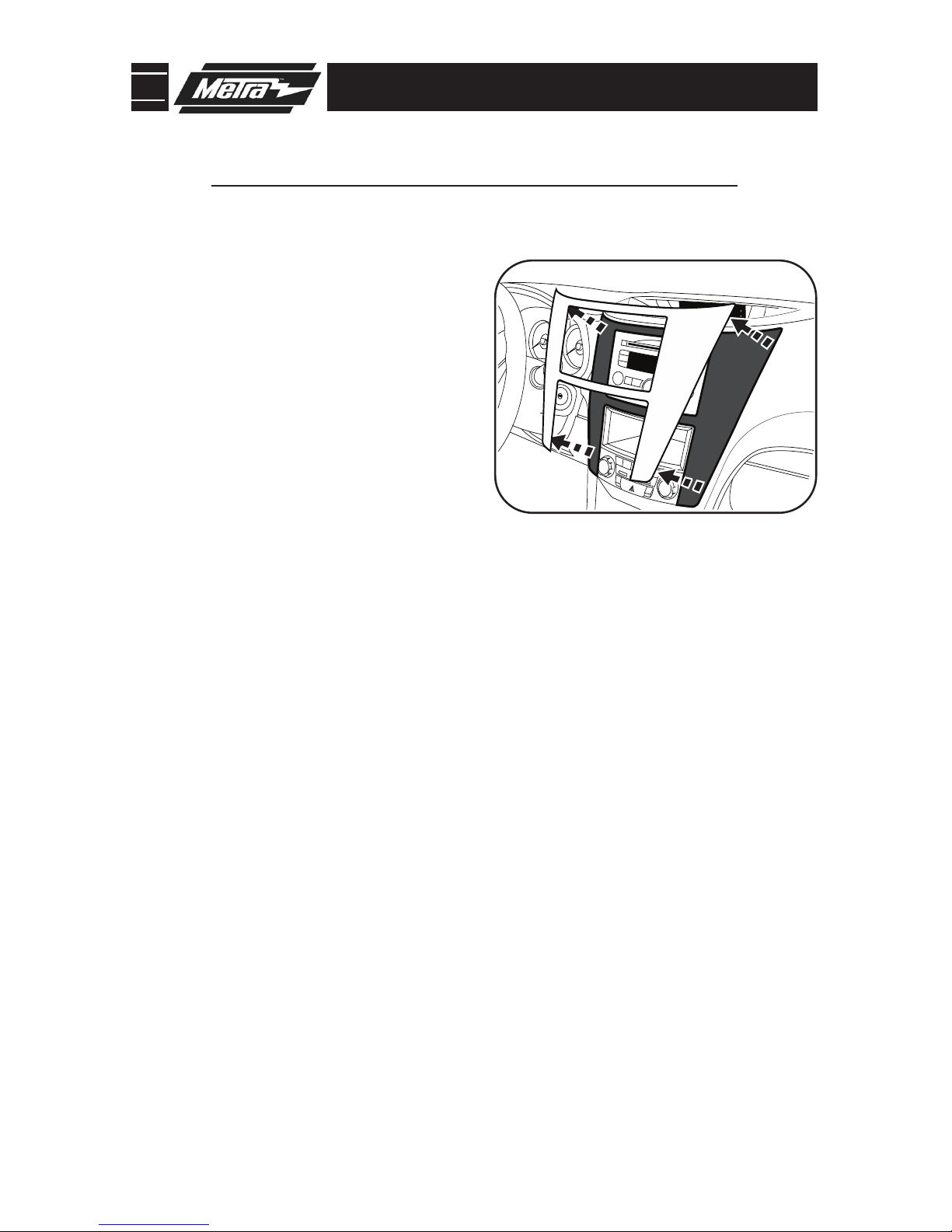

99-8903B DASH DISASSEMBLY

2010 SUBARU LEGACY / OUTBACK

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the radio trim

panel including the a/c vents.

(

Figure A)

Remove (4) Phillips screws securing

the factory radio.

99-8903B KIT ASSEMBLY

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

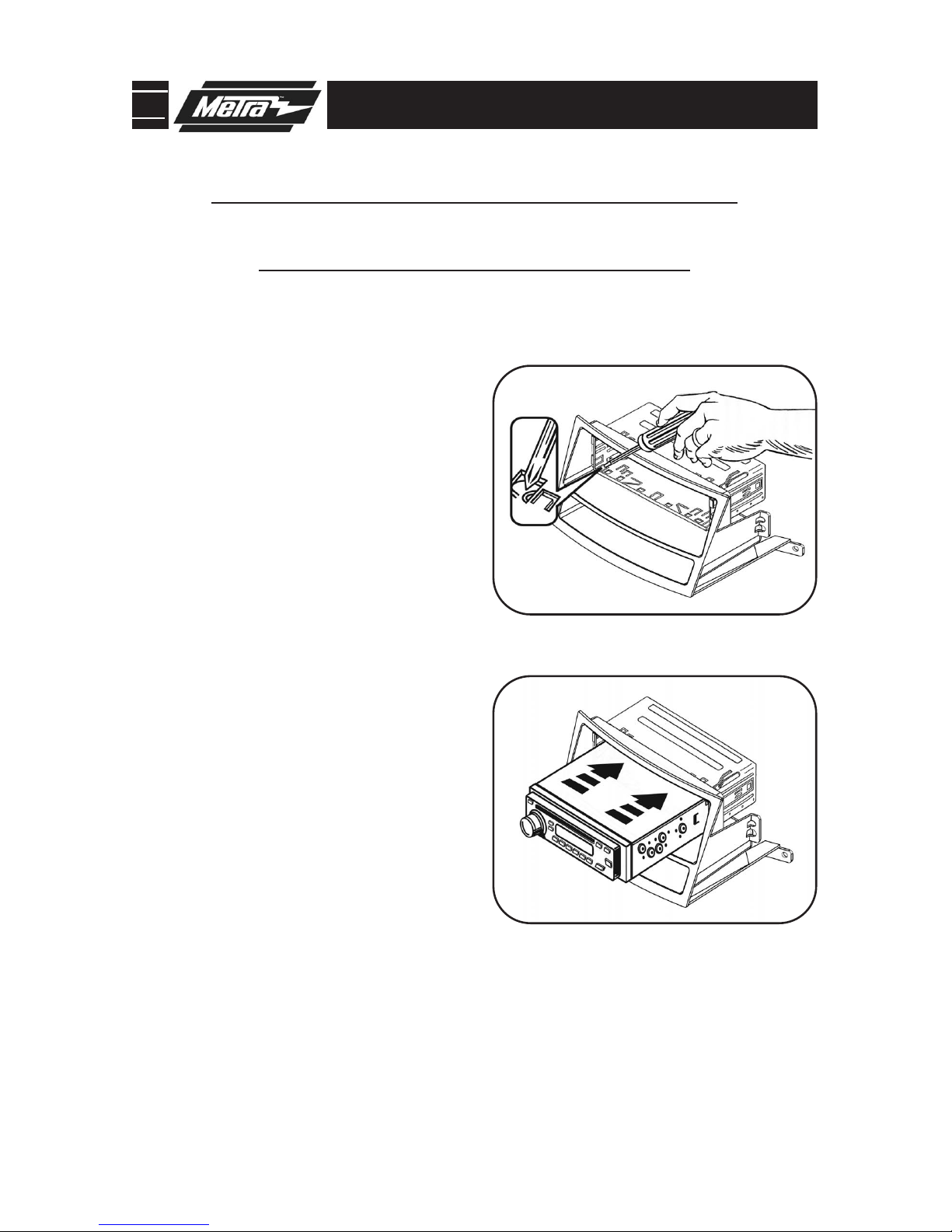

Slide the DIN cage into the Radio

Housing and securebybending the

metal locking tabs down. (Figure A)

Slide the aftermarket head unit into

the cage and secure. (Figure B)

Reassemble dash in reverse order of

disassembly.

2010 SUBARU LEGACY / OUTBACK

DIN HEAD UNIT PROVISION

99-8903B KIT ASSEMBLY

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

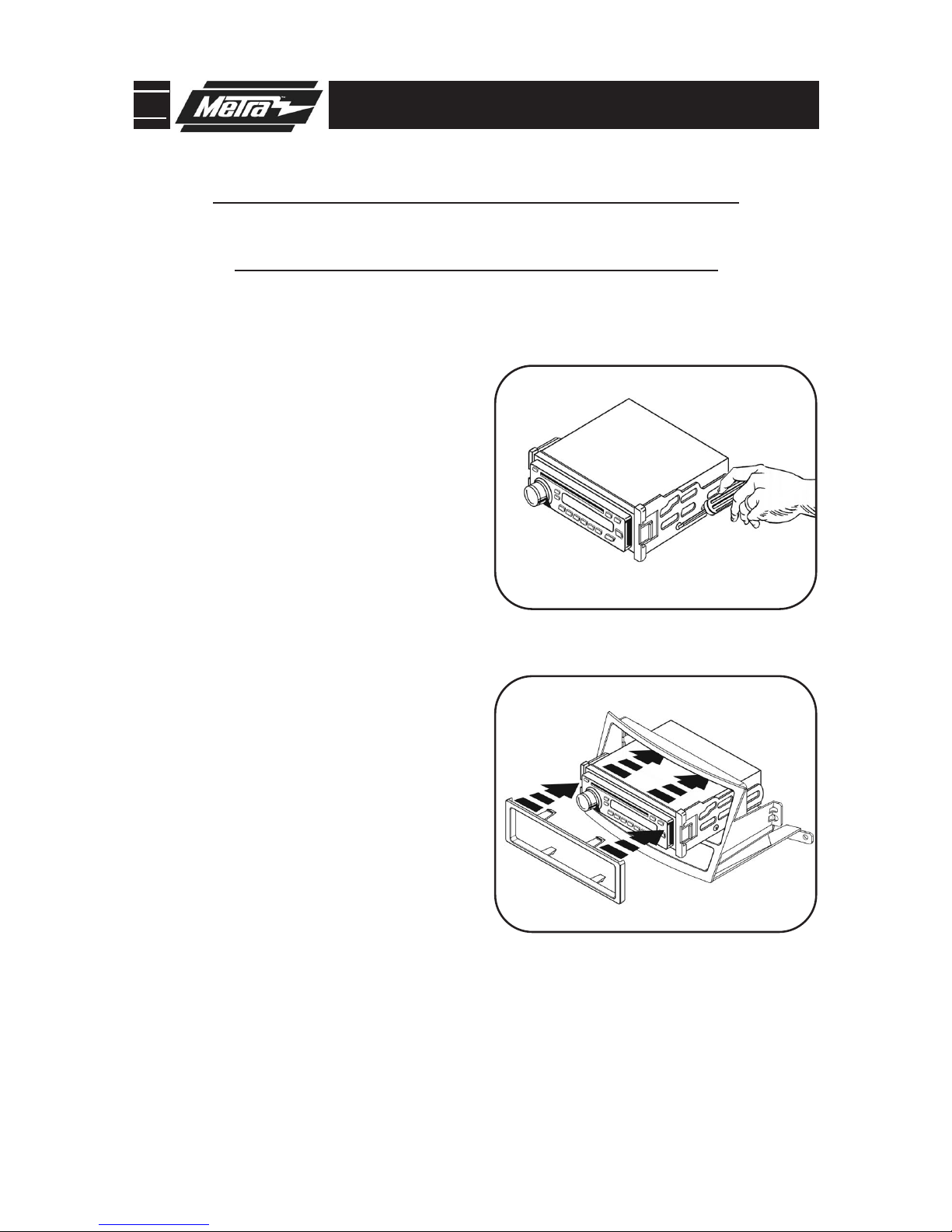

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit. (Figure A)

Slide the head unit into the radio

opening until the side clips engage.

(Figure B)

Snap the Trim plate into the Radio

Housing.(FigureB)

Reassemble dash in reverse order of

disassembly.

2010 SUBARU LEGACY / OUTBACK

ISO DIN HEAD UNIT PROVISION

NOTES

99-8903B

NOTES

99-8903B

306

INSTRUCTIONS

1-800-221-0932

www.metraonline.com

99-8903B INSTRUCTIONS

METRA. THE WORLD’S BEST KITS.™
