APPLICATIONS

REV. 2/19/2014 INST99-7335S

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

INSTALLATION INSTRUCTIONS FOR PART 99-7335S

• DIN radio provision with pocket

• ISO Mount radio provision with pocket

• Double DIN radio provision

• Painted to match factory dash, “S”=Silver

KIT FEATURES

Hyundai Veracruz Limited 2007-2012

99-7335S

• A) Radio housing • B) ISO Brackets • C) ISO Trim plate • D) Double DIN brackets

• E) Double DIN trim plate • F) Pocket

KIT COMPONENTS

A B C D

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1004 - KIA/Hyundai 2004-up

• 70-7303 - KIA/Hyundai 2009

Antenna Adapter:

• 40-KI11 - KIA 2007-up

• Small flat blade screwdriver • Panel removal tool

• Phillips screwdriver

TOOLS REQUIRED

E F

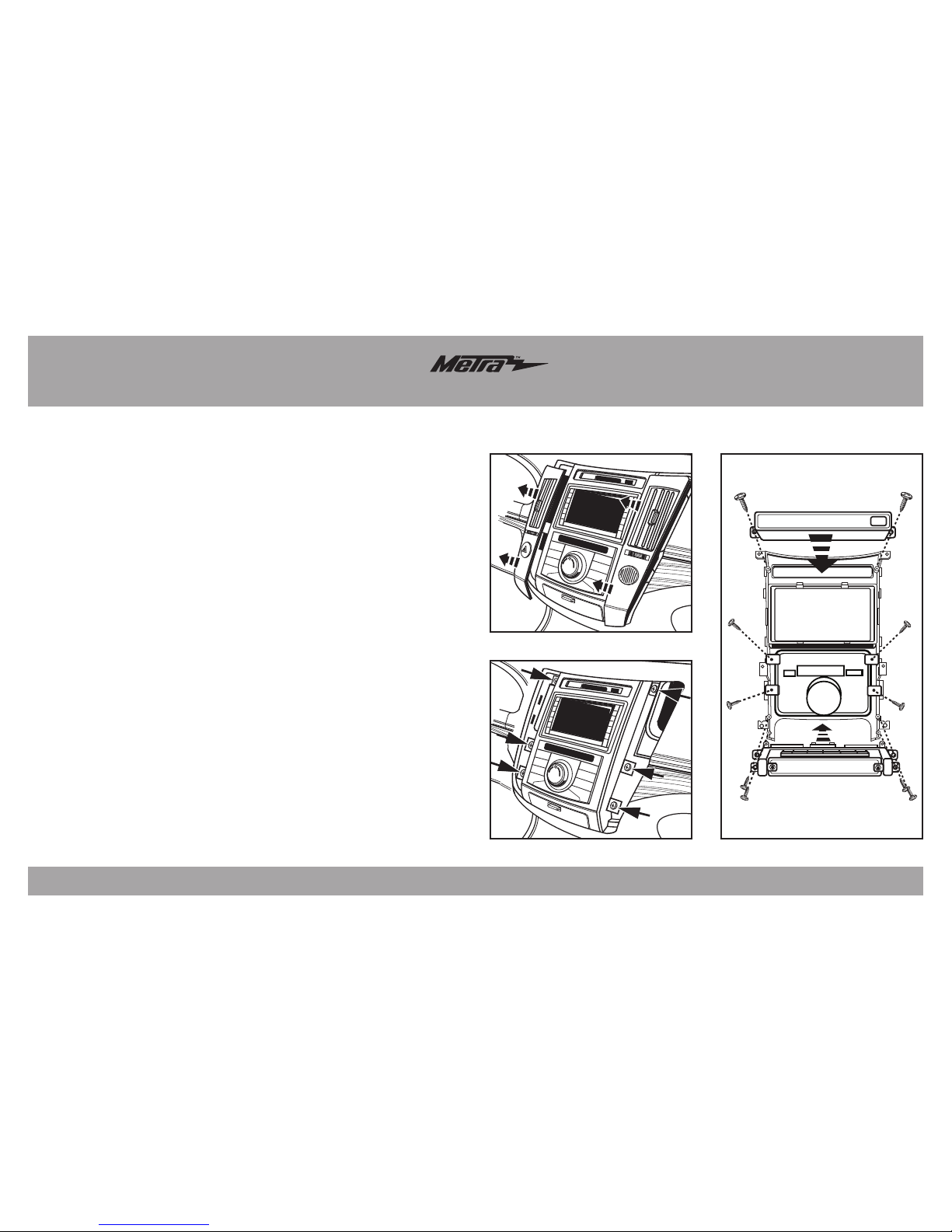

Dash Disassembly 99-7335S

1. Unclip and remove the side

trim panels.

Tip: Start at the bottom of

the panels. (Figure A)

2. Remove (6) Phillips head

screws securing the radio

trim panel and remove trim

panel. (Figure B)

3. Remove (4) Phillips screws

securing the climate

control, (2) Phillips screws

securing the clock display

and (4) Phillips screws

securing the pocket from

the radio trim panel.

(Figure C)

Continue to kit preparation

Hyundai Veracruz Limited 2007-2012

(Figure A)

(Figure C)(Figure B)

Dash Disassembly

– Hyundai Veracruz Limited 2007-2012

(Automatic climate control only) ......................... 2

Kit Preparation ............................................... 3

Kit Assembly

– DIN radio provision with pocket .................... 3

– ISO radio provision with pocket .................... 4

– Double DIN radio provision ........................... 5

Table of Contents

CLOCK DISPLAY-REAR VIEW

CLIMATE CONTROL-REAR VIEW

RADIO HOUSING

REAR VIEW

POCKET-REAR VIEW

Pocket, rear view

Clock display, rear view

Radio housing,

rear view

Climate control

Kit Preparation 99-7335S

Hyundai Veracruz Limited

2007-2012

1. Attach the climate control, pocket and the clock display

into the 99-7335S radio housing using the factory

hardware. (Figure A)

Continue to kit assembly

(Figure A)

PUSH

A/C

TEMP

PASSENGER

DUAL

REAR

FRONT

MODE

OFF

AUTO

MANUAL

TEMP

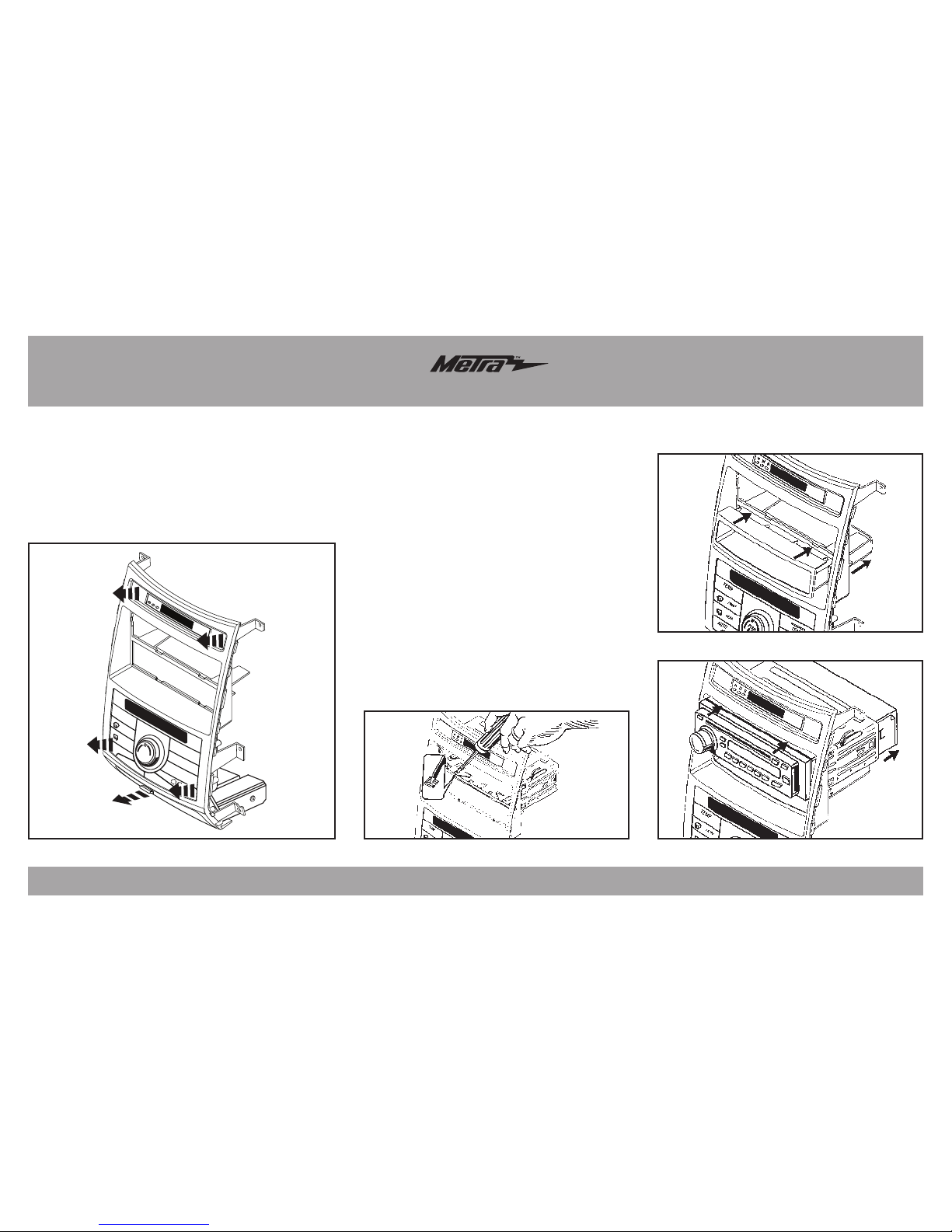

Kit Assembly 99-7335S

1. Slide the DIN cage into the radio housing and

secure by bending the metal locking tabs

down. (Figure A)

2. Snap the pocket into the bottom opening of the

radio housing. (Figure B)

3. Slide the aftermarket radio into the cage and

secure. (Figure C)

4. Locate the factory wiring harness in the dash.

Metra recommends using the proper mating

adapter from Metra or AXXESS. Re-connect the

negative battery terminal and test the radio for

proper operation.

5. Reassemble dash in reverse order

of disassembly.

(Figure B)

(Figure C)

DIN radio provision with pocket

(Figure A)

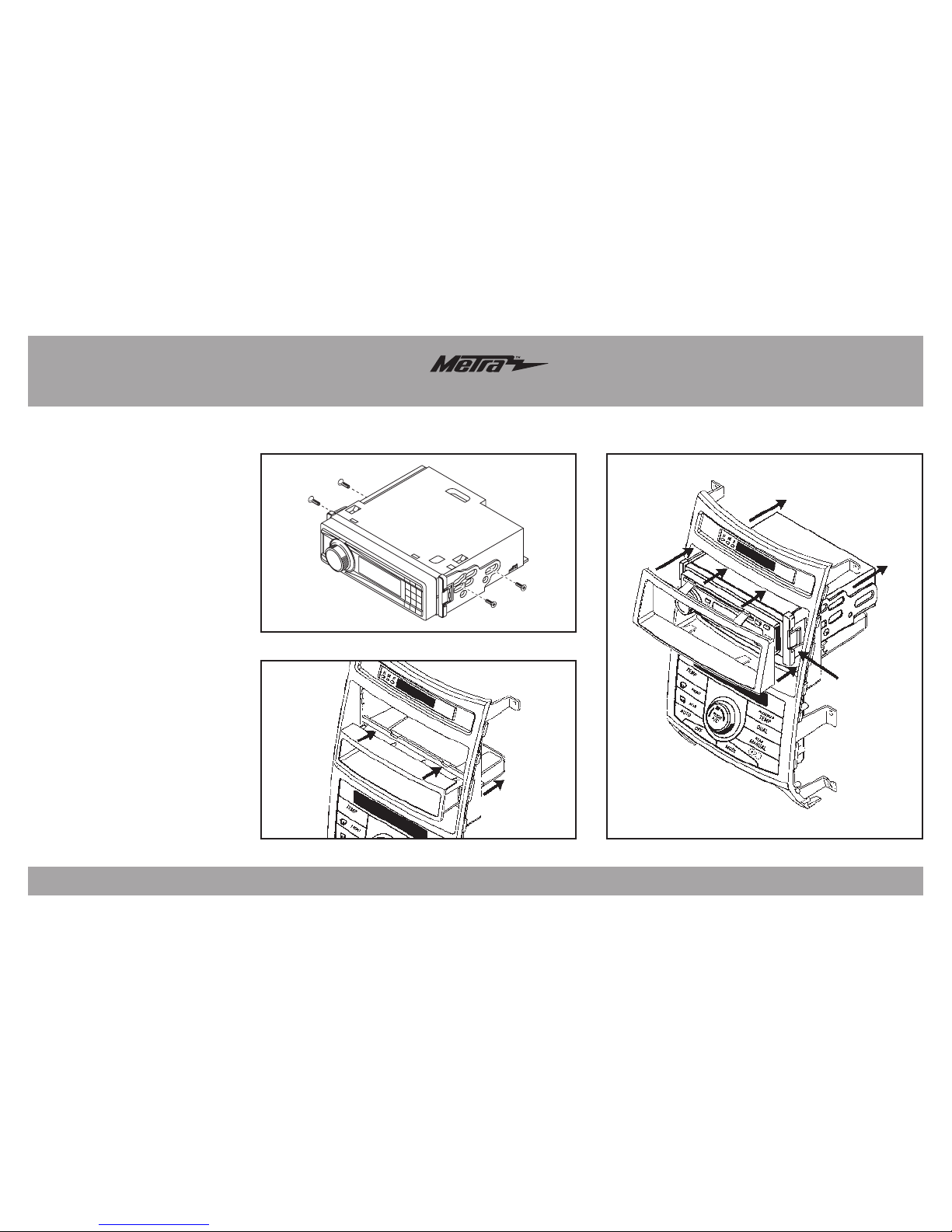

Kit Assembly 99-7335S

1. Mount the ISO brackets to the

radio with the screws supplied

with the radio. (Figure A)

2. Snap the pocket into the bottom

opening of the radio housing.

(Figure B)

3. Slide the radio into the radio

opening until the side clips engage.

(Figure C)

4. Snap the trim plate into the radio

housing. (Figure C)

5. Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapter

from Metra or AXXESS. Re-connect

the negative battery terminal and

test the radio for proper operation.

6. Reassemble dash in reverse order

of disassembly.

ISO radio provision with pocket

(Figure C)

(Figure A)

(Figure B)

Right

side clip

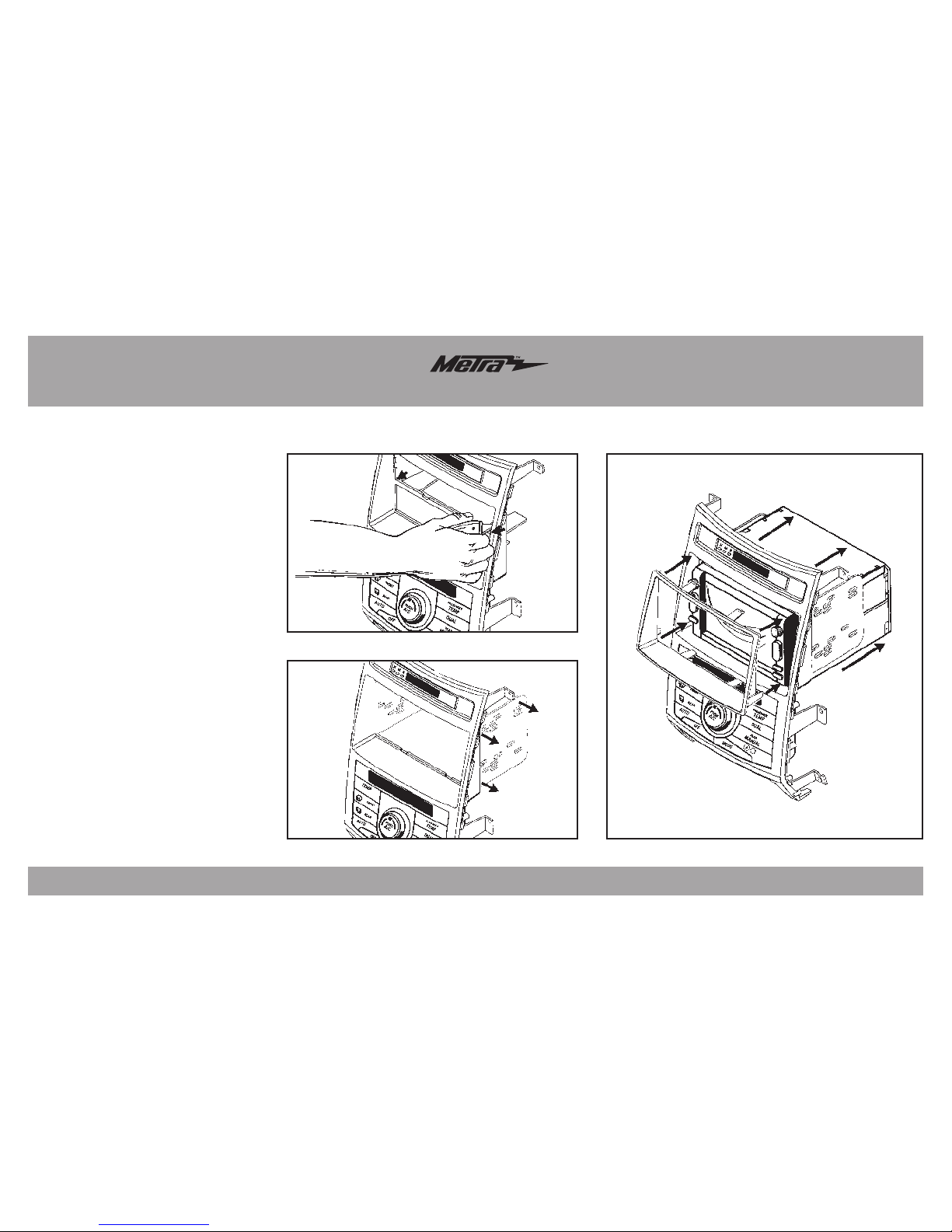

Kit Assembly 99-7335S

1. Cut and remove the center bar from the

radio housing. (Figure A)

2. Snap the double DIN brackets to the

inside edge of the double DIN trim plate.

(Figure B)

3. Slide the double DIN radio into the

bracket/radio housing assembly and

secure the double DIN radio to the

assembly using the screws supplied

with the radio. (Figure C)

4. Snap the double DIN trim plate into the

radio housing. (Figure C)

5. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the radio for

proper operation.

6. Reassemble dash in reverse order

of disassembly.

Double DIN radio provision

(Figure C)

(Figure A)

(Figure B)

99-7335S

Notes

99-7335S

Notes

REV. 2/19/2014 INST99-7335S

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS FOR PART 99-7335S
