Metra Electronics 99-5807 Manuel utilisateur

REV. 9/9/2015 INST99-5807

Installation instructions for part 99-5807

CAUTION!

Metra recommends disconnecting the negative bat

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• A) Radio housing (a) • B) Radio housing (b) • C) ISO DDIN brackets • D) ISO brackets • E) ISO trim plate

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• Please visit metraonline.com for more information

Antenna Adapter:

• 40-CR10

See inside front cover

• Cutting tool • Phillips screwdriver • Socket set

APPLICATIONS

TOOLS REQUIRED

Ford, Lincoln, Mercury 2004-2010

(see inside front cover for applications)

99-5807

A B C D

99-5807

Table of Contents

Dash Disassembly

FORD

- Edge 2007-2008.............................3

- Expedition 2007-2008.....................3

- Explorer 2006-2010 ........................3

- Explorer Sport Trac 2006-2010........3

- F-150 2004-2006 ...........................3

- Five-Hundred 2005-2007................4

- Freestyle 2005-2007.......................5

- Mustang 2005-2009 .......................6

- Taurus 2008-2009...........................4

- Taurus X 2008-2009........................5

LINCOLN

- Mark LT 2006-2008 ........................3

MERCURY

- Montego 2005-2007 .......................4

- Mountaineer 2006-2010 .................3

- Sable 2008-2009 ............................4

Kit Assembly

–DIN radio provision with pocket......7

– ISO DIN radio provision w/ pocket ..7

– ISO DDIN radio provision ................8

Applications

FORD

Edge 2007-2008

Expedition 2007-2008

Explorer 2006-2010

Explorer Sport Trac 2006-2010

F-150 2004-2006

Five-Hundred 2005-2007

Freestyle 2005-2007

Mustang 2005-2009

Taurus/Taurus X 2008-2009

LINCOLN

Mark LT 2006-2008

MERCURY

Montego 2005-2007

Mountaineer 2006-2010

Sable 2008-2009

99-5807

(Figure A)

(Figure B)

(Figure C)

Dash Disassembly

(Figure A)

(Figure B)

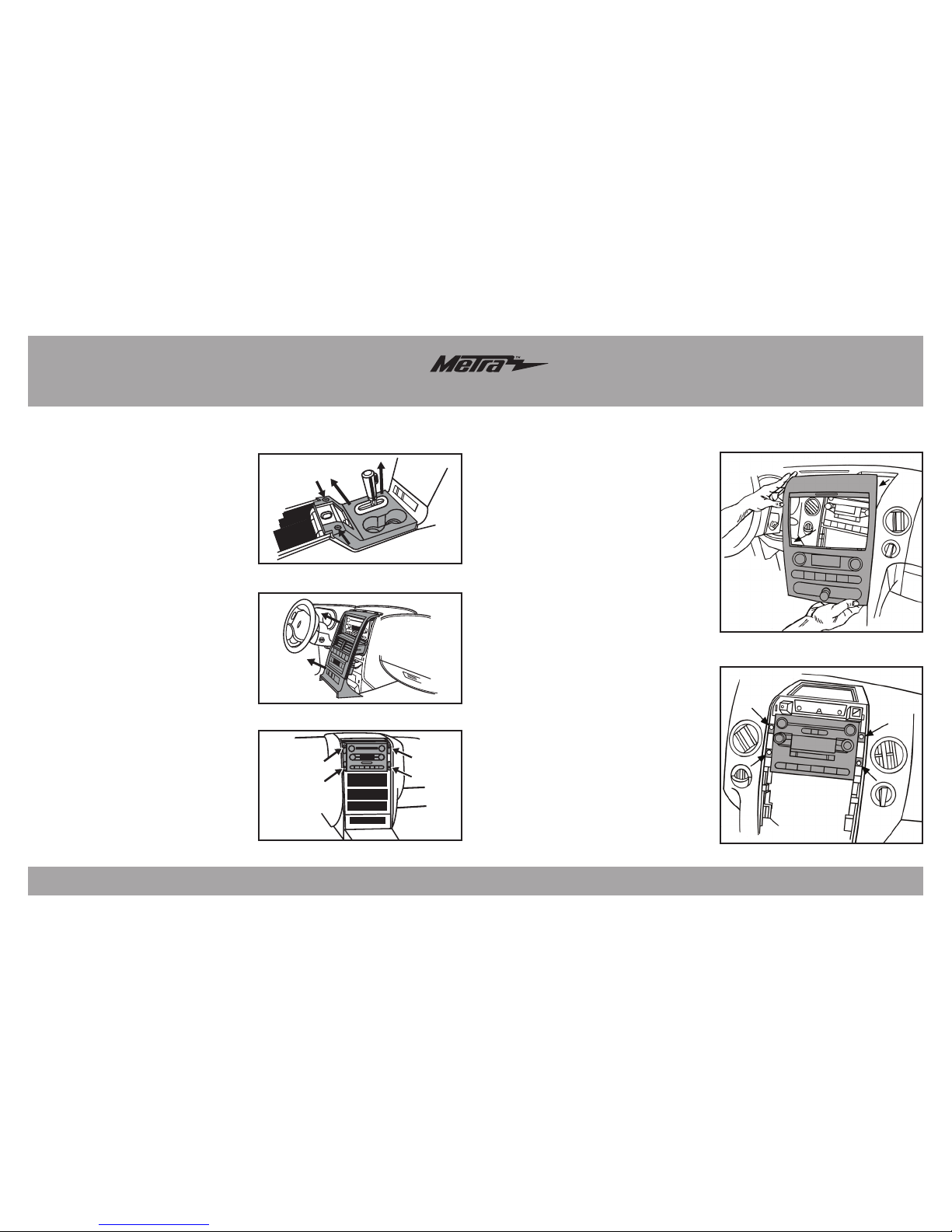

Ford Edge 2007-2008,

Expedition 2007-2008,

F-150 2004-2006/

Lincoln Mark LT 2006-2008

1. Unsnap and remove the entire

panel surrounding the radio and

climate controls. (Figure A)

2. Remove (4) 9/32” Phillips screws

securing the radio to the dash and

then remove. (Figure B)

Continue to kit assembly

Ford Explorer 2006-2010,

Explorer Sport Trac 2006-2010/

Mercury Mountaineer 2006-2010

1. Open the center console and

remove (2) Phillips head screws,

and then unclip and remove the

entire panel surrounding the

shifter. (Figure A)

Remove the dash panel surrounding

the radio to access the factory

radio screws. (Figure B)

3. Remove (4) 9/32” screws securing

the radio to the dash and then

remove. (Figure C)

Continue to kit assembly

99-5807

Dash Disassembly

(Figure E)

(Figure D)

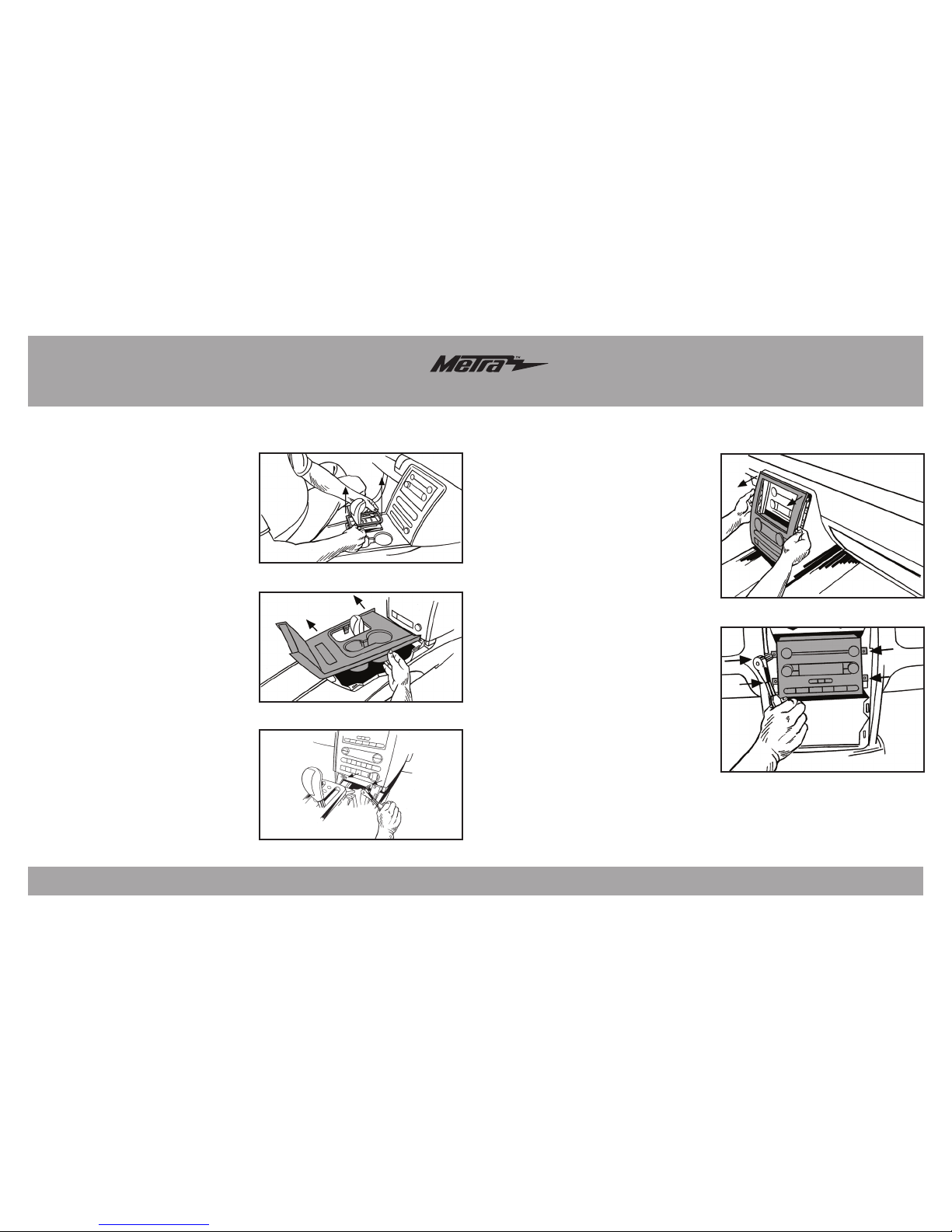

Ford Five Hundred 2005-2007,

Taurus 2008-2009/

Mercury Montego

2005-2007,

Sable 2008-2009

1. Unclip and remove the small

rectangular trim around the shift

lever. (Figure A)

2. Unclip and remove the entire

panel (including cup holders)

surrounding the shift lever.

(Figure B)

3. Remove (2) 9/32” screws at

the bottom center of the radio/

climate-control panel. (Figure C)

4. Unclip and remove the panel.

(Figure D)

5. Remove (4) 9/32” screws

securing

the radio to the dash and

then remove

. (Figure E)

Continue to kit assembly

(Figure A)

(Figure B)

(Figure C)

99-5807

Ford Freestyle 2005-2007,

Ford Taurus X 2008-2009

Note: Refer also to the instructions

included with the aftermarket radio.

1. Unsnap and remove the entire

panel surrounding the radio and

climate controls. (Figure A)

2. Remove (4) 9/32” screws securing

the radio to dash and then remove.

(Figure B)

Continue to kit assembly

Dash Disassembly

(Figure B)

(Figure A)

99-5807

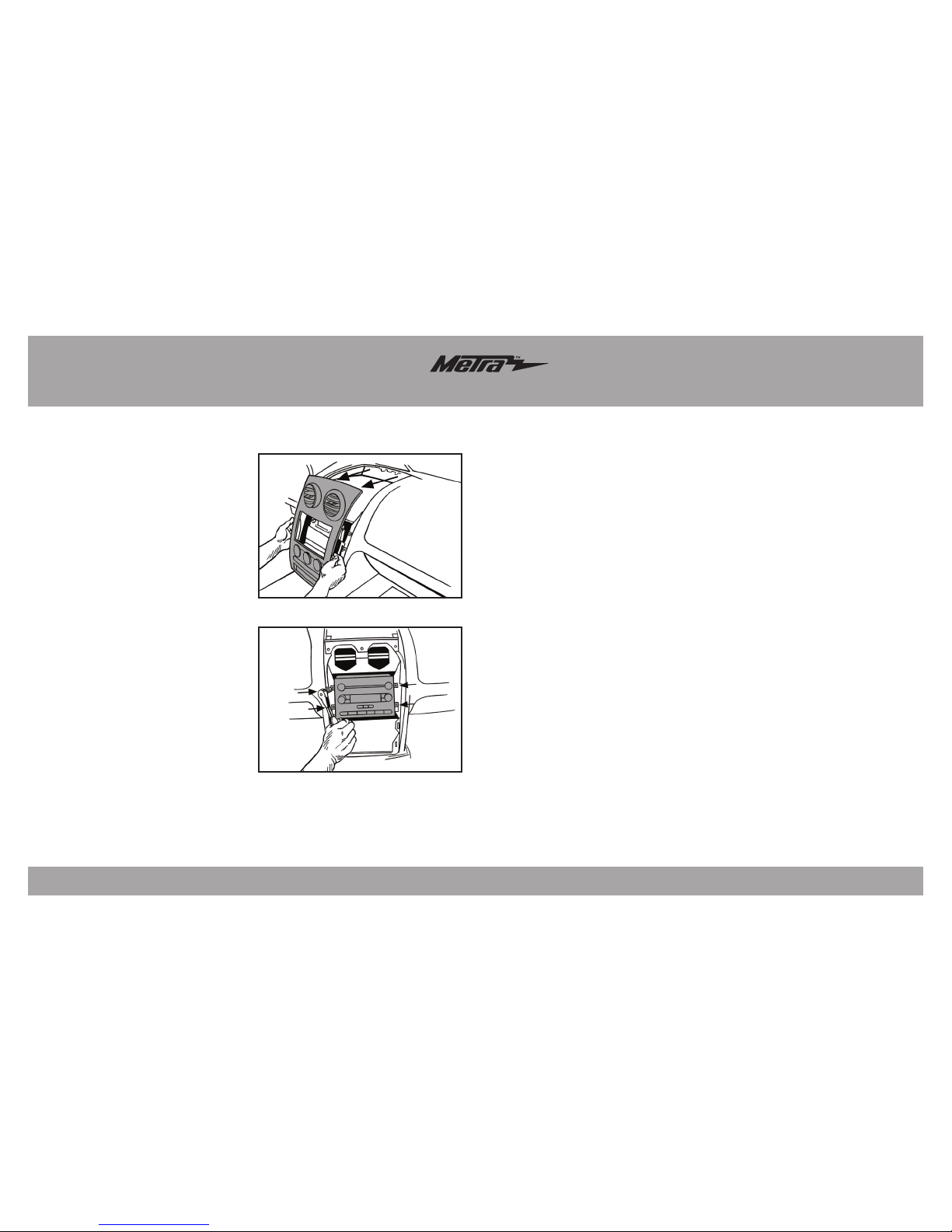

Ford Mustang 2005-2009

1. If equipped, remove the small

rectangular trim surrounding the

shifter. (Figure A)

Remove (2) Phillips head screws

from under the center of the

armrest at the back of the shifter

trim panel (including cup holders),

and then unclip and remove the

panel. (Figure B)

3. Unclip and remove the (2) center

stack trim panels from the left and

right side of the radio and climate

controls. (Figure C)

4. Remove (6) 9/32” screws from

the center trim panel surrounding

the radio and climate controls,

then unclip and remove the panel.

(Figure D)

5. Remove (4) screws securing the

radio, and then remove. (Figure E)

Continue to kit assembly

Dash Disassembly

(Figure E)

(Figure D)

(Figure A)

(Figure B)

(Figure C)

99-5807

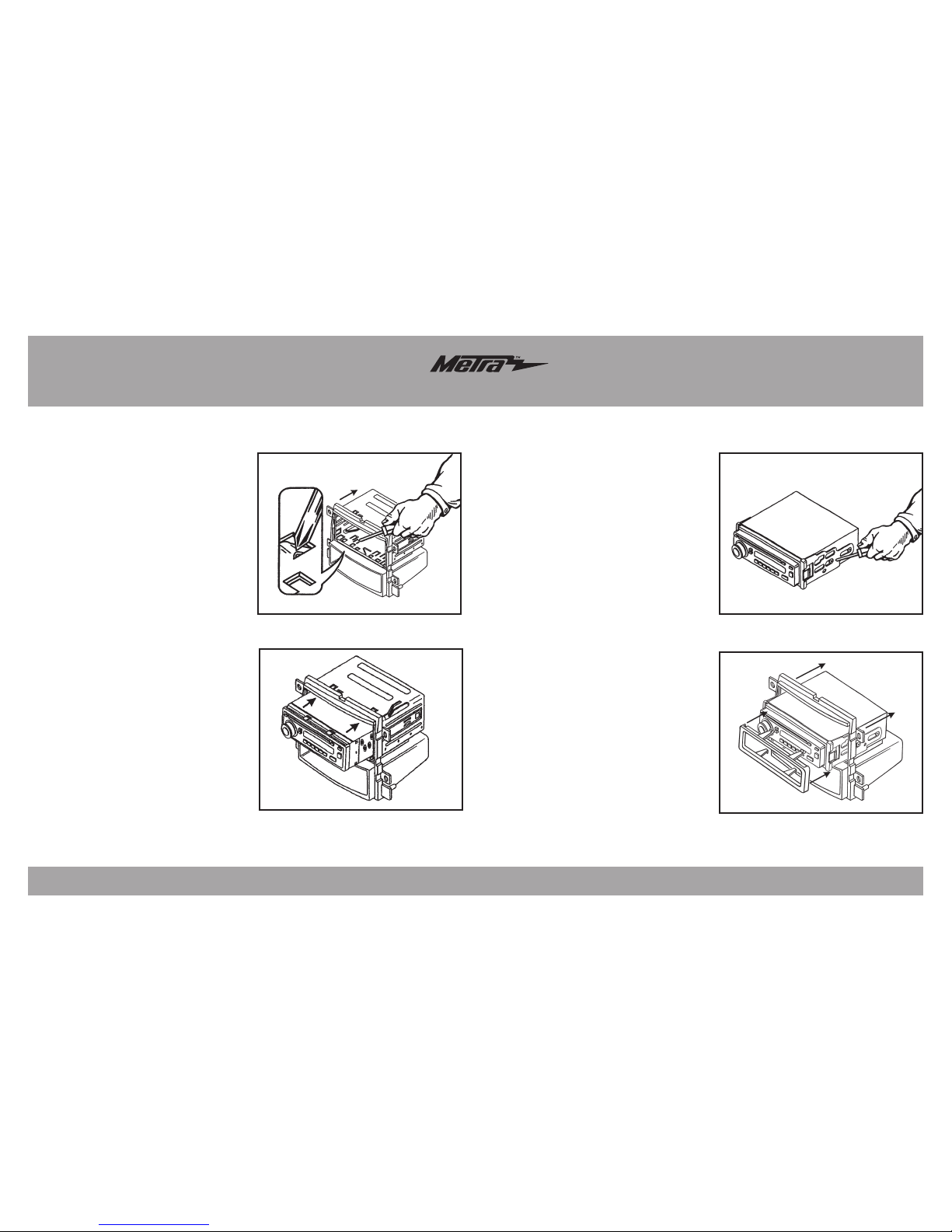

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and

trim ring from the aftermarket radio.

2. Secure the ISO Brackets to the

radio using the screws supplied

with the radio. (Figure A)

Slide the radio into radio housing (a)

until it snaps into place. (Figure B)

4. Snap the the ISO trim plate into

radio housing (a).

5. Locate the factory wiring harness

and antenna connector in the

dash and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the radio

for proper operation.

6. Reassemble the dash in reverse

order of disassembly. (Figure B)

(Figure A)

Kit Assembly

DIN radio provision with pocket

1. Remove the metal DIN sleeve from

the aftermarket radio.

2. Slide the sleeve into radio housing

(a) and secure by bending the metal

locking tabs down. (Figure A)

3. Slide the radio back into the sleeve

until it clicks in. (Figure B)

4. Locate the factory wiring harness

and antenna connector in the

dash and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the radio

for proper operation.

5. Reassemble the dash in reverse

order of disassembly.

(Figure B)

(Figure A)

REV. 9/9/2015 INST99-5807

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Installation instructions for part 99-5807

IMPORTANT

If you are having difficulties with the

installation of this product, please call our

Tech Support line at 1-800-253-TECH.

Before doing so, look over the instructions a

second time, and make sure the installation

was performed exactly as the instructions

are stated. Please have the vehicle apart

and ready to perform troubleshooting steps

before calling.

ISO DDIN radio provision

Using a utility knife, carefully cut out the

center divider from radio housing (a).

Slide the ISO double DIN brackets over the

mounting legs of radio housing (a), aligning

the holes together. (Figure B)

From the back, slide the radio between the

completed assembly, and then secure the radio

using the screws supplied with the radio. (Figure C)

Note: The notch in the housing

should be on top.

(Figure B)

(Figure C)

(Figure A)

Kit Assembly

REV. 9/9/2015 INST99-5807

Instrucciones de instalación para la pieza 99-5807

¡PRECAUCIÓN!

Meta recomienda desconectar la terminal negativa

de la batería antes de iniciar cualquier instalación, a menos que el

fabricante del vehículo recomiende lo contrario. Verifique con su

concesionario local si existe más información. Todos los accesorios,

interruptores, paneles de controles de clima y especialmente las lu-

ces del indicador de las bolsas de aire deben estar conectados antes

de reconectar la batería o ciclar la ignición. Además, no quite el radio

de fábrica con la llave en la posición de encendido ni con el vehículo

funcionando. Sería mejor retirar la llave de la ignición y esperar unos

cuantos segundos antes de quitar el radio de fábrica.

• Provisión de radio DIN con cavidad

• Provisión de radio ISO DIN con cavidad

• Provisión de radio ISO DDIN

• A) Carcasa del radio (a) • B) Carcasa del radio (b) • C) Soportes ISO DDIN • D) Soportes ISO

• E) Placa de moldura ISO

CARACTERÍSTICAS DEL KIT

COMPONENTES DEL KIT

CABLEADO Y CONEXIONES DE ANTENA

(se venden por separado)

Arnés de cableado:

• Visite metraonline.com para más información

Adaptador de antena:

• 40-CR10

Ver interior de la portada

• Herramienta de corte • Destornillador Phillips

• llave de tubo

APLICACIONES

HERRAMIENTAS REQUERIDAS

Ford, Lincoln, Mercury 2004-2010

(ver interior de la portada para aplicaciones)

99-5807

A B C D

99-5807

Indice

Desmontaje tablero

FORD

- Edge 2007-2008.............................3

- Expedition 2007-2008.....................3

- Explorer 2006-2010 ........................3

- Explorer Sport Trac 2006-2010........3

- F-150 2004-2006 ...........................3

- Five-Hundred 2005-2007................4

- Freestyle 2005-2007.......................5

- Mustang 2005-2009 .......................6

- Taurus 2008-2009...........................4

- Taurus X 2008-2009........................5

LINCOLN

- Mark LT 2006-2008 ........................3

MERCURY

- Montego 2005-2007 .......................4

- Mountaineer 2006-2010 .................3

- Sable 2008-2009 ............................4

Ensamble del kit

–Provisión de radio DIN con cavidad 7

–

Provisión de radio ISO DIN con cavidad

– Provisión de radio ISO DDIN ...........8

Aplicaciones

FORD

Edge 2007-2008

Expedition 2007-2008

Explorer 2006-2010

Explorer Sport Trac 2006-2010

F-150 2004-2006

Five-Hundred 2005-2007

Freestyle 2005-2007

Mustang 2005-2009

Taurus/Taurus X 2008-2009

LINCOLN

Mark LT 2006-2008

MERCURY

Montego 2005-2007

Mountaineer 2006-2010

Sable 2008-2009

Autres manuels pour 99-5807

Table des matières

Langues :

Autres manuels Metra Electronics Système stéréo de voiture

Metra Electronics

Metra Electronics 99-7603 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7516B Manuel utilisateur

Metra Electronics

Metra Electronics 99-3000 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3043 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7431 Manuel utilisateur

Metra Electronics

Metra Electronics 99-6505 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3042 Manuel utilisateur

Metra Electronics

Metra Electronics 95-6511 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7376B Manuel utilisateur

Metra Electronics

Metra Electronics 99-8903B Manuel utilisateur

Metra Electronics

Metra Electronics 95-1005 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7009 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7410 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8219 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7378B Manuel utilisateur

Metra Electronics

Metra Electronics 95-7354 Manuel utilisateur

Metra Electronics

Metra Electronics 99-6535B Manuel utilisateur

Metra Electronics

Metra Electronics 95-8903S Manuel utilisateur

Metra Electronics

Metra Electronics 95-8204 Kit Manuel utilisateur

Metra Electronics

Metra Electronics 99-5812 Manuel utilisateur

Metra Electronics

Metra Electronics 99-9223 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7329 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7335S Manuel utilisateur

Metra Electronics

Metra Electronics 89-9400 Manuel utilisateur

Manuels Système stéréo de voiture populaires d'autres marques

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manuel utilisateur

Clarion

Clarion PU-9836A Manuel utilisateur

Sony

Sony MEX-BT5750U Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric AR0M Manuel utilisateur

Sony

Sony RM-X7BT Manuel utilisateur

Insignia

Insignia NS-HD5113 Manuel utilisateur

Clarion

Clarion BTD3341 Manuel utilisateur

USA SPECS

USA SPECS PA11-VW6 Manuel utilisateur

Sony

Sony MEX-N4380BT Manuel utilisateur

Kenwood

Kenwood KCD-BT6544U/UY Manuel utilisateur

JVC

JVC KD-DB912BT Manuel utilisateur

Philips

Philips CSQ405/98 Manuel utilisateur

Alpine

Alpine TDM-7544 Manuel utilisateur

Autotek

Autotek TransAm TA 1400 Manuel utilisateur

Clarion

Clarion PN-3124N-A Manuel utilisateur

Denso TEN

Denso TEN FT0108A Manuel utilisateur

Pyle

Pyle PLD57MU Manuel utilisateur

Harman

Harman Chrysler Radio Navigation System RB4 Manuel utilisateur
