MATSONIC MS9127C Manuel utilisateur

Preface

This publication, including all photographs, illustrations and software, is protected un-

of the material contained herein, may be reproduced without written consent of the au-

thor.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufac-

turer makes no representations or warranties with respect to the contents hereof and

specifically disclaim any implied warranties of merchantability or fitness for any par-

ticular purpose. The manufacturer reserves the right to revise this publication and to

make changes from time to time in the content hereof without obligation of the manu-

facturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel

Corporation.

Other product names used in this manual are the properties of their respective owners

and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not oc-

cur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

−Reorient or relocate the receiving antenna.

−Increase the separation between the equipment and the receiver.

−Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected.

−Consult the dealer or an experienced radio/TV technician for help.

MS9127C, V1.0

VT8754/August 2002

Shielded interconnect cables and a shielded AC power cable must be employed with

this equipment to ensure compliance with the pertinent RF emission limits governing

this device. Changes or modifications not expressly approved by the system's manu-

facturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the follow-

ing conditions:

−This device may not cause harmful interference, and

−This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-

causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement

sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard

Describes features of the mainboard,

and provides a shipping checklist.

Go to ⇒page 3

Chapter 2

Installing the Mainboard

Describes installation of mainboard

components.

Go to ⇒page 3

Chapter 3

Using BIOS

Provides information on using the BIOS

Setup Utility.

Go to ⇒page 3

Chapter 4

Using the Mainboard Software

Describes the mainboard software.

Go to ⇒page 3

iii

Preface i

CHAPTER 1 3

Introducing the Mainboard 3

Introduction.................................................................................................3

Checklist.....................................................................................................3

Standard Items................................................................................................. 3

Features .....................................................................................................3

Choosing a Computer Case .......................................................................3

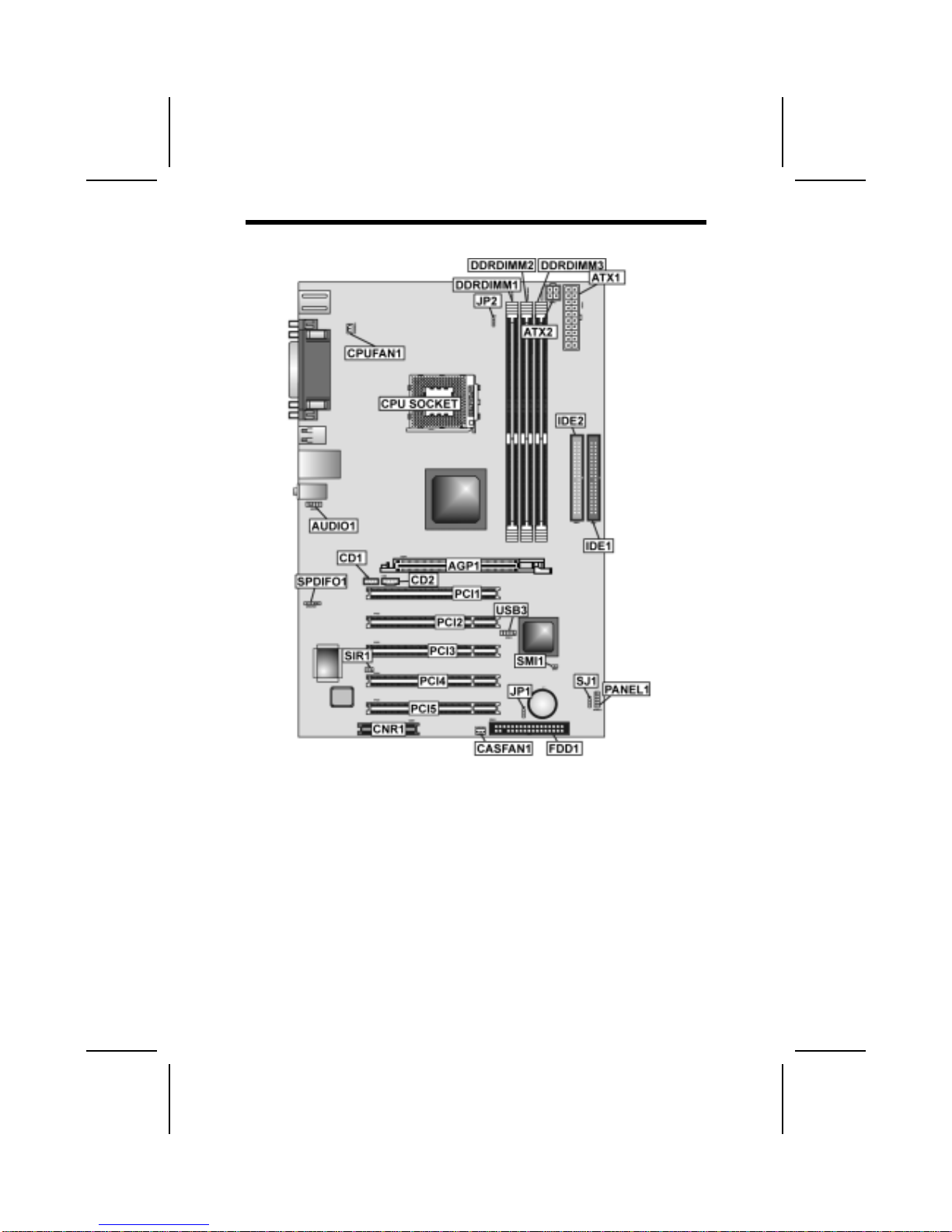

Mainboard Components .............................................................................3

CHAPTER 2 3

Installing the Mainboard 3

Safety Precautions......................................................................................3

Quick Guide................................................................................................3

Installing the Mainboard in a Case..............................................................3

Checking Jumper Settings..........................................................................3

Setting Jumpers ............................................................................................... 3

Checking Jumper Settings............................................................................... 3

Jumper Settings ............................................................................................... 3

Connecting Case Components...................................................................3

Front Panel Connector..................................................................................... 3

Installing Hardware.....................................................................................3

Installing the Processor.................................................................................... 3

Installing Memory Modules ............................................................................ 3

Installing a Hard Disk Drive/CD-ROM........................................................... 3

Installing a Floppy Diskette Drive................................................................. 20

Installing Add-on Cards................................................................................... 3

Connecting Optional Devices.......................................................................... 3

Connecting I/O Devices..............................................................................3

External Connector Color Coding ................................................................... 3

CHAPTER 3 3

Using BIOS 3

About the Setup Utility................................................................................3

The Standard Configuration ............................................................................ 3

Entering the Setup Utility................................................................................ 3

Updating the BIOS.......................................................................................... 3

Using BIOS.................................................................................................3

Standard CMOS Features.............................................................................. 30

Advanced BIOS Features ................................................................................ 3

Advanced Chipset Features............................................................................. 3

Integrated Peripherals...................................................................................... 3

Power Management Setup............................................................................... 3

PNP/PCI Configurations.................................................................................. 3

PC Health Status.............................................................................................. 3

Frequency/Voltage Control.............................................................................. 3

Load Fail-Safe Defaults................................................................................. 50

Load Optimized Defaults............................................................................... 50

Set Supervisor/User Password......................................................................... 3

Save & Exit Setup ........................................................................................... 3

Exit Without Saving ........................................................................................ 3

CHAPTER 4 錯誤! 尚未定義書籤。

Using the Mainboard Software 錯誤! 尚未定義書籤。

About the Software CD-ROM ....................................

錯誤

尚未定義書籤。

Utility Software Reference .........................................

錯誤

尚未定義書籤。

Introducing the Mainboard

Thank you for purchasing the MS9127C mainboard. The MS9127C is de-

signed to accommodate Intel Pentium 4 processors supporting front side bus

(FSB) speeds of 400/533 MHz.

The mainboard is an ATX mainboard that uses a 4-layers printed circuit board

and measures 305 mm x 190 mm.

Based on the highly integrated VIA APOLLO P4X400, this mainboard incorpo-

rates the VIA VT8754 Northbridge and VT8235 Southbridge chipsets which

delivers workstation level performance.

The MS9127C comes with a full set of I/O features conveniently integrated on

the rear I/O panel, including support for PS/2 keyboard and mouse connectors,

Six USB ports (Four back-panel USB 2.0 ports, onboard USB headers provid-

ing maximum two extra ports) , a LAN connector, two high-speed serial port,

an EPP/ECP parallel port, audio jacks for microphone, line-in, line-out and

CD-in, as well as supporting Plug and Play.

For added power and performance, the mainboard achieves the highest reli-

ability by supporting three 184 pin, 2.5V DDR (Double Data RAM) DIMM

sockets with a total capacity of 3 GB.

The MS9127C offers the ideal platform for building powerful PCs and worksta-

tions.

Note: SDRAM provides 800 MBps or 1 GBps data transfer depending on

whether the bus is 100MHz or 133MHz. Double Data Rate SDRAM

(DDR SDRAM) doubles the rate to 1.6 GBps and 2.7 GBps. DDR

SDRAM uses additional power and ground lines and requires 184-pin

DIMM modules rather than the 168-pin DIMMs used by SDRAM.

Compare the mainboard’s package contents with the following checklist:

Standard Items

•One mainboard

•One diskette drive ribbon cable

•One IDE drive ribbon cable

•One auto-install software support CD

•One I/O panel

•One retention module

•This user’s manual

Processor The MS9127C mainboard includes a mPGA Socket 478 that

has the following features:

•Supports up to a 400/533 MHz front side bus (FSB)

•Accommodates Intel Pentium 4 processors

Chipset The chipset on MS9127C includes the VT8754 Northbridge

and VT8235 Southbridge which are based on an innovative

and scalable architecture with proven reliability and perform-

ance. A few of the chipset’s advanced features are:

•An advanced V-Link memory controller architecture that

provides the 512 MB/s bandwidth and performance nec-

essary for even the most demanding Internet and 3D

graphics

•Support for an 2x/4x/8xAGP interface providing vivid 3D

graphics and video performance

•An ATA 133 interface on the VT8235 chipset, which helps

boost system performance by providing a high-speed

connection to ATA 133 Hard Disk Drives, delivering

maximum sustained data transfer rates of 133 MB/sec

Additional features include support for Six USB ports (Four

back-panel USB 2.0 ports, onboard USB headers providing

maximum two extra ports), an AC 97 link for audio and mo-

dem, hardware monitoring, and ACPI/OnNow power

management.

Memory •Supports DDR SDRAM up to 200/266/333 MHz memory

module

•Accommodates three 184 pin, 2.5V DDR DIMM sockets

with a total capacity of 3 GB.

AGP The MS9127C includes an 8xAGP slot that provides eight

times the bandwidth of the original AGP specification. The

AGP 3.0 (8xAGP) offers a significant increase in performance

along with feature enhancements to AGP2.0. This interface

represents the natural evolution from the existing AGP to meet

the ever-increasing demands placed on the graphic interfaces

within the workstation and desktop environments.

AC’ 97 Audio

Codec The AC’97 Audio codec is compliant with the AC’ 97 2.2 speci-

fication, and supports 18-bit ADC (Analog Digital Converter)

and DAC (Digital Analog Converter) resolution as well as 18-bit

stereo full-duplex codec with independent and variable sam-

pling rates. Further features include support for four analog

line-level stereo inputs.

USB 2.0 The built-in VIA VT8235 PCI USB 2.0 Controller is compliant

with Universal Serial Bus Specification Revision 2.0.

The USB 2.0 supports data transfer rates up to 480Mb/sec for

high-speed devices and specifies a microframe that will be

1/8th of a 1msec frame. This allows the USB 2.0 devices to

have small buffers even at high data rates.

The USB 1.1 connectors and other full speed cables can sup-

port the higher speed of USB 2.0 without any changes.

The chipset has the following advanced USB features:

•Compliant with Enhanced Host Controller Interface

(EHCI) Specification Revision 0.95 and Universal Host

Controller Interface (UHCI) Specification Revision 1.1

•PCI multi-function device consists of two UHCI Host Control-

lers for full/low-speed signaling and one EHCI Host

Controller core for high-speed signaling

•Supports PCI-Bus Power Management Interface Specifi-

cation release 1.1

•Legacy support for all downstream facing ports

Expansion

Options The mainboard comes with the following expansion options:

•Five 32-bit PCI slots

•One 8xAGP slot

•A Communications Network Riser (CNR) slot (AC97 inter-

face only)

•Two IDE connectors which support four IDE channels and

a floppy disk drive interface

The MS9127C is capable of Ultra DMA bus mastering with

transfer rates of 33/66/100/133 MB/sec.

10/100 LAN

(optional) The VT6103 is a Physical Layer device for Ethernet 10BASE-T

and 100BASE-TX using category 5 Unshielded, Type 1

Shielded, and Fiber Optic cables.

•Dual Speed – 100/10 Mbps

•Half And Full Duplex

•Meet All Applicable IEEE 802.3, 10Base-T and 100Base-

Tx Standards

•Adaptive Equalizer

Integrated I/O The mainboard has a full set of I/O ports and connectors:

•Two PS/2 ports for mouse and keyboard

•Two serial port

•One parallel port

•Six USB ports (Four backpanel ports, onboard USB

headers providing two extra ports)

•Audio jacks for microphone, line-in and line-out

BIOS

Firmware This mainboard uses Award BIOS that enables users to con-

figure many system features including the following:

•Power management

•CPU and memory timing

•Modem wake up alarms

The firmware can also be used to set parameters for different

processor clock speeds.

There are many types of computer cases on the market. The mainboard com-

plies with the specifications for the ATX system case. Some features on the

mainboard are implemented by cabling connectors on the mainboard to indi-

cators and switches on the system case. Ensure that your case supports all

the features required. The mainboard can support one floppy diskette drive

and four enhanced IDE drives. Ensure that your case has sufficient power and

space for all the drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the mainboard.

This mainboard has an ATX form factor of 305 x 190 mm. Choose a case that

accommodates this form factor.

Table of Mainboard Components

Label Component

AGP1 Accelerated Graphics Port

ATX1 Standard 20-pin ATX power connector

ATX2 Power connector

AUDIO1 Mic/speaker-out connector

BT1 Three volt realtime clock battery

CASFAN1 Auxiliary case cooling fan

CD1 Primary CD-in connector (Sony)

CD2 Secondary CD-in connector (Panasonic)

CNR1 Communications Networking Riser slot

CPU SOCKET CPU Socket (mPGA478)

CPUFAN1 Cooling fan for CPU

DDR1 ~ DDR3 Three 184-pin DDR DIMM sockets

FDD1 Floppy disk drive connector

IDE 1 Primary IDE channel

IDE 2 Secondary IDE channel

JP1 Clear CMOS jumper

JP2 CPU bus speed select jumper

LED1 (optional S3) LED 2.5 VSB for DDR SDRAM (red)

PANEL1 Panel connector for case switches and LEDs

PCI1 ~ PCI5 Five 32-bit add-on card slots

SJ1 Single-color LED header

SIR1 Serial infrared port

SMI1 External System Management Interrupt header

SPDIFO1 SPDIF out header

USB3 Connector for front panel USB ports

Note: LED1 is usually connected to a light that indicates that the computer is

powered on. Do not install hardware or disconnect power cables while the

LED is on.

This concludes Chapter 1. The next chapter explains how to install the main-

board.

Table des matières

Autres manuels MATSONIC Carte mère

MATSONIC

MATSONIC MS-5120 Manuel utilisateur

MATSONIC

MATSONIC MS7157C Manuel utilisateur

MATSONIC

MATSONIC MS9087C Manuel utilisateur

MATSONIC

MATSONIC MS8147C Manuel utilisateur

MATSONIC

MATSONIC MS8328E Series Manuel utilisateur

MATSONIC

MATSONIC MS7132A Manuel utilisateur

MATSONIC

MATSONIC MS7308E Series Manuel utilisateur

MATSONIC

MATSONIC MS7192SM Manuel utilisateur

MATSONIC

MATSONIC MS7177C Manuel utilisateur

MATSONIC

MATSONIC MS9027C Manuel utilisateur

MATSONIC

MATSONIC MS6393E Manuel utilisateur

MATSONIC

MATSONIC MS8157E Manuel utilisateur

MATSONIC

MATSONIC MS7057C Manuel utilisateur

MATSONIC

MATSONIC MS6391E Manuel utilisateur

MATSONIC

MATSONIC MS9138E Series Manuel utilisateur

MATSONIC

MATSONIC MS9138D Series Manuel utilisateur

MATSONIC

MATSONIC MS7188DSeries Manuel utilisateur

MATSONIC

MATSONIC MS9118E Series Manuel utilisateur

MATSONIC

MATSONIC MS7380SG Manuel utilisateur

MATSONIC

MATSONIC MS8188E Series Manuel utilisateur

MATSONIC

MATSONIC MS9017C Manuel utilisateur

MATSONIC

MATSONIC MS9107C Manuel utilisateur

MATSONIC

MATSONIC MS7127C Manuel utilisateur

MATSONIC

MATSONIC MS7012D Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
