Lilin ZSR8122 Manuel utilisateur
SR8222
ZSR8122
D/N 1080P60 IR IP Camera
D/N 1080P60 HD Auto Focus IR IP Camera
66-LSR8122CSM
Quick Installation Guide
ZHR8182
D/N 4K Ultra HD Auto Focus IR IP Camera
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the opening of the cabinet with cloth and plastic
or to install this unit in poor ventilated places. Allow 10cm
between this unit and its surroundings
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, strange smell or no display on
screen while power is turned on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid unnecessary magnetic interference
Connection cables should be grounded properly
The ITE is to be connected only to PoE networks without
routing to the outside plant.
L’ITE ne doit être connecté que sur un réseau PoE sans
routage vers l’alimentation extérieure.
-1-
English
Product Overview
①Camera Body
②Window
③Adjustment Screw A
④Adjustment Screw B
⑤Adjustment Screw C
⑥Lens
⑦LED Indicators
Green (Power): Indicates system status.
Green (LINK): Illuminates when the camera is connected to a
network.
Orange (ACT): Flashes when data communication is in process.
Unit: mm
-2-
English
⑧Live Video Output
⑨Reset Key
Restores the camera back to factory default settings.
⑩Micro SD Card Slot
⑪AF Key [Auto Focus Model Only]
The IP camera will automatically adjusts the camera lens to
obtain focus after pressing the AF (Auto Focus) button
continuously for 2 seconds. User can adjust the image view by
using zoom in/out button via web access, and refocus using the
Auto-Focus link on the main Web page.
Installation
1. Remove the camera from the Box. Connect the Ethernet cable,
video cable, and power cable to the camera’s RJ-45 network
connector, video output connector respectively, and DC power-in
connector (FIG.1). Secure the camera to the wall (FIG.2).
Connect the RJ-45 network cable with a waterproof connector
-3-
English
First, remove the waterproof connector and loosen the
waterproof nut. Insert the Ethernet cable and use a tool to
connect the RJ-45 connector (FIG.3). Connect the RJ-45
connector to the camera, and then secure the waterproof nut
after securing the waterproof connector (FIG.4).
2. Loosen the three adjustment screws on the bracket to change
the camera direction according to different needs. Be sure to
tighten the screws after the adjustment is completed (FIG.5–10).
-4-
English
Install the Camera with a Junction Box (Optional)
A. Choose a desired position for the junction box, and secure the
truss head screws enclosed in the box to the holes marked as
“a” (FIG.11 & 12) on the junction box.
B. Insert the Ethernet cable, video cable, and power cable
through the 1/2”PT tube (FIG.13), and rotate to secure the
tube to the holes on the lateral or bottom of the junction box
(FIG.14). The conjuction between the tube and the hole must
be airtight, and the opening of the hole must point downward.
-5-
English
C. Attach the safety cable to the hole at the bottom of the junction
box (FIG.15), and connect the Ethernet cable, video cable,
and power cable to the camera’s RJ-45 connector, video
output, and power input respectively (FIG.16). Please refer to
“1.” For more wiring instructions.
D. Use the screws (M5.0x12L) included in the box to secure the
camera to the junction box, and tighten the screws (FIG.17 &
18).
-6-
English

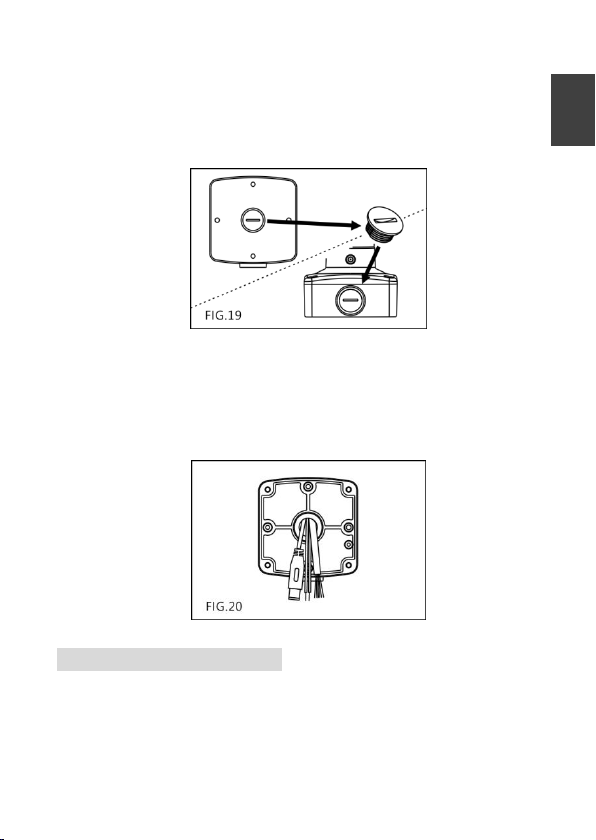

Change the Outlet Position for the Ethernet and Power
Cables
1. Loosen the threaded plug at the bottom of the junction box
and secure it to the lateral hole (FIG.19).
2. Insert the Ethernet cable, video cable, and power cable
through the opening at the bottom of the junction box
(FIG.20) and connect them to the camera’s RJ-45 connector,
video output, and power input respectively (refer to “1” for
more instructions on wiring).
System Architectures
For connecting HD IP cameras to the network, please follow one of
the system architectures:
(1). Use a DC12V power adapter and a network switch to connect to
the network.
-7-
English
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to
the network.
Emergency Factory Default
To restore the hardware to factory default settings, please follow
these steps:
1.Press and hold “RESET Key” for 10 seconds and release.
2.Wait for about 40 seconds, and the network LED light should turn
off, and go back on again.
3.The camera is now restored to factory default settings, and will
reboot automatically.
4.Search for the IP device using the IPScan software.
5.Start the IP device via an Internet browser.
6.Enter the default username “admin” and password “pass” to
operate.
DC12V Power Supply
-8-
English
NOTE: For your convenience, the IP address will revert to the default
setting of 192.168.0.200.
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is 192.168.0.200.
Users can use the default IP address for verifying the camera’s
network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of JPEG or H.264 Full HD video. When you
login to the IP camera by Internet Explorer, the security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
Click Install to download it.
Configuring IP Addresses with IPScan Software
To configure an IP address using the IP scan tool, you can copy the
IPScan software from the installation CD, and paste to your
computer. Alternatively, you can execute the IPScan software from
the installation CD, or download the software from the Merit LILIN
website (www.meritlilin.com). To change the settings of the IP
