Lilin CMG176 Series Manuel utilisateur
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
CMG176/178 Series
66-CMG178CSE
D/N WDR ULTRAHIGH RESOLUTION CAMERA
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
CONGRATULATIONS
Thank you for purchasing this Day/Night WDR Camera. You now
own one of the many fine CCTV products we manufactured. This
product has been carefully inspected under rigid quality control
and should reach you in perfect condition. With reasonable care,
it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT
WARRANTY INFORMATION
Please complete the following product purchase information. The
factory will requests this information when contacted for technical
support, or warranty repair. It is also valuable in case of loss or
theft.
Purchase Date
Serial Number
Model Number
TABLE OF CONTENTS
FEATURES
PART DESCRIPTION
INSTALLATION
CONFIGURATION OF THE MENU
SETTING MENU AND FUNCTIONS
CAMERA ID
EXPOSURE
WDR/BLC
BRIGHTNESS
AGC (Automatic Gain Control)
SHUTTER (Shutter Speed)
SENS-UP
WHITE BAL (White Balance)
DAY/NIGHT
MOTION DET (Motion Detection)
3D-DNR (Digital Noise Reduction)
PRIVACY
SPECIAL
D-ZOOM (Digital Zoom)
D-EFFECT (Digital Effect)
SHARPNESS
STABILIZER
COLOR
SYNC (Synchronization)
USER TITLE
LANGUAGE
RESET
SPECIFICATIONS
1
3
8
12
14
14
15
15
16
16
16
17
18
19
20
21
21
22
22
23
24
24
24
25
25
26
27
28
The CMG176/178 series Day&Night Wide Dynamic Range Ultrahigh Resolution
camera introduces supremacy in video quality. This compact yet full functional
color DSP camera use high sensitive 1/3" Vertical Double-Density interline
transfer CCD. The camera achieves superb quality color images at 600TV lines
resolution. With ultralow light levels of 0.0002 Lux and enhanced noise reduction
technology, it enables noise-free, clear image monitoring day and night.
By adopting a diagonal 6mm(1/3") 410,000(NTSC) pixel, 470,000(PAL) pixel
CCD, the camera produces clear picture quality with a horizontal resolution of
600TV lines for color.
For images with high contrast between bright and dark areas from difficult
lighting conditions such as backlighting, this camera selectively illuminates
darker areas while decreasing the light level for brighter areas to even out the
overall brightness.
The high-performance DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.
Equipped with a maximum X256 sens-up capacity and low luminance levels of
0.0002Lux, the camera achieves excellent performance in processing images
especially in very low light conditions.
The camera automatically identifies when it is either day or night time and
switched accordingly. During daylight the camera will switch to color to obtain
excellent image clarity, while at night the camera will switch to monochrome to
obtain improved picture definition.
FEATURES
ULTRAHIGH RESOLUTION
WIDE DYNAMIC RANGE(WDR)
3D DIGITAL NOISE REDUCTION
SENS-UP(X256) / LOW LUMINANCE LIGHT
DAY&NIGHT(IR CUT REMOVABLE)
1
2
Since the camera detects motion without any additional external sensor, you
can monitor activity more efficient.
The EIS function compensates for any camera movement, to produce more
stable pictures.
The HSBLC function that effectively blocks strong light sources such as
headlights. It provides optimum performance in recognizing vehicular license
plates and objects at night.
This camera provides an on screen display(OSD) setup menu where all
advanced functions can be selected and setup via OSD.
Privacy zones prevent objects and areas such as windows and doors which
are within the camera's viewing range but not in the scope of surveillance,
8 masking areas per screen simultaneously.
Built-in continuous digital zooming control, X1 to X10.
Color-temperature is adjusted automatically to produce clean, natural and rich
color images. ATW, AWC, INDOOR and OUTDOOR modes are available to
obtain most suitable selection.
MOTION DETECTION
ELECTRONIC IMAGE STABILIZER(EIS)
HIGHLIGHT SUPPRESS BACK LIGHT COMPENSATION(HSBLC)
ON SCREEN DISPLAY CONTROL(OSD)
PRIVACY ZONE
DIGITAL ZOOM
WHITE BALANCE

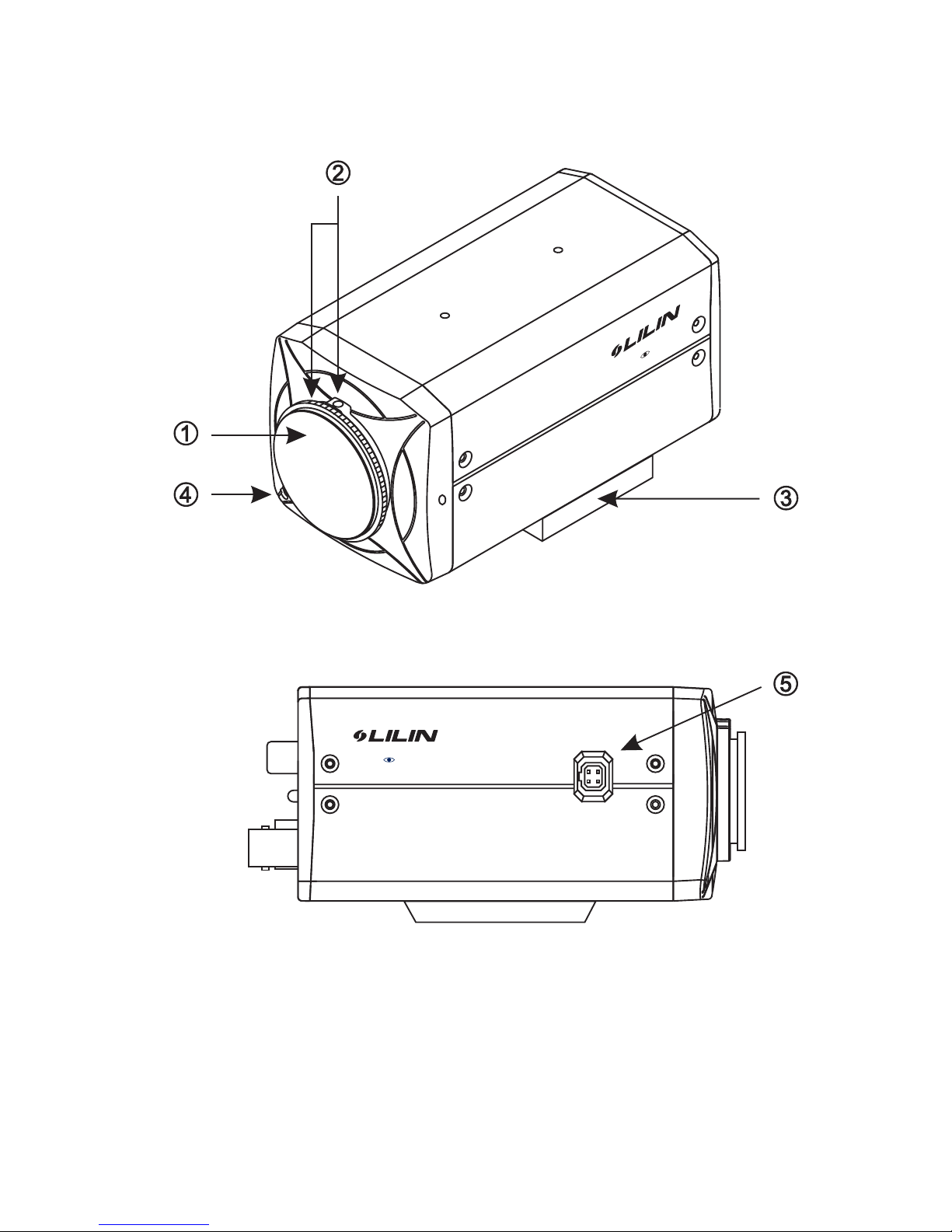

PART DESCRIPTION
3
DAY NIGHT
DAY NIGHT
AC100 ~ 240V
CMG178
CMG176
4

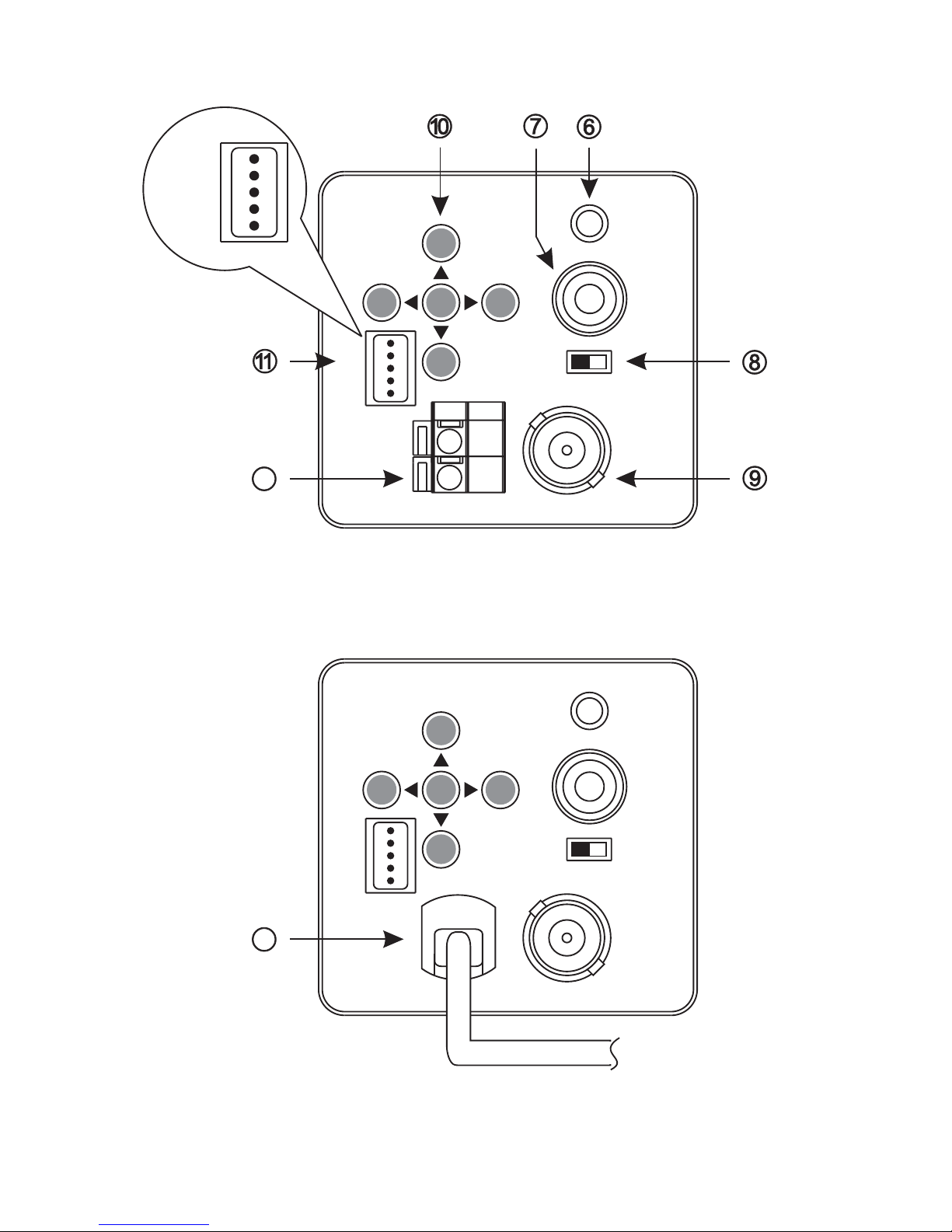

VIDEO
AUDIO
POWER
DC VS
NO
COM
NC
D/N EXT.
GND
13
VIDEO
AUDIO
AC24V / DC 12V
POWER
NO
COM
NC
D/N EXT.
GND
DC VS
NO
COM
NC
D/N EXT.
GND
12
