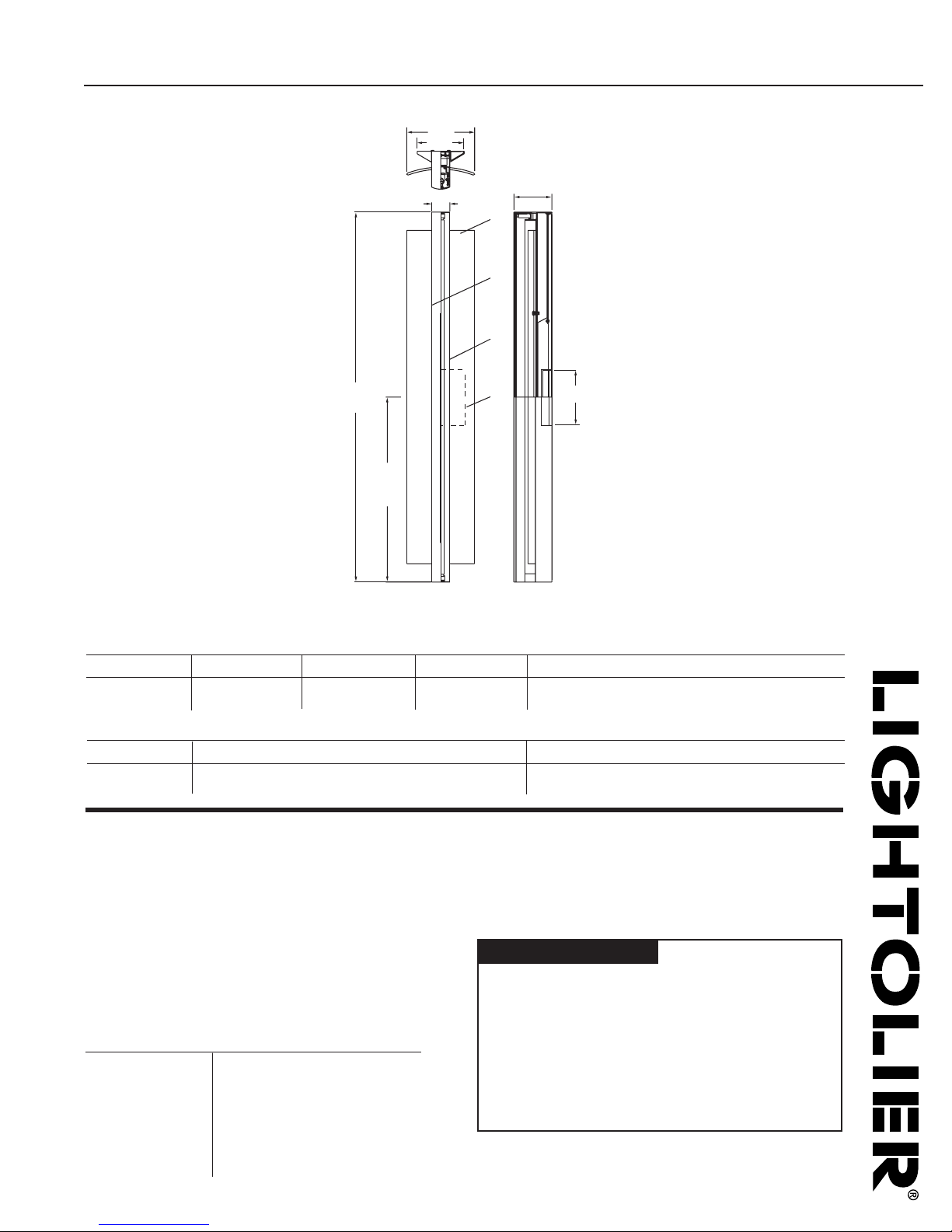

Architectural Decorative Soli™48022ALU

Page 1 of 2 Wall/Ceiling Mounted T-5 Fluorescent ADA Compliant

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

1-3/4"

6-1/2"

Width

3-5/8"

Extension

17-5/16"

To Outlet

Box Center

34-5/8"

Height

4-1/2"

5-1/2"

Features

1. Housing: Extruded and die-cast aluminum ballast and lamp chamber.

2. Optional Diffuser/Reflector: Curved etched glass or extruded opal virgin

acrylic.

3. Optics: Internal white acrylic diffuser covers slit on front cover .

4. J-Box Covers: Die-cast split covers to enclose 4" octagonal J-Box

(J-Box by others).

Mounting

Mounts directly to switch box or 4" octagonal J-Box. Octagonal box mounting

requires use of “J-Box Covers” and “Support Plate” supplied standard.

Electrical

Ballast

(Electronic 120/277V) 21 W 39W HO

Total Input Watts: 25W 39W

Max. Line Current: 120V = 0.21 120V = 0.34

277V = 0.10 277V = 0.15

Power Factor: 120V = 0.98 120V = 0.98

277V = 0.95 0.98 = (120V/277V)

Ballast Factor: 1.03 0.90

THD: 120V = <10% 120V = <10%

277V = <15% 277V = <10%

Starting Temp: 0°F / -18°C 0°F / -18°C

Diffuser Ordering Information

Catalog No. Description Dimensions

40875 Translucent Etched Soda Lime Glass w/ Pencil Polished Edges 31.25" L x 6.5” W x 5 mm Thick

40915 Extruded Opal Virgin Acrylic w/ Pencil Polished Edges 31.25" L x 6.5” W x 5 mm Thick

Finish

All painted parts utilized the powder coat process. Lightolier Metallic Aluminum

Powder Coat Enamel.

Labels

cULus Listed. Suitable for Damp Locations.

Fixture Ordering Information

Catalog No. Finish Wattage Voltage Lamping

48022ALU Powder Coated 21W 120/277V T-5 Miniature Bi-Pin Fluorescent

48022AL39U Metallic Aluminum 39W HO 120/277V T-5 Miniature Bi-Pin Fluorescent

Note: Luminaire can be ordered with or without diffusing shield. Order each separately .

Can be mounted vertically or horizontally.

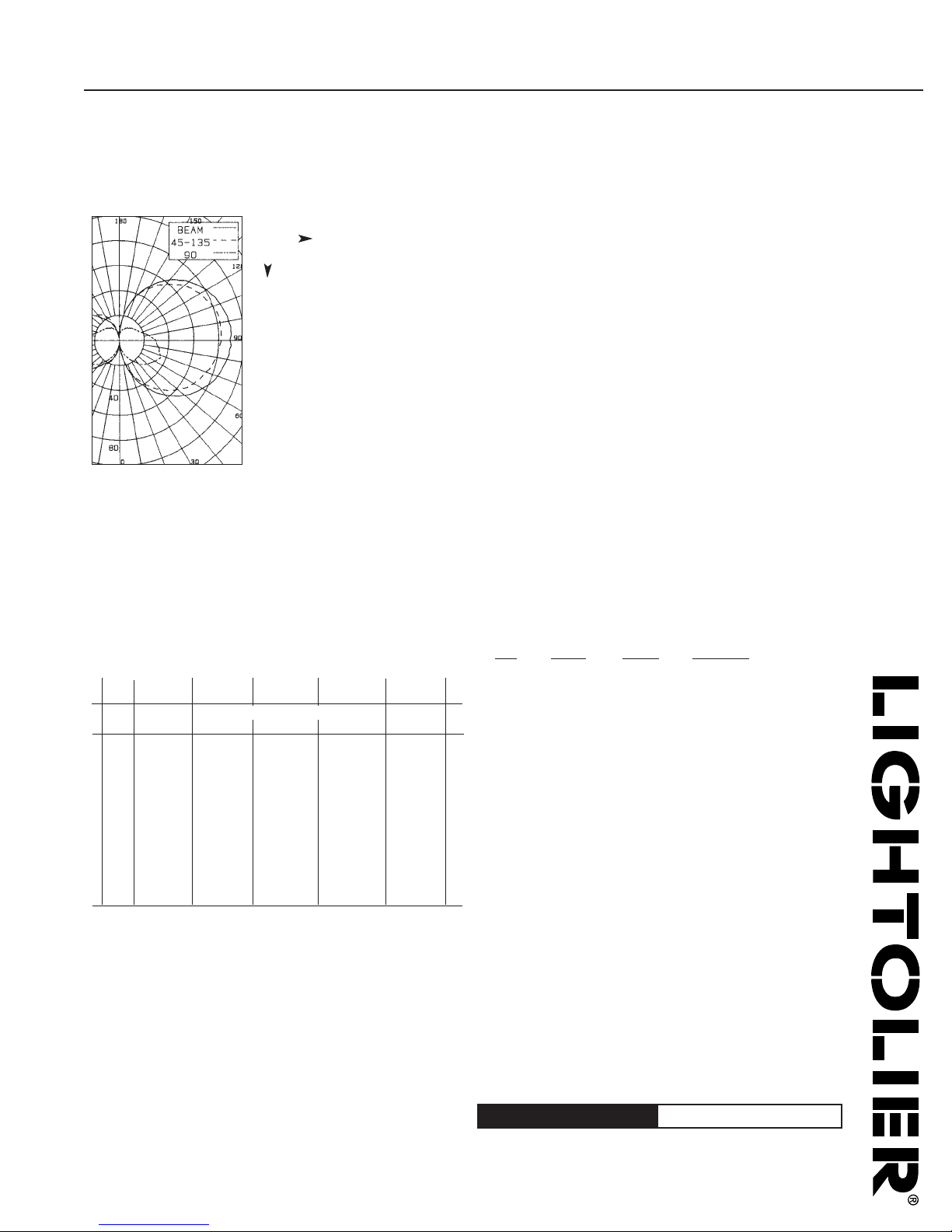

Architectural Decorative Soli™48022ALU

Page 2 of 2 Wall/Ceiling Mounted T-5 Fluorescent ADA Compliant

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Tested according to IES procedures.

Test distance exceeds five times the greatest luminous opening of luminaire.

CANDLEPOWER

ZONE 90 67.5 45 22.5 90

DEG.

CANDELAS

022222

5434550

15 9 10 19 22 21 2

25 15 22 34 38 37 7

35 21 31 46 50 51 13

45 27 40 57 60 63 20

55 31 47 66 69 73 26

65 35 53 72 76 81 32

75 33 58 77 80 86 36

85 30 63 80 83 89 39

95 26 65 82 84 90 39

115 17 65 72 79 84 34

125 15 60 63 73 77 28

135 14 53 54 65 68 22

145 12 44 43 57 57 15

155 10 35 29 45 44 9

165 9 22 21 31 29 4

175 6 10 12 13 13 1

180 5 5 5 5 5

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-30 15 .82 2.87

0-40 35 1.87 6.56

0-60 106 5.59 19.61

0-90 267 14.07 49.31

40-90 231 12.20 42.75

60-90 161 8.47 29.70

90-180 274 14.46 50.69

0-180 542 28.53 100.00

** EFFICIENCY = 28.5% **

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

0 313131 282828 242424 202020 161616 14

1 242321 2221 19 181716 151413 121110 9

2 201816 1917 15 151412 121110 9 8 7 6

3 171513 161412 131110 10 9 8 8 7 6 4

4 151210 1411 9 11 9 8 9 7 6 7 5 4 3

5 13 11 8 12 10 8 10 8 6 8 6 5 6 5 4 3

6 129 7 118 7 9 7 5 7 5 4 5 4 3 2

7 108 6 107 6 8 6 5 6 5 4 5 3 3 2

8 975 965 754 643 432 1

9 965 86 4 653 543 432 1

10 8 5 4 7 5 4 6 4 3 5 3 2 4 2 2 1

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

CERTIFIED TEST REPORT NO. 2219FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER ARCHITECTURAL DECORATIVE LUMINAIRE SOLI

CAT. NO. 48022ALU / 40875, ETCHED GLASS SHIELD

1-21W PHILIPS T-5 LAMP. LUMEN RATING = 1900 LMS.

UNIVERSAL BALLAST #B228PUNVC

Prepared For:

Lightolier

Fall River, MA

Date: May 6, 2003

Multiply Calculated footcandles by 1.6 for 39W HO Lamp.
