Lightolier Lytecaster 1004IC Manuel utilisateur

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

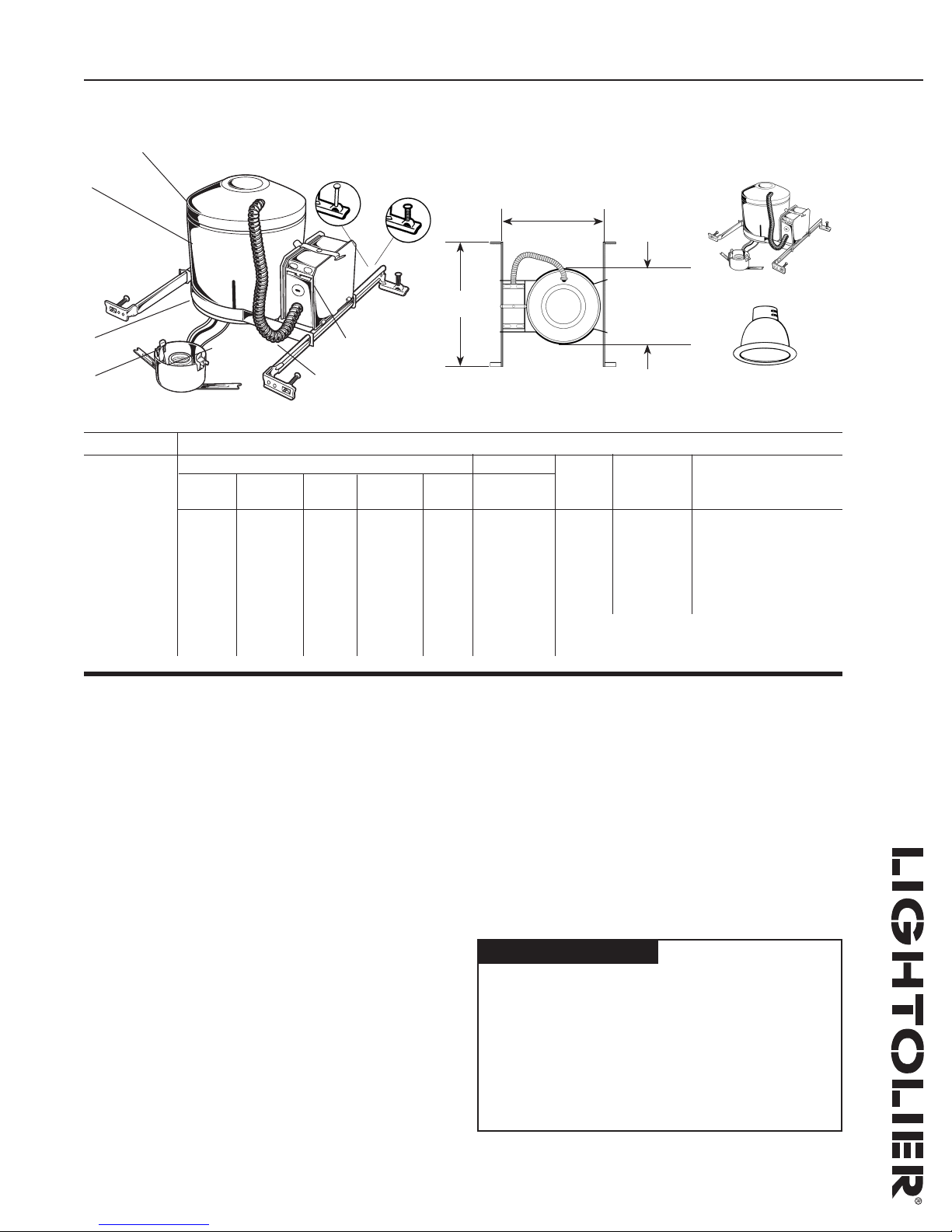

Lytecaster®Recessed Downlighting 1004IC

Page 1 of 1 5" Aperture 0Incandescent Convertible IC/Non-IC Frame-In Kit

5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight Adjustable

Anodized Anodized Satin Baffles Basic Eyeball Enclosed Open Wall

Reflector Cone Cone White Diffusers Wet Location Washer

1004IC 1045 1012 1008 1005 1071 1022 1021* 1081CD 1085*

1004ICQ** 1046 1012NM 1008NM 1005NM 1022WH 1024* 1081WH

1004ICN 1046CD 1013 1010 1005WH 1082 1177LX

1004ICNQ** 1013BK 1010NM 1005BNM 1088 1178LX

1013CD 1076 1088GW 1090*

1013NM 1076WH 1088WH

1013BKNM

1013CDNM

1013WH * For Non-IC applications only.

**Supplied with integral push-In wire connectors

Frame-In Kit

Reflector Trim

1104IC

1004ICN

(Integral Nail)

Top View

Overall Length

1004IC/N: 9"

13 3/4" MIN.

24” MAX.

Overall Width

1004IC/N: 5 3/4"

Overall Height

1004IC/N: 7 1/2"

Features

1. Housing: .032 (#20 ga.) aluminum. UL listed convertible IC/NON-IC. 2"

vertical adjustment in ceiling. Can be removed for access to junction box

and ceiling plenum. AirSeal®housing minimizes air leakage to less than 2

CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section

602.3.3) and Washington State Energy Code (Section 502.4) and reduces

heat loss and condensation in ceiling.

2. Mounting Frame: .048 (#18 ga.) galvanized steel. Locks into position along

length of mounting bars with locking spring and bendable slot. (3) slots 90°

apart simplify alignment.

3. Junction Box: 2"X 4" X 3 1/2" (22 cu. in.) .032 (#22 ga.) galvanized steel.

UL listed for maximum 6 (#12 ga.) 1004IC/N 90°C through branch circuit con-

ductors. Integral cable clamps permit attachment of non-metallic (#12 or #14

ga.) Romex®cable without tools or additional connectors.

4. Mounting Bars: .059 (#16 ga.) galvanized steel. Bars pivot for easy attach-

ment and wire-in below ceiling line. Bars extend to accommodate 16" to

24" O.C. joist spacing. The 1004IC features integral self-tapping philips

screws for secure attachment to wood or metal construction. The 1004ICN

features integral nails for secure attachment to wood. Both attach to T-bar

ceilings without the need of accessories.

5. Socket Housing: Impact extruded aluminum or galvanized steel. Attached

trim retaining spring secures trim to any height on housing wall.

6. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with

#18 ga. SF1 (300 VOLT 200° C) leads to junction box.

7. Thermal Protector: Meets NEC and UL requirements. Located inside

housing.

Options & Accessories

AirSeal®Kit: LAS56

NOTE: Use only if factory installed tape or knockouts are removed from vertical

adjustment slots in housing wall.

Labels

UL (Type IC/NON-IC Convertible; Suitable for Damp Locations)

Complies with Air Leakage Requirements stated in the Model Energy Code and

the Washington State Energy Code.

AirSeal®is a registered trademark of Lightolier.

Romex®is a registered trademark of General Cable Industries Inc.

1004IC

(Integral Screw)
