Lightolier Lytecaster 1004F18ES Manuel utilisateur

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

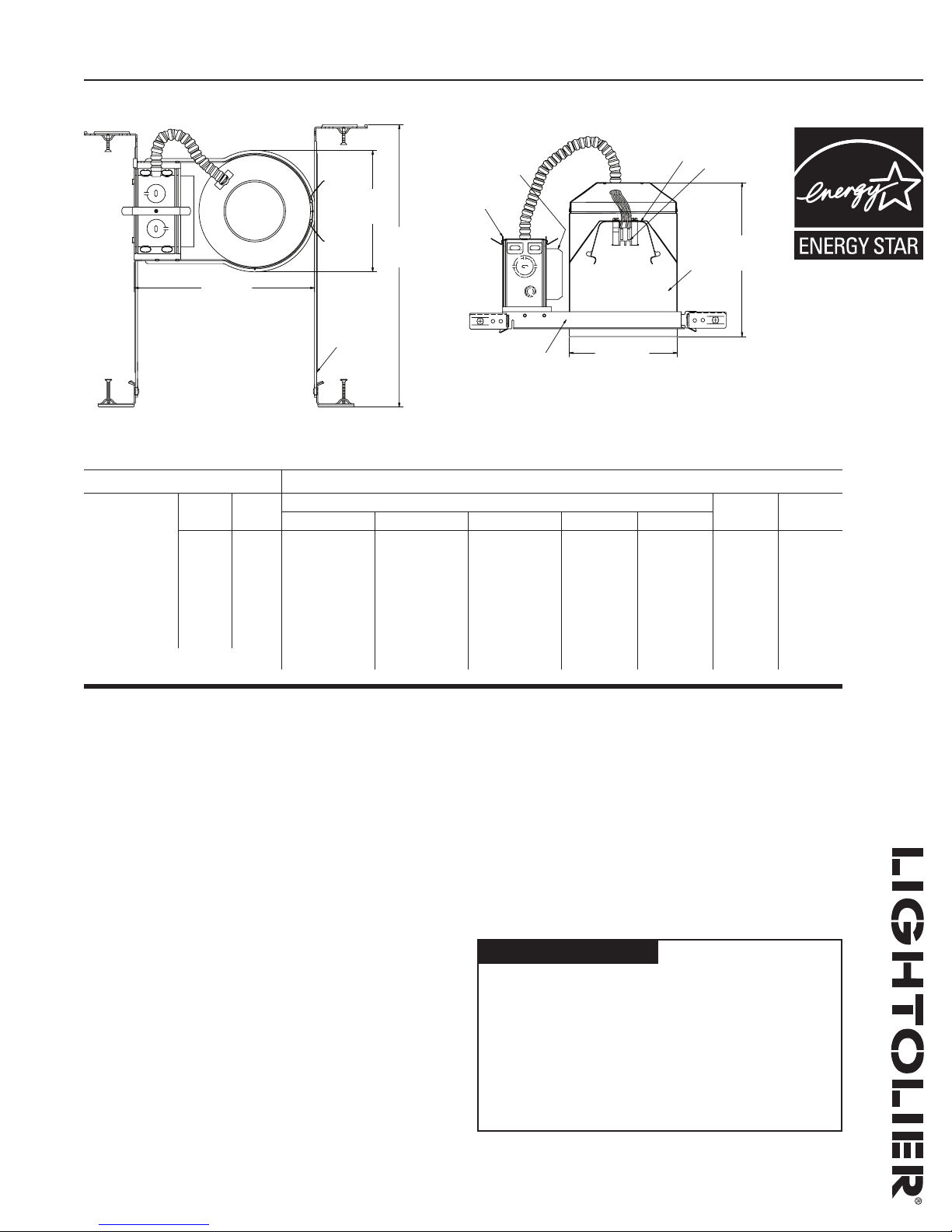

Lytecaster®Recessed Downlighting 1004F18ES

Page 1 of 1 5" Aperture 0® 1 Lt 18W Quad/Triple Tube Compact Fluorescent IC Frame-In Kit

Features

1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.

Allows installation in ceilings up to 2" thick. Can be removed for access

to junction box, ballast and ceiling plenum. AirSeal®housing minimizes

air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with

Model Energy Code (Section 602.3.3) and Washington State Energy Code

(Section 502.4) and reduces heat loss and condensation in ceiling.

2. Mounting Frame: .048” (#18 ga.) galvanized steel. Locks into position along

length of mounting bars with locking spring and bendable slot. (3) slots 90°

apart simplify alignment.

3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.

UL listed for branch circuit wiring supplying connected luminaires. Integral

cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex®

cable without tools or additional connectors.

4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy

attachment and wire-in below ceiling line. Bars extend to accommodate 16"

to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after

a slight field modification (see Instruction Sheet). Features integral self-

tapping phillips screws for secure attachment to wood or metal construction.

Attaches to T-bar ceilings without the need of accessories.

5. Socket Housing: Trim retaining spring secures trim to any height on

housing wall.

6. Socket: (4 Pin,GX24q-2) base, molded thermo-plastic. Pre-wired with #18

AWG leads to junction box.

7. Ballast: Electronic 120V, end of life protected, FCC class “B” consumer

limits, class “A” sound rating. Energy Star® qualified.

Electrical

Input Watts: 19

Amps: .16

Ballast Factor: 1.0

Power Factor: .97

Electrical (cont.)

Max THD %: 10

Min Start Temp: 0˚F/ -18˚C

Options & Accessories

AirSeal®Kit: LAS56 (optional)

Note: Use only if factory installed tape or knockouts are removed from vertical

adjustment slots in housing wall.

Labels

UL (Type IC Suitable for Damp Locations)

Complies with Air Leakage Requirements stated in the Model Energy Code,

California Title 24 and the Washington State Energy Code.

Romex® is a registered trademark of General Cable Industries Inc.

13" MIN.

24" MAX.

OVERALL

LENGTH

5 3/4"

OVERALL

WIDTH

APERATURE

7 1/2"

OVERALL

HEIGHT

Ceiling Opening 5 3/8" diameter

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Voltage Lamp Open Downlight Enclosed

Diffusers

Wall

Washer

Anodized Reflector Anodized Cone Satin Cone Baffles Basic White

1004F18ES

1004F18ESN

120V 18W

Quad or

Triple

Tube

1045

1046

1046CD

1012

1012NM

1013

1013BK

1013BKNM

1013CD

1013CDNM

1013NM

1013WH

1008

1008NM

1010

1010NM

1005

1005BNM

1005NM

1005WH

1076

1076WH

1071 1021

1024

1078

1177LX**

1035

1035WH

1085

1095

1096

1096CD

** Use Triple Tube Lamp Only.
