Lightolier Calculite 8047 Manuel utilisateur

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

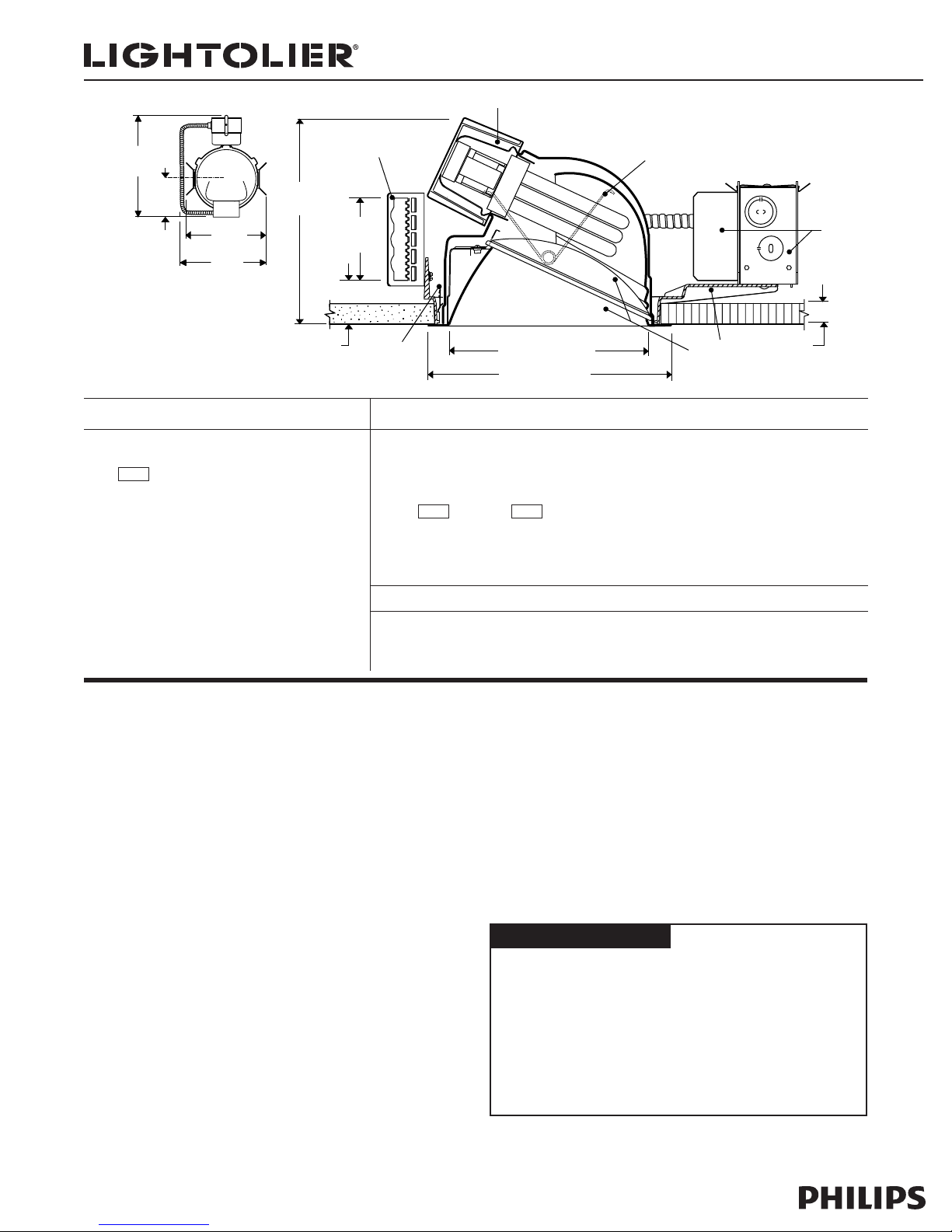

Calculite®CFL Lensed Wall Washer 8047

Page 1 of 2 7" Aperture Triple Tube Wall Washer

Reflector Trim Frame-In Kit

8047 CLW Clear Iridescence Free, White Flange

8047 CLP Clear Iridescence Free, Polished Flange

8047 Add Suffix. See options for other finishes.

S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:

S7132B or S7142B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))

7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Ceiling Cutout: 8" (203 mm) Dia.

Features

1. Optics: Directional prismatic glass spread lens and Alzak®"kick" reflector

direct light smoothly across and down wall. Rotates for correct orientation.

Aperture cone with Iridescence Free finish.

2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical

alignment without tools.

4. Retaining Springs: Precision-tooled steel friction springs secure reflector

to mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4” or

1 1/2” lathing channel, 1/2” EMT, or optional mounting bars.

6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain

lamp efficacy and life. Service from below without tools.

7. Torsiontite Springs: Wire formed steel holds reflector/spread lens

assembly snug to housing.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C

supply conductors.

Options and Accessories

Comfort Clear™ Finishes1Other Finishes

Clear CCL White WH

Diffuse CCD Specular Clear CL

Champagne Bronze CCZ

1Specify desired flange

WWhite, PPolished

Blank - Molded Ring

Options and Accessories (continued)

Emergency Add suffix EM*

Chicago Plenum Add suffix LC

Existing/Thk. Ceiling FA EC7*

Emergency Ltg. Kit FA EM3E*

Fuse (slow blow) Add suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA.

Labels

UL listed for damp locations, I.B.E.W.

Top View

14-1/4"

(362 mm)

12-1/2"

(318 mm)

5-3/4"

(146 mm)

11-3/8"

(289 mm)

7-1/8" (181 mm) Dia.

8-3/8" (213 mm)

Self-Flanged Trim

(76 mm)

1" (25 mm) min.-

2-1/8" (54 mm) max.

1-1/8" (29 mm) max.

Ceiling Thickness

7-3/8"

(187 mm)

Alzak®is a registered trademark of ALCOA.

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite®CFL Lensed Wall Washer 8047

Page 2 of 2 7" Aperture Triple Tube Wall Washer

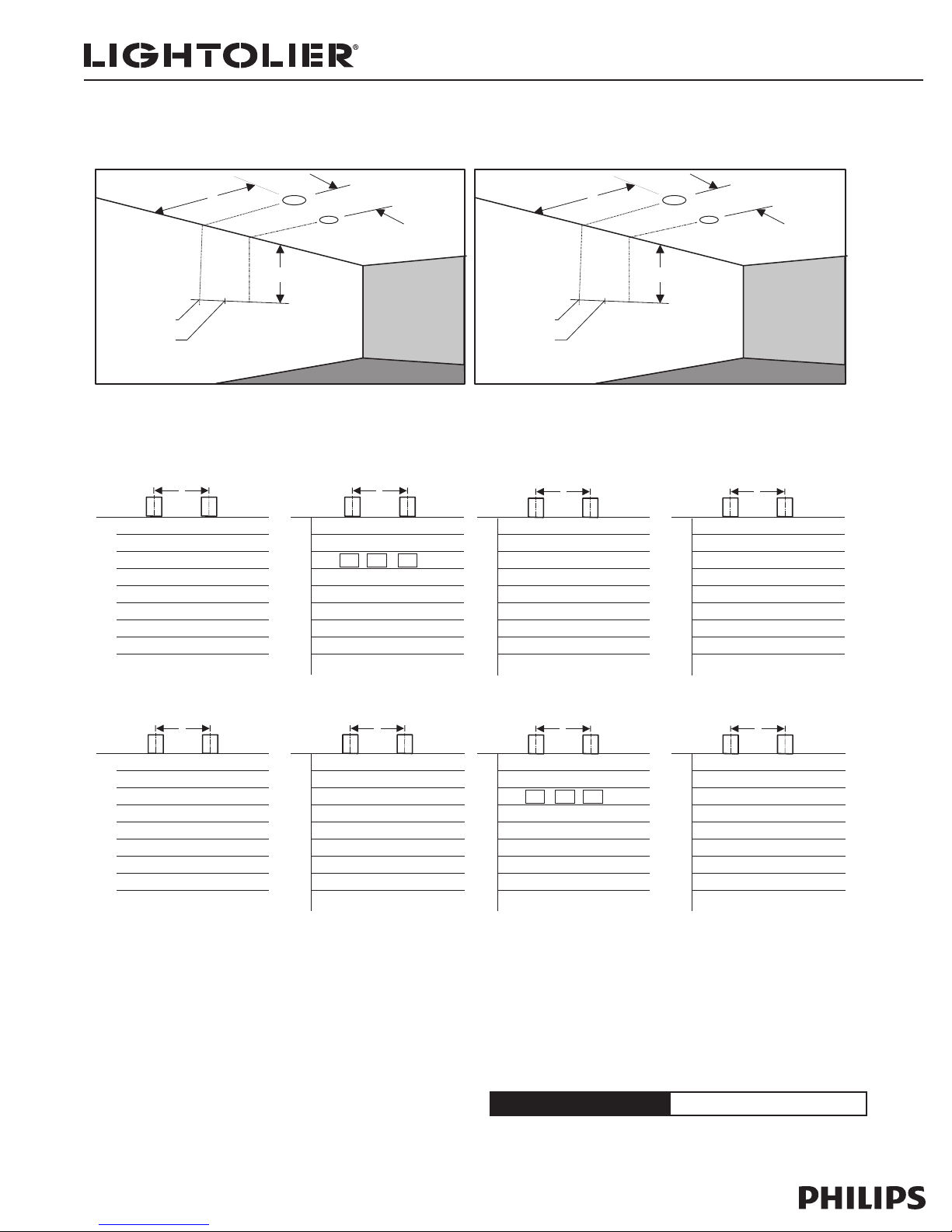

Footcandles On Wall: Multiple 42W Units

EXAMPLE: With multiple clear reflector units located 3' from wall and

spaced 3' on center, the illumination on the wall 3' down from ceiling

will be 36 f.c. beneath units and 37 f.c. between units.

36 f.c.

37 f.c.

2' from Wall-2' On Center

2' from Wall-3' On Center

3' from Wall-3' On Center

3' from Wall-4' On Center

Footcandle values are averaged and rounded off and based on minimum of five units.

Distance From Ceiling in Feet

Footcandles On Wall: Multiple 32W Units

EXAMPLE: With multiple clear reflector units located 2' from wall and

spaced 3' on center, the illumination on the wall 3' down from ceiling

will be 39 f.c. beneath units and 40 f.c. between units.

28 f.c.

29 f.c.

2' from Wall-3' On Center

3' from Wall-3' On Center 3' from Wall-4' On Center

2' from Wall-2' On Center

Distance From Ceiling in Feet Distance From Ceiling in Feet

2' 3'

1 38 32 38

2 50 49 50

3 43 43 43

4 33 32 33

5 25 32 25

6 20 20 20

7 16 15 16

8 13 13 13

9 11 11 11

1 10 9 10

2 21 20 21

3 23 23 23

4 22 22 22

5 19 19 19

6 16 16 16

7 13 13 13

8 11 11 11

9 10 10 10

1 8 6 8

2 17 13 17

3 18 16 18

4 16 16 16

5 14 14 14

6 12 11 12

7 10 9 10

8 8 8 8

9 7 7 7

1 16 12 16

2 34 32 34

3 36 37 36

4 31 31 31

5 25 26 25

6 21 21 21

7 17 17 17

8 15 15 15

9 13 13 13

1 14 8 14

2 29 21 29

3 28 27 28

4 23 24 23

5 19 20 19

6 16 16 16

7 13 14 13

8 12 12 12

9 10 10 10

1 31 16 31

2 38 28 38

3 29 29 29

4 22 22 22

5 17 17 17

6 13 13 13

7 11 11 11

8 9 9 9

9 7 7 7

Distance From Ceiling in FeetDistance From Ceiling in Feet

1 61 52 61

2 80 81 80

3 61 62 61

4 44 45 44

5 32 33 32

6 24 25 24

7 19 19 19

8 15 15 15

9 13 13 13

1 52 25 52

2 57 51 57

3 40 42 40

4 30 31 30

5 23 23 23

6 18 18 18

7 14 14 14

8 12 12 12

9 10 10 10
