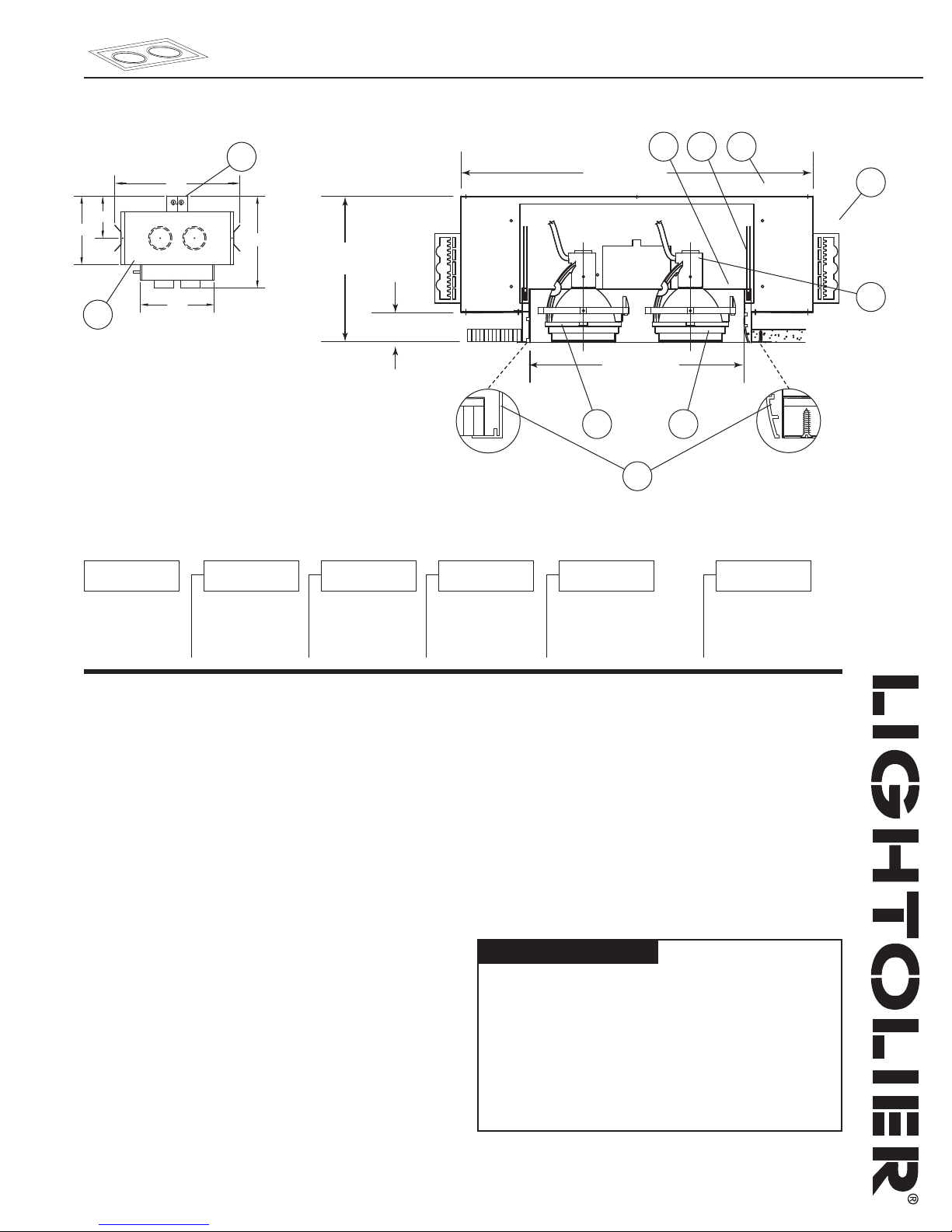

Calculite®ProSpec®Linear Downlight PB2T4

Page 1 of 2 2-Light T4 Series B

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of one accessory.

Easily installed and removed for lamping with a simple twisting motion.

Constructed of die-formed aluminum.

3. Lockable Adjustment Ring: Allows 40° lengthwise and 30˚ widthwise

adjustment. Locks the lampholder in place to prevent inadvertent realign-

ment during relamping.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black.

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Porcelain medium based; nickel plated screw shell. Prewired

with #18 SF-1 leads to junction box.

9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 3" box. Allows inspection from

below.

10. Safety Lens: Tempered 1/8” glass. Meets or exceeds U.L. safety require-

ment for metal halide lamps.

11. Reflector (not shown): Interchangeable reflectors available to allow for

desired precise beam spread without the need of additional lenses.

Reflectors are sold separately. see MHT4R S/NF/F specification sheets.

Finish

All painted finishes are powder coated baked enamel.

Electrical

Lamping: Ceramic T4.5 Metal Halide. Single ended, G 8.5 base.

Electronic Ballast: Individual for each lamp. High Power Factor.

Input watts: 78, line current: .67 amps. Accessible from below.

UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG 90°C.

Options & Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers (2) max. with

fixtures on marked spacing: Fixtures 5' on center, 1⁄2" to overhead, 2-1/2' to

side building member.

Label

UL/cUL (Suitable for Damp Location), I.B.E.W.

Top View

14"

17 5/8"

21 1/2" L X 10" W

13"

24"

1 3/4"

Flanged Trimless

8 3/4"

DEPTH

13" L X 6 1/8" W

OPENING

Cross Section

Ceiling Cutout: 13 1/2" x 6 5/8"

Color and Trim

20 = 20W

39 = 39W

70 = 70W

1= 120V

2 = 277V

BL = Black with white flange

WL = White with white flange

BTL = Black Trimless

WTL= White Trimless

VoltageWattageReflectors

Lamps

T4.5

Metal Halide

Family

Ordering Instructions:

Order the fixture desired and one T4 reflector per lamp in the fixture.

Reflector catalog numbers:

MHT4RS: 10˚ Spot

MHT4RNF: 25˚ Narrow Flood

MHT4RF: 40˚ Flood

543

Job Information Type

Job name:

Cat. no.:

Lamps:

Notes:

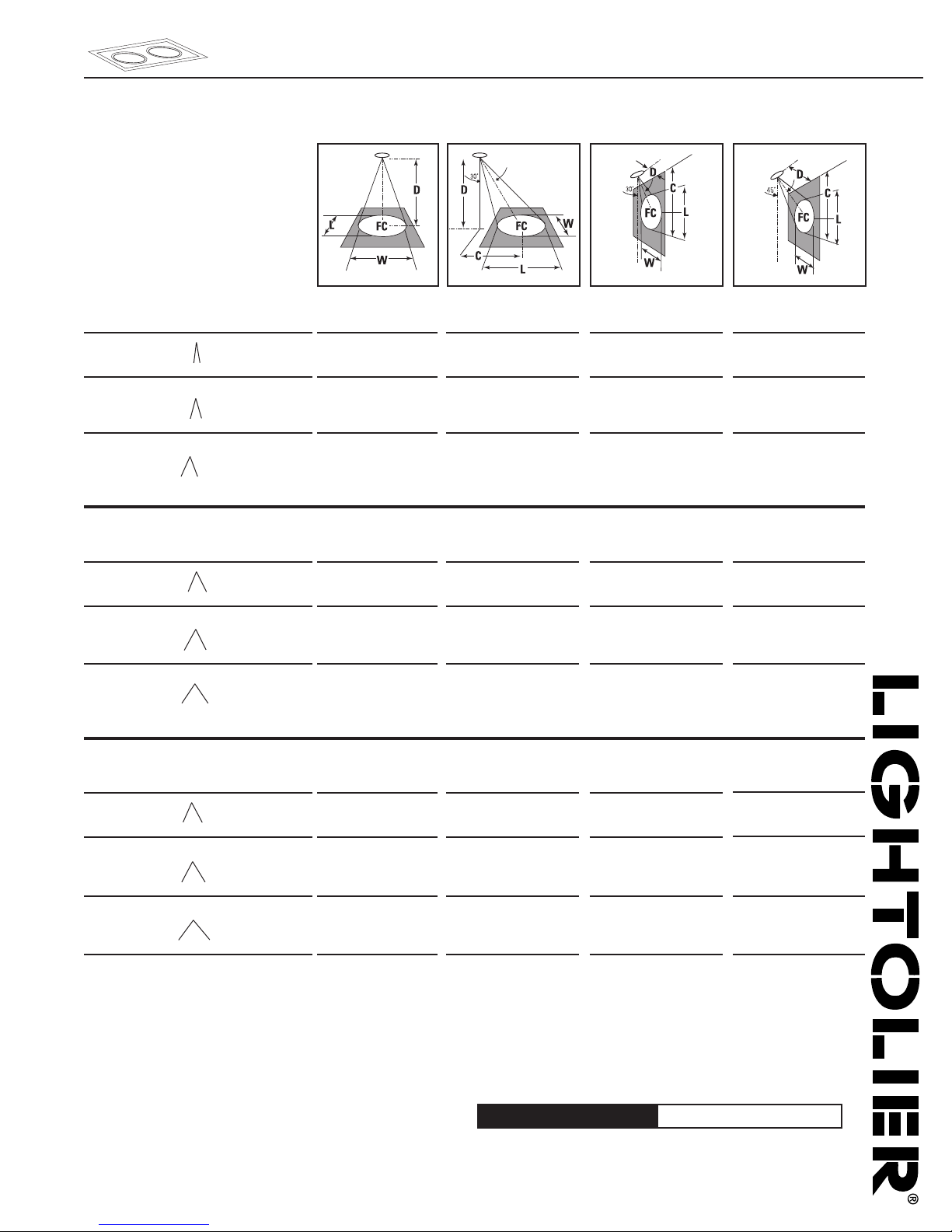

Calculite®ProSpec®Linear Downlight PB2T4

Page 2 o 2 2-Light T4 Series B

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details o design, materials and inish.

Job Information Type:

AIMING ANGLE: 0° 30° Horizontal 30° Vertical 4 ° Vertical

LBeam length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle power

drops to 50% o the maximum. FC are the initial ootcan-

dles at the center o the beam.

Lamp data shown is typical. Consult lamp manu acturers

or availability and per ormance.

10’ 223 1.6’ 1.6’

15’ 99 2.4’ 2.4’

20’ 56 3.1’ 3.1’

25’ 38 3.9’ 3.9’

10˚ Spot — MHT4RS: 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 4 ° Vertical Aiming

D FC LW DC FC LW DC FC LW DCFC LW

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

8’ 4.6’ 227 1.7’ 1.5’

12’ 6.9’ 101 2.5’ 2.2’

16’ 9.2’ 57 3.4’ 2.9’

20’ 11.5’ 36 4.2’ 3.6’

6’ 10.4’ 78 3.8’ 1.9’

9’ 15.6’ 34 5.8’ 2.8’

12’ 20.8’ 19 7.7’ 3.8’

15’ 26.0’ 12 9.8’ 4.7’

5’ 5.0’ 316 1.6’ 1.1’

7’ 7.0’ 161 2.2’ 1.6’

9’ 9.0’ 98 2.9’ 2.0’

11’ 11.0’ 65 3.5’ 2.4’

20W T4 CMH 22,34 ,500

9° X 9° 9,000

10’ 362 1.9’ 1.8’

15’ 161 2.9’ 2.8’

20’ 90 3.9’ 3.8’

25’ 58 4.8’ 4.8’

8’ 4.6’ 367 2.1’ 1.8’

12’ 6.9’ 163 3.1’ 2.7’

16’ 9.2’ 92 4.1’ 3.6’

20’ 11.5’ 58 5.2’ 4.4’

6’ 10.4’ 128 4.8’ 2.3’

9’ 15.6’ 56 7.1’ 3.5’

12’ 20.8’ 31 9.5’ 4.6’

15’ 26.0’ 20 11.9’ 5.6’

5’ 5.0’ 512 1.8’ 1.4’

7’ 7.0’ 261 2.7’ 1.9’

9’ 9.0’ 158 3.5’ 2.5’

11’ 11.0’ 106 4.3’ 3.0’

39W T4 CMH 36,169 9,000

11° X 11° 10,000

15’ 236 3.4’ 3.4’

20’ 133 4.6’ 4.5’

25’ 85 5.7’ 5.7’

30’ 59 6.8’ 6.8’

10’ 5.8’ 346 3.1’ 2.6’

15’ 8.7’ 154 4.6’ 3.9’

20’ 11.5’ 86 6.1’ 5.3’

25’ 14.4’ 55 7.6’ 6.6’

5’ 8.7’ 266 4.7’ 2.3’

8’ 13.9’ 104 7.6’ 3.6’

11’ 19.1’ 55 10.4’ 5.0’

14’ 24.2’ 34 13.3’ 6.4’

8’ 8.0’ 294 3.7’ 2.6’

12’ 12.0’ 131 5.5’ 3.9’

16’ 16.0’ 73 7.4’ 5.2’

20’ 20.0’ 47 9.2’ 6.4’

0W T4 CMH 53,205 6,000

13° X 13° 9,000

6’ 248 1.9’ 1.9’

8’ 140 2.5’ 2.5’

10’ 90 3.2’ 3.2’

12’ 62 3.8’ 3.8’

2 ˚ Narrow Flood — MHT4RNF: 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 4 ° Vertical Aiming

D FC LW DC FC LW DC FC LW DCFC LW

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

6’ 3.5’ 162 2.6’ 2.2’

8’ 4.6’ 91 3.4’ 2.9’

10’ 5.8’ 58 4.3’ 3.7’

12’ 6.9’ 40 5.1’ 4.4’

3’ 5.2’ 124 4.1’ 1.9’

4’ 6.9’ 70 5.5’ 2.5’

5’ 8.7’ 45 6.9’ 3.2’

6’ 10.4’ 31 8.2’ 3.8’

3’ 3.0’ 352 1.9’ 1.3’

4’ 4.0’ 198 2.6’ 1.8’

5’ 5.0’ 127 3.2’ 2.2’

6’ 6.0’ 88 3.9’ 2.7’

20W T4 CMH 8,959 ,500

18° X 18° 9,000

6’ 395 2.2’ 2.2’

8’ 222 3.0’ 3.0’

10’ 142 3.7’ 3.7’

12’ 99 4.4’ 4.4’

6’ 3.5’ 256 3.0’ 2.6’

8’ 4.6’ 144 4.0’ 3.4’

10’ 5.8’ 92 5.0’ 4.3’

12’ 6.9’ 64 6.0’ 5.1’

3’ 5.2’ 197 5.0’ 2.2’

4’ 6.9’ 111 6.6’ 3.0’

5’ 8.7’ 71 8.3’ 3.7’

6’ 10.4’ 49 9.9’ 4.4’

3’ 3.0’ 558 2.3’ 1.6’

4’ 4.0’ 314 3.1’ 2.1’

5’ 5.0’ 201 3.8’ 2.6’

6’ 6.0’ 140 4.6’ 3.1’

39W T4 CMH 14,208 9,000

21° X 21° 10,000

6’ 631 2.4’ 2.4’

8’ 355 3.3’ 3.3’

10’ 227 4.1’ 4.1’

12’ 158 4.9’ 4.9’

6’ 3.5’ 410 3.3’ 2.8’

8’ 4.6’ 230 4.4’ 3.8’

10’ 5.8’ 147 5.5’ 4.7’

12’ 6.9’ 102 6.6’ 5.6’

3’ 5.2’ 315 5.6’ 2.4’

4’ 6.9’ 177 7.4’ 3.3’

5’ 8.7’ 114 9.3’ 4.1’

6’ 10.4’ 79 11.2’ 4.9’

3’ 3.0’ 802 2.5’ 1.7’

4’ 4.0’ 502 3.4’ 2.3’

5’ 5.0’ 321 4.2’ 2.9’

6’ 6.0’ 223 5.1’ 3.5’

0W T4 CMH 22, 03 6,000

23° X 23° 9,000

6’ 65 3.9’ 3.9’

8’ 37 5.2’ 5.2’

10’ 24 6.5’ 6.5’

12’ 16 7.8’ 7.8’

40˚ Flood — MHT4RF: 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical Aiming 4 ° Vertical Aiming

D FC LW DC FC LW DC FC LW DCFC LW

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

6’ 3.5’ 43 5.4’ 4.5’

8’ 4.6’ 24 7.2’ 6.0’

10’ 5.8’ 15 9.0’ 7.5’

12’ 6.9’ 11 10.8’ 9.0’

2’ 3.5’ 74 7.6’ 2.6’

3’ 5.2’ 33 11.4’ 3.9’

4’ 6.9’ 18 15.2’ 5.2’

5’ 8.7’ 12 19.0’ 6.5’

3’ 3.0’ 93 4.4’ 2.8’

4’ 4.0’ 52 5.8’ 3.7’

5’ 5.0’ 33 7.3’ 4.6’

6’ 6.0’ 23 8.7’ 5.5’

20W T4 CMH 2,356 ,500

36° X 36° 9,000

6’ 108 4.4’ 4.4’

8’ 61 5.8’ 5.8’

10’ 39 7.3’ 7.3’

12’ 27 8.7’ 8.7’

6’ 3.5’ 70 6.1’ 5.0’

8’ 4.6’ 39 8.1’ 6.7’

10’ 5.8’ 25 10.2’ 8.4’

12’ 6.9’ 17 12.2’ 10.1’

2’ 3.5’ 121 9.7’ 2.9’

3’ 5.2’ 54 14.5’ 4.4’

4’ 6.9’ 30 19.3’ 5.8’

5’ 8.7’ 19 24.2’ 7.3’

3’ 3.0’ 152 5.0’ 3.1’

4’ 4.0’ 86 6.7’ 4.1’

5’ 5.0’ 55 8.4’ 5.1’

6’ 6.0’ 38 10.1’ 6.2’

39W T4 CMH 3,8 9,000

40° X 40° 10,000

6’ 181 4.6’ 4.6’

8’ 102 6.1’ 6.1’

10’ 65 7.7’ 7.7’

12’ 45 9.2’ 9.2’

6’ 3.5’ 118 6.5’ 5.3’

8’ 4.6’ 66 8.6’ 7.1’

10’ 5.8’ 42 10.8’ 8.9’

12’ 6.9’ 29 12.9’ 10.6’

2’ 3.5’ 204 11.0’ 3.1’

3’ 5.2’ 90 16.5’ 4.6’

14’ 6.9’ 51 22.0’ 6.1’

5’ 8.7’ 33 27.5’ 7.7’

3’ 3.0’ 256 5.4’ 3.3’

4’ 4.0’ 144 7.2’ 4.3’

5’ 5.0’ 92 9.0’ 5.4’

6’ 6.0’ 64 10.8’ 6.5’

0W T4 CMH 6,514 6,000

42° X 42° 9,000
