CBS 232

CELEBRITY

SURFACE FLUORESCENT

12" WIDTH, 4' LENGTH

2 LAMPS, T8 OR T12

■Injection molded one-piece (2 sides, 2

ends and face) virgin acrylic refractor.

■Catadioptric side and end wall design.

■Slim 3-1/4" depth.

■Invisible spring steel latches align refrac-

tor to housing.

■Refractor hinges or latches from either

side.

■Efficiency 73.1%.

■Rigid, reinforced housing.

■1/4 turn fasteners on reflector/ballast

cover.

■Individual or continuous row mounting.

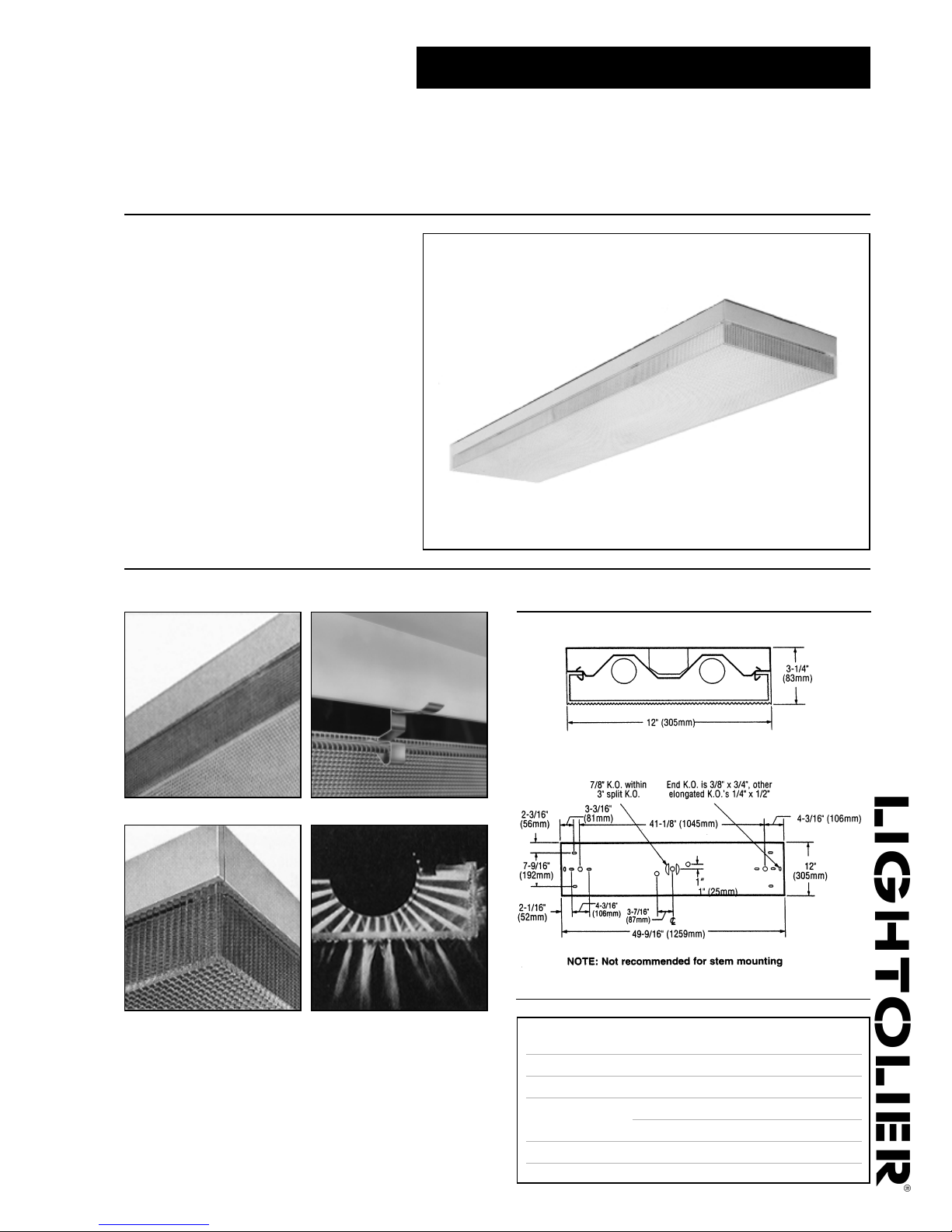

FEATURES DIMENSIONS

SECTION 3A/Folio H20-11 REV. B

sturdy steel chassis positive spring steel latches

four sided injection molding photograph illustrates action of

Celebrity lens enclosure. catadioptric

prisms “mirrow” out glare...refract

light beams into useful areas.

CBS 232

CELEBRITY

12" x 4' SURFACE FLUORESCENT

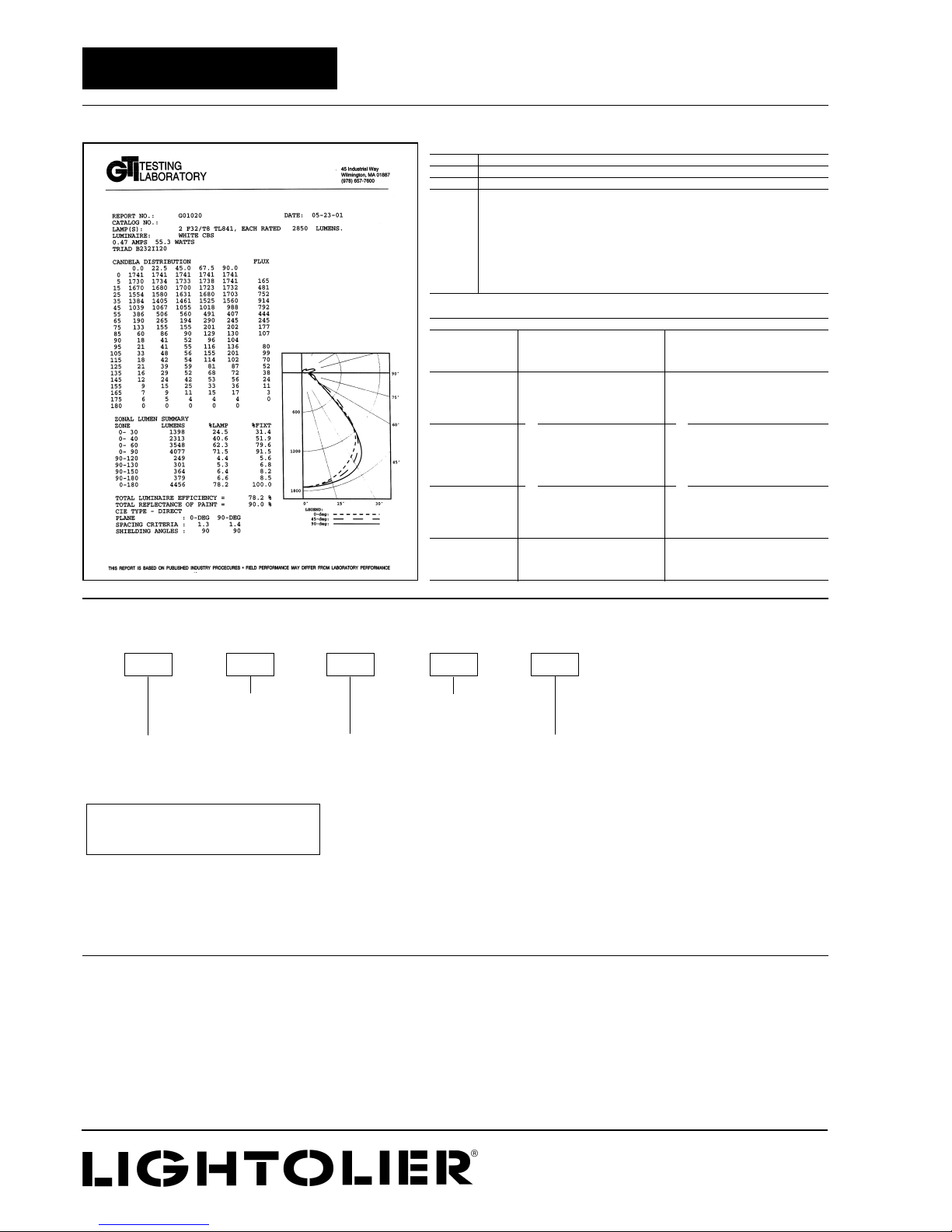

PHOTOMETRY MODEL NO. CBS232120SO

coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1848178 747270 706866

2787267 666259 636057

3716458 595551 565350

4665851 534945 514743

5615246 484339 464238

6574741 443935 423834

7534337 403531 393431

8493933 373228 363128

9463630 342926 332825

10 43 34 28 32 27 23 31 26 23

visual comfort probability (rated lumens per lamp 3150.)

room size ceiling height ceiling height

W L 8.5 10.0 13.0 16.0 8.5 10.0 13.0 16.0

20 20 69 72 76 77 66 71 76 79

20 30 61 66 70 72 56 62 68 72

20 40 57 61 65 68 49 55 62 66

20 60 52 56 60 64 43 49 54 60

30 20 69 72 77 77 67 73 77 78

30 30 61 65 70 72 56 62 68 71

30 40 55 60 64 66 49 54 60 65

30 60 51 55 59 62 42 48 53 58

30 80 48 52 55 58 38 43 48 53

40 20 69 74 78 78 68 74 78 79

40 30 61 66 70 72 57 63 69 72

40 40 55 60 64 67 50 55 61 65

40 60 50 54 58 61 43 48 53 57

40 80 47 51 54 58 38 43 47 52

40 100 46 49 51 55 36 40 44 48

60 30 61 66 70 73 58 64 70 73

60 40 55 60 64 67 51 56 61 66

60 60 50 54 57 61 43 48 52 58

60 80 46 50 53 57 39 43 47 52

60 100 45 48 50 54 36 40 43 47

100 40 56 61 64 68 54 58 63 68

100 60 51 54 58 62 56 51 54 59

100 80 47 50 53 57 41 45 48 53

100 100 45 48 50 54 37 41 44 48

room cavity ratio

luminaries lengthwise

luminaries crosswise

ORDERING INFORMATION

Explanation of Catalog Number. Example: CBS232120SO

SPECIFICATIONS:

PERFORMANCE: In an installation of 2 lamp 32W luminaires in a room

cavity ratio of 1, reflectance 80% ceiling, 50% wall, 20% floor, the C.U.

shall not be less than .81. To reduce glare the VCP shall not be less

than 43 either lengthwise or crosswise (at 100 fc level) and the average

brightness at 65° shall not exceed 1411 footlamberts. To control veiling

reflections, luminaire output in the 30°-90° zone shall be not less than

68.6%.

MATERIALS: Chassis parts are die-formed code gauge cold rolled

steel. Housing is reinforced for rigidity. Refractor—one-piece virgin

acrylic.

FINISH: Chassis exterior—white baked polyester enamel. Cavity—

white baked polyester enamel minimum 86% reflectance.

Phosphate

undercoating.

LENS: One-piece injection molded full re-entrant virgin acrylic with

Catadioptric sides, ends and wall design with diamond sharp square

base male conical prisms on horizontal surface.

ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved,

non PCB. If K.O. is within 3" of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W. /UL and C-UL.

We reserve the right to change design, materials and finish in any way that will not alter installed appearance or reduce function and performance.

TECHNICAL INFORMATION • (978) 657-7600

631 AIRPORT ROAD, FALL RIVER, MA 02720 • (508) 679-8131

C.F.I. DIVISION OF CANLYTE, INC.

525 EDUCATION ROAD, CORNWALL, ONTARIO

CANADA K6H 6C7 • (613) 938-6221 PRINTED IN USA 10M 7/01

A Genlyte Thomas Company

CBS

CELEBRITY:

Surface

Luminaire

LAMP

QUANTITY

LAMP:

(By Others)

32=T8, 4' Length

34=T12, 4' Length

VOLTAGE:

120 or 277

BALLAST:

1-2 Lamp Mag. T12 LE

<20THD <10THD

1-2 Lamp Elec. T8 SO* HI*

LOL Dimming T8 PS –

*Instant Start Standard

Other dimming options. Consult factory.

ELECTRICAL/WIRING OPTIONS: Consult

factory.

LER = FP - 66.2 WATTS - 59.1 BF - 0.88

Comparative yearly lighting energy cost per 1000 lumins = $3.62

CBS232120SO
