ProSpec™Track Lighting 26036

Page 1 of 2 Low Voltage Cylinder PAR36/AR111

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Track attachment fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Locking feature: die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is: hori-

zontal 0-340°; vertical 0° (NADIR) -90°.

4. Housing: 20 ga. (.036") steel, hemmed front edge for stiffness, prevents

chipping and enhances appearance.

5. Lamp Rotation stop/lock: 180° lamp rotation with locking knob.

6. Lamp and accessory support: .032 steel, flared for easy entry of cartridge

matte black finish.

7. Lens retaining ring: .125" spring steel.

8. Accessory cartridge: formed aluminum, installs and removes with a twist

and lock action. Holds three accessories max. and cross blade baffle. AR111

50W holds two accessories, clear glass guard and crossblade baffle.

9. Cross blade baffle: .070 extruded aluminum. 1" deep, removable.

10. Lever: energizes fixture electrically by 90° rotation.

11. Clamping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

12. Transformer: 75W magnetic transformer 200° C insulation system 120V pri-

mary, 11.5V/5.5 dual tap secondary.

13. Switch: two position slide for 5.5V or 11.5V operation.

14. Tempered Clear Glass Guard: (included) Required when using AR111

Lamp.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26036M WH Matte White ProSpec™Track System PAR36 (5.5V and 12V); 75W Max.

26036M BK Matte Black AR111; 75W Max.

50W Max. with Accessories

Options & Accessories

Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers.

50W max.when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Dimming

Dimming controls: use only dimmers specifically designed for use with

magnetic transformers, like Lightolier Onset®, Sunrise® series LV or VA

dimmers, or any Lightolier Controls dimming system. Low voltage fixtures

may produce audible sound when used with dimmers, which may be

objectionable in acoustically critical areas.

Labels

UL, I.B.E.W.

Fixture MOL = 11-1/2"

8 1/8"

34567 8 9

10 11

2 1/4"

Stem

5 3/4" Dia.

Accessories

Ordered

Separately

4 3/8"

ProSpec Track System

3 1/4"

6 5/8"

ProSpec™Track Lighting 26036

Page 2 of 2 Low Voltage Cylinder PAR36/AR111

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

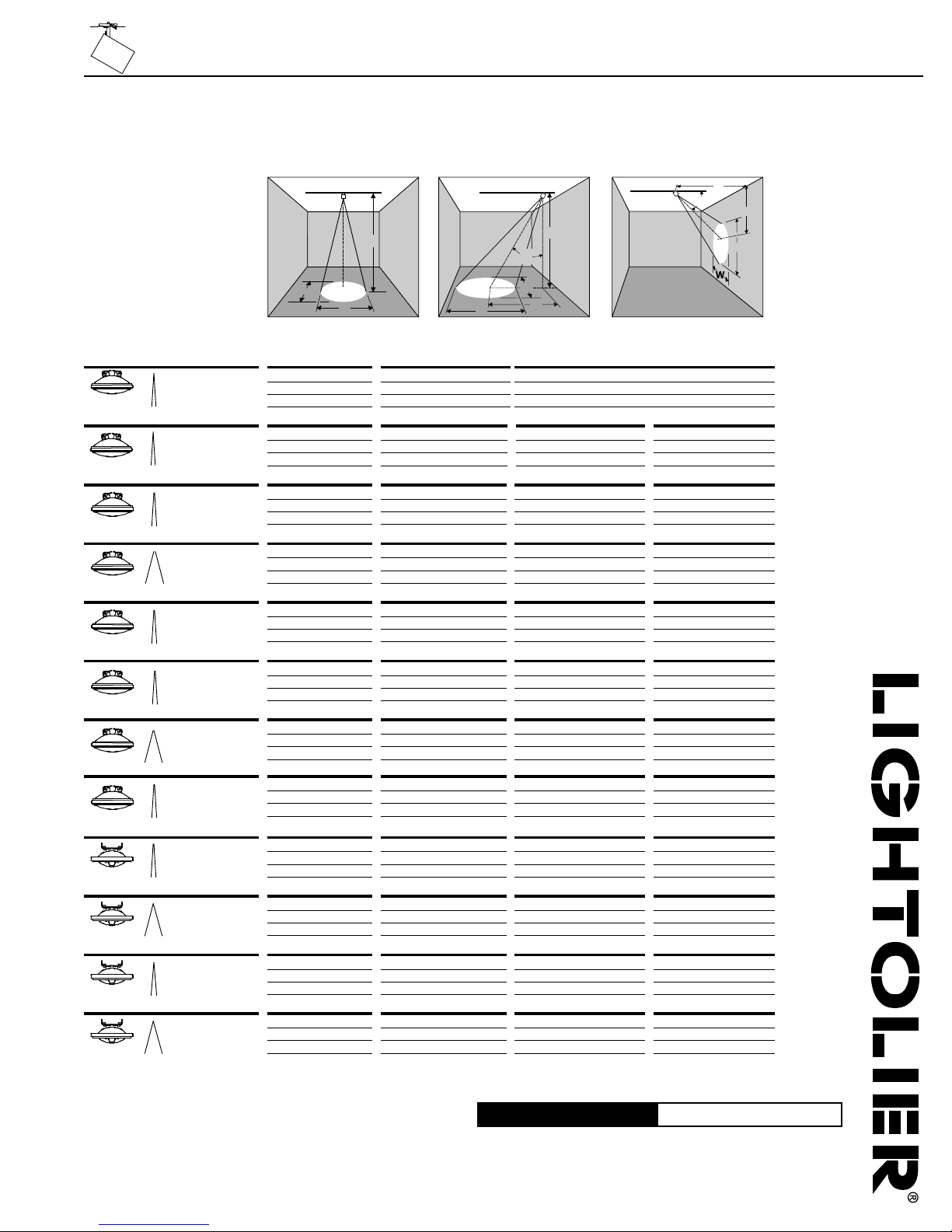

Lighting Data

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land W are the outer points where the

candlepower drops to 50% of the

maximum. FC are the initial

footcandles at the center of the beam.

FC L

Aiming Angle: 0°30°45°or 60°Horizontal 30°45°or 60°Vertical

LAMP 0°AIMING ANGLE A=30°AIMING ANGLE A=45°AIMING ANGLE A=60°AIMING ANGLE

DFCL W D C FCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

4' 6.9' 23.4 0.7' 0.4'

6' 10.4' 104 1.0' 0.6'

8' 13.9' 59 1.4' 0.8'

10' 17.3' 38 1.7' 9.0'

6' 6.0' 295 0.5' 0.4'

9' 9.0' 131 0.8' 0.7'

12' 12.0' 74 1.0' 0.9'

15' 16.0' 47 1.2' 1.1'

8' 4.8' 304 0.5' 0.5'

12' 5.9' 135 0.7' 0.7'

16' 9.2' 76 0.9' 1.0'

20' 11.5' 49 1.2' 1.2'

10' 300 0.4' 0.5'

15' 133 0.7' 0.8'

20' 75 0.9' 1.0'

25' 48 1.1' 1.3'

30,000 1000

25W PAR36

(5.5V) 2.5°x 3°

25000 4000

35W PAR36

VNSP (T-H) 5°

10' 250 0.9' 0.9'

15' 111 1.3' 1.3'

20' 63 1.7' 1.7'

25' 40 2.2' 2.2'

8' 4.6' 254 0.9' 0.8'

12' 6.9' 113 1.4' 1.2'

16' 9.2' 63 1.9' 1.6'

20' 11.5' 41 2.3' 2.0'

6' 6.0' 246 1.0' 0.7'

9' 9.0' 109 1.6' 1.1'

12' 12.0' 61 2.1' 1.5'

15' 15.0' 39 2.6' 1.9'

4' 6.9' 195 1.4' 0.7'

6' 10.4' 87 2.1' 1.0'

8' 13.9' 49 2.8' 1.4'

10' 17.3' 31 3.5' 1.7'

900 4000

35W PAR36

WFL (T-H) 30°

8000 4000

35W PAR36

NSP (T-H) 8°

7' 163 1.0' 1.0'

10' 80 1.4' 1.4'

13' 47 1.8' 1.8'

16' 31 2.2' 2.2'

4' 4.0' 177 1.1' 0.8'

6' 6.0' 79 1.7' 1.2'

8' 8.0' 44 2.2' 1.6'

10' 10.0' 28 2.8' 2.0'

2' 3.5' 250 1.1' 0.6'

3' 5.2' 111 1.7' 0.8'

4' 6.9' 63 2.3' 1.1'

5' 8.7' 40 2.8' 1.4'

3' 100 1.6' 1.6'

5' 36 2.7' 2.7'

7' 18 3.8' 3.8'

9' 11 4.8' 4.8'

3' 1.7' 65 2.2' 1.9'

5' 2.9' 23 3.7' 3.1'

7' 4.0' 12 5.1' 4.3'

9' 5.2' 7 6.6' 5.6'

2' 2.0' 80 2.3' 1.5'

3' 3.0' 35 3.5' 2.3'

4' 4.0' 20 4.6' 3.0'

5' 5.0' 13 5.8' 3.8'

1' 1.7' 113 2.7' 1.1'

2' 3.5 28 5.6' 2.1'

3' 5.2' 13 8.2' 3.2'

4' 6.9' 7 10.9' 4.3'

6' 3.5' 144 1.1' 1.0'

9' 5.2' 64 1.7' 1.5'

12' 6.9' 36 2.2' 1.9'

15' 8.7' 23 2.8' 2.4'

40000 4000

50W PAR36

VNSP (T-H) 5°

10' 400 0.9' 0.9'

15' 178 1.3' 1.3'

20' 100 1.7' 1.7'

25' 64 2.2' 2.2'

8' 4.6' 406 0.9' 0.8'

12' 6.9' 180 1.4' 1.2'

16' 9.2' 101 1.9' 1.6'

20' 11.5' 65 2.3' 2.0'

6' 6.0' 393 1.0' 0.7'

9' 9.0' 175 1.6' 1.1'

12' 13.0' 98 2.1' 1.5'

15' 15.0' 63 2.6' 1.9'

4' 6.9' 313 1.4' 0.7'

6' 10.4' 139 2.1' 1.0'

8' 13.9' 78 2.8' 1.4'

10' 17.3' 50 3.5' 1.7'

(by GE )

11000 4000

50W PAR36

NSP (T-H) 8°

8' 172 1.1' 1.1'

12' 76 1.7' 1.7'

16' 43 2.2' 2.2'

20' 28 2.8' 2.8'

7' 4.0' 146 1.3' 1.1'

10' 5.8' 71 1.9' 1.6'

13' 7.5' 42 2.4' 2.1'

16' 9.2' 28 3.0' 2.6'

5' 5.0' 156 1.4' 1.0'

7' 7.0' 79 2.0' 1.4'

9' 9.0' 48 2.5' 1.8'

11' 11.0' 32 3.1' 2.2'

3' 5.2' 153 1.7' 0.8'

4' 6.9' 86 2.3' 1.1'

5' 8.7' 55 2.8' 1.4'

6' 10.4' 38 3.4' 1.7'

1300 4000

50W PAR36

WFL (T-H) 30°

3' 144 1.6' 1.6'

5' 52 2.7' 2.7'

7' 27 3.8' 3.8'

9' 16 4.8' 4.8'

3' 1.7' 94 2.2' 1.9'

5' 2.9' 34 3.7' 3.1'

7' 4.0' 17 5.1' 4.3'

9' 5.2' 10 6.6' 5.6'

2' 2.0' 115 2.3' 1.5'

3' 3.0' 51 3.5' 2.3'

4' 4.0' 29 4.6' 3.0'

5' 5.0' 18 5.8' 3.8'

1' 1.7' 163 2.7' 1.1'

2' 3.5' 41 5.5' 2.1'

3' 5.2' 18 8.2' 3.2'

4' 6.9' 10 10.9' 4.3'

31500 2000

75W PAR36

VNSP 4°x 7°

10' 315 0.7' 1.2'

15' 140 1.0' 1.8'

20' 79 1.4' 2.4'

25' 50 1.7' 3.1'

8' 4.6' 320 0.7' 1.1'

12' 6.9' 142 1.1' 1.7'

16' 9.2' 80 1.5' 2.3'

20' 11.5' 51 1.9' 2.8'

6' 6.0' 309 0.8' 1.0'

9' 9.0' 137 1.3' 1.6'

12' 12.0' 77 1.7' 2.1'

15' 15.0' 48 2.1' 2.6'

4' 6.9' 246 1.1' 1.0'

6' 10.4' 109 1.7' 1.5'

8' 13.9' 62 2.2' 2.0'

10' 17.3' 39 2.8' 2.4'

50000 2000

50W AR111

NSP (T-H) 5°

15' 222 1.3' 1.3'

20' 125 1.7' 1.7'

25' 80 2.2' 2.2'

30' 56 2.6' 2.6'

10' 5.8' 325 1.2' 1.0'

15' 8.7' 144 1.7' 1.5'

20' 11.5' 81 2.3' 2.0'

25' 14.4' 52 2.9' 2.5'

8' 8.0' 276 1.4' 1.0'

12' 12.0' 123 2.1' 1.5'

16' 16.0' 69 2.8' 2.0'

20' 20.0' 44 3.5' 2.5'

5' 8.7' 250 1.8' 0.9'

8' 13.9' 98 2.8' 1.4'

11' 19.1' 52 3.9' 1.9'

14' 24.2' 32 4.9' 2.4'

3000 2000

50W AR111

FL (T-H) 30°

6' 83 3.2' 3.2'

8' 47 4.3' 4.3'

10' 30 5.4' 5.4'

12' 21 6.4' 6.4'

5' 2.9' 78 3.7' 3.1'

7' 4.0' 40 5.1' 4.3'

9' 5.2' 24 6.6' 5.6'

11' 6.4' 16 8.1' 6.8'

3' 3.0' 118 3.5' 2.3'

4' 4.0' 42 5.8' 3.8'

5' 5.0' 22 8.1' 5.3'

6' 6.0' 13 10.4' 6.8'

2' 3.5' 94 5.5' 2.1'

3' 5.2' 42 8.2' 3.2'

4' 6.9' 23 10.9' 4.3'

5' 8.7' 15 13.7' 5.4'

25000 2000

75W AR111 SP

(T-H) 10°

10' 250 1.7' 1.7'

15' 111 2.6' 2.6'

20' 63 3.5' 3.5'

25' 40 4.4' 4.4'

8' 4.6' 254 1.9' 1.6'

12' 6.9' 113 2.8' 2.4'

16' 9.2' 63 3.7' 3.2'

20' 11.5' 41 4.7' 4.0'

6' 6.0' 246 2.1' 1.5'

9' 9.0' 109 3.2' 2.2'

12' 13.0' 61 4.2' 3.0'

15' 15.0' 39 5.3' 3.7'

4' 6.9' 195 2.9' 1.4'

6' 10.4' 87 4.3' 2.1'

8' 13.9' 49 5.7' 2.8'

10' 17.3' 31 7.2' 3.5'

4500 2000

75W AR111

FL (T-H) 30°

6' 125 3.2' 3.2'

8' 70 4.3' 4.3'

10' 45 5.4' 5.4'

12' 31 6.4' 6.4'

5' 2.9' 117 3.7' 3.1'

7' 4.0' 60 5.1' 4.3'

9' 5.2' 36 6.6' 5.6'

11' 6.4' 24 8.1' 6.8'

3' 3.0' 177 3.5' 2.3'

4' 4.0' 64 5.8' 3.8'

5' 5.0' 32 8.1' 5.3'

6' 6.0' 20 10.4' 6.8'

2' 3.5' 141 5.5' 2.1'

3' 5.2' 63 8.2' 3.2'

4' 6.9' 35 10.9' 4.3'

5' 8.7' 23 13.7' 5.4'

Job Information Type:

Table des matières

Autres manuels Lightolier Luminaire

Lightolier

Lightolier LW6CLP Manuel utilisateur

Lightolier

Lightolier Calculite IS_PB Assembly and Mode d’emploi

Lightolier

Lightolier ProSpec 37224 Manuel utilisateur

Lightolier

Lightolier Calculite 8021WW Manuel utilisateur

Lightolier

Lightolier Brisa FB9314UDA Manuel utilisateur

Lightolier

Lightolier 1101FRD Manuel utilisateur

Lightolier

Lightolier LL4MF8LR232 Manuel utilisateur

Lightolier

Lightolier C6CW SERIES Manuel utilisateur

Lightolier

Lightolier Calculite 7790QD Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB2H3870 Manuel utilisateur

Lightolier

Lightolier ProSpec 26230W Manuel utilisateur

Lightolier

Lightolier SLB1SFSVA232 Manuel utilisateur

Lightolier

Lightolier TRADITIONAL STYLE RADIANCE Pendants Mode d’emploi

Lightolier

Lightolier 1101FDM Manuel utilisateur

Lightolier

Lightolier Calculite HID Glasslite Downlight C4MRGD Manuel utilisateur

Lightolier

Lightolier Soli 48024ALU Manuel utilisateur

Lightolier

Lightolier SLB2SFSVA432 Manuel utilisateur

Lightolier

Lightolier Eye-QLB EYS442FX354 Manuel utilisateur

Lightolier

Lightolier QVS2GPASQ2TT Manuel utilisateur

Lightolier

Lightolier QVS2GPFOS332 Manuel utilisateur

Lightolier

Lightolier Lytecaster 604SQMR Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PA1M1675 Manuel utilisateur

Lightolier

Lightolier ProSpec Track system Instructions d'utilisation

Lightolier

Lightolier Lytespan 7531 Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

ArtFox

ArtFox Beam 15R extreme Manuel utilisateur

GLG

GLG multispot 330 Manuel utilisateur

Home Accents Holiday

Home Accents Holiday TY052-1924-1 Manuel utilisateur

SELF Electronics

SELF Electronics FLEX Manuel utilisateur
