Johnson 40-6692 Manuel utilisateur

Self-Leveling Two, Three or Five-Bea Laser Dot

Model No. 40-6692, 40-6693, 40-6695, 40-6678

Instruction Manual

Congratulations on your choice of this Self-Leveling Two,Three or

Five-Beam Laser Dot. We suggest you read this instruction manual

thoroughly before using the laser. Save this instruction manual for

future use.

These lasers either emit two, three or five laser beams, which projects a series

of visible points on surfaces around the product: 40-6695 & 40-6678 (left,

right, front, up, down) 40-6693 (front, up and down) and 40-6692 (up and

down). Beam visibility depends upon lighting conditions in the work area.

This is a Class IIIa laser tool and is manufactured to comply with CFR 21,

parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.

40-6692 40-6693 40-6695 & 40-6678

1623i-All_Manuals 12/21/16 12:47 PM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and Handling

12. Product Warranty

13. Warranty Registration

14. Accessories

15. Troubleshooting

1. Kit Contents

Description Qty.

Self-Leveling Two, Three or Five-Beam Laser Dot 1

Multi-Functional Magnetic Base 1

Mounting Strap 1

“AA” Alkaline Batteries 3

Magnetic Floor Target (40-6693, 40-6695, 40-6678) 1

Instruction Manual 1

Soft-Sided Pouch and Hard-Shell Carrying Case 1

(40-6692, 40-6693, 40-6695)

Hard-Shell Carrying Case (40-6678) 1

2. Features and Functions

• Product simultaneously projects two, three, or five laser beams

40-6695 & 40-6678 (left, right, front, up and down), 40-6693

(front, up and down) and 40-6692 (up and down).

• Magnetic dampening compensation system.

• Maintains level even when affected by vibration on the job site.

• Laser flashes and sounds an audible alarm when product is

beyond leveling range.

• Low voltage indication with power indication light flashing.

• Pendulum locking mechanism helps protect unit’s inner

mechanisms.

• Multi-functional magnetic base for attaching to tripod or any

metal surface.

• Dust and rain resistant.

1623i-All_Manuals 12/21/16 12:47 PM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original ohnson®parts and accessories purchased from your ohnson®

authorized dealer. Use of non- ohnson®parts and accessories will void warranty.

1623i-All_Manuals 12/21/16 12:47 PM Page 3

4. Location/Content of Warning Labels

DANGER!

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 625-645nm

THIS TOOL E ITS LASER RADIATION.

DO NOT STARE INTO BEA .

AVOID DIRECT EYE EXPOSURE.

40-6692

40-6693

40-6695 &

40-6678

1623i-All_Manuals 12/21/16 12:48 PM Page 4

5. Location of Part/Components

Compensator Lock

and On/Off Switch

1/4" Screw Thread Hole

1/4" Screw to Attach Laser

1/4" and 5/8" Screw to

Attach to Tripod

Battery Cover

Output Window

Calibration Port Plug

Belt Slot

Magnets

Wall Hang Hole

Laser Attachment Wheel

1623i-All_Manuals 12/21/16 12:48 PM Page 5

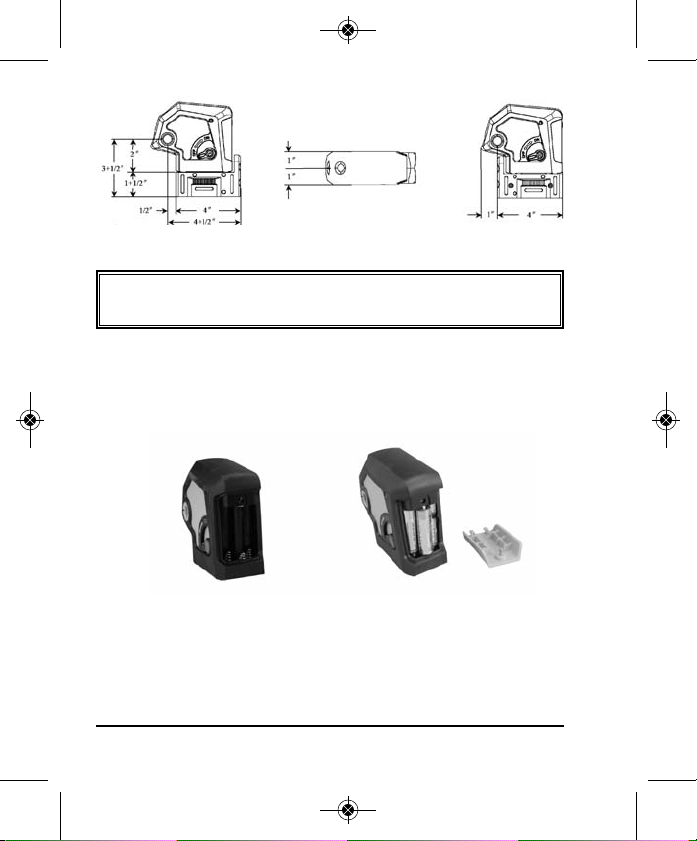

6. Operating Instructions

Alkaline Battery Installation

Note: Always check to be sure that the on/off switch is in the off

position before removing and replacing batteries.

1. As shown in figure, unscrew the battery cover and put 3 “AA”

alkaline batteries into the battery compartment noting the polarity

as shown in the battery compartment. Screw the battery cover

shut. Turn the on/off switch to on. If the power LED is flashing,

the battery is low.

I PORTANT: It is the responsibility of the user to verify the

calibration of the laser before each use.

1623i-All_Manuals 12/21/16 12:48 PM Page 6

7. Using the Product

Power on/off

Turn the compensator lock on/off switch in the direction indicated by

the arrow.

Note: Product must be within ± 3° of level for self-leveling feature

to function properly. Greater than ± 3° will result in an alarm

condition (flashing laser and intermittent beeping sound).

Output of laser line:

To unlock and turn laser on. To lock and turn laser off.

40-6692 40-6693

40-6695 &

40-6678

Down

Front

Down

Front

Right

Left

1623i-All_Manuals 12/21/16 12:48 PM Page 7

This laser level was designed for various mounting applications.

1. Laser base can be attached to a 5/8" x 11 or

1/4" x 20 tripod.

2. Laser can be attached to a pole or ladder by

using the mounting strap.

3. Position the laser by rotating the

laser to shoot the beam down the

back of the base. Ideal for installing

metal track.

4. Rare earth magnets located on base allows

the base to attach to metal surfaces.

5. The laser can be attached to a wall with a

nail/screw using the wall hang hole.

Wall

Hang

Hole

1623i-All_Manuals 12/21/16 12:48 PM Page 8

8. Self-Check & Fine Calibration

Accuracy Self-Check - Plumb point accuracy self-check

1. As shown in figure 1, put the unit on the ground in the direction shown in

figure 1-1.

2. Power on the unit and mark the center of plumb-down as point “E” and

plumb-up point as “A”.

3. Turn the unit 90° (as shown in figure 1-2) and place the down beam on

the “E” mark. Mark the center of the plumb-up point as “B”.

4. Turn the unit 90°again (as shown in figure 1-3) and repeat step 3. Mark

the center of the plumb-up point as “C”.

5. Turn the unit 90°again (as shown in figure 1-4) and repeat step 3. Mark

the center of the plumb-up point as “D”.

6. Marks A-D should all be in the same spot. If not, the unit will need to be

recalibrated. Please see calibration adjustment information.

I PORTANT: It is the responsibility of the user to verify the

calibration of the laser before each use.

Figure 1

1-1 1-3

1-2 1-4

1623i-All_Manuals 12/21/16 12:48 PM Page 9

Accuracy Self-Check - Horizontal Laser (40-6693, 40-6695, 40-6678)

1. Set the instrument on a level surface such as a flat head tripod

located between two walls (marked 1 & 2) approximately 25 feet apart.

(See fig. 1). The laser should be as close as possible to wall 1.

2. Point the instrument directly at wall 1. Turn the laser on and mark the

beam as point A.

3. Turn the instrument 180 degrees so that the laser is pointed directly at

wall 2. Mark the beam on wall 2 as point B.

4. Move the instrument and the tripod so the laser is positioned as close

as possible to wall 2 (see fig. 2). Level the tripod and position the

instrument on the tripod facing wall 2. Turn the laser on and mark

the beam as point C.

5. Turn the laser off and rotate the laser 180 degrees so that it is

facing directly to wall 1.

6. Turn on the laser and mark the beam

as point D.

7. Measure the vertical distance between

points A & D.

8. Measure the vertical distance between

points B & C.

9. If the differences in distance between

points A & D and points B & C is less

than 1/8" at 25', your instrument is

within its tolerance.

10. If it is greater than 1/8" at 25', your

unit will need to be recalibrated.

Wall 1 Wall 2

Fig 1

Fig 2

1623i-All_Manuals 12/21/16 12:48 PM Page 10
