Johnson 40-6080 Manuel utilisateur

12" Magne ic Digi al Laser Level

Model No. 40-6080

Instruction Manual

Congra ula ions on your choice of his Magne ic Digi al Laser Level

wi h Ro a ing Display. We sugges you read his ins ruc ion manual

horoughly before using he ins rumen . Save his ins ruc ion manual

for fu ure use.

This is a Class a laser tool and is manufactured to comply

with CFR 21, parts 1040.10 and 1040.11 as well as international

safety rule EC 285.

7876H-All_Manuals 3/19/14 11:48 AM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety nstructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating nstructions

7. Using the Product

8. Self-Check and Fine

Calibration

9. Technical Specifications

10. Care and Handling

11. Product Warranty

1. Kit Contents

Description for Model 40-6080 Qty.

“AAA” Alkaline Batteries 3

nstruction Manual 1

Soft-Sided Pouch 1

2. Features and Functions

• LCD can rotate 180º

• 5 construction languages - units of measure (degrees, percent,

mm/m, in/ft in decimal, in/ft in fractional)

• Field calibration mode

• 0º and 90º-position of inclination is confirmed by a signal tone

• Numbers invert for working overhead

• Automatic Shut-off

• Magnetic Base

• 1/4" - 20 thread for connection to tripod

7876H-All_Manuals 3/19/14 11:48 AM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

DA GER!

Class a Laser Product

Max. Power Output: ≤5mW

Wavelength: 640-660nm

THIS TOOL EMITS LASER RADIATIO .

DO OT STARE I TO BEAM.

AVOID DIRECT EYE EXPOSURE.

ATTE TIO IMPORTA T

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. f unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original Johnson®parts and accessories purchased from your Johnson®

authorized dealer. Use of non-Johnson®parts and accessories will void warranty.

7876H-All_Manuals 3/19/14 11:48 AM Page 3

4. Location/Content of Warning Labels

7876H-All_Manuals 3/19/14 11:48 AM Page 4

5. Location of Part/Components

LCD DisplaLaser Output Window

Batter Cover

Batter Cover Screw

Ke pad

1 1/4" Offset

7876H-All_Manuals 3/19/14 11:48 AM Page 5

6. Operating Instructions

Battery Installation

1. Open the battery cover

by turning the screw

counter-clockwise,

and then put the 3 “AAA” batteries into the battery case

according to the polarity shown in the battery slot.

2. Snap the battery cover back, and then tighten the screw clockwise.

ote:

1. Take out the batteries if the instrument is not going to be used

for a long time.

2. Replace the batteries when the voltage gets low.

3. Turn the instrument off while taking out the old batteries from

the battery case.

Display After Installing the Batteries

1. After installing the new batteries the LCD

will display “good”.

2. Then the LCD will display “-0-”.

3. Calibrate the instrument following the

calibration procedure in Section 8.

IMPORTA T: t is the responsibility of the user to verify the

calibration of the instrument before each use.

7876H-All_Manuals 3/19/14 11:48 AM Page 6

7. Using the Product

Key Guide

Power Key

Turn on/off the instrument. The instrument will beep twice

when turned on and beep once when turned off.

Hold Key

Pressing this key will lock the current angle reading

displayed on the LCD.

Sound/LCD Backlight Key

Press this key and hold for 2 seconds to turn on/off the

LCD back light. The instrument will beep once. Press

button once to turn on/off the sound function. When sound

function is on you will see the horn symbol on the LCD. There will

be no beeps if the instrument is between 10º to 80º. A faster beep

will start as you move closer to level or plumb. A steady tone will

beep when level is at 0.0º or 90º.

Power Key

Sound/LCD

Backlight Key

Hold Key

Laser Key

Mode Key

Calibration Key

7876H-All_Manuals 3/19/14 11:48 AM Page 7

Mode Key

Push the MODE button to switch from one construction language

to another. This controls which construction language your

electronic module will measure in. Your level has the capability to

measure in Degrees, Percentage, Millimeters per Meter, nches per Foot

in decimal form and nches per Foot in fractions of an inch. A symbol on

the right of the screen will explain which MODE you are currently in.

Laser Key

Turn on/off the laser. The instrument will beep once.

Calibration Key

Please refer to Section 8 “Self-Check and Fine Calibration”.

Auto Shut-off

The electronic module will automatically shut-off in 20 minutes if no

key is pressed.

Low Voltage Indication

f the battery symbol on the display is low, change the

batteries as soon as possible. Non-display of battery

symbol means the battery is full.

Mode

7876H-All_Manuals 3/19/14 11:48 AM Page 8

Sound Function

The SOUND symbol displayed on the LCD means that the

sound function is activated. The level will beep faster when

the instrument gets closer to the position of 0º and 90º. When the

LCD displays 0º or 90º, there will be a continuous tone sound.

Hold Function

Press the hold key once (unit will beep once) to activate this function

and to display the HOLD symbol on the LCD. Now the instrument will

hold the current angle reading and the display will flash.

Laser Indication Function

The Laser symbol displayed on the LCD means that the laser

beam is activated. The laser output window will emit a bright

red laser dot.

Inclination Indication

The triangle arrows displayed on the two ends of the LCD indicate

the inclination direction of the laser digital level.

7876H-All_Manuals 3/19/14 11:48 AM Page 9

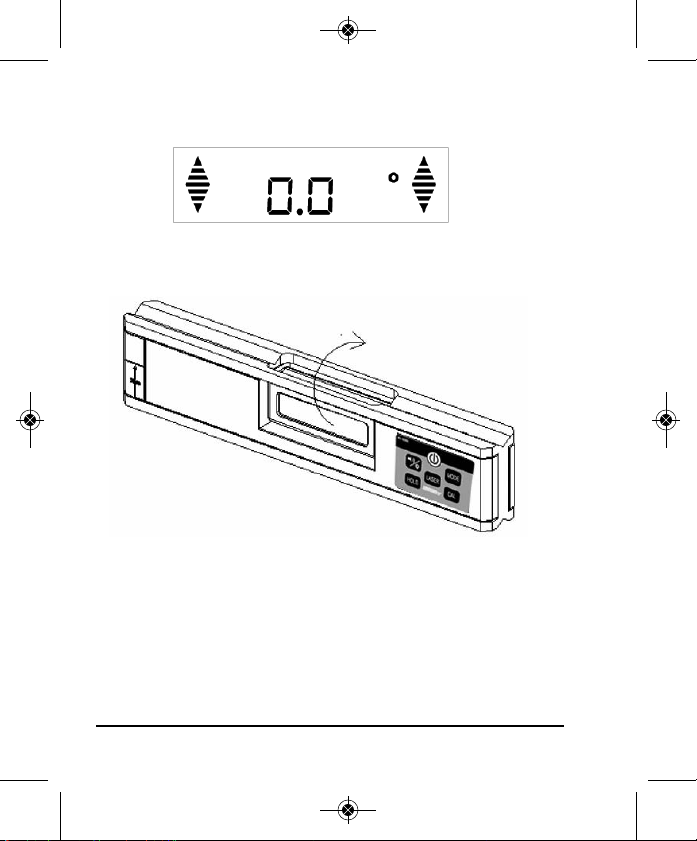

When the laser digital level is at the position of 0 degree, the two

arrows will show as follows:

Rotating Display

The LCD of the instrument can rotate 180 degrees.

7876H-All_Manuals 3/19/14 11:48 AM Page 10
