Johnson 40-6515 Manuel utilisateur

Self-Leveling Rotary Laser Level

Model Nos. 40-6515, 40-6516 and 40-6517

Instruction Manual

Congratulations on your choice of this Self-Leveling Rotary Laser

Level. We suggest you read this instruction manual thoroughly before

using the instrument. Save this instruction manual for future use.

This is a Class a laser tool and is manufactured to comply

with CFR 21, parts 1040.10 and 1040.11 as well as international

safety rule EC 285.

3515H_Manuals 6/2/10 9:00 AM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety nstructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating nstructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and Handling

12. Product Warranty

13. Warranty Registration

14. Accessories

1. Kit Contents

For Model No. 40-6515

Description Qty.

Self- Leveling Rotary Laser Level 1

“AA” Alkaline Batteries 4

Tinted Glasses 1

nstruction Manual with Warranty Card 1

Soft Sided Carrying Case 1

For Model No. 40-6516

Description Qty.

Self- Leveling Rotary Laser Level 1

“AA” Alkaline Batteries 4

Tinted Glasses 1

Detector with 9V Battery and Clamp 1

nstruction Manual with Warranty Card 1

Hard Shell Carrying Case 1

For Model No. 40-6517

Description Qty.

Self- Leveling Rotary Laser Level 1

“AA” Alkaline Batteries 4

Tinted Glasses 1

Detector with “AAA” Batteries and Clamp 1

Magnetic Target 1

Elevating Tripod 1

Wall/Ceiling Mount 1

8’ Grade Rod 1

nstruction Manual with Warranty Card 1

Hard Shell Carrying Case 1

3515H_Manuals 6/2/10 9:00 AM Page 2

2. Features and Functions

• Self-leveling with magnetically dampened compensation system.

• f laser is out of its self-leveling range, rotation stops and alarm

sounds.

• Projects a horizontal laser plane.

• Projects a vertical laser plane with a simultaneous 90° split

beam.

• Laser rotation speed is 200 (L), 400 (M), 600 (H) RPM.

• lluminated vertical vial.

• Water and dust resistant.

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool.

DANGER!

Class a Laser Product

Max. Power Output: ≤5mW

Wavelength: 625-645nm

THIS T L EMITS LASER RADIATI N.

D N T STARE INT BEAM.

AV ID DIRECT EYE EXP SURE.

3515H_Manuals 6/2/10 9:00 AM Page 3

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. f unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original Johnson®parts and accessories purchased from your Johnson®

authorized dealer. Use of non-Johnson®parts and accessories will void warranty.

3515H_Manuals 6/2/10 9:00 AM Page 4

4. Location/Content of Warning Labels

3515H_Manuals 6/2/10 9:00 AM Page 5

5. Location of Part/Components

Rotating Laser

Output Widow

Keypad

Lock Knob –

Compensator/

Transportation

Battery Door

DC 6V Outlet

(6V Adapter not

included)

5/8” – 11 Screw

Thread

90° Split Beam Laser

Output Window

Vertical Vial

Charging LED

Vertical Vial Adjustment

Knob

3515H_Manuals 6/2/10 9:00 AM Page 6

6. perating Instructions

IMP RTANT: t is the responsibility of the user to verify the

calibration of the laser before each use.

Alkaline Battery Installation

Note: Always check to be sure that the on/off switch is in the off

position before removing and replacing batteries.

1. nstall alkaline batteries into the battery case according to the

polarity illustrated in the battery compartment.

2. Place the battery door back and tighten the screw.

Bubble Adjustment While in Use Vertically

1. Turn the lock knob counter-clockwise to off position to “LOCK” the

compensator. The laser is now operating in a “manual mode”

and is not self-leveling.

3515H_Manuals 6/2/10 9:00 AM Page 7

2. Turn the vertical adjustment knob to center the bubble in the

vertical vial.

7. Using the Product

Keypad

When the laser is in the horizontal position, the laser will not

power on until the compensator/transportation lock knob is

turned to the “ n” position.

Power Key: Press this key to power on/off the laser.

Power LED: Lighted LED mean power-on

Extinguished LED means power-off

Flashing LED means weak battery voltage

Rotating speed

switch key Power Key

Low speed LED

Middle speed LED

High speed LED

Power LED

3515H_Manuals 6/2/10 9:00 AM Page 8

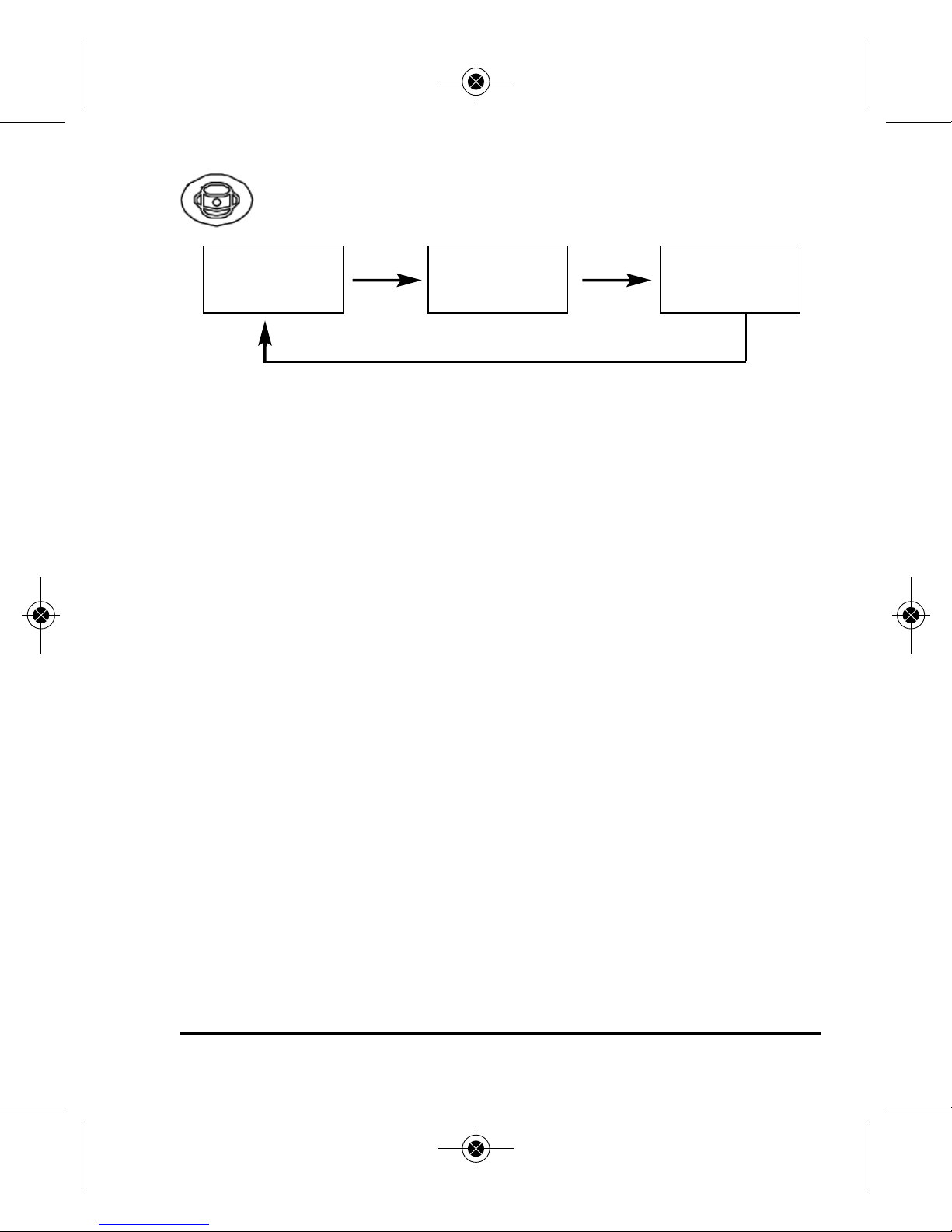

Rotating speed switch key

Note: When starting the unit, the laser will be in the high-speed rotating status.

When switching the rotating speed, the corresponding LED will light up.

ut of Level

Set the lock knob to the on position. Power on. During the process of

self-leveling, if the laser is tilted to exceed its self-leveling range, it

will stop rotating and will give a sound alarm.

600 (H)

High speed

400 (M)

Middle speed

200 (L)

Low speed

3515H_Manuals 6/2/10 9:00 AM Page 9

Application Methods

nstall the alkaline batteries into the instrument. Put the laser on a

platform or connect the laser to a tripod using the 5/8” - 11 screw

thread.

Note:

1. To use the laser in the self-leveling status, please set the lock knob

to the on position.

2. While the laser is in the vertical status (manual mode), please set

the lock knob to off position.

3. Power on the laser and select your desired speed by pressing the

keys on the keypad.

4. After operations or before moving the unit, please power off and

lock the laser first.

Use on a platform

Connect the laser with the tripod using the 5/8” - 11 screw thread

3515H_Manuals 6/2/10 9:00 AM Page 10
