Self-Leveling Cro -Line La er

Model No. 40-0912 & 40-0921

Instruction Manual

Congratulations on your choice of this Self-Leveling Cross-Line Laser.

We suggest you read this instruction manual thoroughly before using

the instrument. Save this instruction manual for future use.

This is a Class IIIa laser tool and is manufactured to comply

with CFR 21, parts 1040.10 and 1040.11 as well as international

safety rule IEC 285.

7295H-English_Manuals 8/28/13 8:42 AM Page 1

Table of Contents

1. it Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and Handling

12. Product Warranty

13. Warranty Registration

14. Accessories

1. Kit Contents

Model No. 40-0912 ty.

Self-Leveling Cross-Line Laser

with 360º Rotating Base 1

“AAA” Alkaline Batteries 3

Instruction Manual with Warranty Card 1

Soft-Sided Carrying Case 1

Model No. 40-0921 ty.

Self-Leveling Cross-Line Laser

with 360º Rotating Base 1

Tinted Glasses 1

Elevating Tripod 1

Instruction Manual with Warranty Card 1

Hard-Shell Carrying Case 1

2. Features and Functions

• Two laser beams to plot both horizontal (level) and vertical

(plumb) lines.

• Self-levels to within a range of ±6°.

• 360º graduated base allows angle layout.

7295H-English_Manuals 8/28/13 8:42 AM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

DANGER!

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 625-645nm

THIS TOOL EMITS LASER RADIATION.

DO NOT STARE INTO BEAM.

AVOID DIRECT EYE EXPOSURE.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• eep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original Johnson®parts and accessories purchased from your Johnson®

authorized dealer. Use of non-Johnson®parts and accessories will void warranty.

7295H-English_Manuals 8/28/13 8:42 AM Page 3

4. Location/Content of Warning Labels

7295H-English_Manuals 8/28/13 8:42 AM Page 4

5. Location of Part/Components

Lock/unlock

On/off switch

7295H-English_Manuals 8/28/13 8:42 AM Page 5

6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Battery Installation

Open the cover on the back of the unit in

accordance with markings on the cover and insert

three AAA batteries (included in 40-0912 only).

Place cover back onto unit.

Note: Used (discharged) batteries are hazardous

waste and should be disposed of properly.

The unit must be locked/turned off before returning the laser to its

case. Locking the unit must be done when the unit is in its upright

position. It is done to hold the internal components in place to avoid

damage to the internal mechanism during transport. The

knob must be unlocked/turned on prior to each use and

locked/turned off after each use of the laser.

Tripod Set-up

Open up the tripod and position it firmly on a surface that is even

and as near level as possible. For uneven surfaces and inclines,

compensate by adjusting the telescoping legs of the tripod. Tightly

screw the unit and tripod together.

Tripod working range from 17" to 47".

The laser can be used either with the tripod or independently.

7295H-English_Manuals 8/28/13 8:42 AM Page 6

7. Using the Product

Horizontal and Vertical Line Projection

Turning on the knob on the side of the unit will generate a simultaneous

vertical and horizontal line laser beam. To turn off, simply turn knob

counter-clockwise. If you have unlocked the knob on side of the unit

(as per previous page) then simply allow for the unit to level itself.

The unit can be manually rotated to the full 360º range.

Note: The laser level is able to compensate for slope of +/- 6º. If

the level is placed on a slope that is too great, it will not be able to

level itself accurately. The laser beam will flash if outside of its

leveling range.

7295H-English_Manuals 8/28/13 8:42 AM Page 7

8. Self-Check & Fine Calibration

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Re-calibration can be performed as described below:

1. Use a level to mark a horizontal reference line on the wall.

2. Power on the unit to compare the projected horizontal line with

its reference. Compensator has to be locked before making

calibration adjustments. If the line is tilted, remove the side

plastic screw/plug and use a 2 mm hex head wrench to cali-

brate the unit through its side calibration hole. Rotate the hex

head wrench clockwise when the horizontal line tilts to the

right. Rotate the hex head wrench counter-clockwise when the

horizontal line tilts to the left.

3. If the horizontal line is too low or too high, carefully remove the

housing by removing the four screws located at the top of the

housing. Carefully remove the housing paying close attention

to the power cord inside the unit. Locate the three screws at

the front of the unit below the glass prisms. If the line needs

to be moved down, loosen the two outer screws and tighten

the inner screw. If the line needs to be moved up, loosen the

inner screw and tighten the two outer screws. Reassemble the

housing after completing the calibration procedure.

7295H-English_Manuals 8/28/13 8:42 AM Page 8

9. Technical Specifications

Laser Wavelength 635nm ± 10

Laser Classification Class IIIa

Maximum Power Output ≤5mW

Accuracy ± 1/4"/35 ft. (±0.6mm/m)

Interior Range Up to 100 ft. (30m)

depending upon light conditions

Self-Leveling Range ±6º

Power Supply 3 “AAA” alkaline batteries

(included in 40-0912 only)

Battery Life Approx. battery life 12 hours

continuous use

Dimensions 5" x 4" x 3 1/2"

(127 x 101 x 89mm)

Weight 1.2 lbs. (0.54 g)

Working Temperature 14°F to 113°F (-10°C to +45°C)

Center Screw Thread 5/8" – 11

IP Protection Class 54

7295H-English_Manuals 8/28/13 8:42 AM Page 9

10. Application Demon tration

7295H-English_Manuals 8/28/13 8:42 AM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Johnson Niveau laser

Johnson

Johnson 40-6060 Manuel utilisateur

Johnson

Johnson 40-6690 Manuel utilisateur

Johnson

Johnson 40-6680 Manuel utilisateur

Johnson

Johnson 40-6650 Manuel utilisateur

Johnson

Johnson 40-6515 Manuel utilisateur

Johnson

Johnson 40-6641 Manuel utilisateur

Johnson

Johnson 40-6174 Manuel utilisateur

Johnson

Johnson 40-6690 Manuel utilisateur

Johnson

Johnson Hot Shot 40-0917 Instructions d'utilisation

Johnson

Johnson 40-6584 Manuel utilisateur

Johnson

Johnson 40-6250 Instructions d'utilisation et d'entretien

Johnson

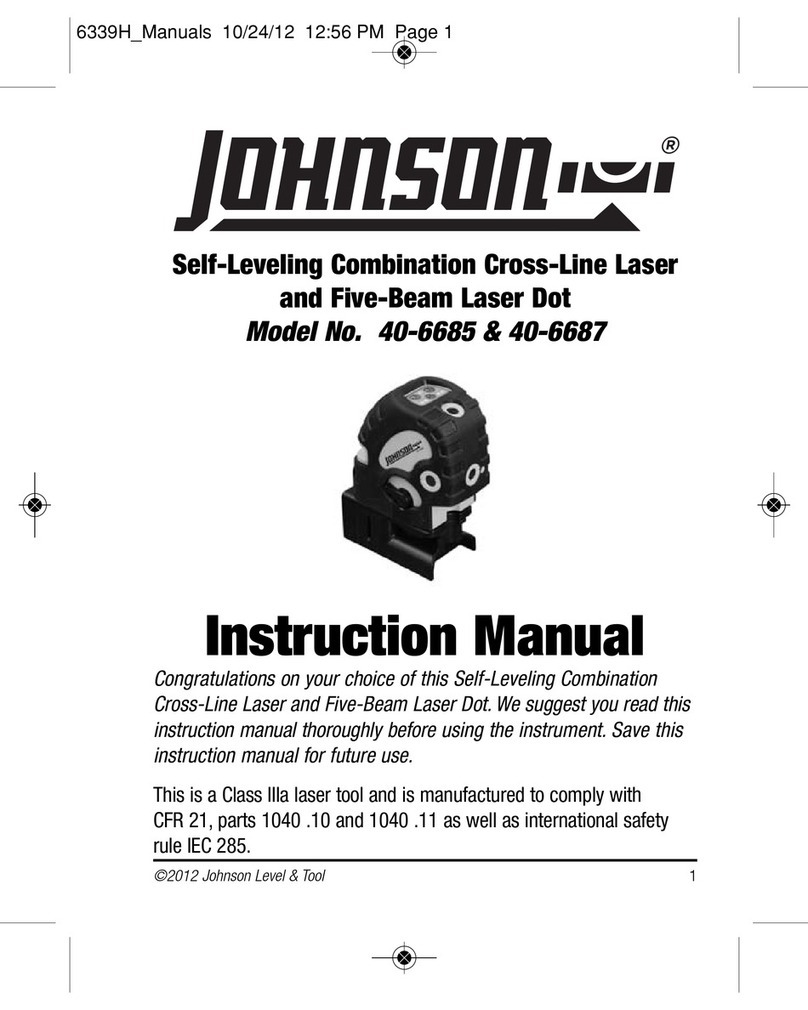

Johnson 40-6685 Manuel utilisateur
