Johnson Hot Shot 40-0917 Instructions d'utilisation

ROTARY LASER LEVEL KIT

Model No. 40-0917

ASSEMBLY AND OPERATING MANUAL

LEVEL & TOOL

ABOUT THIS PRODUCT

The Johnson Rotary Laser Level is an instrument utilizing a laser beam to plot

distant points or a continuous horizontal line. The device incorporates a built-in

rotary unit with a speed control knob, three (3) leveling vials, three (3) leveling

screws, plus an adjusting base designed for both tripod- and wall-mounting. The

lightweight, yet sturdy tripod allows the laser beam to be set to the required height.

This level may be used for measuring in indoor and outdoor settings. It can be

used either with or without the tripod (included).

KIT INCLUDES:

•Rotary level

•Built-in adjusting base and brackets

•Telescoping tripod

•Tinted goggles

•4 x AA batteries

ATTENTION!ATTENTION!

•Never look into the laser beam with naked eyes. Any improper use may

cause injury to the eyes.

•Do not direct the laser beam on person or reflective surfaces. Even a

laser of minor capacity may cause injury to the eyes.

•A laser is not a toy and must be stored out of children’s reach.

•Any manipulation that results in an increased performance of the laser is

strictly prohibited. Any claim for damages will be refused for injuries

resulting from the non-compliance of these safety instructions.

•If laser level has not been used longer than three months, please remove

the batteries in order to avoid damage due to leakage.

•This laser level does not contain any serviceable parts. Never open the

housing, as this will void the warranty.

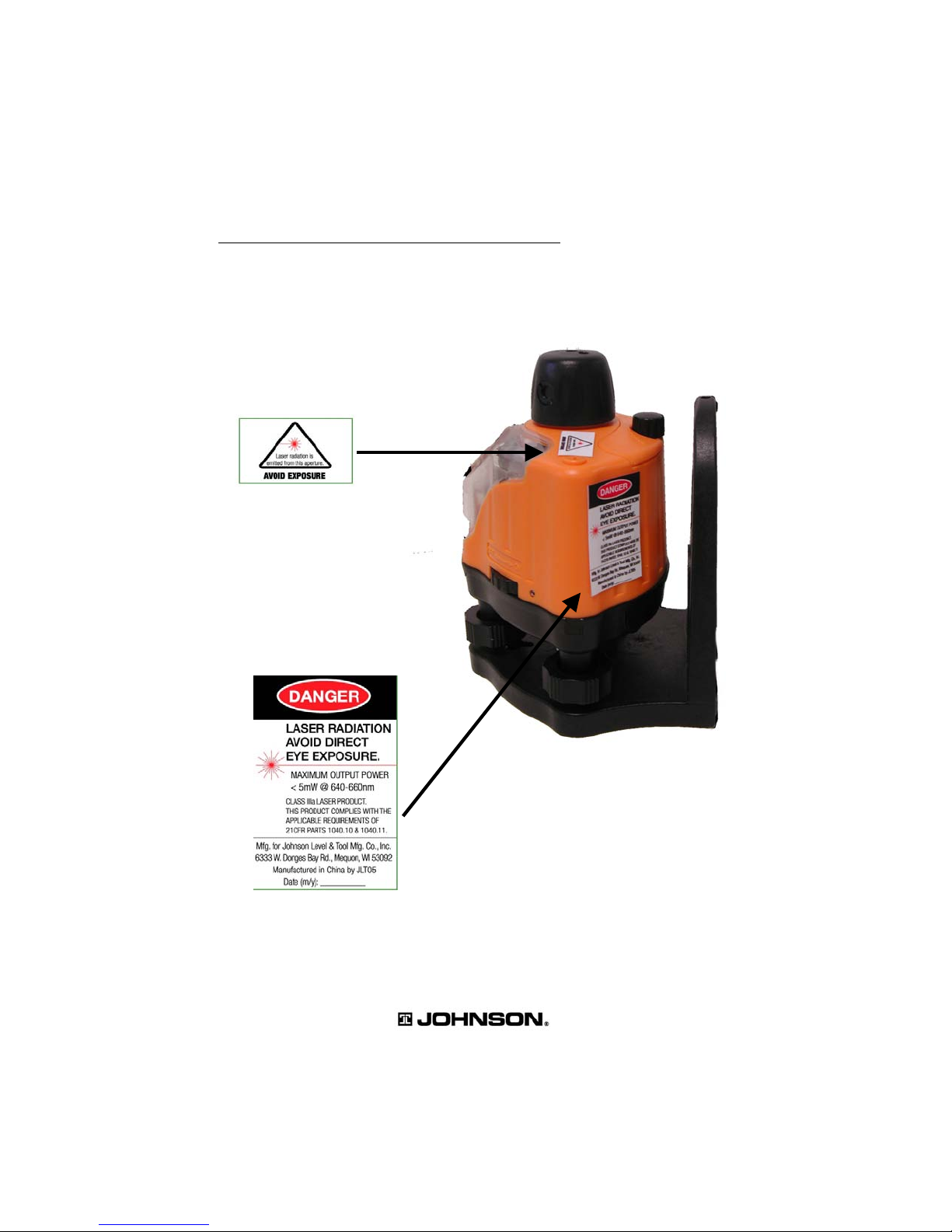

LOCATION / CONTENT OF WARNING LABELS

WARNING!

DO NOT LOOKDIRECTLY INTO THE LIGHTBEAM.

DO NOT AIM LIGHTBEAM DIRECTLY INTO EYES.

THIS WILL DAMAGE THE EYES.

TECHNICAL SPECIFICATIONS

Class of laser: IIIa (class 3 protection)

Maximum power output: 5mW

Measuring range: 30m –100m (100 ft. –330ft.) of visible light,

depending on illumination of work area

Rotation speed:0 –600 rpm

Wavelength: 650nm ±10nm

Measuring accuracy: ±0.3mm/m (1/8" at 30 ft.)

Power supply: 4 x AA batteries

Rotary head

Laser beam exit hole

On/off switch

and speed control knob

Horizontal (level) vial “X”

Vertical (plumb) vial“Y”

Levelling screws

Base with tripod

thread and wall-

mounting brackets

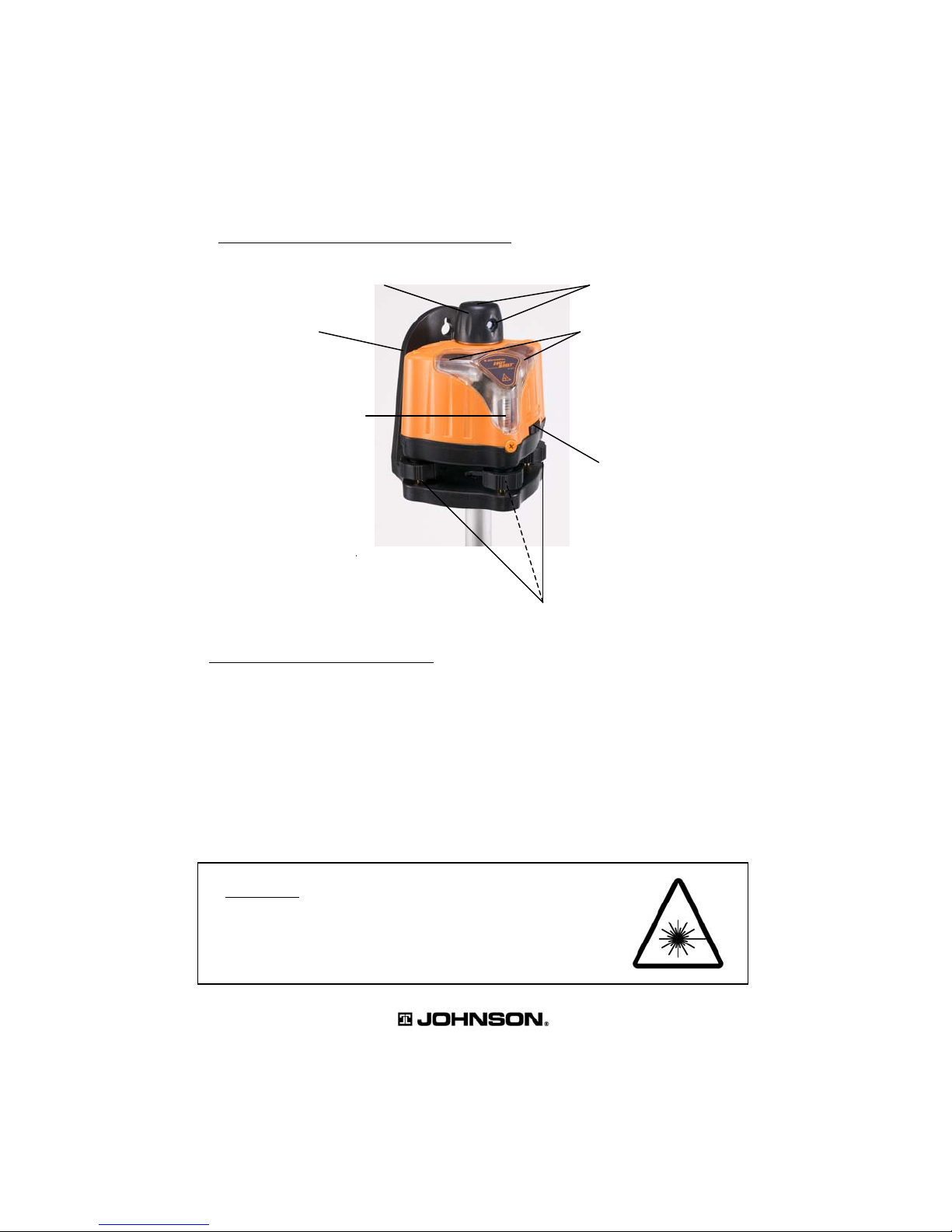

LOCATION OF PARTS / COMPONENTS

SAFETY INSTRUCTIONS

Please read and understand all the following instructions prior to using this

laser tool. Failure to follow all the warnings below may result in bodily injury.

IMPORTANT: Read all instructions prior to operating this laser tool and DO

NOTremove any labels from the tool.

• Use of controls or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up the laser tool at eye level or operate the tool on or near a

reflective surface, as the laser beam could be projected into your eyes or

the eyes of others.

• Do not place the laser tool in a manner that may cause someone to

unintentionally look into the laser beam. Serious eye injury may result.

• Do not operate the laser tool in explosive environments, i.e. in the

presence of gases or flammable liquids.

• Keep the laser tool out of reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as

telescopes as serious eye injury may result.

• Always turn the laser tool off when it is not in use or is left unattended for a

period of time. Remove the batteries when storing the tool for an

extended time to avoid damage to the tool should the batteries

deteriorate.

• Do not attempt to repair or disassemble the laser tool. Unqualified

persons attempting to repair the tool may result in serious injury.

WARNING

The tinted goggles are designed to enhance the visibility of the laser

beam. They DO NOT offer protection to the eyes from direct

exposure of the laser beam.

CHANGING BATTERIES AND ACTIVATINGLASER BEAM



Unscrew the cover on the back top of the unit and insert four (4) AA batteries

(included). To turn on, rotate the on/off switch in the direction indicated by the

arrow.Turning the knob will increase or decrease the rotation speed.

Please Note: Used/discharged batteries are hazardous waste and must be

disposed of properly.

ASSEMBLY AND ADJUSTMENT

Open up the tripod and position it firmly on a surface that is even and as near level as

possible. For uneven surfaces and inclines, compensate by adjusting the

telescoping legs of the tripod.

Tightly screw the unit and tripod together.



Bring the unit into a level position by means of the three (3) adjusting screws and the

three (3) built-in vials.



The rotary laser can be used either with the tripod or independently.

PREPARING FORUSE

To obtain accurate measures, use the leveling screws found on the mounting base

and ensure that the bubble in each vial is perfectly centered. Utilize the speed

control knob to create a single laser point or an intermittent line or a continuous line.

Caution: Due to the 360° rotating feature of the laser beam, extra care must be

taken to avoid direct contact with the eyes.

WARNING!

DO NOT LOOKDIRECTLY INTO THE LIGHTBEAM.

DO NOT AIM LIGHTBEAM DIRECTLY INTO EYES.

THIS WILL DAMAGE THE EYES.

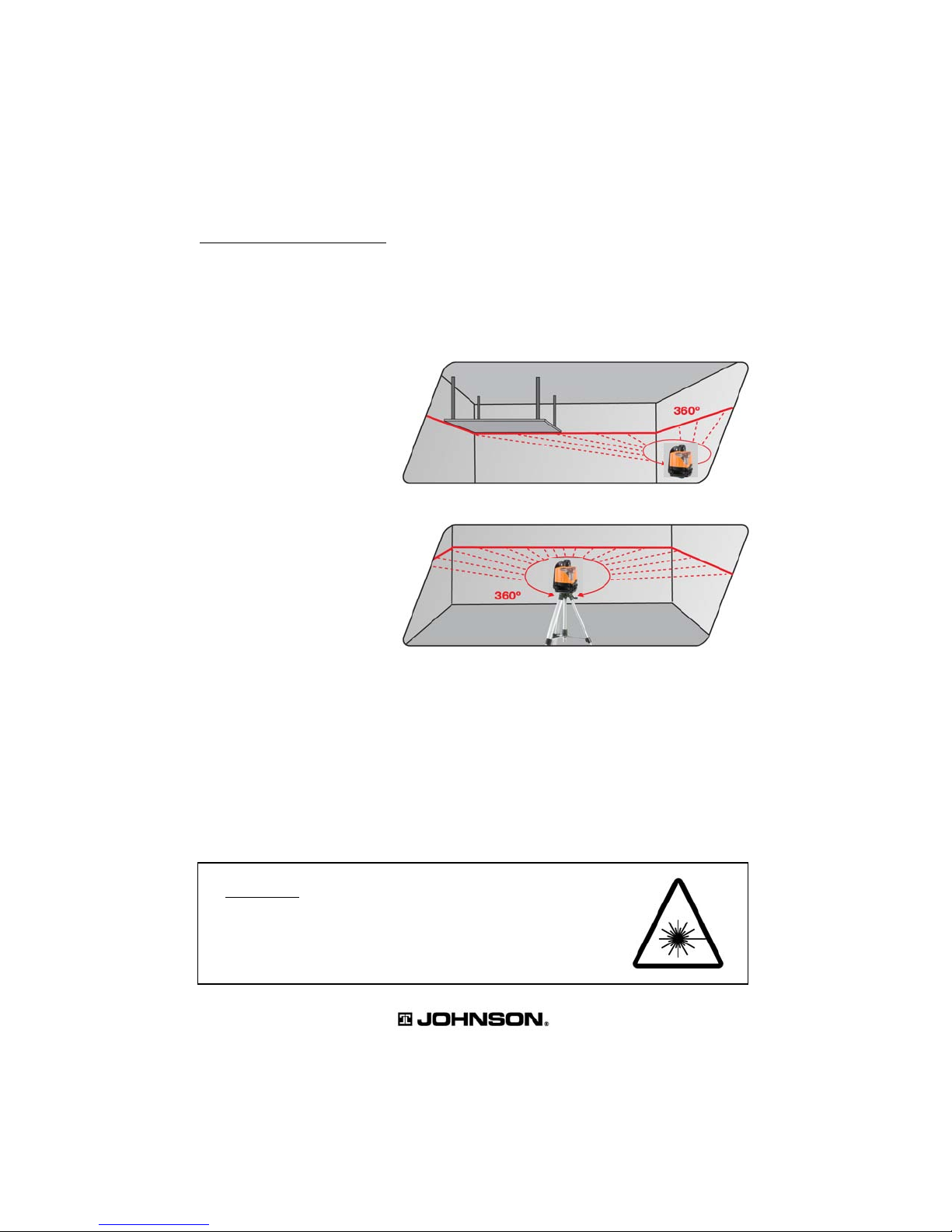

TYPICAL APPLICATIONS

Installing drop ceilings

Installing mouldings

GUARANTEE STATEMENT

The Johnson Laser Level is guaranteed against all defects in

construction and material for a period of one year. This guarantee

is limited to the replacement of defective parts upon presentation

of the sales slip. This guarantee is not applicable in the event of,

but not limited to, damage due to misuse by failing to heed the

instructions presented her ein, of unauthorized manipulation of the

level and its attachments, or upon negligence of the

purchaser/user.

CLASS IIIa LASER LASER DE

CLASSE IIIa
