Johnson 40-6685 Manuel utilisateur

Self-Leveling Combina ion Cross-Line Laser

and Five-Beam Laser Do

Model No. 40-6685 & 40-6687

Instruction Manual

Congratulations on your choice of this Self-Leveling Combination

Cross-Line Laser and Five-Beam Laser Dot. We suggest you read this

instruction manual thoroughly before using the instrument. Save this

instruction manual for future use.

This is a Class IIIa laser tool and is manufactured to comply with

CFR 21, parts 1040 .10 and 1040 .11 as well as international safety

rule IEC 285.

6339H_Manuals 10/24/12 12:56 PM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and andling

12. Product Warranty

13. Warranty Registration

14. Accessories

1. Kit Contents

Description for Model 40-6685 Qty.

Self-Leveling Combination Cross-Line Laser &

Five-Beam Laser Dot 1

Multi-functional Magnetic Base 1

Mounting Strap 1

“AA” Alkaline Batteries 3

Tinted Glasses 1

Magnetic Target 1

Instruction Manual with Warranty Card 1

ard-Shell Carrying Case 1

Description for Model 40-6687 Qty.

Self-Leveling Combination Cross-Line Laser &

Five-Beam Laser Dot 1

Multi-functional Magnetic Base 1

Mounting Strap 1

“AA” Alkaline Batteries 3

Detector with Bracket and 9V Battery 1

Magnetic Target 1

Instruction Manual with Warranty Card 1

ard-Shell Carrying Case 1

6339H_Manuals 10/24/12 12:56 PM Page 2

2. Features and Functions

• Laser simultaneously projects two, three or five laser beams

(up, down, front, left and right directions).

• Able to project one horizontal, vertical or cross-line beam.

• Magnetic dampened compensation system.

• Laser beam flashes and sounds audible alarm when the laser is

beyond its self-leveling range.

• Pendulum locking mechanism helps protect units inner

mechanisms.

• Multi-functional magnetic base for attaching to tripod or any

metal surface.

• Manual mode feature allows unit to be tipped at extreme

angles without the audible alarm and laser flash being

triggered.

• Pulsed line feature allows outdoor use with line generator laser

detector (included in 40-6687).

6339H_Manuals 10/24/12 12:56 PM Page 3

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original Johnson®parts and accessories purchased from your Johnson®

authorized dealer. Use of non-Johnson®parts and accessories will void warranty.

DANGER!

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 625-645nm

THIS T L EMITS LASER RADIATI N.

D N T STARE INT BEAM.

AV ID DIRECT EYE EXP SURE.

6339H_Manuals 10/24/12 12:56 PM Page 4

4. Location/Content of Warning Labels

6339H_Manuals 10/24/12 12:56 PM Page 5

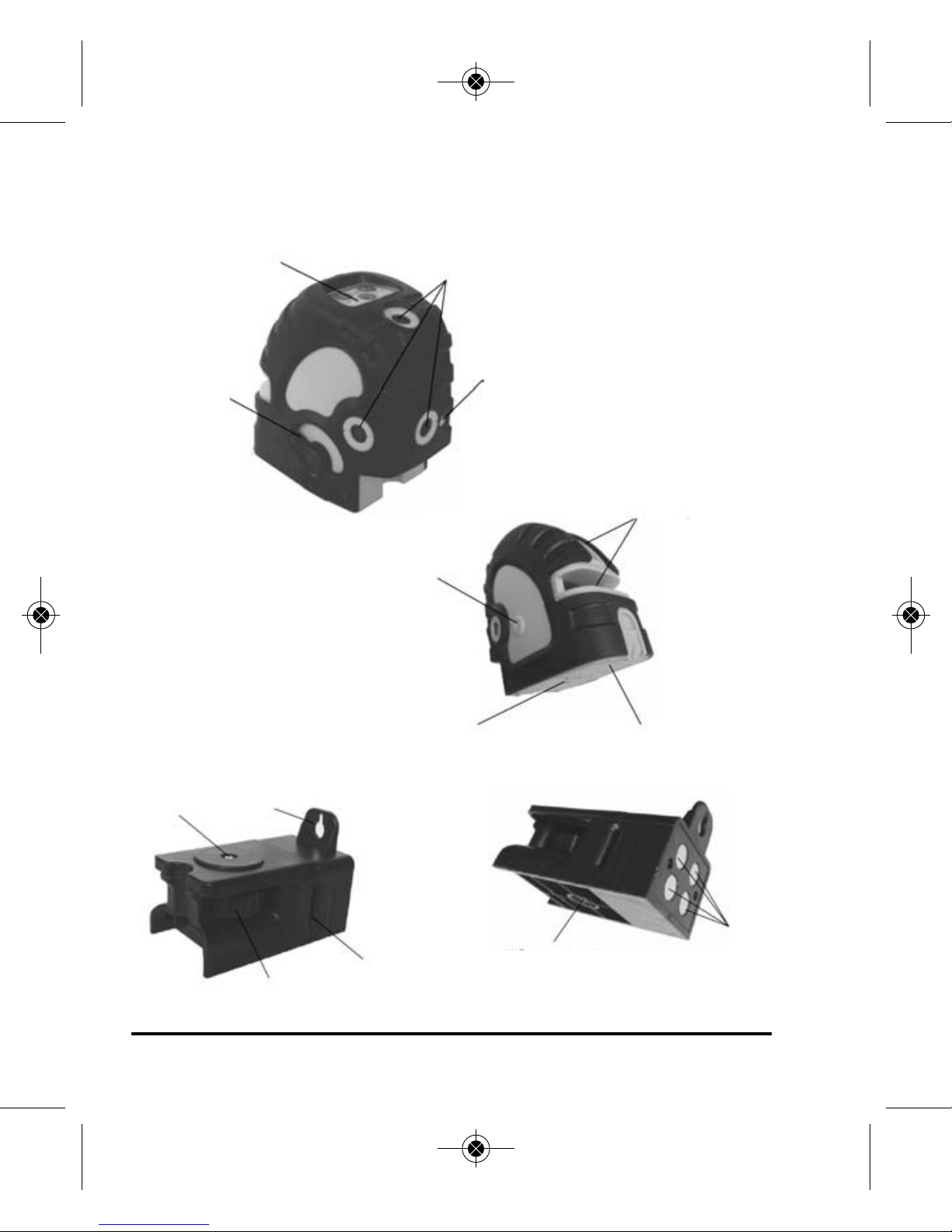

5. Location of Part/Components

Keypad

Laser Dot Output Windows

Laser Line

Output Windows

Battery Cover

1/4” - 20 Thread

Self-calibration Aperture A

Self-calibration Aperture B

Compensator

Lock/Unlock

Switch

1/4” - 20

Thread

attaches

to base Wall Mount

Belt Mounting

Groove

Laser Connecting Knob

Rare Earth

Magnets

5/8” Thread

6339H_Manuals 10/24/12 12:56 PM Page 6

6. perating Instructions

IMP RTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Battery Installation

Note:

Always check to be sure that the compensator lock/unlock switch

is in the locked position before removing and replacing batteries.

1. As shown in figure, open the battery cover.

2. Put three “AA” alkaline batteries into the

battery compartment noting polarity

3. Close the battery cover.

7. Using the Product

Place the laser on a relatively smooth, flat and

level surface.

Note: Product must be within ±4º of level for

self-leveling feature to function properly. Greater

than 4º will result in an alarm condition (flashing

laser and intermittent beeping sound).

Place the laser on a tripod using the multi-functional

base.

6339H_Manuals 10/24/12 12:56 PM Page 7

Attach the laser to a steel object.

Laser can pivot on base.

Strap the laser to a pole.

6339H_Manuals 10/24/12 12:56 PM Page 8

Keypad perations

Power LED:

LED On: Laser is on or pendulum compensator is unlocked

LED Off: Pendulum compensator is locked and laser is off

LED Flashing: Low Battery

Manual Mode LED:

LED Flashing: The pendulum compensator is locked (laser is not

self-leveling) and laser is on

LED Off: The laser is in self-leveling mode or the laser is off

Horizontal Laser Line LED:

LED On: The horizontal laser line is on

LED Flashing: The horizontal laser line is in pulse mode and can be

used with a line detector (40-6780)

LED Off: The horizontal laser line is off

Dot LED /

Out-of-Level LED

(when flashing)

orizontal Line

LED

Pulse Mode

Button

Vertical

Line LED

Power LED

Laser Dot

Control Button

Manual Mode LED

Laser Line Control Button

6339H_Manuals 10/24/12 12:56 PM Page 9

Vertical Laser Line LED:

LED On: The vertical laser line is on

LED Flashing: The vertical laser line is in pulse mode and can be

used with a line detector (40-6780)

LED Off: The vertical laser line is off

Dot LED:

LED On: Dot laser is on

LED Off: Dot laser is off

LED Flashing: Laser is outside its self-leveling range

Pendulum Compensator Lock Switch

Unlock the laser, the laser will be on, and the power LED is on. Lock

the laser, the laser will be off, and the power LED is off.

When unlocking the laser, if the laser flashes and sounds an alarm,

the laser is out of its self-leveling range.

Locked Position Unlocked Position

6339H_Manuals 10/24/12 12:56 PM Page 10
