©2018 Johnson Level & Tool - Rev. 1 1
Self-Leveling Cross-Line Laser
Model Nos. 40-6601, 40-6603, 40-6605
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser. We
suggest you read this instruction manual thoroughly before using the
instrument and save this instruction manual for future use.
This is a Class laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule EC 285.
2891i-3English_Manuals 6/4/18 10:26 AM Page 1
2©2018 Johnson Level & Tool - Rev. 1
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety nstructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating nstructions
7. Checking Accuracy
8. Application Examples
9. Troubleshooting Guide
10. Technical Specifications
11. Product Warranty
12. Warranty Registration
1. Kit Contents
Description for Model 40-6603 Qty.
Self-Leveling Cross-Line Laser
1
“AA” Alkaline Batteries 2
Description for Model 40-6601 & 40-6605 Qty.
Self-Leveling Cross-Line Laser
1
Magnetic Bracket 1
Tinted Glasses 1
Magnetic Target 1
“AA” Alkaline Batteries 2
Hard-Shell Carrying Case 1
2891i-3English_Manuals 6/4/18 10:26 AM Page 2
©2018 Johnson Level & Tool - Rev. 1 3
2. Features and Functions
• Simultaneously projects two laser beams both horizontally (level)
and vertically (plumb)
• Tilt mode can be used to plot lines at any angle
• Magnetically dampened compensator system stabilizes the
pendulum quickly and accurately, and stays level even with
nearby jobsite vibration.
• Status light alerts you to when the tool is beyond its leveling
range
• Locking mechanism protects the pendulum during transportation
• 1/4″-20 tripod thread for use with most common tripods
2891i-3English_Manuals 6/4/18 10:26 AM Page 3
4©2018 Johnson Level & Tool - Rev. 1
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may void the warranty.
DANGER!
Class Laser Product
Max. Power Output: ≤1mW
Wavelength: 635nm (40-6603 & 40-6605)
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EX OSURE.
DANGER!
Class Laser Product
Max. Power Output: ≤1mW
Wavelength: 520nm (40-6601)
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EX OSURE.
CAUTION
Maximum Power < 1mW
Wavelength 520nm
Class II laser product
LASER RADIATION-DO NOT STARE
INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
This device complies with 21 CFR chapter 1,
Subchapter J, CFR1040.10 and 1040.11
2891i-3English_Manuals 6/4/18 10:26 AM Page 4
©2018 Johnson Level & Tool - Rev. 1 5
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. f unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
2891i-3English_Manuals 6/4/18 10:26 AM Page 5
6©2018 Johnson Level & Tool - Rev. 1

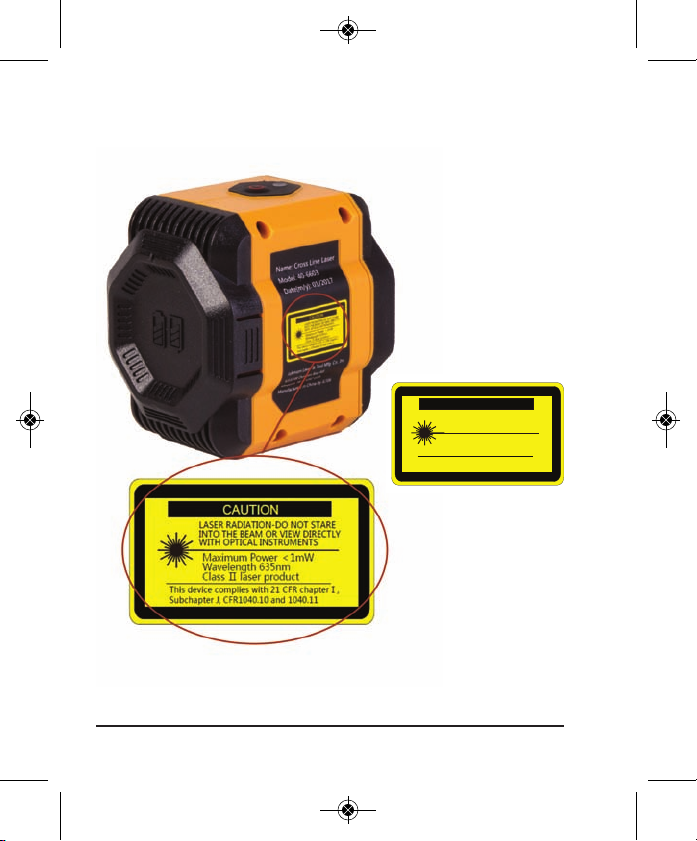

4. Location/Content of Warning Labels
40-6603
40-6605
CAUTION
Maximum Power < 1mW
Wavelength 520nm
Class II laser product
LASER RADIATION-DO NOT STARE
INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
This device complies with 21 CFR chapter 1,
Subchapter J, CFR1040.10 and 1040.11
40-6601
2891i-3English_Manuals 6/4/18 10:26 AM Page 6
©2018 Johnson Level & Tool - Rev. 1 7
5. Location of arts/Components
Locking
Compensator/
Power Switch
Battery Cover
Release Tab
Tilt Mode
Button
Status Light
Laser Output
Window
1/4″-20 Tripod Thread
(underneath, not shown)
2891i-3English_Manuals 6/4/18 10:26 AM Page 7
8©2018 Johnson Level & Tool - Rev. 1
6. Operating Instructions
IM ORTANT: t is the responsibility of the user to ensure proper
maintenance of the Self-Leveling Cross-Line Laser. Conduct
periodic test measurements to ensure the instrument is measuring
accurately and consistently. This is most important if the
instrument has been exposed to extreme temperatures or
moisture. Keep the Self-Leveling Cross-Line Laser optic lens clean
and inspect for damage.
Battery Installation
To install batteries in the Self-Leveling
Cross-Line Laser:
1. Remove the battery cover, which is located at
the back of the tool, by pressing the battery
cover release tabs found on the left and right
sides of the tool and pulling the cover straight
out from the tool housing.
2. nsert 2 “AA” batteries into the battery compartment according to
the polarity illustrated inside the battery compartment.
3. Replace the battery cover. Press in the release tabs as you insert
them into the tool housing.
Notes:
• Always check that the locking compensator/power switch is in the
locked position before removing and replacing batteries.
• Use only alkaline batteries.
• Remove the batteries when storing the instrument for an extended
time (more than 3 months) to avoid damage to the tool should the
batteries deteriorate.
2891i-3English_Manuals 6/4/18 10:26 AM Page 8
©2018 Johnson Level & Tool - Rev. 1 9
Using the roduct in Self-Leveling Mode
Slide the locking compensator up to the unlocked position to power
on the unit. The status light will illuminate, and the unit will emit
two laser beams.
Slide the locking compensator down to the unlocked position to
power off the unit.
Note: The Self-Leveling Cross-Line Laser must be within ±4° of level
for the self-leveling feature to function properly. f the instrument is
beyond its 4° self-leveling range, the laser will not self-level, the
laser will flash and the status light will turn red. Once the instrument
has been adjusted to within its 4° self-leveling range, the laser will
self-level, the status light will turn green and the laser light will stop
flashing and remain solid.
Using the roduct in Tilt (Manual Level) Mode
The Self-Leveling Cross-Line Laser can be used to project laser
beams at any angle desired, such as when projecting a line for stairs
or a railing. This mode produces the best results when the tool is
mounted on a tripod.
With the locking compensator down in the locked position, press the
tilt mode button to power on the unit. The status light will illuminate
in red to indicate that the tool is not self-leveling, and the unit will
emit two laser beams. The lasers will be perpendicular to each other,
but will not self level.
Press the tilt mode button to power off the unit.
2891i-3English_Manuals 6/4/18 10:26 AM Page 9
Tips from the ros
• ncreasing the Beams’ Visibility – When working in bright
conditions, such as when working near windows or outside walls,
the visibility of the laser beams can be maximized by following
these steps:
• Work towards the laser.
• Use a freestanding target (sold separately).
• Wear laser glasses (sold separately).
Note: Laser glasses enhance beam visibility but should never be
used to stare into the beam or be used as safety glasses. Eye
damage may result if these directions are not followed.
Care and Handling
• This Self-Leveling Cross-Line Laser is a precision tool that must be
handled with care.
• Avoid exposing unit to shock vibrations and extreme temperatures.
• Remove the batteries when storing the unit for an extended time
(more than 3 months) to avoid damage to the unit should the
batteries deteriorate.
• Avoid getting the unit wet.
• Keep the laser unit dry and clean, especially the laser output
window. Remove any moisture or dirt with a soft, dry cloth.
• Do not use harsh chemicals, strong detergents or cleaning
solvents to clean the unit.
10 ©2018 Johnson Level & Tool - Rev. 1
2891i-3English_Manuals 6/4/18 10:26 AM Page 10
