Johnson 40-6065 Manuel utilisateur

Magnetic Digital Level & Angle Locator

with Dot Laser

Model No. 40-6065

Instruction Manual

Congratulations on your choice of this Magnetic Digital Level & Angle

Locator with Dot Laser. We suggest you read this instruction manual

thoroughly before using the instrument. Save this instruction manual

for future use.

This is a Class IIIa laser tool and is manufactured to comply

with CFR 21, parts 1040.10 and 1040.11 as well as international

safety rule IEC 285. The laser also complies with EMC Test according to

EN61000-6-3; 2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN

61000-4-3, EN 60825, FCC Test according to PART 15.

1150i-English_Manuals 6/10/16 9:56 AM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Care and Handling

11. Product Warranty

12. Warranty Registration

13. Trouble Shooting

1. Kit Contents

Description Qty.

“AA” Alkaline Batteries 3

CR2032 Button Battery 1

Soft-sided Pouch 1

Instruction Manual with Warranty Card 1

2. Features and Functions

• Displays angle and inclination simultaneously

• Angle measurements in degrees

• Angle inclination in 5 construction languages - units of measure

(degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)

• Automatic digit inversion for overhead measurements

• Working range of angle measurement 0 to 182.5º

• Automatic shut-off

• Hold-function to hold measurement

• Visible laser beam to extend working range

1150i-English_Manuals 6/10/16 9:56 AM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

DANGER

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 640-660nm

THIS TOOL EMITS LASER RADIATION.

DO NOT STARE INTO BEAM.

AVOID DIRECT EYE EX OSURE.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original ohnson®parts and accessories purchased from your ohnson®

authorized dealer. Use of non- ohnson®parts and accessories will void warranty.

1150i-English_Manuals 6/10/16 9:56 AM Page 3

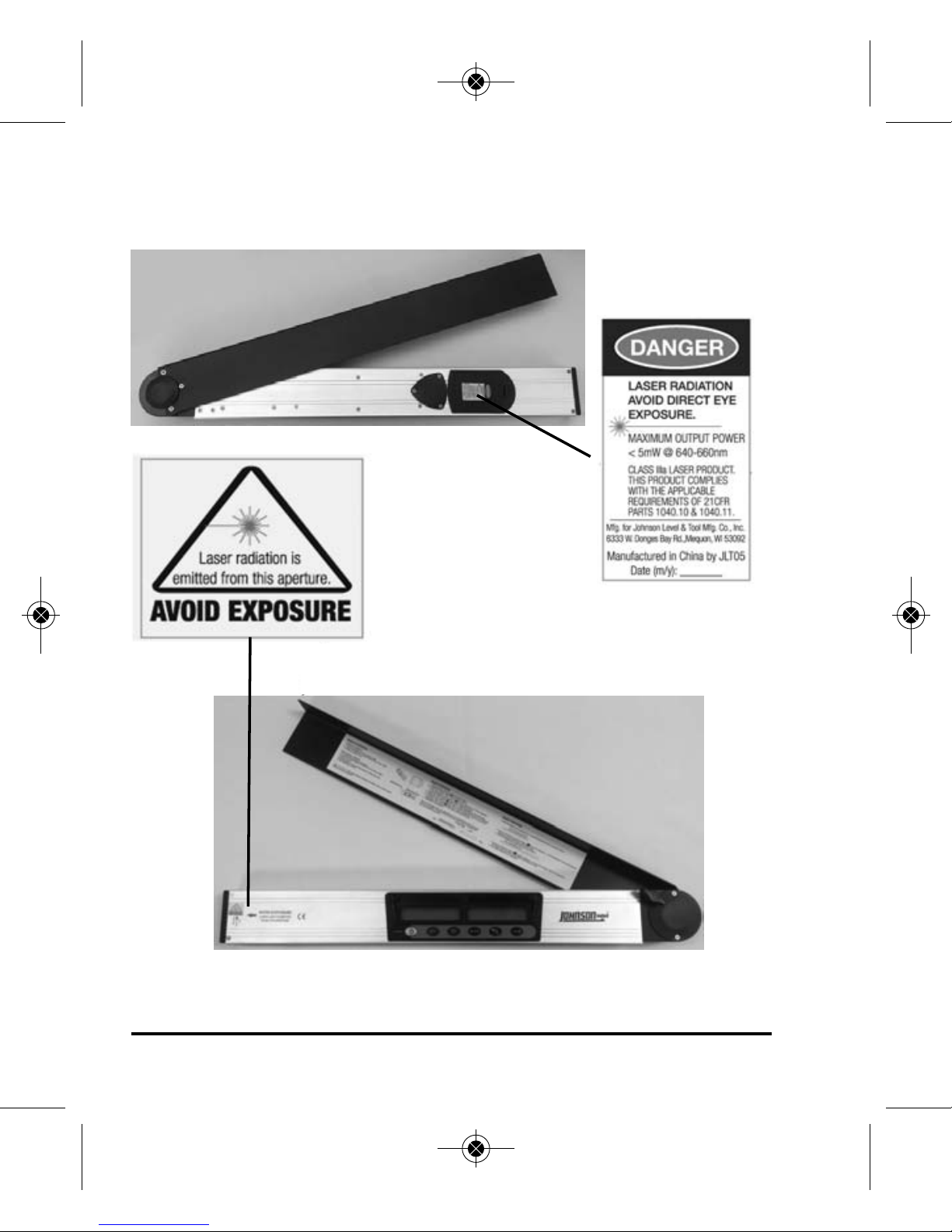

4. Location/Content of Warning Labels

1150i-English_Manuals 6/10/16 9:56 AM Page 4

5. Location of art/Components

LCD Displays

Laser Point

Panel

Angle Level Arm

Locking

Screw

Battery Compartment

1150i-English_Manuals 6/10/16 9:56 AM Page 5

6. Operating Instructions

Battery Installation

1. Make sure the instrument is turned off.

2. Open the battery cover. Take out the old batteries and put the

new batteries in, paying attention to the polarity.

3. Power on the instrument.

Note: Take out the batteries if the instrument is not going to be used

for a long time.

Replacement/Installation of Button Battery

1. If the angle LCD displays “Erro” it is necessary to replace the

button battery.

2. Remove the 3 screws on the button battery cover and open

battery compartment.

3. Replace the old battery with a new battery.

4. Put the battery cover back on.

5. Check angle calibration.

IM ORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

1150i-English_Manuals 6/10/16 9:56 AM Page 6

7. Using the roduct

Key Guide

The instrument has six operating keys with their functions below:

ower Key

Power on and off the instrument by pressing this key. The

instrument will beep twice when turning it on and beep

once when turning it off.

Laser/Angle Calibration Key

Press and release this key and laser beam will turn on and

the laser icon will appear on the LCD. The instrument will

also beep once. Press and release this key again and laser beam will

turn off and laser icon will disappear on the LCD. Note: The instru-

ment must be turned on for the laser beam to work. Press and hold

this key (more than one second) and the unit will enter angle calibra-

tion mode. See “Self-Check and Calibration” section.

Display for Angle Locator

Display for Digital Level

Power

Laser/Angle

Calibration

Slope

Calibration Mode

Sound/

Backlight

Hold

1150i-English_Manuals 6/10/16 9:56 AM Page 7

Slope Calibration Key

The calibration key is used for re-calibrating the instrument

in both the horizontal and vertical direction. Refer to Section

8 “Calibration” for details.

Mode Key

Push the MODE key to switch from one construction language

to another. This controls which construction language your

electronic module will measure in. Your level has the capability to

measure in Degrees, Percentage of slope, Millimeters per Meter,

Inches per Foot (Slope, Pitch) in decimal form and Inches per Foot in

fractions of an inch. A symbol on the upper right of the screen will

explain which MODE you are currently using.

Sound/Backlight Key

Pressing this key with a short press will turn on the sound

function and the sound icon will appear on the LCD. Press and release

the key to turn off the sound function and sound icon will disappear on

the LCD. The instrument will beep once when turning the sound on and

off. The level will beep faster when the level gets closer to 0° and 90°

(10°-0° and 80°-90°) when the LCD displays 0° or 90° there will be a

continuous tone. Press and hold this key (more than one second) will

turn on the backlight.

Hold Key

The angle readings change in accordance with the change of

the incline. Press the key (unit will beep once) to enter into the “hold”

mode. The measured angle reading will be held. The display will flash

and the angle measurement will not change. Press and release the

key again (unit will beep once) will stop the “hold” mode and measured

value will change with the incline.

1150i-English_Manuals 6/10/16 9:56 AM Page 8

Automatic Shut-off

This instrument will shut-off automaticallly if no operation is received

within 20 minutes.

Low-power Indication

The battery symbol will flash on the LCD when the battery power is

low. Replace the batteries as soon as possible.

Incline Indication Arrows

The following figure shows that moving the angle level according to

the indicated direction arrows is necessary if you want to position the

level to horizontal or vertical.

The following figure shows that the level is level or plumb.

Mode

Battery Symbol

Incline

Indication

Incline

Indication

1150i-English_Manuals 6/10/16 9:56 AM Page 9

Locking Arm

When the surface is long, turn the angle level arm to 180º, then tighten

the locking screw clockwise. You can lock the arm at any angle within

the range of 0º to 180º.

The laser point will be parallel with the reference plane

Measuring the inclining angle to

the level plane.

Reference plane

Display window

1150i-English_Manuals 6/10/16 9:56 AM Page 10
