Interlogix TVB-5501 Manuel utilisateur

TruVision

Series 5 IP

Camera Installation

Guide

P/N 1073339-EN • REV B • ISS 13SEP17

Interlogix is part of UTC Climate, Controls &

Security, a unit of United Technologies

Trademarks and

patents

Trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacturer Interlogix

2955 Red Hill Avenue, Costa Mesa, CA

92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

FCC compliance Class A: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. Operation of

this equipment in a residential area is likely to

cause harmful interference in which case the user

will be required to correct the interference at his

own expense.

FCC conditions This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful

interference.

(2) This Device must accept any interference

received, including interference that may cause

undesired operation.

ACMA compliance Notice! This is a Class A product. In a domestic

environment this product may cause radio

interference in which case the user may be

required to take adequate measures.

Canada This Class A digital apparatus complies with CAN

ICES-003 (A)/NMB-3 (A).

Cet appareil numérique de la classe A est

conforme à la norme CAN ICES-003 (A)/NMB-3

(A).

European Union

directives

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

therefore with the applicable harmonized

European standards listed under the EMC

Directive 2014/30/EU, the RoHS Directive

2011/65/EU.

2012/19/EU (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see:

www.recyclethis.info.

2013/56/EU & 2006/66/EC (battery directive):

This product contains a battery that cannot be

disposed of as unsorted municipal waste in the

European Union. See the product documentation

for specific battery information. The battery is

marked with this symbol, which may include

lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Contact information

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Installation Guide 1

Content

Introduction 2

Product overview 2

Installation 3

Installation environment 3

Package contents 4

Cable requirements 10

Camera description 11

Setting up the camera 13

IR illuminators 13

Accessing the SD card 14

Mounting the bullet camera 14

Mounting the turret camera 15

Mounting the dome camera 18

Using the camera with a TruVision recorder or another

system 22

Using the camera with TruVision Navigator 22

Specifications 22

TruVision IP bullet cameras 22

TruVision IP turret dome 23

TruVision IP dome cameras 23

Pin definitions 24

2 Installation Guide

Introduction

Product overview

This is the installation guide for TruVision Series 5 IP camera

models:

TVB-5501 (3MPX IP bullet camera)

TVB-5502 (8MPX IP bullet camera)

TVT-5501 (3MPX IP turret camera)

TVT-5502 (8MPX IP turret camera)

TVD-5501 (3MPX IP dome camera)

TVD-5502 (8MPX IP dome camera)

Installation Guide 3

Installation

This section provides information on how to install the

cameras.

Installation environment

When installing your product, consider these factors:

•Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper

PoE switch or a 12 VDC UL listed Class 2 or CE certified

power supply to power the camera. Do not overload the

power cord or adapter.

•Ventilation: Ensure that the location planned for the

installation of the camera is well ventilated.

•Temperature: Do not operate the camera beyond the

specified temperature, humidity or power source ratings.

The operating temperature of the camera without heater

is between -30 to +60°C (-22 to 140°F). Humidity is below

90%. For the outdoor cameras that feature built-in

heaters, the operating temperature range is -40 to 60°C

(-40 to140°F)

•Moisture: Do not expose the camera to rain or moisture

or try to operate it in wet areas. Turn the power off

immediately if the camera is wet and ask a qualified

service person for servicing. Moisture can damage the

camera and also create the danger of electric shock.

•Servicing: Do not attempt to service this camera

yourself. Any attempt to dismantle or remove the covers

from this product will invalidate the warranty and may

also result in serious injury. Refer all servicing to qualified

service personnel.

4 Installation Guide

•Cleaning: Do not touch the sensor modules with fingers.

If cleaning is necessary, use a clean cloth with some

ethanol and wipe the camera gently. If the camera will not

be used for an extended period of time, put on the lens

cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any

components are damaged or missing, do not attempt to use

the unit; contact the supplier immediately. If the unit is

returned, it must be shipped back in its original packaging.

IP bullet camera

•Camera

•12 VDC connector:

Two terminal

connector with positive

and negative

indicators.

•Water joint: Provides

water resistance to

network cable connector.

•Drill template

Hole Hole

Hole

Ceiling Mounting

Installation Guide 5

•Screws

Drywall anchor

7.5 × 24.5 mm (3 pcs)

Screw

M4 × 25 mm (3 pcs)

•CD with Configuration

manual and TruVision

Device Manager

•Installation manual

•Equipment Disposal

Sheet

•Battery Disposal Sheet

•Torx wrench

6 Installation Guide

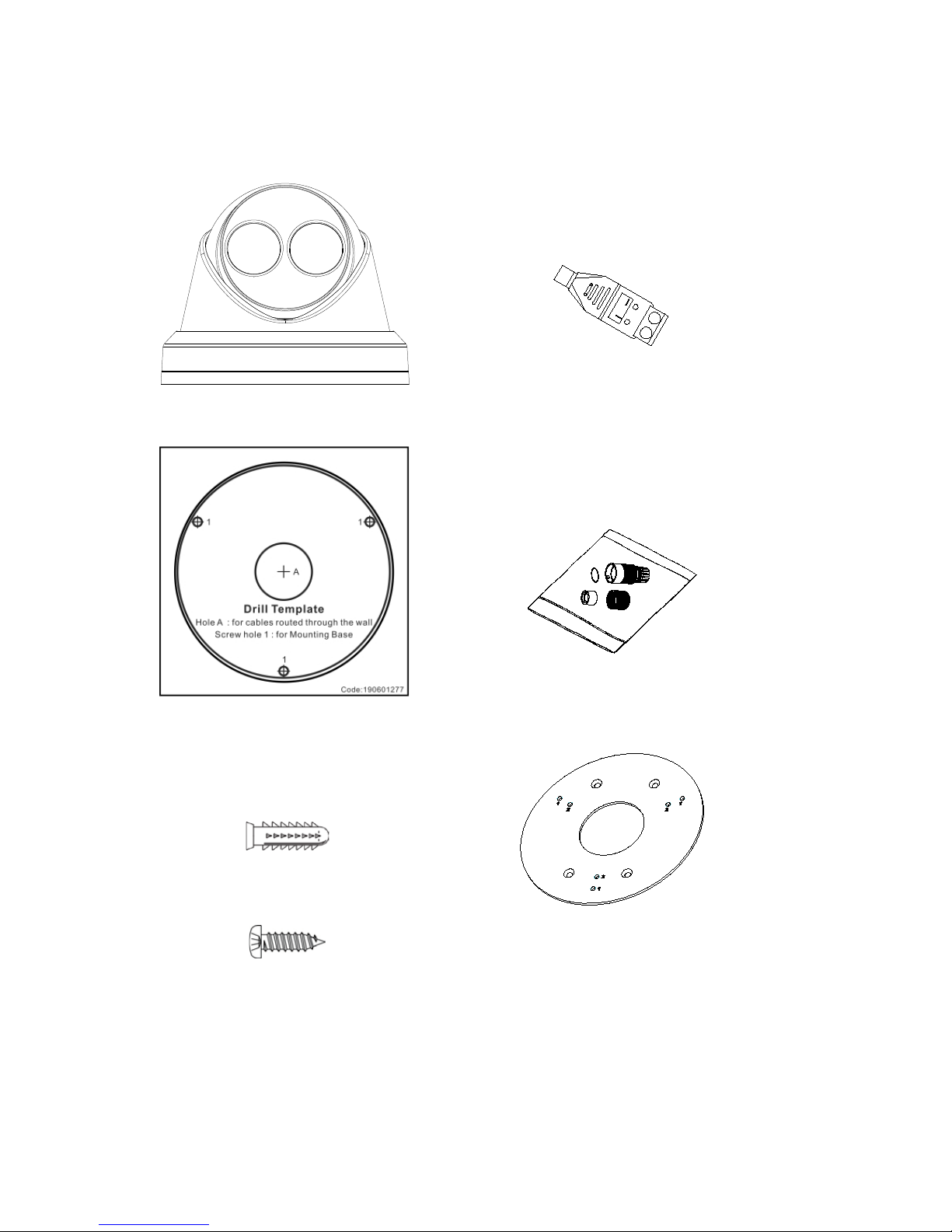

IP turret camera

•Camera

•12 VDC connector:

Two terminal connector

with positive and

negative indicators.

•Camera drill template

•Water joint: Provides

water resistance to

network cable

connector.

•Screws

Drywall anchor

7.5 × 24.5 mm (4 pcs)

Screw

M4 × 25 mm (4 pcs)

•Adapter plate
