TruVision IP Cam

Open-Standards Quick

Start Guide

P/N 1076514A-EN • REV 1.0 • ISS 07OCT11

Trademarks and

patents

Interlogix, TruVision brand and logo are

trademarks of UTC Fire & Security.

Other trade names used in this document may

be trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacturer UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA

92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

FCC compliance This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

Certification N4131

European Union

directives

12004/108/EC (EMC directive): Hereby, UTC Fire

& Security declares that this device is in

compliance with the essential requirements and

other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

Contact

information

See www.interlogix.com or

www.utcfssecurityproducts.eu.

Quick Start Guide 1 EN

Content

Graphics 2

Introduction 5

Package contents 5

Installation environment 5

Camera dimensions 5

Setting up the camera 6

Connecting the devices 7

Accessing the camera over the internet 7

Overview of the camera Web browser 8

Network and streaming configuration 9

Specifications 11

EN 2 Quick Start Guide

Graphics



Quick Start Guide 3 EN





EN 4 Quick Start Guide





Quick Start Guide 5 EN

Introduction

This pocket guide provides basic information on installing the TruVision

IP cam open-standard cameras.

For detailed information on installing and using the cameras, please

refer to the user manual.

Package contents

The camera is shipped with the following items:

Camera

Hex wrench

C-mount adapter

Multilingual quick start guide

CD with user manual in several languages

Installation environment

Refer to the user manual for detailed information, but observe these

important requirements:

• Place the camera in a secure location.

• Ensure that the camera is in a well-ventilated area.

• Do not expose the camera to rain or moisture.

Camera description

See Figure (Camera dimensions) and Figure (Side elevation of

the camera):

1. Bracket mounting holes.

Can be repositioned to the other side of the camera.

EN 6 Quick Start Guide

2. Camera.

3. C-mount adaptor (for C-mount lenses only).

4. Lens (auto iris lens shown. A manual iris has no cable.)Not

included.

5. Auto iris lens cable. Not included.

6. Auto iris lens connector.

Video-type auto iris lens connection:

A. Power; B. NC (no connection); C. GND; D. Video

DC-type auto iris lens connection:

A. Damping coil (-); B. Damping coil (+);

C. Driving coil (+); D. Driving coil (-)

7. SDHC card slot.

Setting up the camera

Note: If the light source where the camera is installed experiences

rapid, wide variations in lighting, the camera may not operate as

intended.

For detailed instructions, please refer to the user manual.

To quickly put the camera into operation:

1. Prepare the mounting surface.

2. Connect the required cables to the camera.

3. Mount the camera to the ceiling using the appropriate fasteners.

4. Set up the camera’s network and streaming parameters so that the

camera can be controlled over the network.

5. Program the camera to suit its location.

Quick Start Guide 7 EN

Connecting the devices

See Figure (Connections on the base of the camera).

1. Ethernet RJ45 PoE port

Connect to network devices.

2. Video output

Connect to a CCTV monitor.

3. Audio output

Connect to an audio output.

Line level, 600 Ω.

4. Audio input

Connect to an audio input.

2.0 to 2.4 Vp-p, 1 kΩ.

5. Power LED

Illuminated when power is connected.

6. Power supply

Connect +12 VDC power supply.

7. RS-485 D+, D-

Connect to an RS-485 device such as a PTZ dome camera.

8. Alarm outputs

Connect 1A/1B and 2A/2B to alarm output devices.

9. Alarm inputs

Connect IN1/GND and IN2/GND to alarm input devices.

10. Ground

Connect to ground.

Accessing the SDHC card

Insert an SDHC card up to 32GB for local storage in the camera (see

Figure , item ). The card is not supplied with the camera.

Video and log files stored on the SDHC card can only be accessed via

the Web browser. You cannot access the card using TruVision

Navigator or a recording device.

EN 8 Quick Start Guide

Accessing the camera over the internet

Use the camera Web browser to access and configure the camera

over the internet. Only one camera is accessible from a single Web

browser window.

To access the camera online:

1. In the Web browser enter the camera’s IP address (default is

192.168.1.70). The Login dialog box appears.

Note: Ensure that the Active X controls are enabled.

2. Enter your user name and password.

User name: admin

Password: 1234

3. Click OK. The Web browser window appears in live mode. See

Figure .

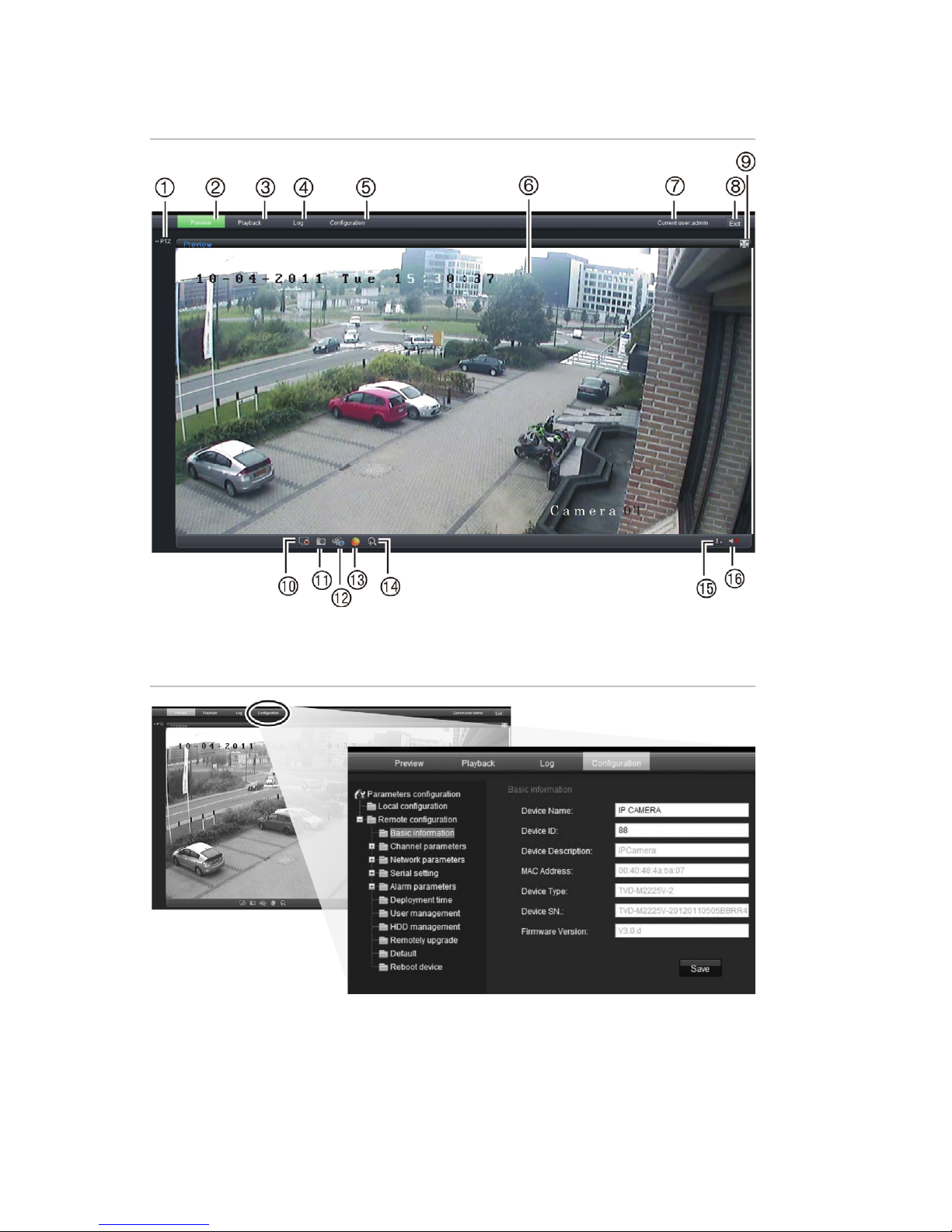

Overview of the camera Web browser

See Figure (Camera Web browser interface).

Item Name Description

1. PTZ controls For future use.

2. Live view Click to view live video.

3. Playback Click to play back video.

4. Log Click to search for event logs. There

are four main information types: All,

Alarm, Notification and Operation

5. Configuration Click to display the configuration

screen for setting up the camera.

6. Viewer Click to view live or play back video.

7. Current user Displays current user logged on.

8. Exit Click to log out from the system.

9. Full screen Click to view as full screen.
