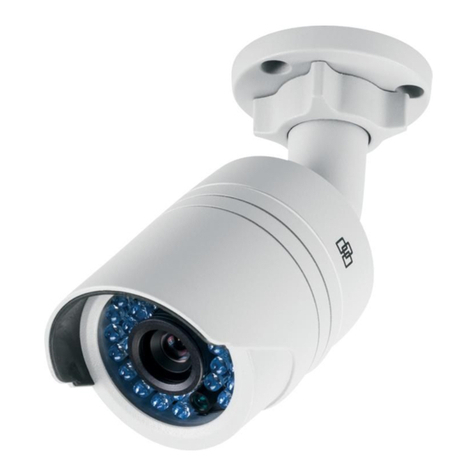

Interlogix TVB-1101 Manuel utilisateur

TruVision 11/31

Series IP Camera

Installation Guide

P/N 1072857A-EN • REV 1.0 • ISS 29AUG14

Interlogix is part of UTC Building & Industrial

Systems, a unit of United Technologies

Trademarks and

patents

Trade names used in this document may be trademarks

or registered trademarks of the manufacturers or

vendors of the respective products.

Manufacturer Interogix

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923,

USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance Class A: This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

ACMA compliance Notice! This is a Class A product. In a domestic

environment this product may cause radio interference

in which case the user may be required to take

adequate measures.

Canada This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe A est conforme à

la norme NMB-0330 du Canada.

European Union

directives

12004/108/EC (EMC directive): Hereby, UTC Fire &

Security declares that this device is in compliance with

the essential requirements and other relevant

provisions of Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with

this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon

the purchase of equivalent new equipment, or dispose

of it at designated collection points. For more

information see: www.recyclethis.info.

Contact information For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Installation Guide 1

Content

Introduction 2

Product overview 2

Installation 4

Installation environment 4

Package contents 5

Cable requirements 11

Camera description 11

Setting up the camera 15

Accessing the SD card 16

Mounting the mini bullet camera 16

Mounting the VF dome camera 18

Mounting the indoor mini dome camera 22

Mounting the wedge dome camera 24

Using the camera with a recorder 26

Using the camera with TruVision Navigator 26

Specifications 27

TruVision IP mini bullet cameras 27

TruVision IP indoor mini dome 27

TruVision IP wedge cameras 28

TruVision IP VF mini dome cameras 28

Pin definitions 29

2 Installation Guide

Introduction

Product overview

This is the installation guide for TruVision 11/31 Series IP

camera models:

TVB-1101 (1.3MPX bullet, 6mm lens, PAL)

TVB-3101 (1.3MPX bullet, 6mm lens, NTSC)

TVB-1102 (3MPX bullet, 6mm lens, PAL)

TVB-3102 (3MPX bullet, 6mm lens, NTSC)

TVB-1103 (1.3MPX bullet, 4mm lens, PAL)

TVB-3103 (1.3MPX bullet, 4mm lens, NTSC)

TVD-1101 (1.3MPX indoor mini dome, PoE, PAL)

TVD-3101 (1.3MPX indoor mini dome, PoE, NTSC)

TVD-1102 (3MPX indoor mini dome, PoE, PAL)

TVD-3102 (3MPX indoor mini dome, PoE, NTSC)

TVD-1103 (1.3MPX VF mini dome, PAL)

TVD-3103 (1.3MPX VF mini dome, NTSC)

TVD-1104 (3MPX VF mini dome, PAL)

TVD-3104 (3MPX VF mini dome, NTSC)

TVD-1105 (1.3MPX indoor mini dome, PoE/12VDC,

PAL)

TVD-3105 (1.3MPX indoor mini dome, PoE/12VDC,

NTSC)

TVD-1106 (3MPX indoor mini dome, PoE/12VDC, PAL)

Installation Guide 3

TVD-3106 (3MPX indoor mini dome, PoE/12VDC,

NTSC)

TVW-1101 (1.3MPX wedge, 2.8mm lens, PAL)

TVW-3101 (1.3MPX wedge, 2.8mm lens, NTSC)

TVW-1102 (3MPX wedge, 2.8mm lens, PAL)

TVW-3102 (3MPX wedge, 2.8mm lens, NTSC)

TVW-1110 (3MPX wedge, 2.8mm lens, Marine, PAL)

TVW-3110 (3MPX wedge, 2.8mm lens, Marine, NTSC)

TVW-1111 (3MPX wedge, 4mm lens, Marine, PAL)

TVW-3111 (3MPX wedge, 4mm lens, Marine, NTSC)

TVW-1112 (3MPX wedge, 6mm lens, Marine, PAL)

TVW-3112 (3MPX wedge, 6mm lens, Marine, NTSC)

TVW-1113 (3MPX wedge, 2.8mm, Marine, White, PAL)

TVW-3113 (3MPX wedge, 2.8mm, Marine, White, NTSC)

TVW-1114 (3MPX wedge, 4mm, Marine, White, PAL)

TVW-3114 (3MPX wedge, 4mm, Marine, White, NTSC)

TVW-1115 (3MPX wedge, 6mm, Marine, White, PAL)

TVW-3115 (3MPX wedge, 6mm, Marine, White, NTSC)

4 Installation Guide

Installation

This section provides information on how to install the

cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper

PoE switch or a 12 VDC UL listed Class 2 or CE certified

power supply to power the camera. Do not overload the

power cord or adapter.

• Ventilation: Ensure that the location planned for the

installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond the

specified temperature, humidity or power source ratings.

The operating temperature of the camera is between -30

to +60°C (-22 to 140°F). Humidity is below 90%.

• Moisture: Do not expose the camera to rain or moisture,

or try to operate it in wet areas. Turn the power off

immediately if the camera is wet and ask a qualified

service person for servicing. Moisture can damage the

camera and also create the danger of electric shock.

• Servicing: Do not attempt to service this camera

yourself. Any attempt to dismantle or remove the covers

from this product will invalidate the warranty and may

also result in serious injury. Refer all servicing to qualified

service personnel.

• Cleaning: Do not touch the sensor modules with fingers.

If cleaning is necessary, use a clean cloth with some

ethanol and wipe the camera gently. If the camera will not

Installation Guide 5

be used for an extended period of time, put on the lens

cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any

components are damaged or missing, do not attempt to use

the unit; contact the supplier immediately. If the unit is

returned, it must be shipped back in its original packaging.

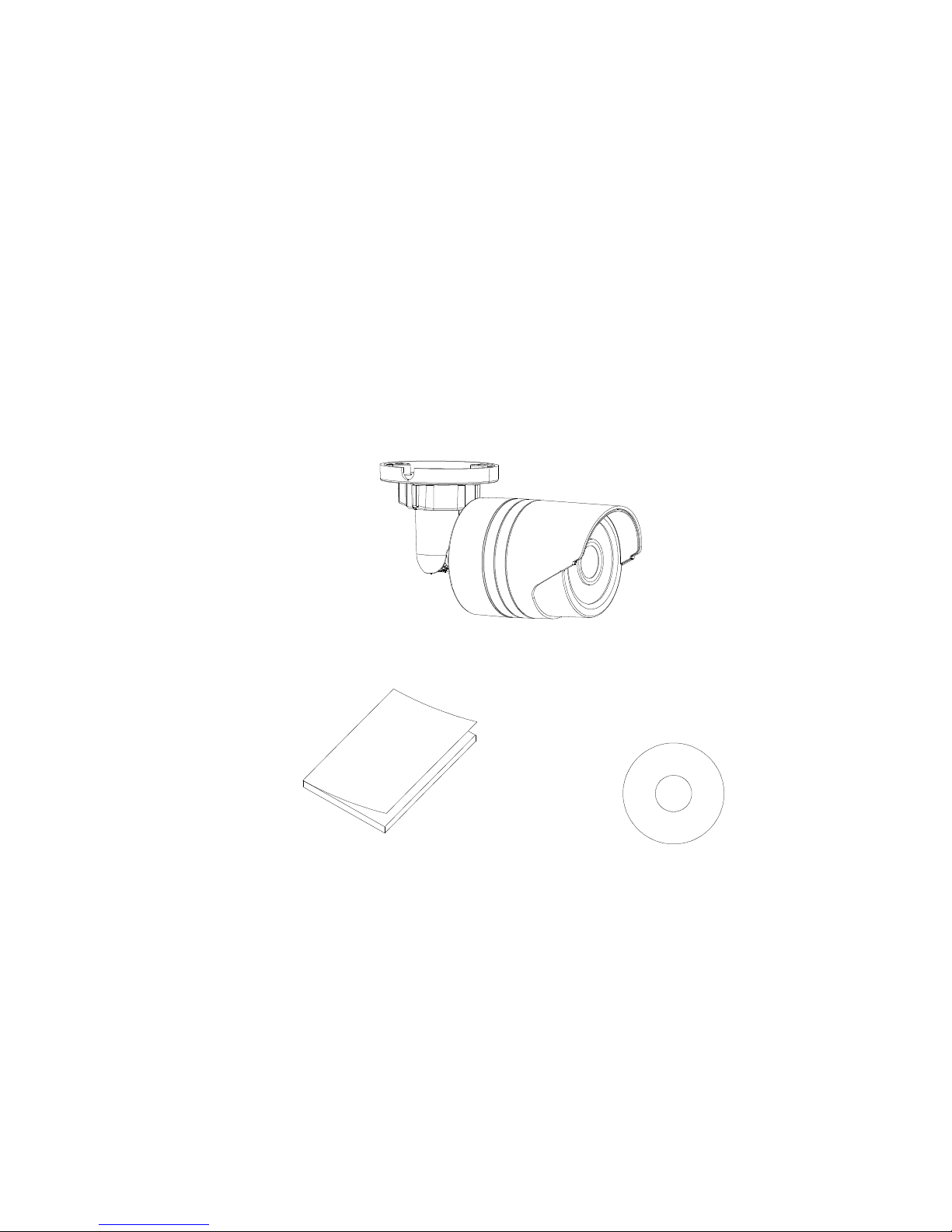

IP mini bullet camera

Camera

Installation manual

CD with Configuration

manual and TruVision

Device Finder

6 Installation Guide

Template

Screws

Water joint: provide water

resistance to network

connection.

12 VDC Connector: DC

jack socket to

terminal connectors

with positive and

negative indicators.

IP indoor mini dome camera

Camera
