Interlogix TVB-5302 Feuille d'instructions

TruVision Series 3 IP

Camera FW3.1

Configuration Manual

P/N 1073187-EN • REV D • ISS 29SEP17

2017 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security, a unit of

United Technologies Corporation.

Trademarks and

patents

rade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

C Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Contact information

For contact information

, see www.utcfireandsecurity.com or

www.firesecurityproducts.com

TruVision Series 3 IP Camera FW3.1 Configuration Manual 1

Content

Introduction 3

Network access 5

Checking your web browser security level 5

Activating the camera 7

Overview of the camera web browser 9

Camera configuration 11

Configuration menu overview 11

Local configuration 12

System time 13

Network settings 15

Recording parameters 26

Video image 29

OSD (On Screen Display) 33

Overlay text 34

Privacy masks 35

Motion detection alarms 36

Tamper-proof alarms 40

Exception alarms 40

Alarm inputs and outputs 42

Cross line detection 44

Intrusion detection 46

Snapshot parameters 47

NAS settings 49

Storage devices 50

Recording schedule 50

Camera management 54

User management 54

RTSP authentication 56

IP address filter 57

Restore default settings 58

Import/export a configuration file 59

Upgrade firmware 59

Reboot camera 60

Camera operation 61

Logging on and off 61

Live view mode 62

Playing back recorded video 62

Searching event logs 65

2 TruVision Series 3 IP Camera FW3.1 Configuration Manual

Operating PTZ control 67

Index 70

TruVision Series 3 IP Camera FW3.1 Configuration Manual 3

Introduction

This is the user manual for TruVision Series 3 IP camera models:

IP fixed lens bullet camera:

TVB-5301 (2MPX Bullet, 4 mm lens)

TVB-5302 (4MPX Bullet, 4 mm lens)

IP VF lens bullet camera:

TVB-5303 (2MPX Bullet, 2.8 to 12 mm VF lens)

TVB-5304 (4MPX Bullet, 2.8 to 12 mm VF lens)

IP motorized lens bullet camera:

TVB-5305 (2MPX Bullet, 2.8-12 mm VF motorized lens)

TVB-5306 (4MPX Bullet, 2.8-12 mm VF motorized lens)

IP fixed lens dome camera:

TVD-5301 (2MPX Plastic Dome, 2.8 mm lens)

TVD-5302 (4MPX Plastic Dome, 2.8 mm lens)

IP VF lens dome camera:

TVD-5303 (2MPX VF Dome)

TVD-5304 (4MPX VF Dome)

IP motorized lens dome camera:

TVD-5305 (2MPX Dome, 2.8-12 mm VF Motorized lens)

TVD-5306 (4MPX Dome, 2.8-12 mm VF Motorized lens)

IP wedge camera:

TVW-5301 (2MPX Wedge, 2.0 mm lens, Gray)

TVW-5302 (2MPX Wedge, 2.8 mm lens, Gray)

TVW-5303 (2MPX Wedge, 2.8 mm lens, White)

TVW-5304 (2MPX Wedge, 2.8 mm lens, Black)

TVW-5305 (4MPX Wedge, 2.8 mm lens, Gray)

IP turret camera:

TVT-5301 (2MPX Turret, 2.8 mm lens, Gray)

TVT-5302 (2MPX Turret, 2.8 mm lens, White)

TVT-5303 (2MPX Turret, 2.8 mm lens, Black)

TVT-5304 (4MPX Turret, 2.8 mm lens, Gray)

4 TruVision Series 3 IP Camera FW3.1 Configuration Manual

TVT-5305 (4MPX Turret, 2.8 mm lens, White)

TVT-5306 (4MPX Turret, 2.8 mm lens, Black)

TVT-5307 (4MPX Turret, 4.0 mm lens, White)

TruVision Series 3 IP Camera FW3.1 Configuration Manual 5

Network access

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft Internet

Explorer (IE) and other browsers. The procedures described use Microsoft

Internet Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to

connect and view video using Internet Explorer. However, you cannot download

data, such as video and images due to the increased security measure.

Consequently you should check the security level of your PC so that you are able

to interact with the cameras over the web and, if necessary, modify the Active X

settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

To change the web browser’s security level:

1. In Internet Explorer, click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site

under “Select a web content zone to specify its security settings”.

3. Click Custom Level.

4. Change the ActiveX controls and plug-ins options that are signed or

marked as safe to Enable. Change the ActiveX controls and plug-ins

options that are unsigned to Prompt or Disable. Click OK.

- Or -

6 TruVision Series 3 IP Camera FW3.1 Configuration Manual

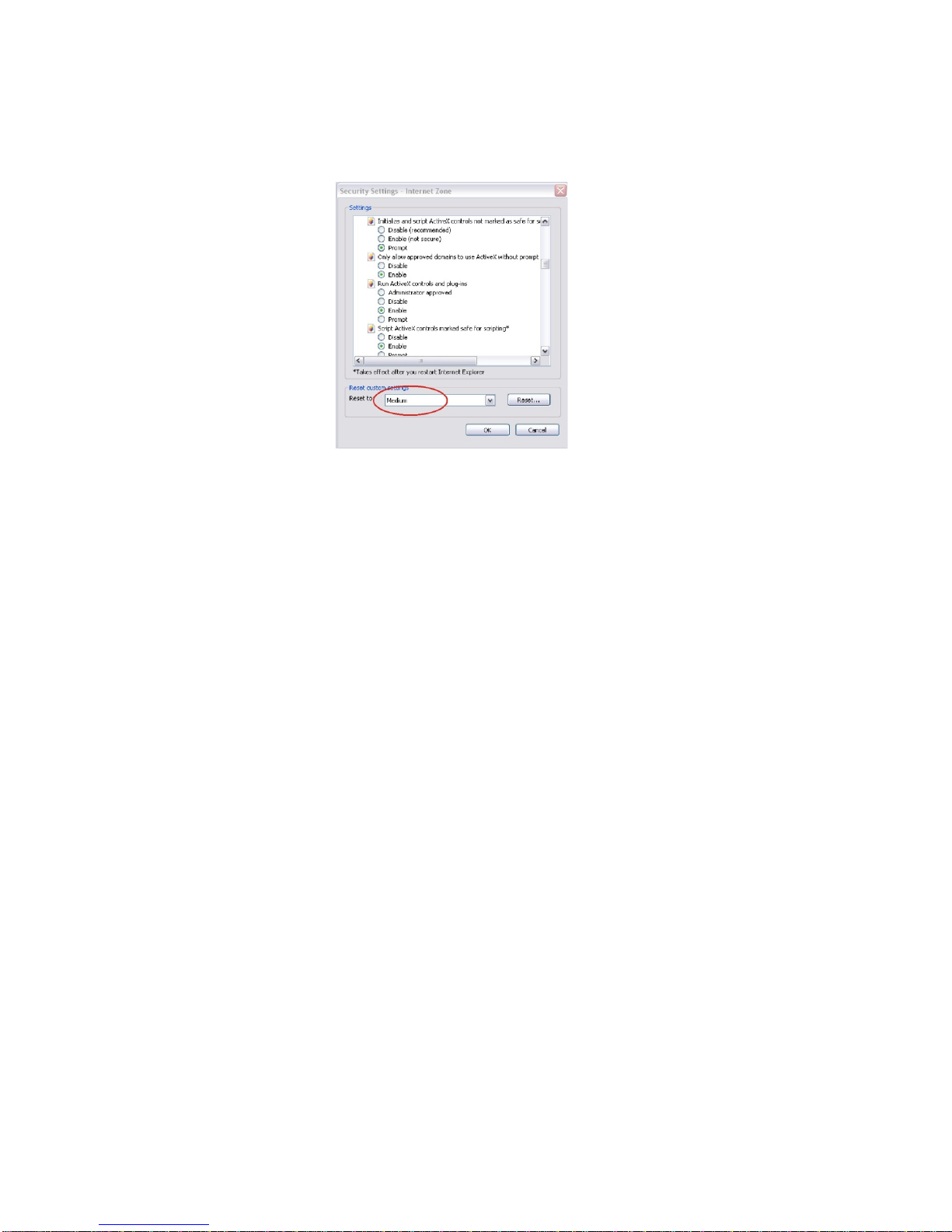

Under Reset Custom Settings, click the security level for the whole zone in

the Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows users

Internet Explorer for Windows operating systems have increased security

measures to protect your PC from any malicious software being installed.

To have complete functionality of the web browser interface with Windows, do

the following:

• Run the Browser interface as an administrator in your workstation

• Add the camera’s IP address to your browser’s list of trusted sites

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab, and then select the Trusted sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https:) for all sites in this zone” box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

TruVision Series 3 IP Camera FW3.1 Configuration Manual 7

Activating the camera

When you first start up the camera, the Activation window appears. You must

define a high-security admin password before you can access the camera. There

is no default password provided.

You can activate a password via a web browser and via TruVision Device

Manager (included on the CD to find the IP address of the camera).

To activate the camera via the web browser:

1. Power on the camera and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter

to enter the activation interface.

Notes:

The default IP address of the camera is 192.168.1.70.

For the camera to enable DHCP by default, you must activate the camera

via TruVision Device Manager. Please refer to the following section, “To

activate the camera via TruVision Device Manager” below.

3. Enter the password in the password field.

Note: A valid password range must be between 8 and 16 characters. You can

use a combination of numbers, lower and upper case letters, and special

characters : _ - , . * & @ / $ ? Space. The password must contain characters

from at least two of these groups. We also recommend that you reset your

password regularly. For high security systems, it is particularly recommended

to reset the password monthly or weekly for better protection.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

To activate the camera via TruVision Device Manager:

1. Run the TruVision Device Manager to search for online devices.

2. Check the device status from the device list, and select the inactive device.

8 TruVision Series 3 IP Camera FW3.1 Configuration Manual

3. Enter the password in the password field, and confirm it.

Note: A valid password range must be between 8 and 16 characters. You can

use a combination of numbers, lower and upper case letters, and special

characters : _ - , . * & @ / $ ? Space. The password must contain characters

from at least two of these groups. We also recommend that you reset your

password regularly. For high security systems, it is particularly recommended

to reset the password monthly or weekly for better protection.

4. Click OK to save the password.

A pop-up window confirms activation. If activation fails, confirm that the

password meets the requirement and try again.

5. Change the device IP address to the same subnet with your computer by

either modifying the IP address manually or checking the checkbox of Enable

DHCP.

6. Input the password and click the Save button to activate your IP address

modification.
