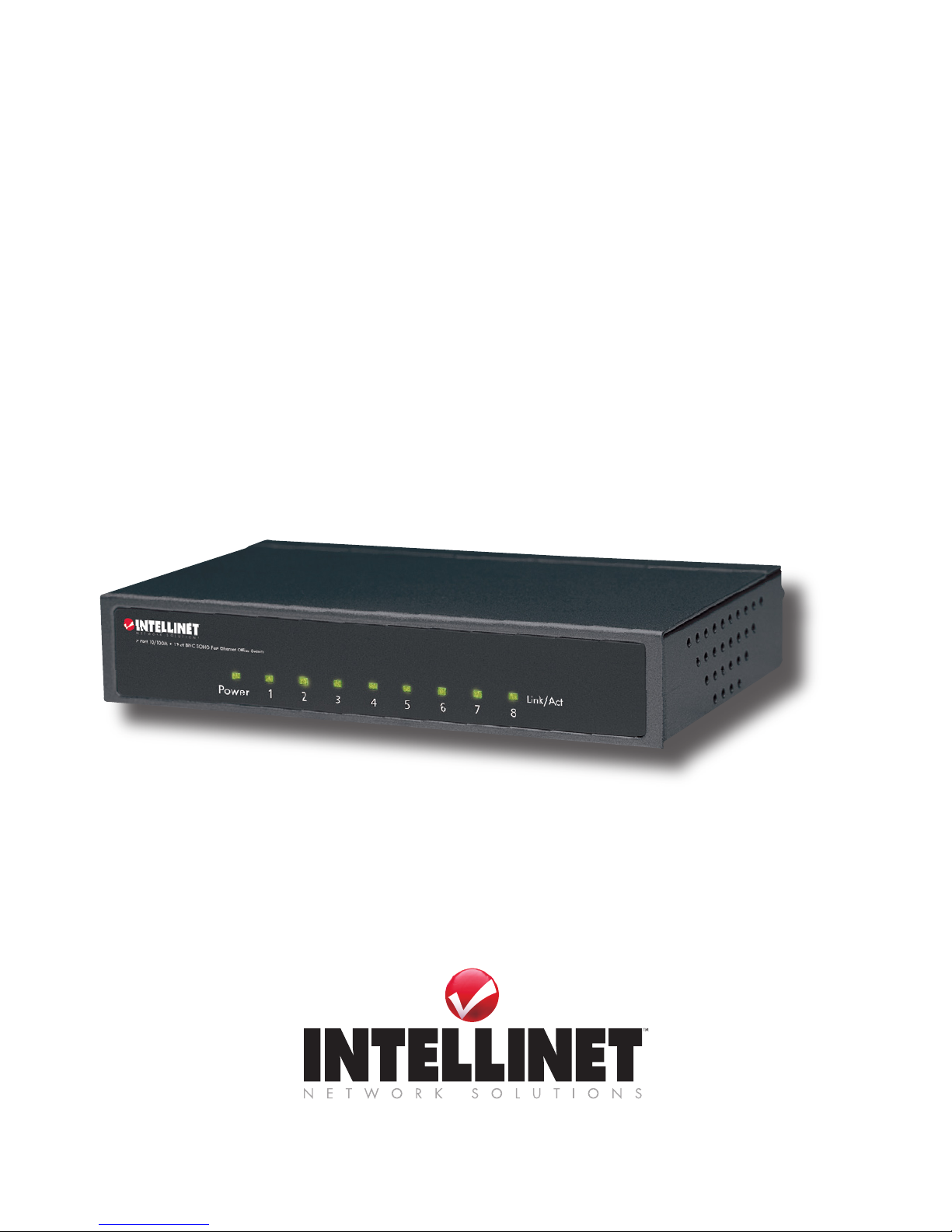

Intellinet 503433 Manuel utilisateur

Fast

EthErnEt

OFFicE

switch

usEr

manual

MODEL 503433

INT-503433-UM-1207-01

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Ethernet Media Converter, Model 503443.

Designed for high performance in an environment where network trafc

and the number of users increases continuously, this compact switch

provides smooth network migration and allows easy upgrades to match

network capacity.

Easy-to-follow instructions make installation of the switch quick and

simple, so you’ll also soon be enjoying the benets of these additional

features:

FCC Warning

This device has been tested and found to comply with the limits for a

Class B digital device, pursuant to Parts 2 and 15 of FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a commercial environment. This equipment generates,

uses and radiates radio frequency energy and, if not installed and used

in accordance with the user manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference, which the user will be required to

correct at his own expense.

CE Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures to correct.

• 7 10/100 auto sensing ports that

automatically detect optimal

network speeds

• 10 Mbps BNC port

• Supports any combination of

10 Mbps or 100 Mbps network

devices

• All RJ-45 ports with Auto-MDIX

& NWay auto-negotiation support

• Store and forward switching

architecture

• Full/half duplex operation

• Supports 1024 MAC address

entries

• 96 kBytes buffer memory

• Compact metal case

• LEDs for power, link/activity

• Lifetime Warranty

cOnnEctiOns & indicatOrs

LEDs

The front panel LED indicators provide at-a-glance network status and

real-time connectivity info, as detailed in the chart below.

Ports

The auto-negotiation feature of the Fast Ethernet Ofce Switch provides

automatic crossover detection functionality for any port, making it easy

to uplink to another switch without the need for special crossover cable.

LED Status Operation

Power Green The switch is on.

Off Power is disconnected.

Link/Act Green Valid port connection; ready to transmit/receive.

Flashing Data is being transmitted or received.

Off Port is disconnected.

Right: An example of uplinking

the Fast Ethernet Ofce Switch

to another device.

Above: The rear panel of the

Fast Ethernet Ofce Switch:

10/100 Mbps RJ-45 ports (1-7)

and 10 Mbps BNC (coax) port (8).

Power

Power is supplied

to the Fast

Ethernet Ofce

Switch through an

external 7.5 V DC power

adapter that connects to the

device through the side panel.

installatiOn

The Fast Ethernet Ofce Switch can be placed on a desktop or other

appropriate at surface. Prior to installation, check that:

• the device will have adequate ventilation and room for cable and power

adapter connections. A minimum clearance of 25 mm (1 inch) on all

sides is recommended.

• the location is fairly cool and dry. (See Specications for the acceptable

temperature and humidity operating ranges.)

• the location is free from electrical noise from radios, transmitters,

broadband ampliers and such.

spEciFicatiOns

Standards

• IEEE 802.3 (10Base-2 Ethernet)

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (ow control for full duplex mode)

General

• Media support:

- 10Base-2 RG-58 A/U 50 Ohms coaxial cable

- 10Base-T Cat3, 4, 5 UTP/STP RJ-45

- 100Base-TX Cat5 UTP/STP RJ-45

• Packet lter/forwarding rate: 148,800 pps (100 Mbps); 14,880 pps (10 Mbps)

• Buffer memory: 96 kBytes

• MAC address table: 1024 entries

• Switch architecture: store and forward

• Certications: FCC Class B, CE Mark

LEDs

• Power; Link/Activity

Power

• External power adapter: 7.5 V DC

• Power consumption: 5 Watts (maximum)

Environmental

• Metal housing

• Dimensions: 130 (L) x 77 (W) x 24 (H) mm (5.1 x 3.0 x 0.9 in.)

• Weight: 320 g (0.8 lbs.)

• Operating temperature: 0 – 55°C (32 – 140°F)

• Operating humidity: 10 – 90% RH, non-condensing

• Storage temperature: -20 – 90°C (-4 – 194°F)

Package Contents

• Fast Ethernet Ofce Switch

• External power adapter

• User manual

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
