Intellinet 524148 Manuel utilisateur

GIGABIT

ETHERNET

RACKMOUNT

SWITCH

USER

MANUAL

Models 524148

& 524162

INT-524148/524162-UM-0608-01

Shown: Model 524148, 16-Port

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™

Gigabit Ethernet Rackmount Switch, Model 524148 (16-port) or 524162

(24-port).

Designed for medium- to large-size workgroups, this device’s Gigabit

Ethernet ports provide the performance your network needs to handle

the quick transfer speeds that support disk mirroring, data backup,

graphics image le transfers and other bandwidth-intensive applications.

Auto features make it easy to use, too. No conguration is required,

making installation Plug and Play and hassle free. Auto-MDI/MDI-X on

all ports eliminates the need for crossover cables, and each port senses

the link speed of any connected network device automatically, adjusting

to 10, 100 or 1000 Mbps for compatibility and maximum performance.

Simple setup means you’ll soon be enjoying these additional features:

FCC Warning

This device has been tested and found to comply with limits for a Class B

digital device, pursuant to Parts 2 and 15 of FCC Rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates and radiates radio frequency energy and, if not

installed and used in accordance with the user’s manual, may cause

interference, in which case the user will be required to correct such

interference at his own expense.

CE Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

• Supports NWay auto-negotiation

• Store and forward switching

architecture

• Supports 802.3x ow control for

full duplex mode and collision-

based backpressure for half

duplex mode

• 19” rackmount brackets

• Wire-speed packet ltering and

forwarding rate

• Supports up to 8192 MAC address

entries and jumbo frames up to

9.6 kBytes

• 340 kBytes (16-port) or 500 kBytes

(24-port) buffer memory

• Lifetime Warranty

FRONT PANEL

LEDs

REAR PANEL

Power

Power to the Gigabit Ethernet Rackmount Switch is supplied by plugging

the included power

cable into the socket

to the right of the on/

off switch on the rear

panel.

LED Status Operation

Power On Unit is receiving power.

Off Unit is not receiving power.

LINK/ACT On Corresponding port is connected.

Off Corresponding port is not connected.

Flashing Corresponding port is transmitting/receiving data.

1000M On Port is transmitting/receiving data at 1000 Mbps.

Off Port is transmitting/receiving data at 10 or 100

Mbps.

Shown: Model 524148, 16-Port

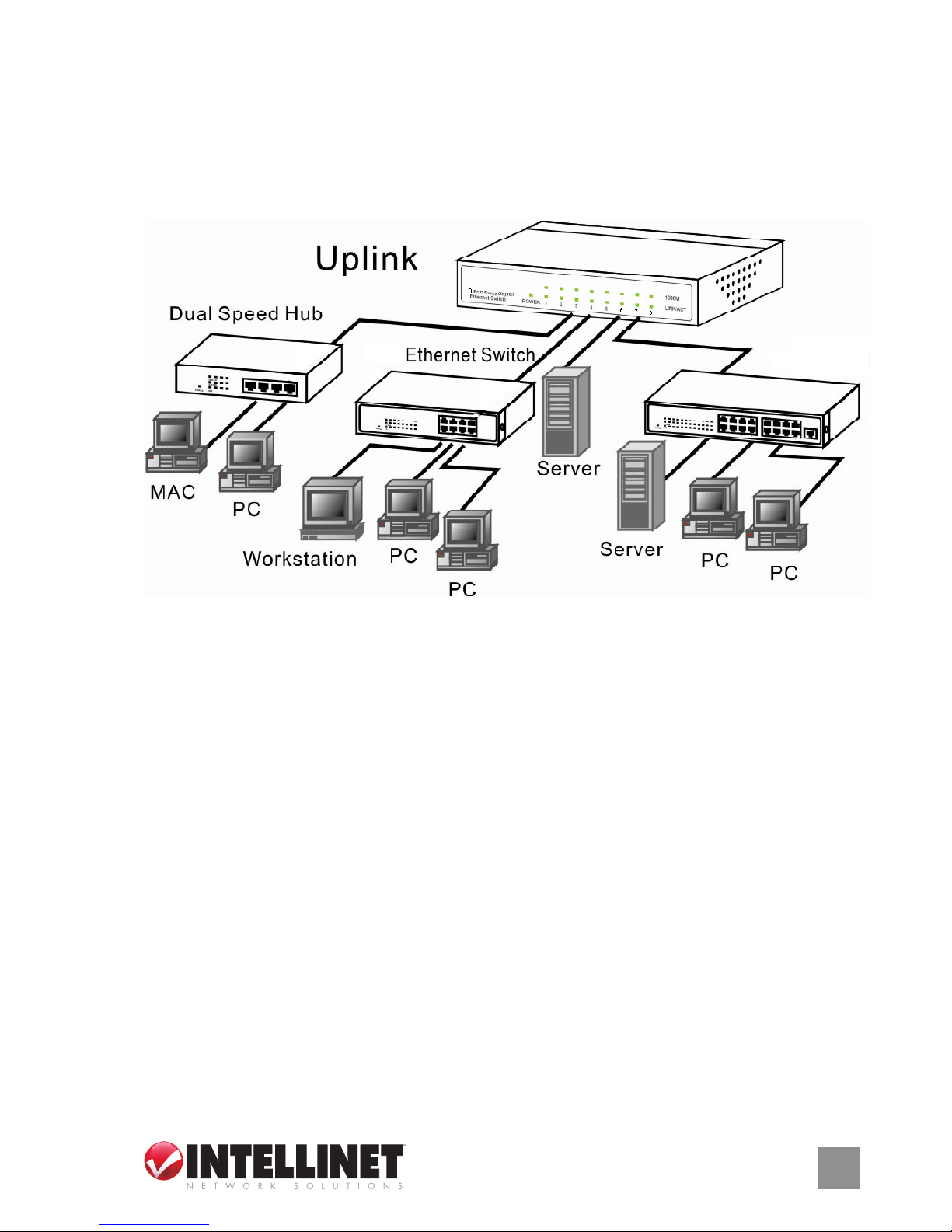

Switch/Hub/PC and Other Network Connections

The Gigabit Ethernet Rackmount Switch provides automatic crossover

detection for all ports, so it’s ready for connection to other switches,

hubs, PCs, servers and such without the need for crossover cable.

Ethernet

Switch

SPECIFICATIONS

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair

Gigabit Ethernet)

• IEEE 802.3u (100Base-TX Fast

Ethernet)

• IEEE 802.3x (ow control, for full

duplex mode)

General

• Media support:

- 10Base-T Cat3, 4, 5 UTP/STP

RJ-45

- 100Base-TX Cat5 UTP/STP

RJ-45

- 1000Base-T Cat5e UTP/STP

RJ-45

• Packet lter/forwarding rate:

- 1,488,000 pps (1000 Mbps)

- 148,800 pps (100 Mbps)

- 14,880 pps (10 Mbps)

• Buffer memory:

- 16-Port: 340 kBytes

- 24-Port: 500 kBytes

• MAC address table: 8192 entries

• Backplane speed:

- 16-Port: 32 Gbps

- 24-Port: 48 Gbps

• Switch architecture: store and

forward

• 16/24 RJ-45 Gigabit Ethernet ports

• Certications: FCC Class B, CE

Mark

LEDs

• Power

• Link Speed per port: 1000 Mbps

• Link/Activity per port

Power

• Internal power supply, 100 – 240

V AC, 50/60 Hz

• Power consumption:

- 16-Port: 20 Watts (maximum)

- 24-Port: 25 Watts (maximum)

Environmental

• Metal housing, 19” rackmount, 1 U

• Dimensions: 440 (W) x 220 (L) x

44 (H) mm (17.4 x 8.6 x 1.7 in.)

• Weight:

- 16-Port: 2.9 kg (6.4 lbs.)

- 24-Port: 3.0 kg (6.5 lbs.)

• Operating temperature: 0 – 55°C

(32 – 131°F)

• Operating humidity: 10 – 90% RH,

non-condensing

• Storage temperature: -20 – 90°C

(-4 – 194°F)

Package Contents

• Gigabit Ethernet Rackmount

Switch

• Power cable

• 19” rackmount brackets

• User manual
