Huawei WebConnect Jet UMG1691 Manuel utilisateur

UMG1691 webConnect

Jet

Quick Start

Thank you for choosing the Mobile Broadband

USB Stick. With your USB Stick, you can access

a wireless network at high speed.

Note:

This manual describes the appearance of the USB Stick, as well as the

procedures for preparation, installation, and removal. For operation details

about the management program, see the online help included in the

management program.

Getting to Know Your USB Stick

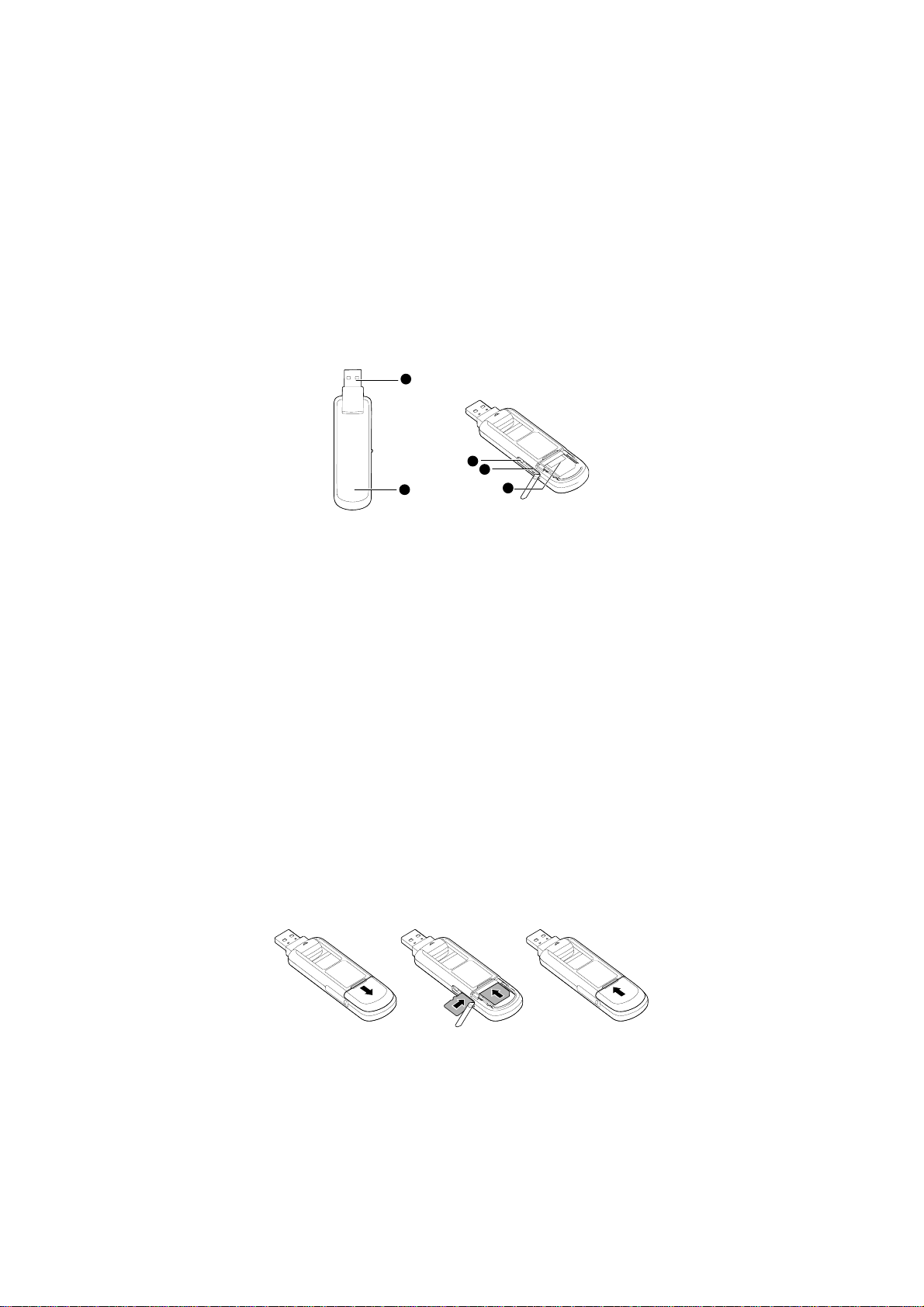

The following figure shows the appearance of the USB Stick. It is provided

only for your reference. The actual product may be different.

345

MICROSD

nRotatable USB Connector

It connects the USB Stick to a PC.

oIndicator

It indicates the status of the USB Stick.

zGreen, blinking twice every 3s: The USB Stick is powered on.

zGreen, blinking once every 3s: The USB Stick is registering with a 2G

network.

zBlue, blinking once every 3s: The USB Stick is registering with a

3G/3G+ network.

zGreen, solid: The USB Stick is connected to a 2G network.

zBlue, solid: The USB Stick is connected to a 3G network.

zCyan, solid: The USB Stick is connected to a 3G+ network.

zOff: The USB Stick is removed.

pRF Output Power Port

It connects an RF cable to the USB Stick for RF tests.

qMicroSD Card Slot

It holds a microSD card.

rSIM/USIM Card Slot

It holds a Subscriber Identity Module (SIM) /Universal Subscriber Identity

Module (USIM) card.

Getting Your USB Stick Ready

1. Slide the back cover to remove it from the USB Stick.

2. Insert the SIM/USIM card and the microSD card into the

corresponding card slots, as shown in the following figure.

3. Replace the back cover and slide it into place.

MICROSD

Note:

zThe microSD card is an optional accessory. If it is not provided in the

package, you can buy one yourself.

zEnsure that the beveled edge of the SIM/USIM card is properly aligned

with that of the SIM/USIM card slot / holder and the microSD card is

inserted according to the direction as labeled on the microSD card slot.

zDo not remove the microSD or SIM/USIM card when the card is in use.

Otherwise, the card as well as your USB Stick may get damaged and the

data stored on the card may be corrupted.

Installation/Removal Guide

The procedure for installing the management program depends on the

operating system (OS) installed on your PC. The following sections take

Windows XP as an example.

Connecting the USB Stick to a PC

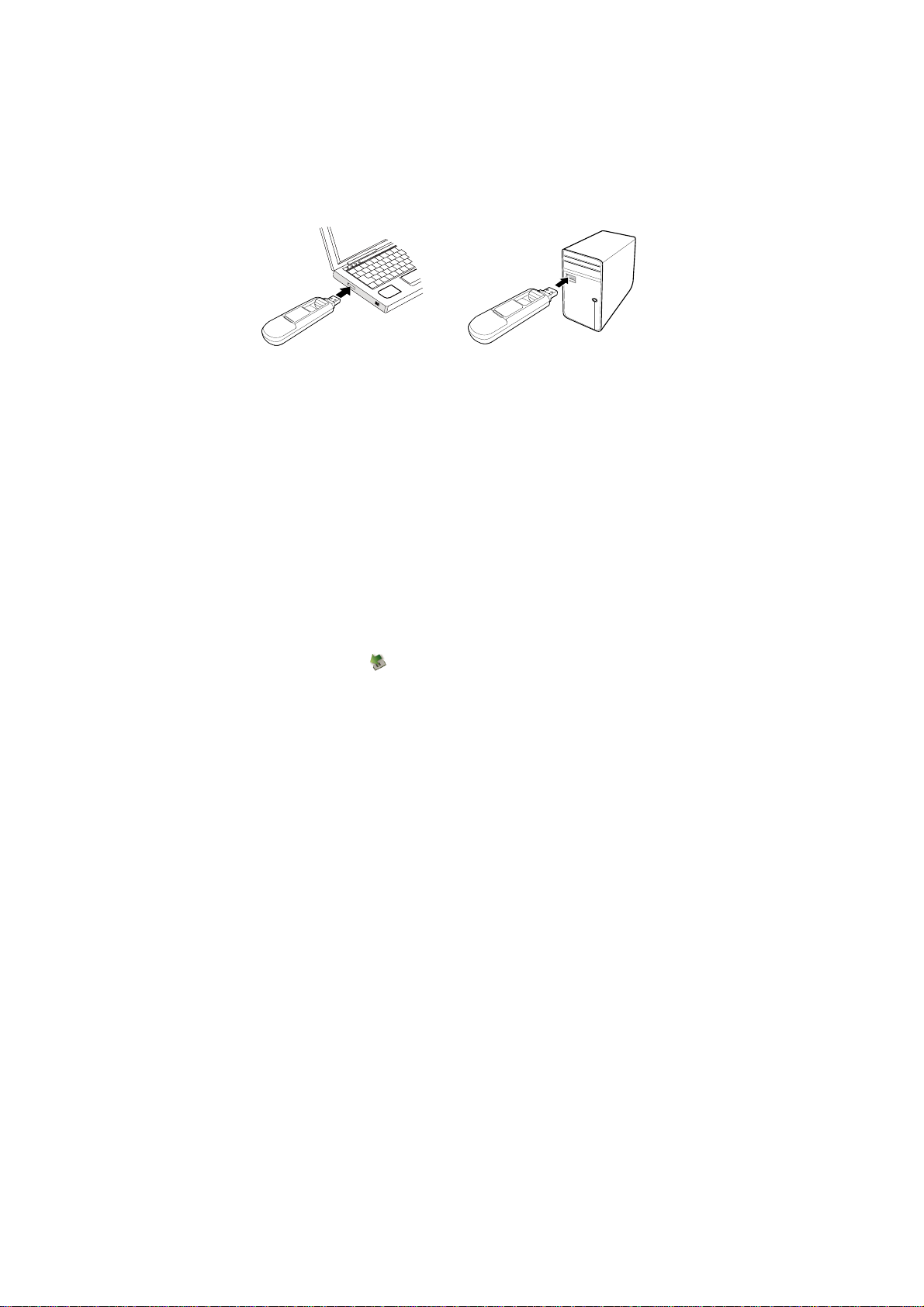

Plug the USB Stick into the USB port of your PC.

Installing the USB Stick Management Program

1. Connect the USB Stick with the PC.

2. The OS automatically detects and recognizes the new hardware and

starts the installation wizard.

Note:

If the auto-run program does not respond, find the AutoRun.exe file in

the driver path. Then double-click AutoRun.exe to run the program.

3. Follow the on-screen instructions of the installation wizard.

4. After the program is installed, a shortcut icon for the management

program appears on the desktop.

Starting the Management Program

After being installed, the management program starts automatically. Then

every time the USB Stick is connected to the PC, the management

program starts automatically.

You can also double-click the shortcut icon on the desktop to start the

management program.

Removing the USB Stick

1. Double-click in the notification area. Then the Unplug or Eject

Hardware dialog box appears.

2. Select the corresponding hardware and then click Stop.

3. When the message "It is safe to remove the device" appears,

remove the USB Stick.

Uninstalling the Management Program

1. Choose Start > Control Panel > Add or Remove Programs.

2. Find the management program and click Remove to uninstall the

management program.

Note:

Exit the management program before uninstalling it.

Version: V100R001_01 Part Number: 3101****
