Huawei E176 Manuel utilisateur

No part of this document may be reproduced or transmitted in any form or by any

means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co.,

Ltd.

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

Notice

The information in this document is subject to change without notice. Every effort

has been made in the preparation of this document to ensure accuracy of the

contents, but all statements, information, and recommendations in this document

do not constitute the warranty of any kind, express or implied.

Table of Contents

Getting to Know the E176 ....................................................................... 1

Requirements for the PC ......................................................................... 4

Preparing the E176 ................................................................................ 4

Installation Guide .................................................................................. 6

Safety Information................................................................................10

Thank you for purchasing Huawei E176 HSPA USB

Stick.

Note:

This manual briefly describes the preparation, the process for

installing/uninstalling, and safety precautions for using Huawei E176 HSPA

USB Stick (hereinafter referred to as the E176).

You are recommended to read the manual before using the E176.

Getting to Know the E176

The following figures show the appearance of the E176. The actual product may

differ.

USB Interface

Connects to the USB interface of the PC.

USIM/SIM card slot

Holds the USIM/SIM card.

Micro SD card slot

Holds the Micro SD card.

RF Test slot

Connects to RF cable for RF test.

Indicator

Indicates the status of the E176.

Green, blinking twice every 3s: The E176 is powered on.

Green, blinking once every 3s: The E176 is registered to the

GSM/GPRS/EDGE network.

Blue, blinking once every 3s: The E176 is registered to the WCDMA/HSDPA

network.

Green, always on: The GPRS/EDGE connection is set up.

Blue, always on: The WCDMA connection is set up.

Cyan, always on: The HSDPA connection is set up.

Off: The E176 is removed from the PC.

Requirements for the PC

To use the E176, the PC must meet the following requirements:

Standard USB interface.

Windows 2000 SP4, Windows XP SP2, Windows Vista.

The hardware of your PC must meet or exceed the recommended system

requirements for the installed version of OS.

Display resolution: 800 × 600 or above.

Preparing the E176

Inserting the USIM/SIM Card

Insert the USIM/SIM card into the card slots. Make sure that the cards are

properly inserted.

Inserting the Micro SD Card

Insert the micro SD card into the E176, as shown in the following figure.

Note:

Micro SD card is an optional accessory. If the micro SD card is not provided in

the package, you can buy one yourself.

Do not remove the USIM/SIM card and the micro SD card when they are being

used. Removing the cards during an operation may damage the cards as well

as the device, and data stored on the cards may be corrupted.

Installation Guide

The procedure for installing the management program depends on the operating

system installed on your PC. The following section takes Windows XP as an

example.

Connecting the E176 with a PC

Note:

Power on your PC before connecting the E176 with the PC. Otherwise, the normal

installation of the E176 may be affected.

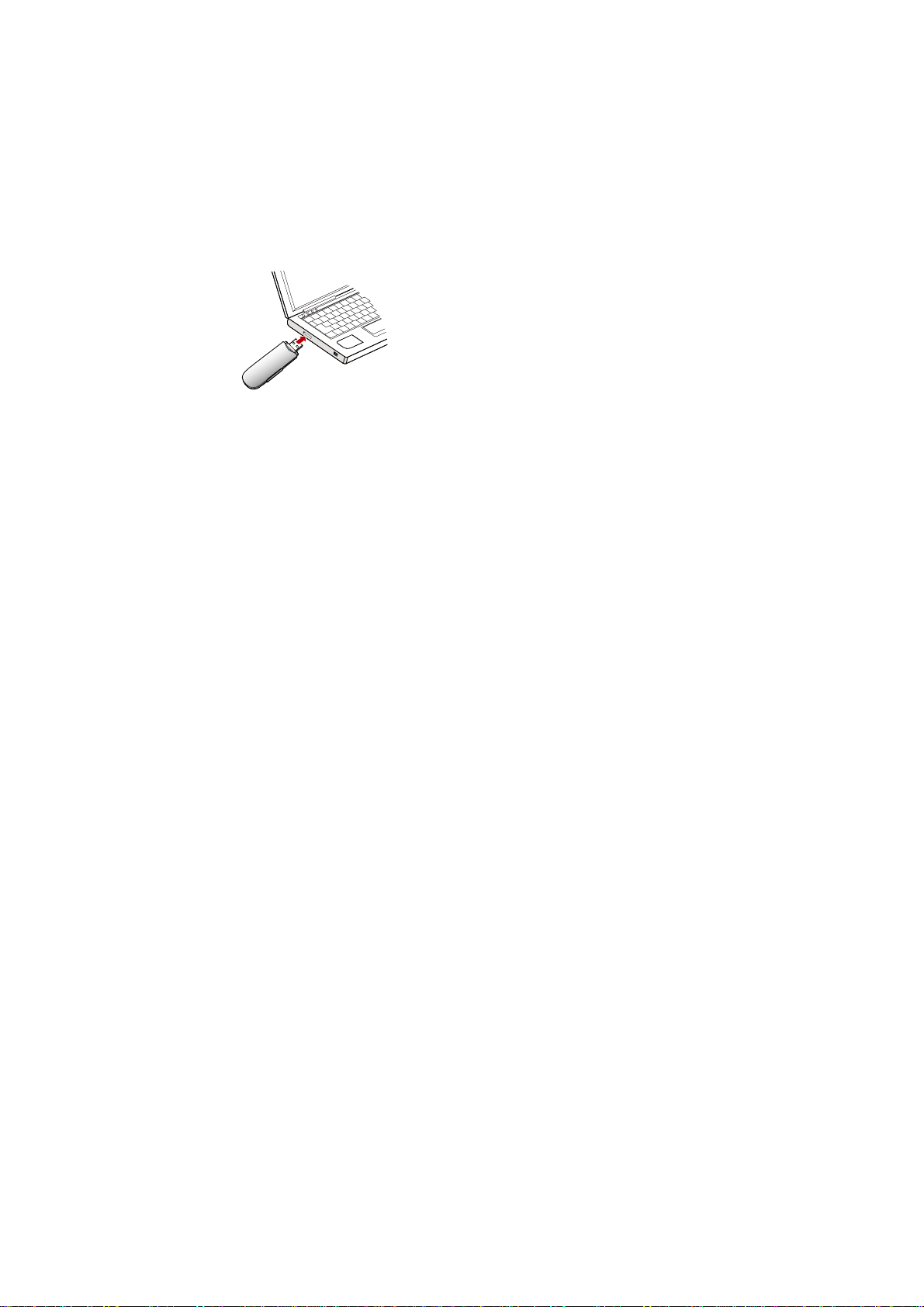

One way: Plug the E176 into the USB interface of the PC.

The other way: connect the E176 to a PC using the USB extension cable.

Installing the E176 Management Program

1. Connect the E176 with the PC.

2. The OS automatically detects and recognizes new hardware and starts the

installation wizard

Note:

If the auto-run program does not respond, find the AutoRun.exe file in the driver

path. Then double-click AutoRun.exe to run the program.

3. Follow the prompts of the installation wizard.

4. After the program is installed, the shortcut icon of the management program

is displayed on the desktop.

Launching the Management Program

After the E176 is installed, the management program is launched automatically.

Then every time the E176 is connected to the PC, the management program is

launched automatically.

You can also double-click the shortcut icon on the desktop to launch the

management program.

Uninstalling the Management Program

1. Choose Start > Control Panel.

2. Find the management program, and click Add/Remove Program to

uninstall the management program.

Note:

It is recommended to restart the PC after the uninstallation to ensure that the

management program is completely uninstalled.

Removing the E176

1. Double-click in the system tray. The Unplug or Eject Hardware interface

is displayed.

2. Select the hardware related to the E176 and click Stop.

3. When the prompt "It is safe to remove the device" is displayed, remove

the E176.
