Huawei SmartAX MT880a Manuel utilisateur

SmartAX MT880a ADSL CPE

User Guide

HUAWEI TECHNOLOGIES CO., LTD.

SmartAX MT880a ADSL CPE

V100R001

User Guide

Issue 02

Date 2009-01-04

Part Number 103123

Huawei Technologies Co., Ltd. provides customers with comprehensive

technical support and service. Please feel free to contact our local office

or company headquarters.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

rights reserved.

No part of this document may be reproduced or transmitted in any form or

by any means without prior written consent of Huawei Technologies Co.,

Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei

Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

Notice

The information in this document is subject to change without notice.

Every effort has been made in the preparation of this document to ensure

accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any

kind, express or implied.

Contents

1Safety Precautions..................................................................................... 1

2Connecting the Cables and Getting Started............................................ 4

2.1 Simple Connection .......................................................................................4

2.2 Connecting One Telephone ..........................................................................5

2.3 Connecting Multiple Telephones .................................................................6

2.4 Getting Started .............................................................................................6

3Setting the Network-Access Parameters ................................................. 7

3.1 Accessing the Network Through the Embedded PPP Dial-Up Software of the

MT880a ...............................................................................................................7

3.2 Accessing the Network Through the PPP Dial-Up Software on the Computer

.............................................................................................................................8

4Configuring the MT880a .......................................................................... 9

4.1 Changing the Administrator Password Used for Logging In to the Web

Configuration Page ..............................................................................................9

4.2 Changing the IP Address..............................................................................9

4.3 Restoring Default Settings..........................................................................10

5FAQs......................................................................................................... 10

6Appendix.................................................................................................. 13

6.1 Indicators....................................................................................................13

6.2 Interfaces and Buttons................................................................................13

6.3 Default Settings..........................................................................................14

6.4 Technical Specifications.............................................................................14

1 Safety Precautions

Thank you for purchasing SmartAX MT880a ADSL CPE (hereinafter referred to as the

MT880a).

For safety purposes, carefully read through these safety precautions and observe them

during operation.

Basic Requirements

zKeep the device dry during storage, transportation, and operation of the device.

zPrevent collision of the device with other objects during storage, transportation, and

operation of the device.

zDo not attempt to dismantle the device. In case of any fault, contact the authorized

maintenance center for assistance or repair.

zWithout prior written consent, no organization or individual is permitted to make

any change to the structure, safety, and performance design of the device.

zWhile using the device, observe all applicable laws, directives and regulations, and

respect the legal rights of other people.

Environmental Requirements

zPlace the device in a well-ventilated place. Do not expose the device to direct

sunlight.

zKeep the device clean, free of dust and stain.

zDo not place the device near a water source or in a damp area.

zPlace the device on a stable surface.

zDo not place any object on the top of the device. Reserve a minimum space of 10

cm at the four sides and on the top of the device for heat dissipation.

zDo not place the device on or near inflammable materials such as foam.

zKeep the device away from heat source or fire, such as a radiator or a candle.

zKeep the device away from any household appliances with strong magnetic field or

electric field, such as microwave oven, refrigerator, or mobile phone.

Operation Requirements

zDo not allow children to play with the device or accessories.Swallowing the

accessories may be fatal.

zUse the accessories such as the power adaptor provided or authorized only by the

manufacturer.

zMake sure that the device does not get wet. If water gets into the device, disconnect

the power supply immediately and unplug all the cables connected to the device.

zThe power supply of the device must meet the requirements of the input voltage of

the device.

zBefore plugging or unplugging any cable, shut down the device and disconnect the

power supply.

zWhile plugging or unplugging any cable, make sure that your hands are dry.

zDo not step on, pull, or stretch any cable. Otherwise, the cable may get damaged,

leading to malfunction of the device.

zDo not use old or damaged cables.

zKeep the power plug clean and dry, to prevent electric shock or other dangers.

zDuring lightning, disconnect the device from the power supply and unplug all the

cables connected to the device, such as the power cable, telephone cable, and RF

cable, to prevent lightning strike.

zIf the device is not used for a long time, disconnect the power supply and unplug the

all the cables connected to the device.

zIf smoke, sound, or smell is emitted from the device, stop using the device

immediately, disconnect the power supply, unplug the power supply and other

cables, and remove the batteries. Contact the authorized maintenance center for

repair.

zMake sure that no object (such as metal shavings) enters the device through the heat

dissipation vent.

zDo not scratch or abrade the shell of the device. The shed painting may lead to skin

allergy or malfunctions of the device. If the shed painting material drops into the

host, a short circuit may occur.

Cleaning Requirements

zBefore cleaning the device, stop using it, disconnect the power supply, and unplug

all the cables connected to the device.

zDo not clean the device cover with any cleaning solution or cleanser spray. Use a

piece of soft cloth to clean the device cover.

Environmental Protection

Do not dispose the abandoned device or battery in a garbage can. You need to dispose it

according to the local regulations on disposing of device packing materials, exhausted

battery and abandoned device, and support the recycling activity.

After the MT880a is used for a certain period of time, the cover will be

heated, which will not affect the function of the MT880a.

2 Connecting the Cables and Getting

Started

2.1 Simple Connection

If your telephone line is used for the broadband network access only and you do not

need to use a telephone, take the following figure as a reference for connecting the

cables.

POWER

LAN

RESET

ADSL

1 Telephone jack on the wall 2 Computer 3 Power adapter

2.2 Connecting One Telephone

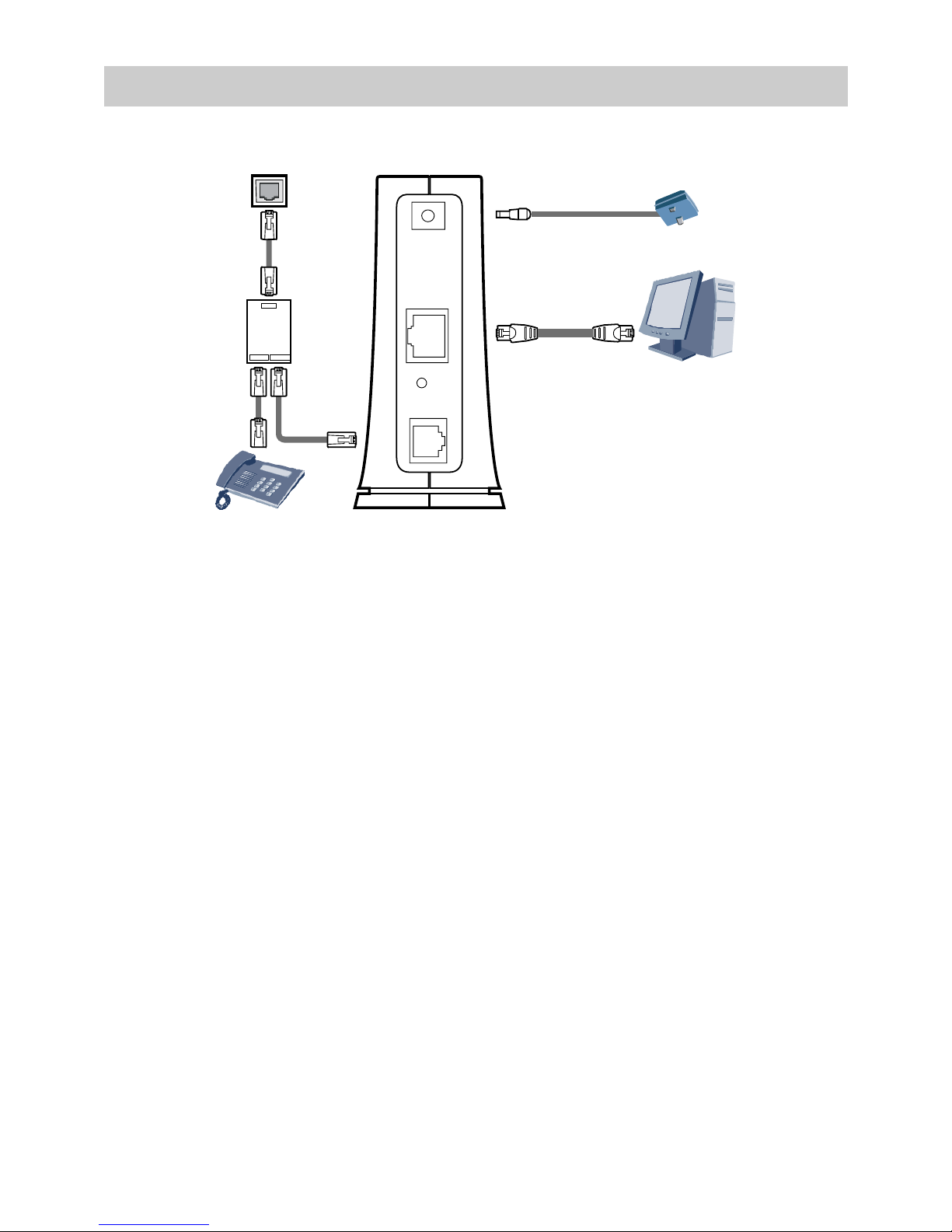

If your telephone line is used for both the broadband network access and a telephone

connection, take the following figure as a reference for connecting the cables.

POWER

LAN

RESET

####

#### ####

ADSL

1 Telephone jack on the wall 2 Splitter

3 Telephone 4 Computer

5 Power adapter
