Huawei E176G Manuel utilisateur

No part of this document may be reproduced or transmitted in any form or by any means without

prior written consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei Technologies Co.,

Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify,

decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said

software, unless such restrictions are prohibited by applicable laws or such actions are approved by

respective copyright holders under licenses.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei Technologies

Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of their

respective owners.

Notice

Some features of the product and its accessories described herein rely on the software installed,

capacities and settings of local network, and may not be activated or may be limited by local

network operators or network service providers. Thus the descriptions herein may not exactly match

the product or its accessories you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any information or

specifications contained in this manual without prior notice or obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI

TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR

CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR

ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and will obtain all

necessary governmental permits and licenses in order to export, re-export or import the product

mentioned in this manual including the software and technical data therein.

Table of Contents

Getting to Know the E176G...........................................................................................................1

Requirements for the PC ................................................................................................................ 3

Preparing the E176G......................................................................................................................3

Installation Guide...........................................................................................................................5

Safety Information ......................................................................................................................... 8

Thank you for purchasing Mobile Broadband E176G USB

Stick.

Note:

This manual briefly describes the preparation, the process for installing/uninstalling, and safety

precautions for using Mobile Broadband E176G USB Stick (hereinafter referred to as the

E176G).

You are recommended to read the manual before using the E176G.

Getting to Know the E176G

The following figures show the appearance of the E176G. The actual product may differ.

USB Interface

Connects to the USB interface of the PC.

USIM/SIM card slot

Holds the USIM/SIM card.

Micro SD card slot

Holds the Micro SD card.

External Antenna Jack

Connects to an external antenna.

Indicator

Indicates the status of the E176G.

Green, blinking twice every 3s: The E176G is powered on.

Green, blinking once every 3s: The E176G is registered to the GSM/GPRS/EDGE network.

Blue, blinking once every 3s: The E176G is registered to the WCDMA/HSDPA/HSUPA network.

Green, always on: The GPRS/EDGE connection is set up.

Blue, always on: The WCDMA connection is set up.

Cyan, always on: The HSDPA/HSUPA connection is set up.

Off: The E176G is removed from the PC.

Requirements for the PC

To use the E176G, the PC must meet the following requirements:

Standard USB interface.

Windows 2000 SP4, Windows XP SP2, Windows Vista.

The hardware of your PC must meet or exceed the recommended system requirements for the

installed version of OS.

Display resolution: 800 × 600 or above.

Preparing the E176G

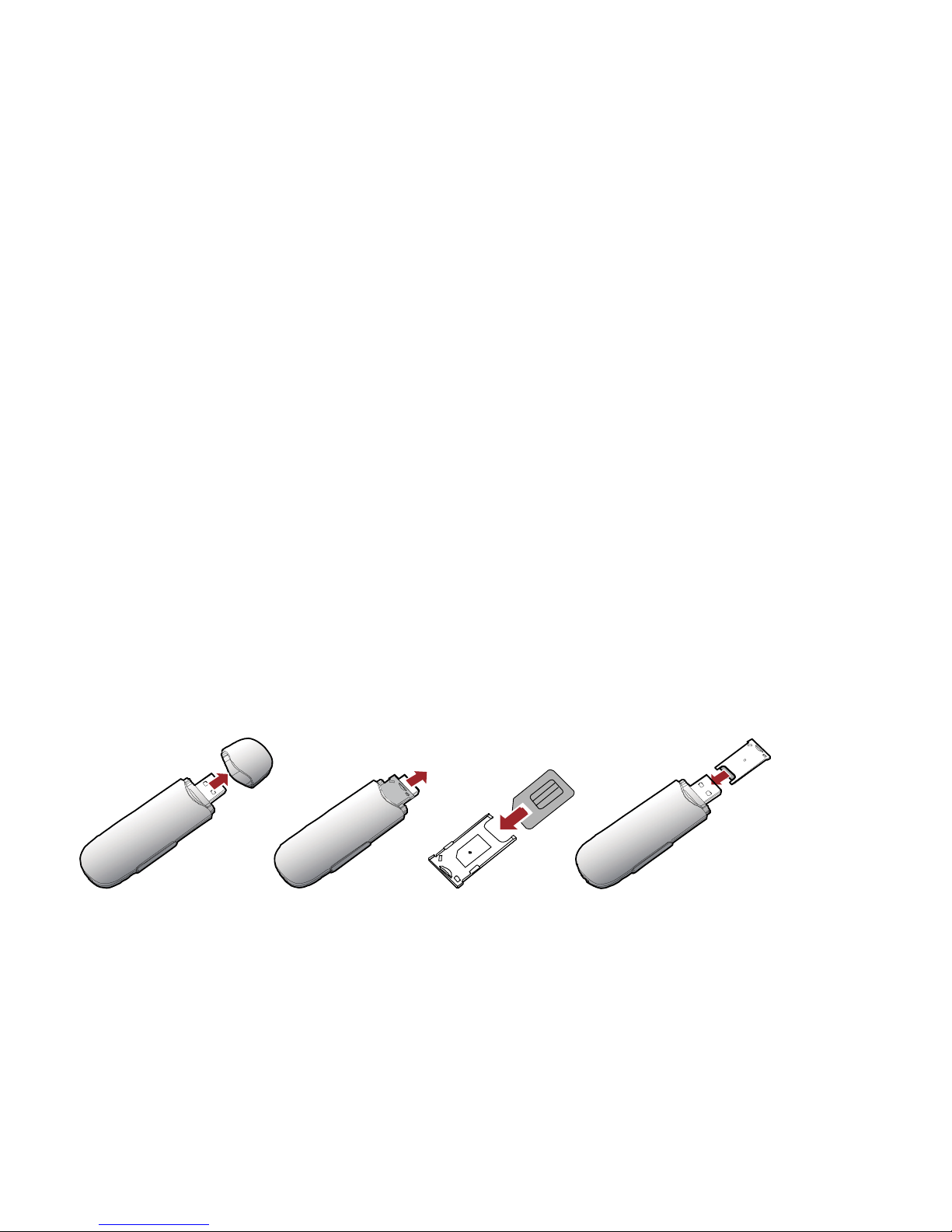

Inserting the USIM/SIM Card

Insert the USIM/SIM card into the card slots. Make sure that the cards are properly inserted.

Inserting the Micro SD Card

Insert the micro SD card into the E176G, as shown in the following figure.

Note:

Micro SD card is an optional accessory. If the micro SD card is not provided in the package, you

can buy one yourself.

Do not remove the USIM/SIM card and the micro SD card when they are being used. Removing

the cards during an operation may damage the cards as well as the device, and data stored on

the cards may be corrupted.

Installation Guide

The procedure for installing the management program depends on the operating system installed

on your PC. The following section takes Windows XP as an example.

Connecting the E176G with a PC

Note:

Power on your PC before connecting the E176G with the PC. Otherwise, the normal installation of

the E176G may be affected.

One way: Plug the E176G into the USB interface of the PC.

The other way: connect the E176G to a PC using the USB extension cable.

Installing the E176G Management Program

1. Connect the E176G with the PC.

2. The OS automatically detects and recognizes new hardware and starts the installation wizard

Note:

If the auto-run program does not respond, find the AutoRun.exe file in the driver path. Then

double-click AutoRun.exe to run the program.

3. Follow the prompts of the installation wizard.

4. After the program is installed, the shortcut icon of the management program is displayed on

the desktop.

Launching the Management Program

After the E176G is installed, the management program is launched automatically. Then every time

the E176G is connected to the PC, the management program is launched automatically.

You can also double-click the shortcut icon on the desktop to launch the management program.

Uninstalling the Management Program

1. Choose Start > Control Panel.

2. Find the management program, and click Add/Remove Program to uninstall the management

program.

Note:

It is recommended to restart the PC after the uninstallation to ensure that the management

program is completely uninstalled.

Removing the E176G

1. Double-click in the system tray. The Unplug or Eject Hardware interface is displayed.

2. Select the hardware related to the E176G and click Stop.

3. When the prompt "It is safe to remove the device" is displayed, remove the E176G.

Note:

Before removing the E176G, exit the management program.
