HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Issue

Date

2014-05-24

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").

The product described in this manual may include copyrighted software of Huawei and possible licensors.

Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,

reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by

applicable laws or such actions are approved by respective copyright holders.

Trademarks and Permissions

, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

LTE is a trade mark of ETSI.

Other trademarks, product, service and company names mentioned may be the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and therefore may not be activated or may be limited by local network operators

or network service providers.

Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.

Huawei reserves the right to change or modify any information or specifications contained in this manual

without prior notice and without any liability.

DISCLAIMER

ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE

LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF

PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS

REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.

THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL

INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING

FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE

AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain

all necessary governmental permits and licenses in order to export, re-export or import the product mentioned

in this manual including the software and technical data therein.

To better understand how we protect your personal information, please see the privacy policy at

http://consumer.huawei.com/privacy-policy.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

About This Document

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

About This Document

Revision History

Document

Version

Date

Chapter

Description

2014-05-24

Creation

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Contents

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

Contents

1 Introduction....................................................................................................................................5

1.1 Purpose............................................................................................................................................ 5

1.2 Scope............................................................................................................................................... 5

2 Acceptance Inspection..................................................................................................................6

2.1 Packaging Modes andAppearance................................................................................................. 6

2.2 Label Inspection............................................................................................................................... 8

2.3 Performance Inspection................................................................................................................... 9

2.4 Repack the Module after Inspection............................................................................................... 12

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Introduction

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

1 Introduction

1.1 Purpose

This document describes the methods of inspecting Huawei's shipments of

ME909u-523 module. Customers can refer to this document when formulating

inspection guides for accepting Huawei ME909u-523 module.

1.2 Scope

This guide is applicable to the acceptance inspection of Huawei ME909u-523 module.

The inspection methods provided in this guide are recommendations, which can be

modified by customers if necessary.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

2 Acceptance Inspection

2.1 Packaging Modes and Appearance

The first-layer packages for the ME909u-523 module are large cartons; the

second-layer packages are medium cartons, and the third-layer packages are vacuum

bags, as shown in the following figures.

Figure 2-1 Large carton packaging

Check whether the package has serious damage or has been opened.

Check whether the number of Carton ID labels attached on the large carton is consistent

with the number of medium cartons in the large carton.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

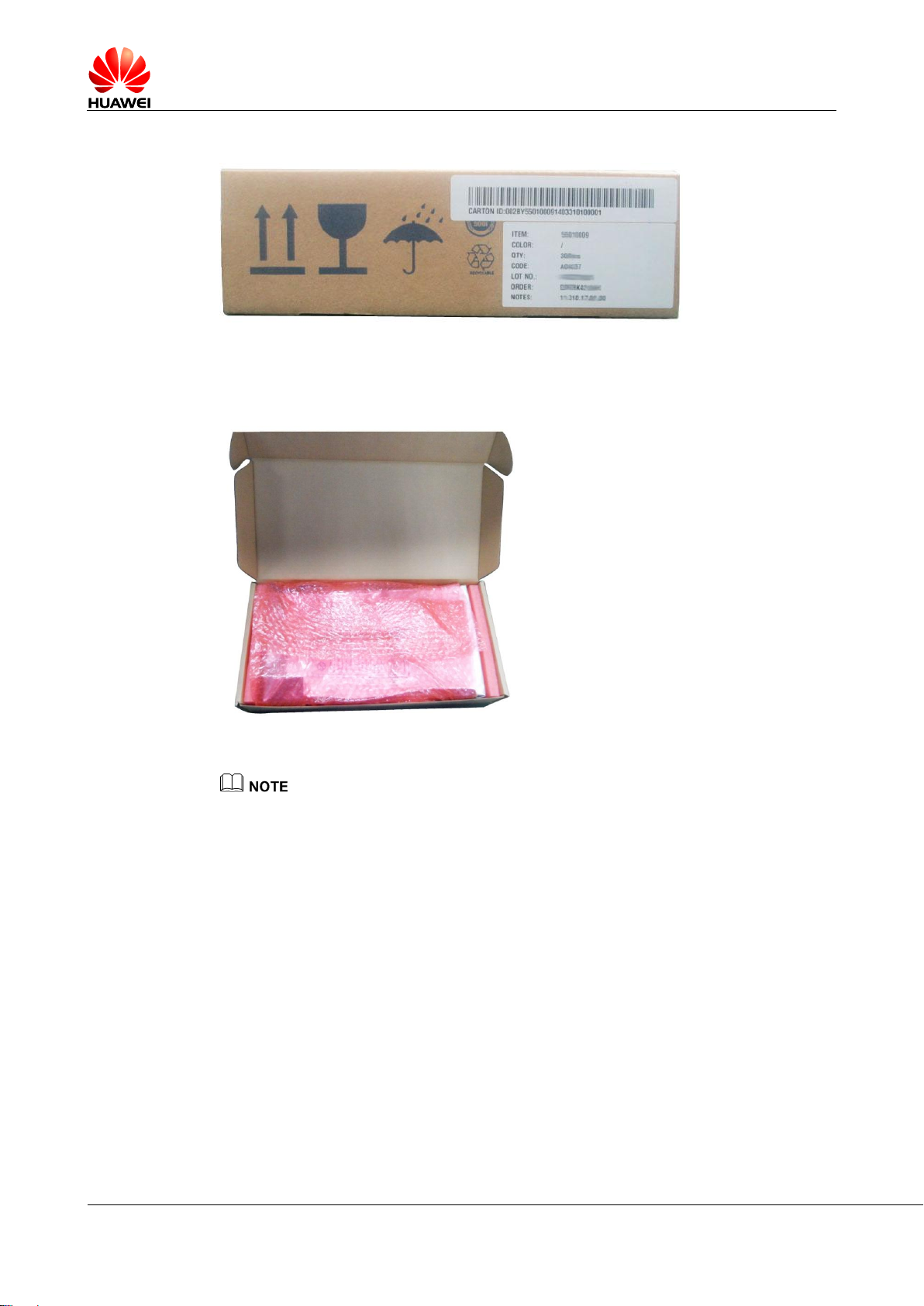

Figure 2-2 Medium carton

Figure 2-3 Vacuum bag inside a medium carton

Check whether the packaging modes are consistent with those shown in the previous

figures.

The ME909u-523 modules are packed in vacuum bags. Check the vacuum bags for

damage and leakage.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

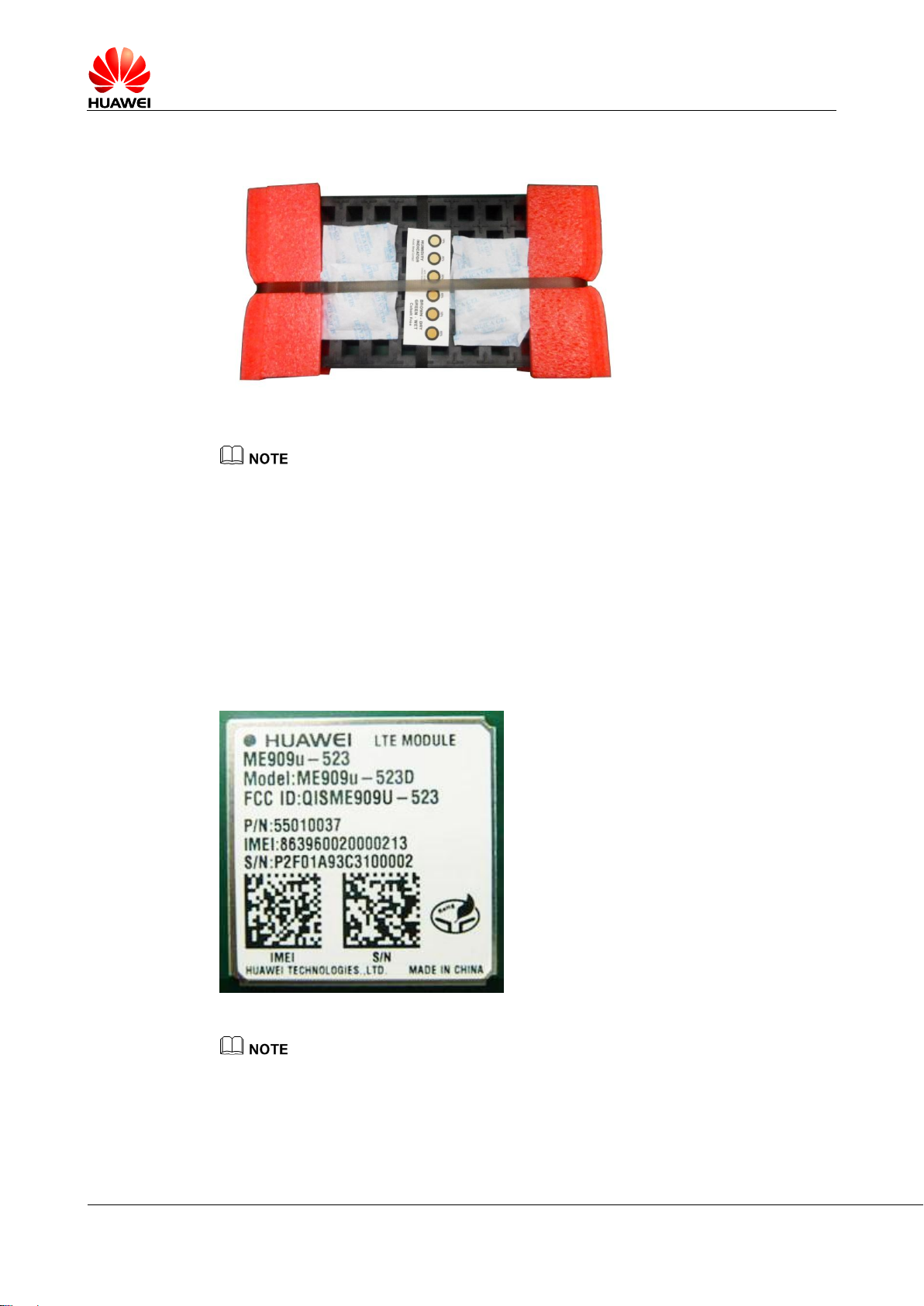

Figure 2-4 Arrangement of the modules (after the vacuum bag is removed)

Check that the arrangement of modules is consistent with that shown in Figure 2-4 .

Check that the number of modules is consistent with that labeled on the large carton.

After the vacuum bag is removed for inspection, repack the modules in a vacuum bag to

ensure the quality when the modules deliver to the customer.

2.2 Label Inspection

Figure 2-5 ME909u-523 label

Check whether the information on the label of an ME909u-523 module is consistent with the

label shown in Figure 2-5 .

Use a 2D barcode scanner to read the 2D barcode and check whether the number read

from the barcode is consistent with the IMEI number printed on the label.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

2.3 Performance Inspection

Testing software: HyperTerminal

Testing tools: Serial port or USB cable, development kit, and PC

Testing system: Windows 7

The following is the procedure:

Step 1 Use serial port or the USB cable to connect the development kit to the PC.

Step 2 You can download hypertrm.exe and hypertrm.dll in your

browser and store hypertrm.exe and hypertrm.dll in C:\windows\system32.

Step 3 Run hypertrm.exe in C:\windows\system32 to enter Location Information. Select

your country or region (here take China as an example), input your code or city code

(here take 0755 as an example), and then click OK, as shown in the following figure.

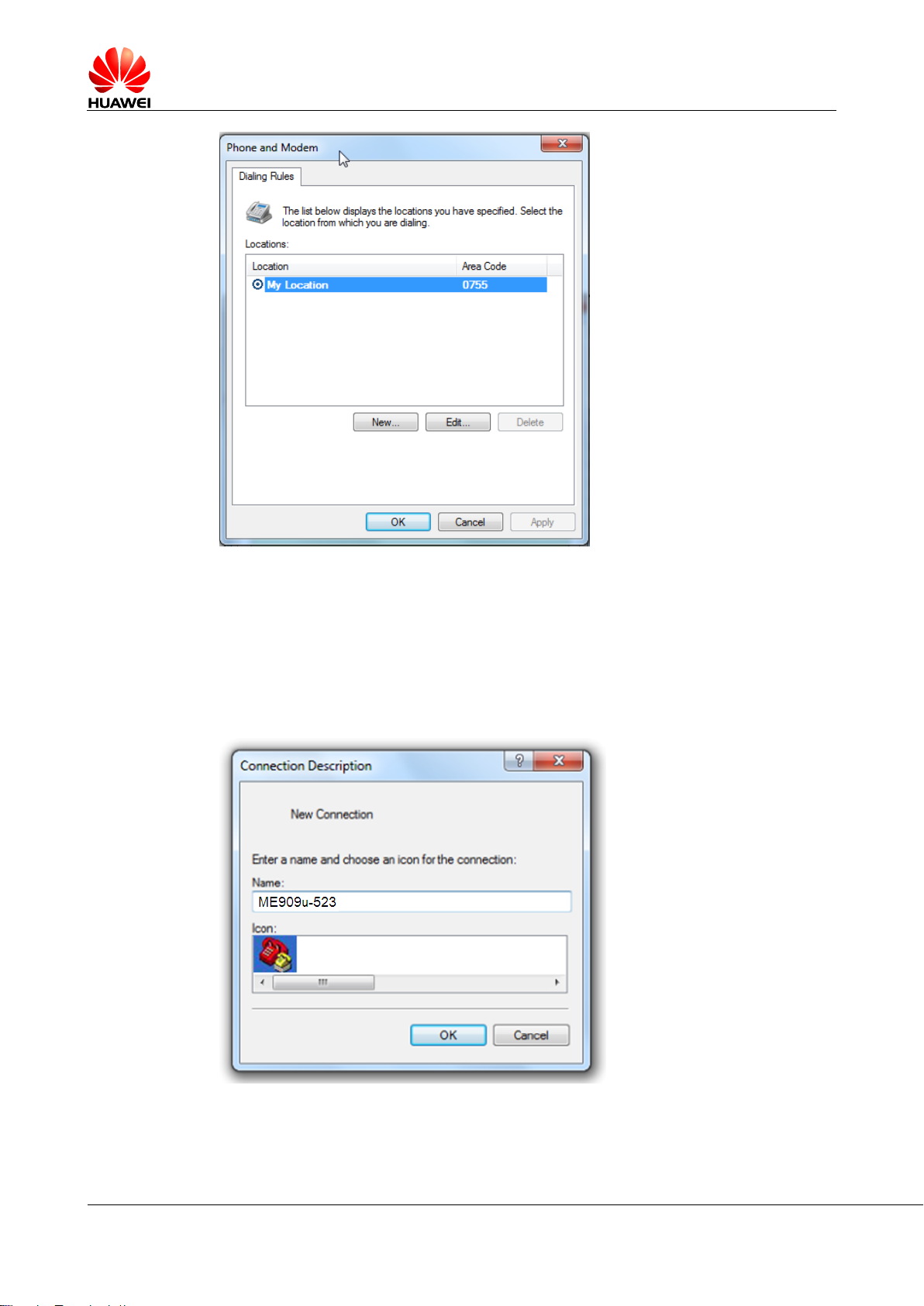

Step 4 Enter Phone and Modem, and click OK as shown in the following figure.

HUAWEI ME909u-523 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01(2014-05-24)

Huawei Proprietary and Confidential

Note:

Step 3 and Step 4 are only used for users to install hypertrm.exe for the first time. If

hypertrm.exe has been installed before, it will directly go to Step 5.

Step 5 Enter Connection Description. Input ME909u-523 in Name column, select the red

telephone icon in Icon column and click OK as shown in the following figure.

Step 6 Select the correct serial port in Connect using column and click OK as shown in the

following figure.
