H3C SecPath NSQ1FAB08D0 switching fabric module

1 Module view

The NSQ1FAB08D0 switching fabric module uses product code NSQM1FAB08D0.

Figure 1 NSQ1FAB08D0 switching fabric module

2 Specifications

Figure 2 Front panel

(1) Console port (CONSOLE) (2) Status LEDs

Table 1 Module specifications

Item Specification

Dimensions (H × W × D) 40 × 426 × 298 mm (1.57 × 16.77 × 11.73 in)

Power consumption 101 W to 135 W

Weight 2.77 kg (6.11 lb)

Hot swapping Supported

Connector type RJ-45

Ports 1 × console port

Ambient temperature Operating: 0°C to 45°C (32°F to 113°F)

Storage: –40°C to +70°C (–40°F to +158°F)

Ambient humidity Operating: 10% RH to 95% RH, noncondensing

Storage: 5% RH to 95% RH, noncondensing

Manual version: 6PW107-20210319 BOM: 3123A0R2

Item Specification

Compatible device models and

slots

•M9010 gateway (slots 10 to 13)

•M9010-GM gateway (slots 10 and 11)

•T9010 IPS (slots 10 to 13)

IMPORTANT:

•You can configure a maximum of two switching fabric module for an M9010-GM gateway.

•An M9010 gateway and a T9010 IPS each require a minimum of three switching fabric modules,

and slots 10 and 11 must be installed with switching fabric modules.

3 LEDs

The module provides LEDs to show its operating status.

Table 2 LED description

RUN LED ALM LED Description

Flashing (0.5 Hz) Off The switching fabric module is operating properly.

Off On The switching fabric module is faulty.

Flashing (0.5 Hz) On The temperature of the switching fabric module has exceeded the

upper or lower limit.

Off Off The switching fabric module has not started.

On Off The switching fabric module is starting up.

4 Installing and removing the module

CAUTION:

•Wear a well-grounded ESD-preventive wrist strap before you install or remove the module.

•When you install or remove the module, avoid touching the components on it.

4.1 Installing the module

1. Face the rear panel of the device.

2. Remove the filler panel from the target slot.

This example uses slot 11.

3. Place the module horizontally with the component side facing up. Open the ejector levers and

gently push the module into the slot along the guide rails, as shown by callout 1 in Figure 3.

4. Close the ejector levers. Make sure the module is in close contact with the backplane, as shown

by callout 2 in Figure 3.

5. Use a Phillips screwdriver to fasten the captive screws on the module, as shown by callout 3

in Figure 3.

Manual version: 6PW107-20210319 BOM: 3123A0R2

iii

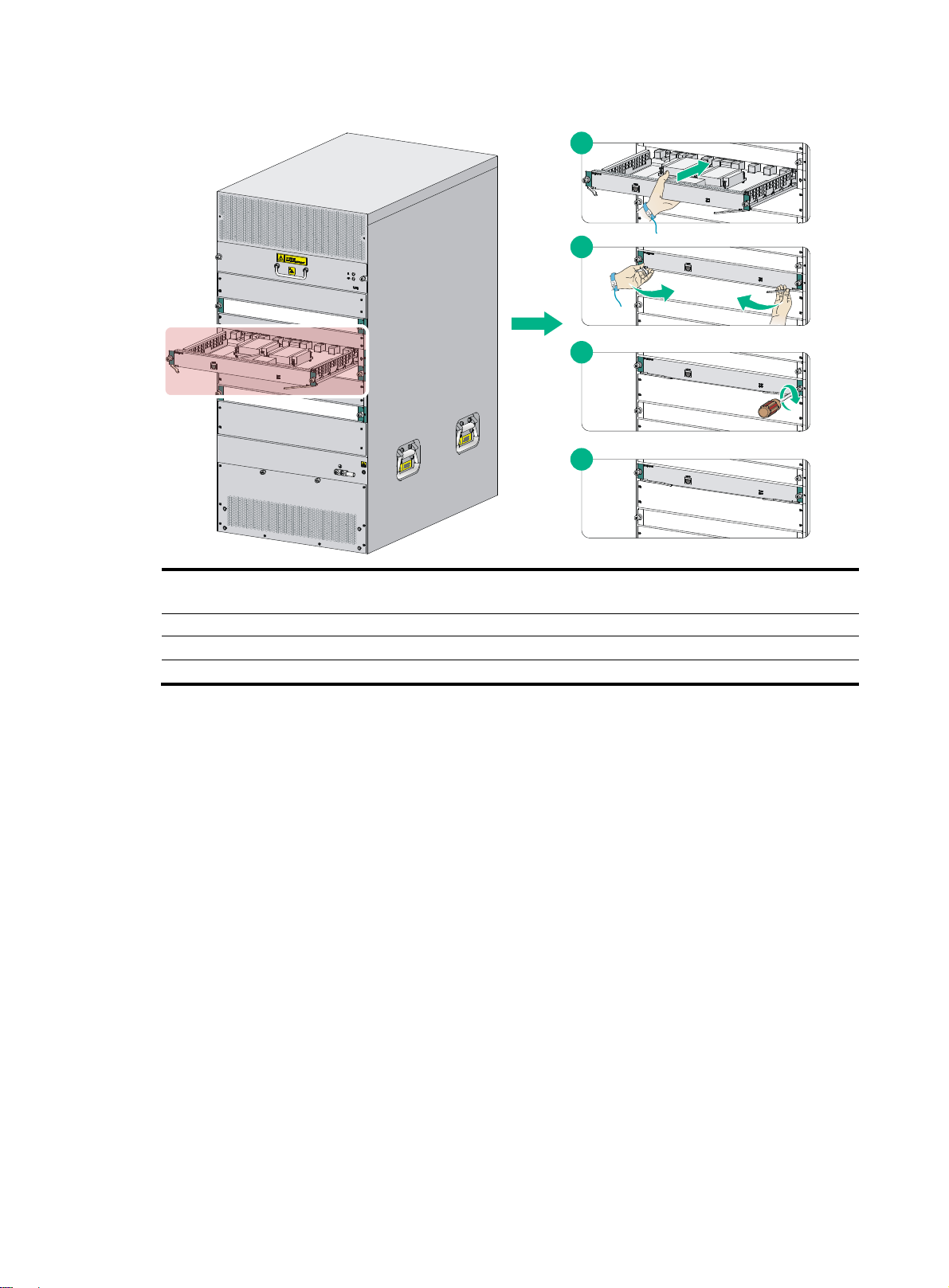

Figure 3 Installing the module

(1) Gently push the module into the slot along the guide rails until the module is in close contact with the

backplane.

(2) Close the ejector levers.

(3) Use a Phillips screwdriver to fasten the captive screws.

(4) Installation is finished.

4.2 Removing the module

1. Use a Phillips screwdriver to loosen the captive screws on the module until all pressure is

released.

2. Simultaneously open the ejector levers on the module to separate the module from the

backplane, and pull the module slowly out of the chassis along the guide rails.

3. Place the module on an anti-static workbench or put it in an anti-static bag, with the component

side facing up.

If you are not to install a new module, install a filler panel in the slot to prevent dust and ensure

good ventilation in the device.
