User’s Manual

InfraRed Thermometer with Laser Pointer

MODEL 42525A

Model 42525A Version 4.0 5/052

Introduction

Congratulations on your purchase of Extech’s 42525A IR Thermometer. The Model

42525A provides non-contact (IR) and contact (type K) temperature measurement

capability. The built-in laser pointer (activated by pressing the meter’s trigger) increases

target accuracy. The Model 42525A has an RS-232 PC Interface jack for recording

readings as they are taken. Professional features include EMISSIVITY ADJUST,

RELATIVE MODE, DATA HOLD, DISPLAY OFFSET, and MIN MAX DISPLAY. Proper

use and care of this meter will provide years of reliable service.

Safety

1. Use extreme caution when the laser beam is ON

2. Do not point the beam toward anyone's eye

3. Be careful not to let the beam strike the eye from a reflective surface

4. Do not use the laser near explosive gases or in other potentially explosive areas

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and

workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables).

If it should become necessary to return the instrument for service during or beyond the warranty period,

contact the Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit our website

www.extech.com for contact information. A Return Authorization (RA) number must be issued before any

product is returned to Extech. The sender is responsible for shipping charges, freight, insurance and proper

packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the

user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or

unauthorized modification. Extech specifically disclaims any implied warranties or merchantability or fitness for

a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. Extech's

total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no

other warranty, whether written or oral, is expressed or implied.

Model 42525A Version 4.0 5/053

Specifications

General Specifications

Display 0.4" (10mm) 5-digit LCD display

Sample rate 1 sec. approx.

Over range indication Dashes are displayed when the reading exceeds specified limits

Laser pointer Laser power < 1mW (red)

Max/Min Recording Allows user to view only the MAX or MIN readings

Data output RS-232c PC Interface for use with WindowsTM based communications

programs; Connection via 3.5mm phono jack on side of meter

Operating Temperature 32°F to 122°F (0°C to 50°C)

Operating Humidity 80% RH maximum

Power Supply 9V battery

Battery Life Approx. 40 hours (20 hours with laser pointer ON)

Weight 0.6 lbs. / 265g

Dimensions 7.7 x 4.7 x 2.3” (195 x 120 x 58 mm)

Infrared Thermometer Specifications

Range / Resolution -4 to 752oF (-20 to 400oC) 0.1oC/F

Accuracy ± 3% of reading or ± 6oF (3oC) whichever is greater

Accuracy notes 1. Accuracy specified for readings between -10 and 350oC

2. Accuracy specified for ambient temperature (23oC ±5oC)

3. Accuracy specified for an emissivity of 0.95

4. Accuracy tested using 2.25” diameter black body at a distance of 6”

5. Testing environment: RF field strength < 3 V/M and frequency < 30MHz

Emissivity adjust 0.20 to 1.00 (factory default:0.95)

Distance Factor D/S = Approx. 6:1 ratio (D = distance, S = spot)

Wavelength 6 to 14 µm

Type K Thermocouple Specifications

Range / Resolution -148.0 to 2372.0oF (-100.0 to 1300.0oC) 0.1oC/F

Accuracy ± (1% reading + 2oF); ± (1% reading + 1oC)

Accuracy note Accuracy specified @ 23o ± 5oC

Thermocouple characteristics are not reflected in the Accuracy specs.

Linearity correction stored in CPU

Sensor type Type K (NiCr – NiAl) Thermocouple (sold separately); Connects to

thermocouple jack on side of meter

Model 42525A Version 4.0 5/054

Meter Description

1. LCD Display

2. Function buttons

•C/F Button (also the UP button): Used to select temperature units. Also used as an UP arrow button

for setting the emissivity value

•Emissivity button: Enter the emissivity adjustment mode

•Relative button (also the DOWN button): Used to access theRELATIVE mode of operation. Also

used as the DOWN arrow button for setting the emissivity.

•Record button: Used when viewing the MAX and MIN readings

•Data Hold button: Used to freeze the displayed reading

3. POWER button: Turns meter ON or OFF

4. IR/Type K button: Selects IR (non-contact) or Type K (contact) operation

5. RS-232 PC Interface jack

6. IR Sensor

7. Laser pointer

8. Type K input jack

9. Laser pointer trigger

10. Handle grip

11. Battery Compartment

Model 42525A Version 4.0 5/055

Operating Instructions

Infrared Measurement Procedure

1. Turn the meter ON by pressing the POWER button. The meter display will countdown

(99999, 88888, 77777…00000) during the self-test procedure. When the self-test is

complete, the display will indicate a temperature reading, the unit of measure, the

emissivity setting, and the measurement type (IR for non-contact or Type K for contact

measurements).

2. Use the IR / TYPE K button to set the display to the IR mode (IR will appear in the

lower left-hand side of the LCD).

3. Set the temperature units (oC or oF) using the C/F button.

4. Point the IR sensor toward the object under test (to assist with targeting, press the

meter trigger to activate the laser pointer).

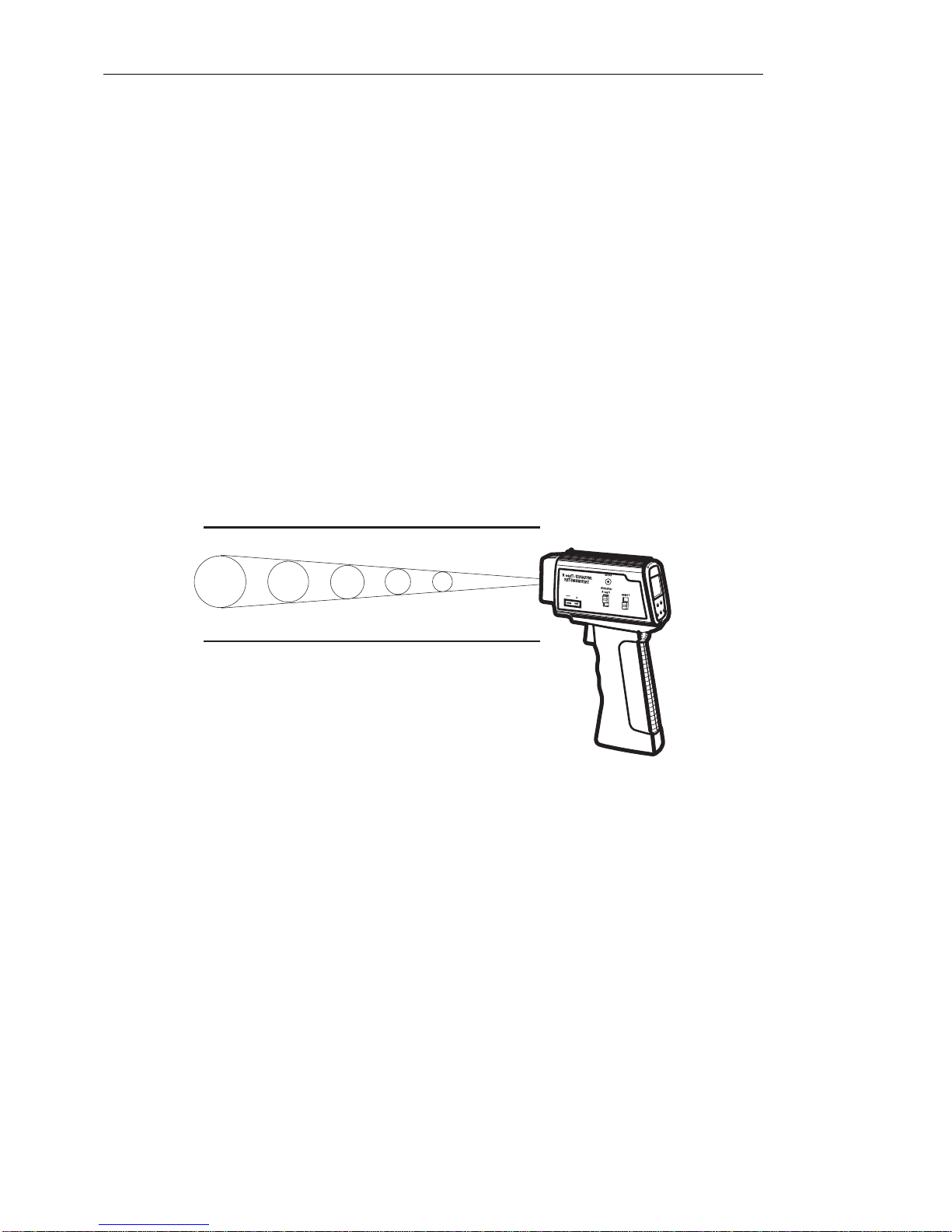

5. This meter has a “distance to spot ratio” of 6:1. Use the diagram below to determine

the proper distance to hold the meter from an object. For example, if the object under

test has a diameter of 4”, hold the meter at a distance of approximately 26”.

6. Read the LCD display for the temperature measurement. Note that the current

emissivity setting is shown on the lower right-hand corner of the LCD.

Infrared Measurement Considerations

1. The 42525A automatically compensates for ambient temperature deviations; however

it may take up to 30 minutes to adjust to extremely wide ambient temperature changes.

2. When low temperature measurements are taken followed by high temperature

measurements, several minutes are required for stabilization before the high

temperature measurements can be made accurately.

3. Measurement Field / Distance: For optimum accuracy, the object should be 1.5 to 2

times larger than the spot size shown in the diagram above and on the meter side.

4. Measurement Interference: Objects having low emissivity or objects with low

temperature yet high emissivity emit little IR energy. Such objects are adversely

affected by IR energy radiated from nearby objects having high emissivity and

temperature. For example, when such objects are measured in sunlight, erratic

readings occur because of the powerful radiation (sunlight) reflected off of the object's

surface into the 42525A sensor.

5. If the surface of the object under test is covered with frost, oil, grime, etc. clean before

taking measurements.

6. If an object's surface is highly reflective, apply masking tape or flat black paint

(emissivity 0.95) before measuring.

150 125 100 75 50 mm

6 5 4 3 2 inch

1000 840 670 500 330 mm

40 33 26.4 20 13 inch

Diameter of Spot

Distance to Object

Model 42525A Version 4.0 5/056

Emissivity Considerations and Adjustment

The amount of IR energy emitted by an object is proportional to an object's temperature

and its ability to emit energy. This ability is known as emissivity. Emissivity is determined

by the material of the object and the object’s surface finish. Emissivity values range from

0.1 for a very reflective object to 1.00 for a flat black finish. The Model 42525A uses a

factory default emissivity setting of 0.95 (this setting covers most applications).

The closer the meter's emissivity setting is to the actual emissivity of the object under test,

the more accurate the temperature measurements will be. To calculate the emissivity of an

object: Measure an object's temperature using a Type K Thermocouple (use of a surface-

mount thermocouple works best for this purpose) and note the reading. Measure the object

again using the IR sensor. Now, set the emissivity so that the IR measurement matches

the thermocouple reading. To set the emissivity:

1. Press and hold the Emissivity button until the emissivity display starts to flash.

2. Use the UP/DOWN arrow buttons to select the desired emissivity

3. Press and hold the Emissivity button until the display stops flashing to exit

Emissivity Factors for Common Materials

Material under test Emissivity Material under test Emissivity

Asphalt 0.90 to 0.98 Cloth (black) 0.98

Concrete 0.94 Skin (human) 0.98

Cement 0.96 Lather 0.75 to 0.80

Sand 0.90 Charcoal (powder) 0.96

Soil 0.92 to 0.96 Lacquer 0.80 to 0.95

Water 0.92 to 0.96 Lacquer (matt) 0.97

Ice 0.96 to 0.98 Rubber (black) 0.94

Snow 0.83 Plastic 0.85 to 0.95

Glass 0.90 to 0.95 Timber 0.90

Ceramic 0.90 to 0.94 Paper 0.70 to 0.94

Marble 0.94 Chromium Oxides 0.81

Plaster 0.80 to 0.90 Copper Oxides 0.78

Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82

Brick 0.93 to 0.96 Textiles 0.90

Data Hold

Press the HOLD button to freeze the displayed measurement. The “HOLD” icon will appear

on the LCD to indicate that the Data Hold mode is activated. Press the HOLD button again

to exit the Data Hold mode and return to normal operation.

Relative Measurements

While measuring, press the REL button to activate the Relative Mode (REL will appear on

the LCD in the upper right-hand corner). The measurement on the LCD at the time of the

button press will be displayed as 0.0o. Subsequent readings will be displayed as a

difference between the stored reading and the actual reading. Relative does not function

when either Data Hold or Data Record is enabled.

Model 42525A Version 4.0 5/057

Max/Min Recording

The Max/Min Recording feature offers the user to view only the highest (maximum MAX)

or the lowest (minimum MIN) reading. Press the REC button once to activate this feature

(the REC symbol will appear on the LCD). Press the REC button again to view only the

maximum reading (MAX). Press the REC button again to view only the minimum reading

(MIN). Press and hold the RECORD button again until the REC/MAX/MIN icons switch off

to return to normal operation.

Laser Pointer Operation

This 42525A is equipped with a laser pointer that is used to aim the

IR sensor more accurately. Simply press the meter trigger to activate

the laser pointer. Be extremely cautious when directing the laser

beam, shining the laser beam into someone's eye can cause serious

injury. Point the laser beam toward the device under test whose

temperature is to be measured.

Offset Adjustment

The OFFSET function allows the user to adjust the temperature readings in fine detail to

match an external calibrator, to compensate for display drift, or for other diagnostic uses.

Press and hold the HOLD and the REC buttons simultaneously. The small digits on the

lower right will match the temperature display of the larger digits when the two buttons are

held down correctly. While continuing to hold down the two keys, press the UP or DOWN

buttons to set the offset value on the larger digits. Release all keys to return to normal

operation.

Type K Thermocouple Measurement Procedure

1. Connect a Type K Thermocouple to the temperature input jack on the meter.

2. Power the meter by pressing the POWER button.

3. Use the IR / TYPE K button to select Type K mode (display will show ‘K’).

4. Set the temperature units (degrees C or F) using the C/F button.

5. Place the Thermocouple in the area where the temperature is to be measured.

6. Read the LCD display for the temperature measurement.

Type K Measurement Considerations

When a Type K Thermocouple is first connected to the meter and the thermocouple and

meter temperatures are different, several minutes should be allotted so that the

temperature of the socket matches the temperature of the thermocouple. The cold junction

compensation circuitry can then operate efficiently, allowing the meter to provide

measurements with optimum accuracy.

Auto Power Off

The meter will automatically power off after approximately 10 minutes in both IR and

Thermocouple measurement modes. To disable this feature, press the REC button.

RS-232 Serial PC Interface

This instrument includes a built-in RS-232 serial data port. This interface is intended for

use with the optional Data Acquisition Software and Cable . For more information, contact

Extech or refer to the manual with software package.

Model 42525A Version 4.0 5/058



Support line (781) 890-7440

Technical support: Extension 200; E-mail: support@extech.com

Repair & Returns: Extension 210; E-mail: [email protected]

Product specifications subject to change without notice

For the latest version of this User’s Guide, Software updates,and other

up-to-the-minute product information, visit our website: www.extech.com

Maintenance

Battery Replacement

When the low battery symbol appears on the LCD, replace the meter’s 9V battery. The

battery compartment is located on the bottom of the meter's handle. Open the

compartment by sliding the battery compartment cover off. Replace battery and re-install

the battery compartment cover.

Cleaning

Wipe meter with a damp cloth when necessary. A mild detergent may be used but avoid

solvents, abrasives, and harsh cleansers. Do not allow moisture inside the meter.

Storage

Remove the battery if the meter is to be stored for long periods. Do not store the meter in

an environment that exceeds the published operating temperature and humidity

specifications.

Calibration and Repair Services

Extech offers complete repair and calibration services for most products we sell. For

periodic calibration, NIST certification or repair of most Extech products, call customer

service for details. Extech recommends that calibration be performed on an annual basis to

insure calibration integrity.

Table des matières

Autres manuels Extech Instruments Thermomètre

Extech Instruments

Extech Instruments RHM15 Manuel utilisateur

Extech Instruments

Extech Instruments EA15-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 407445 Manuel utilisateur

Extech Instruments

Extech Instruments RH210 Manuel utilisateur

Extech Instruments

Extech Instruments IR255 Manuel utilisateur

Extech Instruments

Extech Instruments RH250W Manuel utilisateur

Extech Instruments

Extech Instruments RH101 Manuel utilisateur

Extech Instruments

Extech Instruments IR400 Manuel utilisateur

Extech Instruments

Extech Instruments K.J.E.T. 422324 Manuel utilisateur

Extech Instruments

Extech Instruments VIR50-NISTL Manuel utilisateur

Extech Instruments

Extech Instruments RH250W Manuel utilisateur

Extech Instruments

Extech Instruments 42515 Manuel utilisateur

Extech Instruments

Extech Instruments 421504 Manuel utilisateur

Extech Instruments

Extech Instruments SDL500 Manuel utilisateur

Extech Instruments

Extech Instruments EzSmart RHT3 Manuel utilisateur

Extech Instruments

Extech Instruments 445580 Manuel utilisateur

Extech Instruments

Extech Instruments 445715 Manuel utilisateur

Extech Instruments

Extech Instruments IR200 Manuel utilisateur

Extech Instruments

Extech Instruments 445713-TP Manuel utilisateur

Extech Instruments

Extech Instruments 39240 Manuel utilisateur

Extech Instruments

Extech Instruments 42570 Manuel utilisateur

Extech Instruments

Extech Instruments 421501 Manuel utilisateur

Extech Instruments

Extech Instruments 42530 Manuel utilisateur

Extech Instruments

Extech Instruments IR260 Manuel utilisateur

Manuels Thermomètre populaires d'autres marques

Delton

Delton 981A Manuel utilisateur

Baker

Baker MM2P Manuel utilisateur

Tarmo

Tarmo 320281 Manuel utilisateur

Citizen

Citizen CTD 504 Manuel utilisateur

TFA

TFA 14.1500 Manuel utilisateur

Vive

Vive DMD1010 Manuel utilisateur

Gotemp

Gotemp THB4002 Manuel utilisateur

GREISINGER

GREISINGER G 1202 Manuel utilisateur

Amprobe

Amprobe TMD-53W Manuel utilisateur

Trotec

Trotec BP10 Manuel utilisateur

Radiance instruments

Radiance instruments RT616 Series Manuel utilisateur

Eurolec

Eurolec IR151 Manuel utilisateur

Scaneo

Scaneo TS42B Manuel utilisateur

Sper scientific

Sper scientific 800043 Manuel utilisateur

Microlife

Microlife NC 200 Mode d’emploi

Motorola

Motorola MBP69SN Guide de configuration

The MeatStick

The MeatStick The MeatStick Manuel utilisateur

Hama

Hama TH35-A Manuel utilisateur
