Extech Instruments EA15 Manuel utilisateur

User Manual

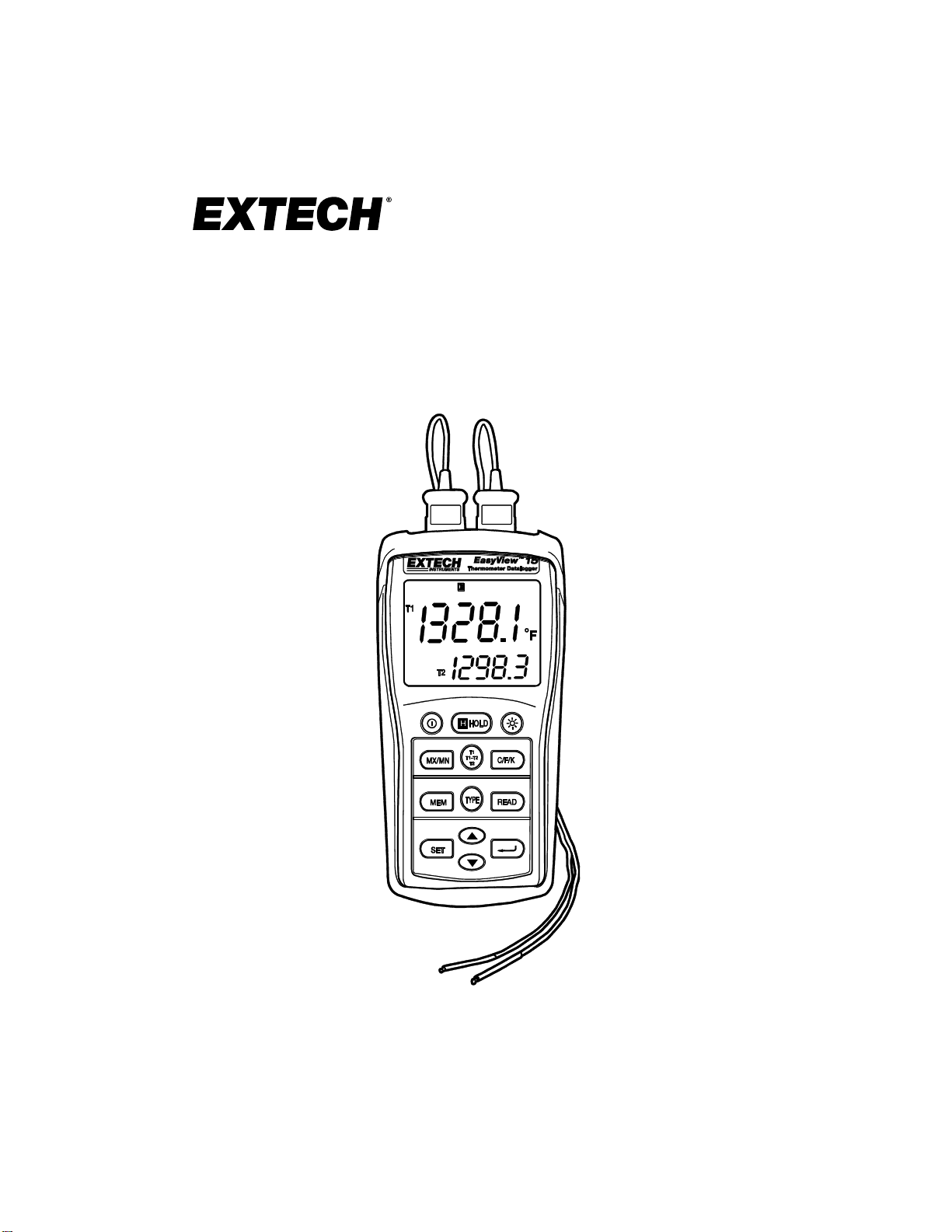

Thermocouple Datalogging Thermometer

Seven (7) Thermocouple input types K, J, T, E, R, S, N

Dual thermocouple Input with PC Interface

Model EA15

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

2 EA15-en-GB_v3.5 3/19

Introduction

Congratulations on your purchase of the Extech Datalogging Thermometer. The EA15 offers dual

thermocouple inputs with manual and automatic datalogging capabilities. The EA15 includes a PC

interface and WindowsTM compatible software for real-time monitoring and storage of temperature

data. This meter is shipped fully tested and calibrated and, with proper use, will provide years of

reliable service.

Meter Description

1. RS-232 and thermocouple input jacks

2. LCD display

3. Power, Data Hold, and Backlight buttons

4. MAX/MIN, display select, and units buttons

5. MEM, input TYPE, and READ buttons

6. SET button

7. Battery compartment (rear)

8. Up/Down scroll button

9. Enter Button

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3 EA15-en-GB_v3.5 3/19

Operation

Connecting thermocouples

1. This meter accepts two thermocouples with spade plugs (sub-miniature type K with one spade

wider than the other).

2. Plug the thermocouple(s) into the meter's T1 and/or T2 thermocouple input jack(s).

3. Always check the LCD display for the proper thermocouple type selection.

Turn Power ON

Press the button to turn power on. The meter will perform a short self-test. When a

thermocouple is not plugged into the selected input, or if a thermocouple is "open", the display will

show "- - - - -". The default thermocouple type, units and display configuration are determined from

the parameters selected when the meter was last used.

Selecting thermocouple type

Press the TYPE button to select the type of thermocouple.

Selecting °C, °F or °K units of measure

Press the C/F/K button to select the unit of measure.

Selecting T1, T2, and T1-T2 Displays

Press the T1 T2 T1-T2 button to step through and select from the following displays:

a. T1 (thermocouple 1) is the primary display; T2 (thermocouple 2) is the lower display

b. T2 is the primary display and T1 is the lower display

c. T1-T2 (difference between T1 and T2) is the primary display and T1 the lower display

d. T1-T2 is the primary display and T2 is the lower display

Notes:

 To avoid electrical shock or personal injury, do not apply more than 20Vrms, between the

thermocouples, or between any thermocouple and earth ground.

 If voltage on the measurement surface results in potentials of more than 1V, measurement errors

may occur.

 If a potential exists between the thermocouples, use electrically insulated thermocouples.

Data Hold

Press the HOLD button to freeze the displayed reading. The 'H' HOLD icon will appear on the

display. Press the HOLD button again to return to normal operation.

MIN, MAX, AVG Recording Function and Timer

Press the MX/MN button to begin capturing the Minimum (MN), Maximum

(MX), and Average (AVG) temperature values. The Elapsed Time clock

will appear on the lower left of the display. The primary display shows the

current temperature. The lower display will indicate the MX, MN or AVG

value (depending on which is selected) captured since the MX/MN button

was pressed.

1. Press the MX/MN button to step through the MX, MN or AVG display Each reading will be

accompanied by a Timer value indicating the time the reading was recorded

2. Press and hold the ‘’ button to change the elapsed time format from min:sec to hour:min

3. Press and Hold the MX/MN button to exit the MX/MN function.

Backlight

Press the backlight button to switch on the LCD display backlight. The backlight will

automatically switch off after one minute (press button again to turn the light off manually).

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4 EA15-en-GB_v3.5 3/19

Auto Power OFF

The meter will automatically switch off after 30 minutes of inactivity. AUTO POWER OFF is disabled

in the MAX/MIN and Datalogging modes.

To disable AUTO POWER OFF manually:

1. Hold the enter button ‘’ while turning power on.

2. The AUTO POWER OFF function will reactivate when the meter is turned off.

Turning Power OFF

Press the button to turn power off.

Manual Datalogging

Manual datalogging allows the user to store and recall up to 98 temperature readings.

1. Press the MEM button to manually store a single reading into

memory. The ‘MEM’ icon and location number of the reading will

appear on display for two seconds and then the normal display will

return.

2. To view stored readings, press the READ button. The memory

location number will briefly appear and then the ‘READ’ icon and the

stored values will appear on the display

3. Use the up/down buttons to scroll through the memory locations and view the logged readings.

4. Press the ‘READ’ button to exit the read mode

5. Press and hold the MEM button while turning the meter on to clear

the memory. When the LCD indicates "CLr", the memory has been

cleared.

Automatic Datalogging

Automatic datalogging allows the user to store up to 8,800 temperature readings in memory for later

downloading and viewing using the supplied software. The storage interval rate is programmable

from 3 to 255 seconds.

1. Press and HOLD the SET button for two seconds to enter the

interval programming screen. The ‘MEM’ and ‘INTERVAL’ icons

and interval time will appear on the display. Use the up/down

buttons to scroll through the available intervals (3 to 255

seconds). Press the ‘’ button to select the desired logging

interval

2. Make note of the start time (time of day) for the datalogging

session as this information is needed when downloading the

data.

3. Press and hold the MEM button for two seconds to enter the datalogging mode. The ‘MEM’ icon

on the center of the display will flash each time a record is stored (at the interval selected).

When the memory is full, ‘FULL’ will appear on the display and the meter will stop logging data.

4. To stop and exit the datalogging mode, press the MEM button.

5. Download the stored data using the supplied software.

Note: MAX/MIN/AVG functions can be used with the meter in datalogging mode

Clearing stored data

1. Press the “ ” button to turn the meter off.

2. Press and hold the MEM button, then press the “ ” button to turn the meter on. When the

LCD indicates "CLr", the entire memory has been erased.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5 EA15-en-GB_v3.5 3/19

Maintenance

Cleaning

The meter can be cleaned with a damp cloth. A mild detergent may be used but avoid solvents,

abrasives, and harsh chemicals.

Battery Installation / Replacement

The battery compartment is located on the back of the meter. The compartment is easily accessed

by removing the ‘flat head’ screw on the back of the meter, and removing the compartment cover.

Replace or install the six ‘AAA’ batteries observing polarity and re-assemble the battery

compartment. Please dispose of batteries responsibly and in accordance with all regulations.

Never dispose of used batteries or rechargeable batteries in household waste.

As consumers, users are legally required to take used batteries to appropriate collection

sites, the retail store where the batteries were purchased, or wherever batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is obligated to

take end-of-life devices to a designated collection point for the disposal of electrical and

electronic equipment

Storing

When the meter is to be stored, please remove the battery and affix the sensor’s protective cover.

Avoid storing the meter in areas of extreme temperature and humidity.

FCC Statement

Warning: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/ TV technician for help.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Specifications

Measurement Ranges

K - Type : -150.0oC to +1370.0oC (-200.0oF to +1999.9oF)

J - Type : -150.0oC to +1090.0oC( -200.0oF to +1994.0oF)

T - Type : -150.0oC to +400.0oC (-200.0oF to +752.0oF)

E - Type : -150.0oC to +870.0oC (-200.0oF to +1598.0oF)

R - Type : 0.0oC to +1767.0oC (+32oF to +1999.9oF)

S - Type : 0.0oC to +1767.0oC (+32oF to +1999.9oF)

N - Type : -150.0oC to +1300.0oC (-200.0oF to +1999.9oF)

Resolution

J, K, T, E, N Type: 0.1oF/oC/K

R, S Type: 1.0oF/oC/K (0.1° for reference only)

Accuracy

J, K, T, E, N Type: ±(0.05% reading + 0.75oC (1.5°F)

below -100°C (-148°F): add 0.15% of reading for J, K, E and N;

0.45% of reading for T; and ±0.05 of reading +1°C(2°F) for R, S

Temperature Coefficient

0.01% of reading +0.06°F per °F (+0.03 °C) outside the specified

+18°C to 28°C (+64°F to 82°F) range

Below -100°C (-148°F): add 0.04% of reading for J, K, E and N type;

and 0.08% of reading for T type

Note: Temperature accuracy does not include the accuracy of the probe.

Note: The temperature scale is based on the international temperature scale of 1990 (ITS90).

Display Dual Display Multi-function LCD with Backlight

Input Protection 60VDC; 24VAC rms

Measurement Rate 1 time per 1.5 second

Over range indication "OL" appears on the LCD

Open input indication "OL" appears on the LCD

Low battery indication “BT” appears on the LCD

Manual Memory Capacity 98 sets

Datalogging Memory Capacity 8800 sets

Power supply 6 ‘AAA’ Batteries

Battery life Approximately 200 hours with alkaline batteries

Operating Temperature 0 to 50oC (32 to 122oF)

Operating Humidity < 80% RH

Storage Temperature -10 to 60oC (14 to 140oF)

Storage Humidity 10 to 80% RH

Dimensions 150 x 72 x 35mm (5.91 x 2.8 x 1.4")

Weight Approx. 235g(8.29 oz) with batteries

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extech Instruments Thermomètre

Extech Instruments

Extech Instruments EzSmart RHT3 Manuel utilisateur

Extech Instruments

Extech Instruments IR301 Manuel utilisateur

Extech Instruments

Extech Instruments 42570 Manuel utilisateur

Extech Instruments

Extech Instruments IR320 Manuel utilisateur

Extech Instruments

Extech Instruments 42545A Manuel utilisateur

Extech Instruments

Extech Instruments 445580 Manuel utilisateur

Extech Instruments

Extech Instruments EasyView Dual K EA10 Manuel utilisateur

Extech Instruments

Extech Instruments TM100 Manuel utilisateur

Extech Instruments

Extech Instruments SDL200-NIST Manuel utilisateur

Extech Instruments

Extech Instruments SL250W Manuel utilisateur

Extech Instruments

Extech Instruments 42512 Manuel utilisateur

Extech Instruments

Extech Instruments 421508 Manuel utilisateur

Extech Instruments

Extech Instruments 42510A Manuel utilisateur

Extech Instruments

Extech Instruments IR250 Manuel utilisateur

Extech Instruments

Extech Instruments K.J.E.T. 422324 Manuel utilisateur

Extech Instruments

Extech Instruments 392050 Manuel utilisateur

Extech Instruments

Extech Instruments RH101 Manuel utilisateur

Extech Instruments

Extech Instruments 445715-NIST Manuel utilisateur

Extech Instruments

Extech Instruments SD500 Manuel utilisateur

Extech Instruments

Extech Instruments 421504 Manuel utilisateur

Extech Instruments

Extech Instruments IR100 Manuel utilisateur

Extech Instruments

Extech Instruments 445715 Manuel utilisateur

Extech Instruments

Extech Instruments 42570 Manuel utilisateur

Extech Instruments

Extech Instruments IRC130 Manuel utilisateur

Manuels Thermomètre populaires d'autres marques

Delton

Delton 981A Manuel utilisateur

Baker

Baker MM2P Manuel utilisateur

Tarmo

Tarmo 320281 Manuel utilisateur

Citizen

Citizen CTD 504 Manuel utilisateur

TFA

TFA 14.1500 Manuel utilisateur

Vive

Vive DMD1010 Manuel utilisateur

Gotemp

Gotemp THB4002 Manuel utilisateur

GREISINGER

GREISINGER G 1202 Manuel utilisateur

Amprobe

Amprobe TMD-53W Manuel utilisateur

Trotec

Trotec BP10 Manuel utilisateur

Radiance instruments

Radiance instruments RT616 Series Manuel utilisateur

Eurolec

Eurolec IR151 Manuel utilisateur

Scaneo

Scaneo TS42B Manuel utilisateur

Sper scientific

Sper scientific 800043 Manuel utilisateur

Microlife

Microlife NC 200 Mode d’emploi

Motorola

Motorola MBP69SN Guide de configuration

The MeatStick

The MeatStick The MeatStick Manuel utilisateur

Hama

Hama TH35-A Manuel utilisateur
