EPOX 3VBA Manuel utilisateur

TRADEMARK

All products and company names are trademarks or

registered trademarks of their respective holders.

These specifications are subject to change without

notice.

Manual Revision 2.0

April 26, 1999

3VBAAAAA

ISA/PCI AGP Motherboard with Onboard

PCI IDE and Super Multi-I/O

Features3VBA

Page 1

FEATURES

3VBA Features:

•3VBA is based on the Mendocino Processor operating at 300 ~

466MHz on PGA370. The board is configured by an ESSJ (Easy-Setting-

Single-Jumper) to match your CPU clock speed.

•Designed with VIA Apollo Pro+ PCIset.

•Supports up to 768MB of DRAM (minimum of 8 MB) on board (please

see Section 3-2).

•3VBA will support Error Checking and Correcting (ECC) when using

parity SDRAM memory modules. This will detect multiple bit errors and

correct 1-bit memory errors.

•Supports (1) 16 bit ISA slots, (4) 32 bit PCI slots, (1) AGP slot, (1) AMR

slot and provides (2) independent high performance PCI IDE interfaces

capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices.

The 3VBA supports (4) PCI Bus Master slots and a jumperless PCI

INT# control scheme which reduces configuration confusion when plugging

in PCI card(s).

•Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary

IDE interfaces.

•Designed with on chip Multi I/O: (1) floppy port, (1) parallel port (EPP,

ECP), and (2) serial ports (16550 Fast UART).

Note: Japanese “Floppy 3 mode” is also supported

•Features Award Plug & Play BIOS. With Flash Memory you can always

upgrade to the current BIOS as they are released. (http://www.2themax.com/

please visit our Technical Support section for the latest updates)

•3VBA utilizes a Lithium battery which provides environmental protec

tion and longer battery life.

Features3VBA

Page 2

•Supports the (4) Universal Serial Bus (USB) Ports. The onboard

VT82C686A chip provides the means for connecting PC peripherals such

as; keyboards, joysticks, telephones, and modems.

•Built-in ATX 20-pin power supply connector.

•Software power-down when using Windows®95/98.

•Supports ring-in feature (remote power-on through external modem,

allows system to be turned on remotely.

•Resume by Alarm - Allows your system to turn on at a preselected time.

•Power Loss Recovery - In the event of a power outtage your system will

automatically turn itself back on without user intervention.

•Supports CPU Hardware sleep and SMM (System Management Mode).

•Supports Keyboard power ON function (KBPO).

•Built-in WOL (Wake-up On LAN) Connector.

• Built-in AC97 PCI Audio.

Installation3VBA

Page 3

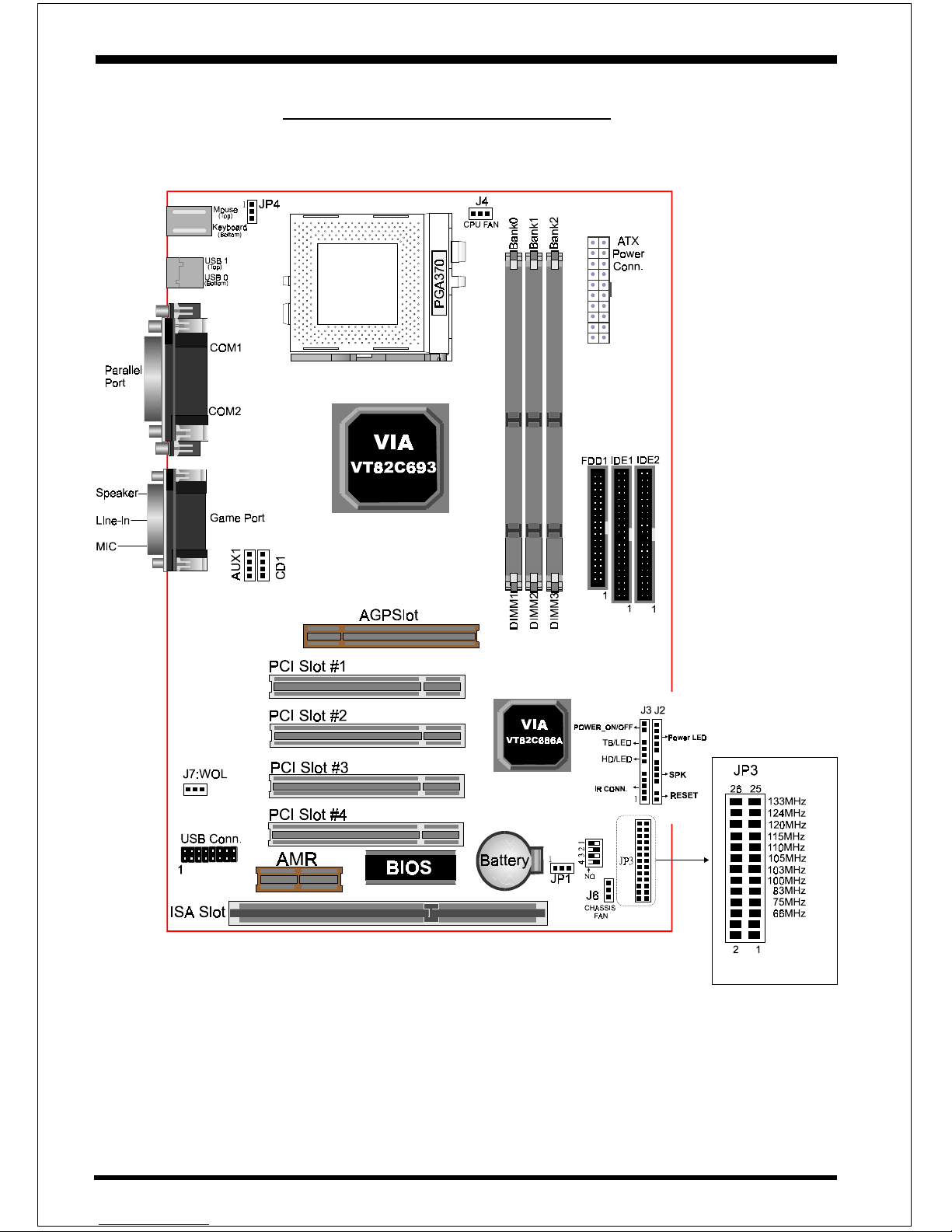

Figure 1

3VBA Detailed Layout

Installation

3VBA

Page 4

Easy Installation Procedure

The following must be completed before powering on your new system:

Configure DIP Switch and Jumper to match your hardware

System memory Configuration

Device Connectors

Configure DIP Switch

We design this motherboard with a DIP Switch to make your install fast and easy.

The following will describe all of the DIP Switch that you are required to set

before moving on to step 2.

Note: The DIP Switch as depicted as shown (Figure 1) in their correct

physical orientation.

1234

1WS)zHM(UPC

1234 oitaRzHM66zHM001

NONONOX4662004

NONOX5.4003054

NONOX5333005*

NOX5.5663055*

NONONOX6004006*

NONOX5.6334056*

NONOX7664007*

NOX5.7005*057*

NONOX8335*008*

*reserved

JP1 Clear COMS

1-2 : Run Mode(default)

2-3 : Clear CMOS

JP4 Keyboard Power-ON Function Selection

1-2 : Disabled

2-3 : Enabled

Installation3VBA

Page 5

System Memory Configuration

Memory Layout

The 3VBA supports (3) 168-pin DIMMs (Dual In-line Memory Module).

The DIMMs can be either EDO (Enhanced Data Out) or SDRAM

(Synchronized DRAM).

• DIMM SDRAM may be 83MHz (12ns), 100MHz (10ns) or

125MHz (8ns) bus speed.

• If you use both 50ns and 60ns memory you must configure

your BIOS to read 60ns.

• When using Synchronous DRAM we recommend using the

4 clock variety over the 2 clock.

Figure 2 and Table 1 show several possible memory configurations using both

SIMM and DIMM.

* SDRAM only supports 8, 16, 32, 64, 128, 256MB DIMM modules.

Table 1

DIMM 1

DIMM 2

Bank 0

Bank 1 -Synchronous

-EDO

DIMM 3

Bank 2

yromeMlatoT 1MMID )0knaB( 2MMID )1knaB( 3MMID )2knaB(

BM652= mumixaM

*MARDS/ODE ,BM46,BM23,BM61,BM8 1XBM652,BM821 enoNenoN

BM215=

mumixaM

*MARDS/ODE

,BM46,BM23,BM61,BM8

1XBM652,BM821

*MARDS/ODE

,BM46,BM23,BM61,BM8

1XBM652,BM821 enoN

BM867=

mumixaM

*MARDS/ODE

,BM46,BM23,BM61,BM8

1XBM652,BM821

*MARDS/ODE

,BM46,BM23,BM61,BM8

1XBM652,BM821

*MARDS/ODE

,BM46,BM23,BM61,BM8

1XBM652,BM821

Installation

3VBA

Page 6

Device Connectors

Please install the motherboard into the chassis.

Now that your motherboard is installed you are ready to connect all your

connections (figure 6).

J2:Chassis Panel Connector

• Power LED, Speaker, Reset

J3:Turbo LED, HDD LED, IR Conn., Sleep/Power_ON

J4:CPU Fan Power

• A plug-in for the CPU Fan Power

J6:Chassis Fan Power

• A plug-in for the chassis Fan Power

J7:WOL Connector

IDE1:Primary IDE

IDE2:Secondary IDE

FDD1:Floppy Controller Connector

PW1:ATX Power Connector

• 20-pin power connector

CD1:CD Audio Connector

AUX1:AUX Audio Connector

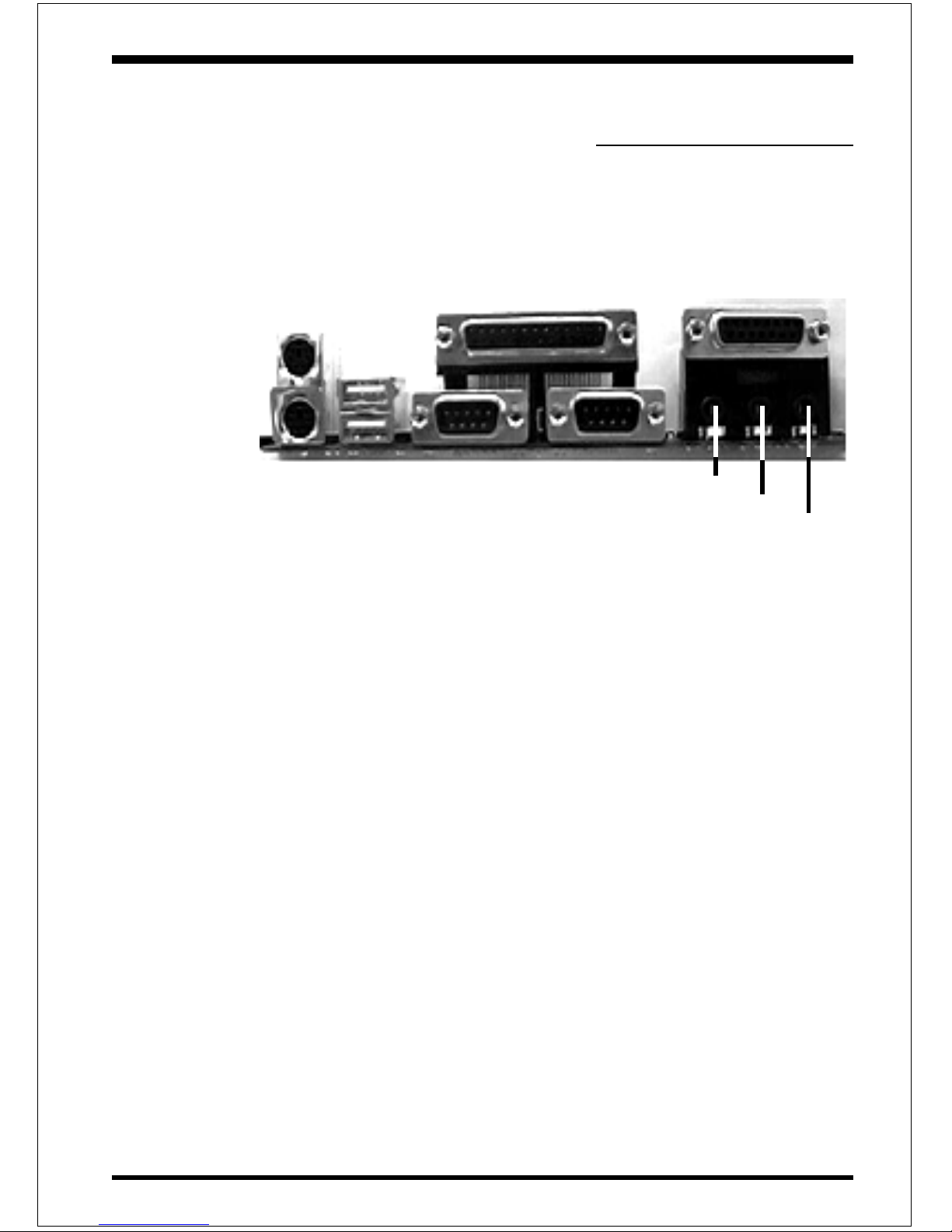

Figure 6

PS/2 Mouse

PS/2

KEYBOARD

USB port

COM1COM2

parallel port

Speaker

Line_in

MIC

Joystick/Midi port

Installation3VBA

Page 7

Power On/Off - This is connected to the power button on the case.

Using the Soft-Off by Pwr-BTTN feature, you can choose either

Instant Off (turns system off immediately), or 4 sec delay (you need

to hold the button down for 4 seconds before the system turns off).

When the system is in 4 sec delay mode, we has added a special

feature to make the system go into suspend mode when the button

is pressed momentarily.

Device Connectors (continued)

Speaker - Connect to the system's speaker for beeping

1. Speaker 3. GND

2. N/C 4. GND

Reset - Closed to restart system.

Turbo LED indicator - LED ON when higher speed is selected

IR Connector

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

IDE LED indicator - LED ON when Onboard PCI IDE Hard

disks is activate

Power LED connector

1. Power LED(+) 4. NC

2. N/C 5. GND

3. GND
