BXA-M

A PentiumA Pentium

A Pentium®®

®®

®II or DeschutesII or Deschutes

II or DeschutesII or Deschutes

II or Deschutes

Slot1 Processor based AGPSlot1 Processor based AGP

Slot1 Processor based AGP

motherboard (100/66MHz)

FeaturesBXA-M

Page 1

FEATURES

BXA-M Features:

•BXA-M is based on the Pentium®II or Deschutes Processor operating

at 233 ~ 333MHz (66MHz) or 300 ~ 450MHz (100MHz) on Slot 1. The

board is configured by an Easy-Setting-Single-Jumper (E.S.S.J.) to match

your CPU clock speed.

•Designed with VIA APOLLO PRO 692/596 AGPset.

•Supports up to 768 Mega of DRAM (minimum of 16 MB) on board, You can

use 168-pin DIMM x 3. It will automatically detect Extended Data Output

(EDO) DRAM at 66MHz only or Synchronous DRAM memory (SDRAM)

at 66MHz or 100MHz (please see Section 3-2).

•BXA-M will support Error Checking and Correcting (ECC) when using

paritys DRAM memory modules. This will detect multiple bit errors and

correct 1-bit memory errors.

•Supports (3) 16 bit ISA slots, (4) 32 bit PCI slots, (1) AGP slot and provides

(2) independent high performance PCI IDE interfaces capable of supporting

PIO Mode 3/4 and Ultra DMA 33 devices. The BXA-M supports (4)

PCI Bus Master slots and a jumperless PCI INT# control scheme which

reduces configuration confusion when plugging in PCI card(s).

•Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary IDE

interfaces.

•Designed with Winbond W83977TF Multi I/O: (1) floppy port, (1) parallel port

(EPP, ECP), and (2) serial ports (16550 Fast UART).

Note: Japanese “Floppy 3 mode” is also supported

•Includes a PS/2 mouse connector.

•Allows use of a PS/2 keyboard.

•Features Award Plug & Play BIOS. With Flash Memory you can always

upgrade to the current BIOS as they are released. (http://www.2themax.com

please visit our Technical Support section for the latest updates)

FeaturesBXA-M

Page 2

•BXA-M utilizes a Lithium battery which provides environmental protec-

tion and longer battery life.

•Supports the Universal Serial Bus (USB) connector. The onboard PIIX4E chip

provides the means for connecting PC peripherals such as; keyboards,

joysticks, telephones, and modems.

•Built-in ATX 20-pin power supply connector.

•Software power-down when using Windows®95.

•Supports ring-in feature (remote power-on through external modem,

allows system to be turned on remotely.

•Resume by Alarm - Allows your system to turn on at a preselected time.

•Power Loss Recovery - In the event of a power outage your system will

automatically turn itself back on without user intervention.

•Supports CPU Hardware sleep and SMM (System Management Mode).

•Supports Desktop Management Interface (DMI) facilitating the management

of desktop computers, hardware and software components and peripherals,

whether they are stand-alone systems or linked into networks. (optional)

•Supports Hot key, Any key or password Keyboard power ON function

(KBPO).

•Supports USDM software to offer motherboard various status on Windows®

95/98, or Windows®NT 4.0/5.0.

•Supports the CPU, PWR and Chassis fan Auto stop in sleep mode.

•Supports the System Power LED (PANEL) blinks in the sleep mode.

•Built-in WOL (Wake On LAN)Connector.

• Built-in SB-LINK Header for Creative Blaster®AWE64D PCI Bus Sound

Card.

InstallationBXA-M

Page 3

PCISlot #4

AGPSlot

CPUCartridgeSLOT1

PCISlot #3

PCISlot #2

PCISlot #1

ISA Slot #1

ISA Slot #2

ISA Slot #3

DIMM 2

DIMM 1

DIMM 3

Battery

SPKKEYLOCK

VIA

692

AGPset

VIA

596

PCIset

Winbond

83977

I/Oset

Flash Memory

for BIOS

COM 1

USB

COM 2

Parallel Port

USB1

(Top)

Mouse

(Top)

USB0

(Bottom)

PS/2Keyboard

(Bottom)

JP1

ChassisFAN

PWRFAN

Bank0

Bank1

Bank2

IDE2FDD1

IDE1

SecondaryIDE

POWER_ON/OFF

RESET

IRCONN.

200MHz

266MHz

300MHz

233MHz

JP3

JP8

JP10

JP7

JP9

333MHz

360MHz

400MHz

450MHz

500MHz

550MHz

350MHz

(66MHz)(100MHz)

CPUFAN

J5J5

JP13

ESSJ

J8:SB-LINK15

J7:WOL

Figure 1

BXA-M Detailed Layout

InstallationBXA-M

Page 4

Easy Installation Procedure

The following must be completed before powering on your new system:

Configure Jumpers to match your hardware

Install memory chips

Device Connectors

Configure Jumpers

2theMax designs all motherboards with the fewest jumpers to make your install fast

and easy.

The following will describe all of the jumpers that you are required to set before

moving on to step 2.

Note: The jumpers as depicted as shown (Figure 1) in their correct physi-

cal orientation.

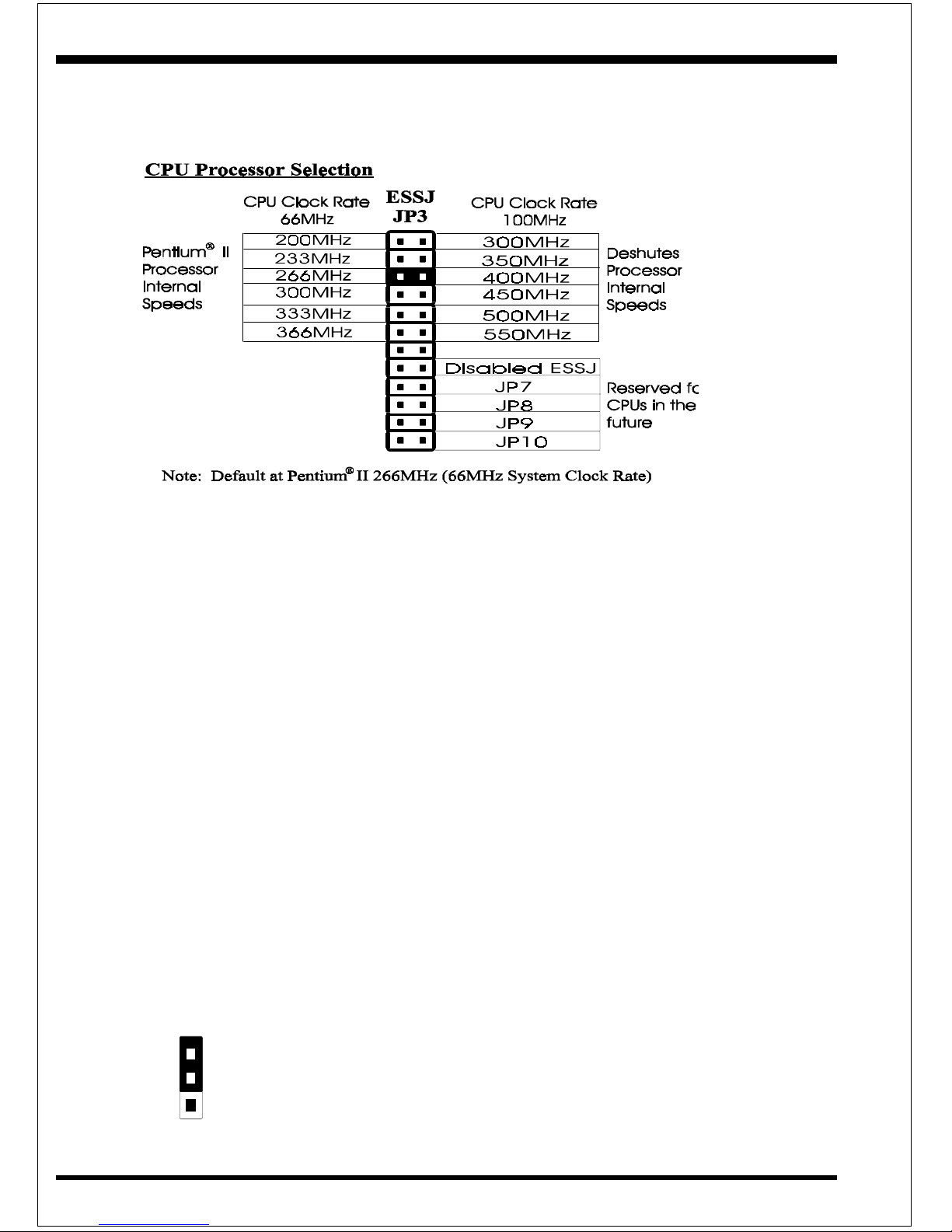

JP13 Keyboard Power-ON function (refer the

JP13 = 1-2 - Enabled

= 2-3 - Disabled(Default)

J7 WOL (Wake On Lan) Connector

Reserved for NIC (Network Interface Ca

Wake the System.

JP1 = 1-2 - Run Mode (Default)

= 2-3 - Clear CMOS (momenta

JP1 CMOS Clear

J8 SB-LINK Header

Reserved for Creative SB-LINK (Soun

LINK ) with the Sound Blaster AWE64

Sound Card to Compatible DOS games a

Multimedia applications.

InstallationBXA-M

Page 5

*:RSD(Reserved)

Note: Based on the implementation of Intel 440BX PCIset, BXA-M is able

to provides two host bus frequencies -- either 66 or 100MHz for Slot1 processor

andmemoryoperating. Automatically, thedefaultisat66MHzoncePentium®II

processor to be mounted onto this motherboard. In case of Deschutes processor, it is

self-adjustedto100MHzwithoutanymanualmodificationrequired. However,no

matterwhatkindofSlot1processoryou installed,itshouldcomewithrightmemory

modulesfornormalandstable operation. For example,ifyouinstall a Deschutes

processor, you should use the SDRAM module with 100MHz based(or above) to

match the CPU speed. Furthermore, one thing you may need to bear in mind,

before the CPU installation, it is anyway our advice to use JP3 and set up right

speed of Slot1 processor at any time. You may feel like to know about AGP

interface,whichalwaysrunsunder66MHzno matter what frequencyofprocessor

youinstalled.

JP100 = 1-2 - AUTO (Default)

= 2-3 - PC100 Only

JP100 BUS Clock

InstallationBXA-M

Page 6

System Memory Configuration

Memory Layout

The BXA-M supports (3) 168-pin DIMMs (Dual In-line Memory Module).

The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized

DRAM). The DIMMs may be installed using just one chip.

•We recommend using SDRAM DIMM can not mixing

with EDO DIMM modules.

• The EDO DIMM only support pentium®II Processor at 66MHz, not

support Deschutes Processor at 100MHz.

• We recommend when installed the 100MHz Deschutes Processor

using DIMM SDRAM must be 125MHz (-8ns) bus speed. If used

100MHz (-10ns) SDRAM may be critical timing for the

motherboard.

• About the “PC/100 SDRAM spec.” information you may visit Inte’s

home page at:

http//developer.intel.com/design/pcisets/memory/index.htm

• DIMM SDRAM may be 83MHz (-12ns), 100MHz (-10ns) or

125MHz (-8ns) bus speed.

Figure 2 and Table 1 show several possible memory configurations using

DIMM 1 (M1)

DIMM 2 (M2)

DIMM 3 (M3)

Bank 0

Bank 1

Bank 2

Figure 2

InstallationBXA-M

Page 7

Table 1

*SDRAM only supports 8, 16, 32, 64, 128MB DIMM modules. 256MB only

supports Registered Synchronouts DRAM Memory Modules.

* EDO only supports Pentium®II Processor at 66MHz, not supports Deschutes

Processor at 100MHz.

yromeMlatoT 1MMID )0knaB( 2MMID )1knaB( 3MMID )2knaB(

BM867= mumixaM

*MARDS/ODE ,BM23,BM61,BM8 BM652,BM821,BM46 1X

BM215= mumixaM

*MARDS/ODE ,BM23,BM61,BM8 BM652,BM821,BM46 1X

enoN

BM652= mumixaM

*MARDS/ODE ,BM23,BM61,BM8 BM652,BM821,BM46 1X

enoNenoN

InstallationBXA-M

Page 8

Device Connectors

Please install the motherboard into the chassis.

Now that your motherboard is installed you are ready to connect all your connections

(figure 12).

USB 1

(Top)

USB 0

(Bottom)

PS/2 Mouse

(Top)

PS/2 Keyboard

(Bottom)

Parallel Port

(Top)

Com1 Com2

(Bottom Left) (Bottom

Right)

J4: CPU Fan Power

• A plug-in for the CPU Fan Power

J5: Power Supply Fan Monitoring

• A plug-in for the Power supply so that BIOS can monitor the RPM’s

J6: Chassis Fan Power

• A plug-in for the chassis Fan Power

J7: WOL (Wake On Lan) Connector

J8: SB-LINK Connector

• 5-PIN Header for Creative Blaster® AWE64D PCI Sound Card.

PW2: ATX Power Connector

• 20-pin power connector

J2,J3:Chassis Panel Connector

• Keylock, Speaker, Reset, Sleep, Turbo LED and HDD LED

IDE1:Primary IDE Connector

IDE2:Secondary IDE Connector

FDD1:Floppy Controller Connector

Figure 12

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345

InstallationBXA-M

Page 9

Power On/Off - This is connected to the power button on the case.

Using the Soft-Off by Pwr-BTTN feature, you can choose either

Instant Off (turns system off immediately), or 4 sec delay (you need to

hold the button down for 4 seconds before the system turns off). When

the system is in 4 sec delay mode, 2theMax has added a special feature to

make the system go into suspend mode when the button is pressed

momentarily.

Device Connectors (continued)

Speaker - Connect to the system's speaker for beeping

1. Speaker 3. GND

2. N/C 4. GND

Reset - Closed to restart system.

Turbo LED indicator - LED ON when higher speed is selected

IDE LED indicator - LED ON when Onboard PCI IDE Hard disks is

activate

KeyLock - Keyboard lock switch & Power LED connector

1. Power LED(+) 4. Keylock

2. N/C 5. GND

3. GND

J3 1

* The power LED lights when the

system is powered on and blinks in

SLEEP MODE (Suspend mode).

IR Connector

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

Table des matières

Autres manuels EPOX Carte mère

EPOX

EPOX EP-MVP3G-M Manuel utilisateur

EPOX

EPOX S7-530A Manuel utilisateur

EPOX

EPOX nForce2 Ultra 400 Manuel utilisateur

EPOX

EPOX 61BXA-M Manuel utilisateur

EPOX

EPOX EP-3WXM2 Manuel utilisateur

EPOX

EPOX EP-MVP3G-M Manuel utilisateur

EPOX

EPOX 3WXA Manuel utilisateur

EPOX

EPOX MVP3G-M Manuel utilisateur

EPOX

EPOX MVP4M Manuel utilisateur

EPOX

EPOX 3XCA2 Manuel utilisateur

EPOX

EPOX EP-MVP4G Manuel utilisateur

EPOX

EPOX EP-3VCA2 Manuel utilisateur

EPOX

EPOX P2-100B Manuel utilisateur

EPOX

EPOX MU-4PEA800 Manuel utilisateur

EPOX

EPOX PP6-NF Manuel utilisateur

EPOX

EPOX EP-LX370Y Manuel utilisateur

EPOX

EPOX ProNiX EP-9NPAJ Manuel utilisateur

EPOX

EPOX EP-5P945-J3 Manuel utilisateur

EPOX

EPOX EP-BX5 Manuel utilisateur

EPOX

EPOX EP-3VWM Manuel utilisateur

EPOX

EPOX EP-4PEA Manuel utilisateur

EPOX

EPOX MVP3E Manuel utilisateur

EPOX

EPOX EP-6ZXM Manuel utilisateur

EPOX

EPOX EP-8RDAE Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
