EPOX MVP4M Manuel utilisateur

TRADEMARK

All products and company names are trademarks or

registered trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

May 10, 1999

MVP4M

ISA/PCI Motherboard with Onboard AGP

VGA, PCI Audio, PCI IDE and Super

Multi-I/O

FeaturesMVP4M

Page 2

FEATURES

MVP4M Features:

•Intel Pentium®Processor, Pentium Processor with MMX technology,

AMDK5/K6, Cyrix 6x86L/6x86MX & idtC6 operating at 133 ~ 500

MHzwith 321 ZIF socket 7 provides scalability to accept faster

Processors in the future.

•Designed with VIA MVP4 AGPset.

•Supports up to 512 Mega of DRAM (minimum of 16 MB) on board,

You can use 168-pin DIMM x 2.

•Supports (1) 16 bit ISA slots, (3) 32 bit PCI slots, (1) AMR Slot and provides

(2) independent high performance PCI IDE interfaces capable of supporting

PIO Mode 3/4 and Ultra DMA 33/66 devices. The MVP4M supports (3)

PCI Bus Master slots and a jumperless PCI INT# control scheme which re-

duces configuration confusion when plugging in PCI card(s).

•Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary

IDE interfaces.

•Designed with lntegrated Multi I/O: (1) floppy port, (1) parallel port

(EPP,ECP), and (2) serial ports (16550 Fast UART).

Note: Japanese “Floppy 3 mode” is also supported

•Features Award Plug & Play BIOS. With Flash Memory you can always

upgrade to the current BIOS as they are released. (http://www.2themax.com

please visit our Technical Support section for the latest updates)

•MVP4M utilizes a Lithium battery which provides environmental

protection and longer battery life.

• Software power-down when using Windows®95/98.

FeaturesMVP4M

Page 3

•Supports ring-in feature (remote power-on through external modem,

allows system to be turned on remotely.

•Resume by Alarm - Allows your system to turn on at a preselected time.

•Supports CPU Hardware sleep and SMM (System Management Mode).

•Supports USDM software to offer motherboard various status.

•Supports the CPU and Chassis fan Auto stop in sleep mode.

•Built-in WOL (Wake On LAN) Connector.

• Built-in Sound Blaster/DirectSound AC97 Audio.

• Built-in AGP 2D/3D Graphics Accelerator.

InstallationMVP4M

Page 4

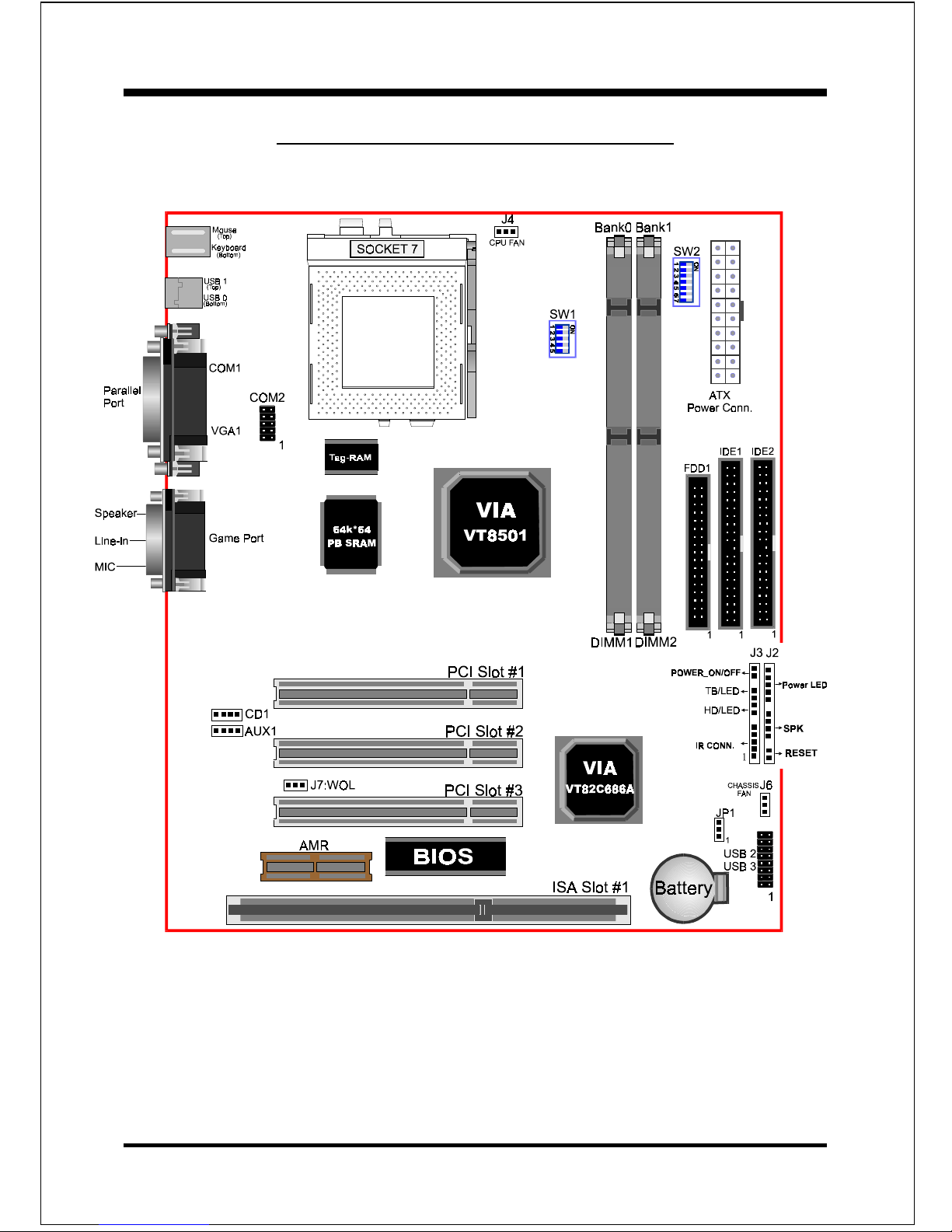

Figure 1

MVP4M Detailed Layout

InstallationMVP4M

Page 5

Easy Installation Procedure

The following must be completed before powering on your new system:

Configure Jumpers

System Memory Configuration

Device Connectors

Configure Jumpers

We design this motherboard with the two DIP Switch to make your install fast and

easy.

Note: The DIP Switch as depicted as shown (Figure 1) in their correct

physical orientation.

1WS UPC erocV

1234 5

NOV1.2

NOV2.2

NOV4.2

NOV8.2

NONOV9.2

NONOV2.3

2WS suB

kcolC

1234

NOzHM66

NOzHM57

NONOzHM38

NONOzHM09

NONOzHM59

NONONOzHM001

NONONOzHM501

NONONOzHM511

2WS UPC

reilpitluM

566

NOX2

NONOX5.2

NOX3

X5.3

NONOX4

NONONOX5.4

NONOX5

NOX5.5

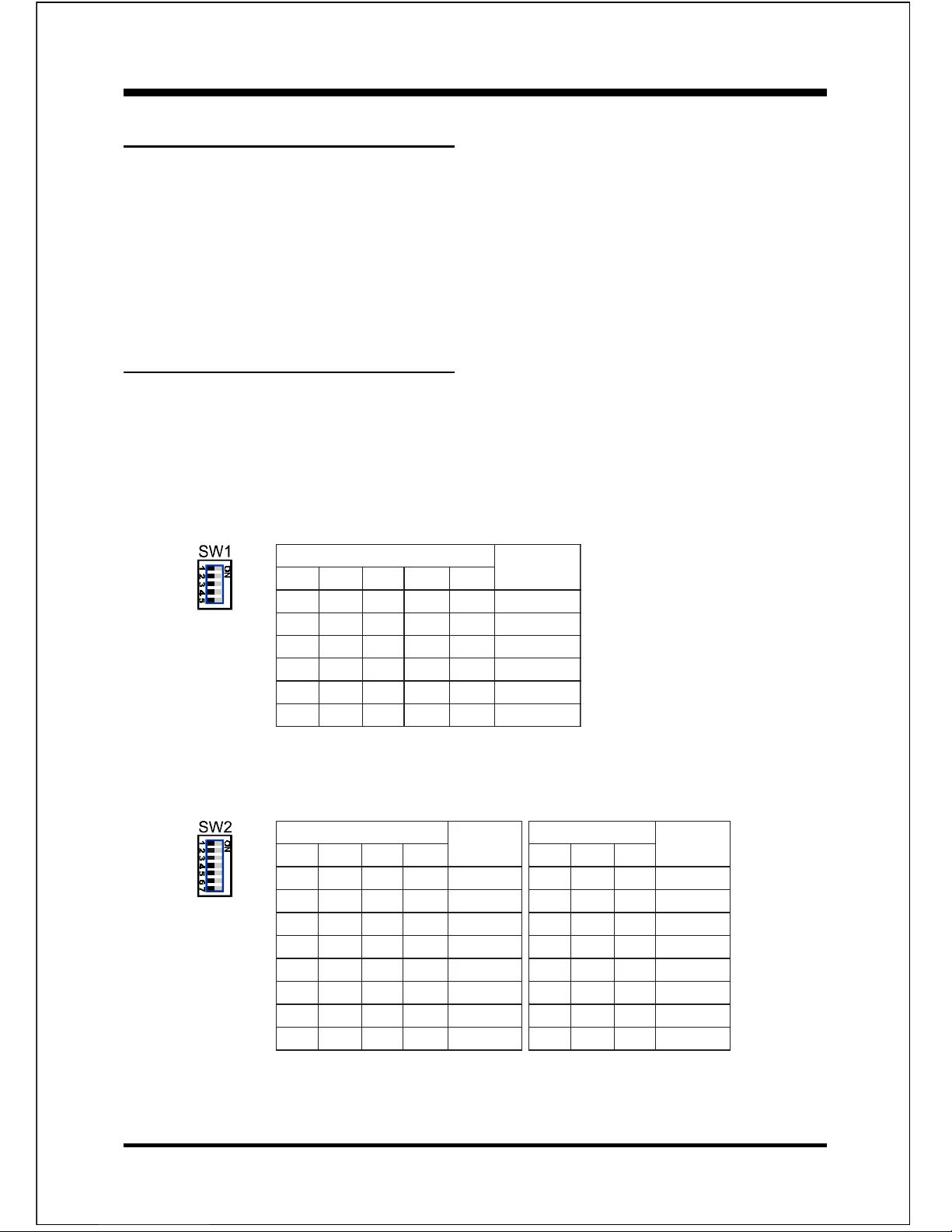

SW1: CPU Vcore Voltage Selection

SW2: CPU Speed Selection

InstallationMVP4M

Page 6

* Reserved

CPUTypeSW2CPU

Bus

Clock

CPU

Multiplier

Pentium/MMX

AMDK5/K6

IDT-C6

Cyrix/IBM

6x86MX/MII1234567

166MHzPR200ONONON66MHz

2.5X

PR233ONONON75MHz

PR266ONONONON83MHz

PR300ONONONON95MHz

250MHzPR366ONONONONON100MHz

200MHzPR266ONON66MHz

PR300ONON75MHz

250MHzPR333ONONON83MHz

PR400ONONON95MHz

300MHz*PR433ONONONON100MHz

233MHzPR300ON66MHz

3.5X

PR333ON75MHz

*PR400ONON83MHz

333MHz*PR466ONON95MHz

350MHz*PR500ONONON100MHz

266MHz*PR333ONONON66MHz

*PR400ONONON75MHz

333MHz*PR466ONONONON83MHz

380MHz*PR533ONONONON95MHz

400MHz*PR550ONONONONON100MHz

300MHzONONONON66MHz4.5X

450MHzONONONONONON100MHz

333MHzONONON66MHz

5X475MHzONONONON95MHz

*500MHzONONONONON100MHz

366MHzONON66MHz5.5X

*550MHzONONONON100MHz

JP1ClearCOMS

1-2 :1-2Normal(default)

2-3 :ClearCMOS

WOL(Wakup OnLAN)Connector

Reserved for NIC (Network Interface Card) to

Wake the System.

InstallationMVP4M

Page 7

System Memory Configuration

Memory Layout

The MVP4M supports (2) 168-pin DIMMs (Dual In-line Memory Module).

The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized

DRAM). The DIMMs may be installed using just one chip.

•We recommend using SDRAM DIMM can not mixing

with EDO DIMM modules.

• DIMM SDRAM may be 83MHz (-12ns), 100MHz (-10ns) or

125MHz (-8ns) bus speed.

• No Registered DIMM support.

Figure 2 and Table 1 show several possible memory configurations using

* SDRAM only supports 8, 16, 32, 64, 128, 256MB DIMM modules.

Table 1

yromeMlatoT 1MMID )0knaB( 2MMID )1knaB(

BM652= mumixaM

*MARDS/ODE ,BM46,BM23,BM61,BM8 1XBM652,BM821 enoN

BM215= mumixaM

*MARDS/ODE ,BM46,BM23,BM61,BM8 1XBM652,BM821

DIMM 1

DIMM 2

Bank 0

Bank 1 -Synchronous

-EDO

Figure 2

InstallationMVP4M

Page 8

Device Connectors

Please install the motherboard into the chassis.

Now that your motherboard is installed you are ready to connect all your

connections (figure 6).

J2,J3:Chassis Panel Connector

• Power_LED, Speaker, Reset, Power_ON/OFF, Turbo LED and

HDD LED, IR Connector

J4:CPU Fan Power

• A plug-in for the CPU Fan Power

J6:Chassis Fan Power

• A plug-in for the chassis Fan Power

J7:WOL (Wake On LAN) Connector

JP1: CMOS Clear

AUX1: AUX Audio_in

CD1: CD-ROM Audio_in

COM2: RS232 COM2 Connector

IDE1: Primary IDE Connector

IDE2: Secondary IDE Connector

FDD1: Floppy Controller Connector

PW1: ATX Power Connector

• 20-pin power connector

USB Conn.: The second and third USB port (Cable optional)

PS/2 Mouse

PS/2

KEYBOARD

COM1 VGA1

parallel port

Speaker

Joystick/Midi

USB port

Line_in

MIC

Figure 6

InstallationMVP4M

Page 9

Device Connectors(continued)

Speaker - Connect to the system's speaker for beeping

1. Speaker3. GND

2. N/C4. GND

Reset - Closed to restart system.

Power LED - Power LED connector

1. Power LED(+)4. NC

2. N/C5. GND

3. GND

(This is connected to the power button on the case. Using the

Soft-Off by Pwr-BTTN feature, you can choose either Instant

Off (turns system off immediately), or 4 sec delay (you need to

hold the button down for 4 seconds before the system turns off).

When the system is in 4 sec delay mode, there is a special feature

to make the system to go into suspend mode when the button is

pressed momentarily.)

Turbo LED indicator - LED ON when higher speed is selected

IDE LED indicator - LED ON when Onboard PCI IDE Hard

disks is activate

J3 1

IR Connector

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

Power On/Off
