Introduction1-1

Chapter 1

Introduction

The P55-KVmainboard is a high performance system hardware based on

Intel Pentium processor and is equipped with two PCI slots, three standard

ISAslots,SuperMulti-I/OcontrolleranddualportPCI-IDEconnectorsfor

thefutureexpansion.Thehardwaredimensionis220mmx190mmwitha

four-layer-design technology.

Specification

VIAVT82C580VPXPCIsetchipset.

Intel Pentium Processor, AMD K5 & Cyrix M1 operating at75~200MHz

and P55C with 321 ZIF socket 7 and scalability to accept faster Processors

in the future.

Supports up to 128 MegaBytes of DRAM (a minimum of 4 MB) on board

(72PinsSIMMx2). BIOSwillautometicallydetectandconfigureFPDRAM

andEDODRAM(RefertoChapter 2-4SystemMemoryConfiguration).

Supports Onboard Pipelined Burst (synchronous) L2WriteBack Cache.

Thecachememorycombinationcanbe256KB/512KB(32KB*32,64KB*32

SRAM,respectively).

Supports three 16 bit ISA slots, two 32 bit PCI slots, and provides two

independent high performance PCI IDE interfaces capable of supporting

PIOMode3andMode4devices.TheP55-KVsupportstwoPCIBus

Masters and a jumperless PCI INT# control scheme which reduces configu-

rationconfusion whenplugginginPCII/Ocontrollercard(s).

SupportsATAPI(e.g.CD-ROM)devicesonbothIDEinterfaces.

Supports 1 floppy port, 1 parallel port (EPP,ECP port), and 2 serial ports

(16550FastUARTcompatible).

Supports a PS/2 style mouse and standard AT style keyboard connectors.

Supports Award Plug & Play BIOS . The BIOS is stored in Flash EPROM

form. It provides better upgradeability for the system.

Supports CPU Hardware sleep and SMM (System Management Mode).

P55-KVutilizesLithiumbatterywhichprovidesenvironmentalprotection

and longer battery life.

1-2 P55-KV

82438

PCI#1

PCI#2

BIOS

K/B

CONN.

Power Conn.

PRINTER

COM2

P55-KV Layout

COM1

SIMM 1

SIMM 2

Primary IDE

Secondary IDE

FDD CONN.

Socket7

KEY-LOCK SPEAKER RESET SLEEP TB-LED HD-LED G-LED

+++

J10

J11

Figure 1-1

W83877

82C587

32K*32

82C586A

82C585VPX

Hardware Design 2-1

2-1 Mainboard Layout

Chapter 2

Hardware design

TheP55-KVisdesignedwithVIA82C580VPXPCIsetchipsetwhichisdeveloped

by VIA Corporation to fully support Pentium Processor PCI/ISA system. The VIA

82C580VPXPCIsetchipsetprovidesincreasedintegrationandimprovedperformance

designs. The chipset provides an integrated IDE controller with two high perfor-

mance IDE interfaces for up to four IDE devices (hard devices, CD-ROM device, etc).

The Winbond W83877F Super I/O controller provides the standard PC I/O functions

including:floppyinterface,two16ByteFIFOserialportsandEPP/ECPcapable

parallel port. TheP55-KV layout is shown in the previous page (left page) for user's

reference.Caremustbetakenwheninsertingmemorymodules,insertingCPUor

even plugging PCI cards into the associated slots to avoid damaging any circuits or

sockets on board. A cooling fan is strongly recommended when installing P54C/

P54CTB/P55C/K5/6x86processorduetopossibleoverheat.

TheP55-KVsupportsaminimumof4MBofSystemMemoryandamaximumof

128MBwhileL2Cachecanbe256KB/512KBsynchronousSRAMOnboardto

increasesystemperformance(Referto Page2-6CacheMemoryConfigurationfor

thedetails).

The P55-KV supports standard Fast Page and EDO (Extended Data Out or Hyper

Page Mode) .TheP55-KVprovides two 72-pin SIMM for memory expansion. The

socketssupport1Mx32(4MB),2Mx32(8MB),4Mx32(16MB),and8Mx32(32MB)

single-sided or double-sided memory modules. The memory timing requires 70 ns

Fast page devices or 60 ns EDO DRAM. (DRAM Modules may be parity[x 36] or

non-parity[x32].

TheP55-KV supportsOnboardtwoPCIIDEconnectorsandBIOSdetectsIDE

harddisk type automatically.

The P55-KVsupports Award Plug & Play BIOS for ISA and PCI cards. The BIOS

can be located in Flash EPROM which is a technology to easily revise/upqrade BIOS

through software.

2-2 P55-KV

2-2 Connectors and Jumpers

This section describes all of the connectors and jumpers built into the mainboard.

Please refer to Figure1-1(page 1-2) for the location of each connector and jumper.

1.Power LED(+)

2.N/C

3.GND

4.Keylock

5.GND

1.Speaker

2.N/C

3.GND

4.GND

J11 1

Power Saving LED indicator - LED ON when system is

in any saving mode

Reset Switch - Closed to restart system

Speaker - connects to the system's speaker for beeping

KeyLock - Keyboard lock switch & Power LED connector

Sleep/Resume switch: Closed to enter sleep mode

(A keystrobe or mouse movement will instantly "wake up".)

Turbo LED indicator - LED ON when higher speed is selected

IDE LED indicator - LED ON when Onboard PCI IDE

Harddisks activate

+( There is no deturbo function, thus the turbo LED is always ON.)

Hardware Design 2-3

J6 EPROMBIOSSelection

1-2 : 5V Flash EPROM.(Default)

2-3 : 12V Flash EPROM

J1 PS/2MOUSECONNECTOR

1.RED wire

2.BLUE wire

3.GREEN wire

4.NC

5.YELLOW wire

1.VCC

2.NC

3.IRRX

4.GND

5.IRTX

J10 IrDA/ASKIRCONNECTOR

2-4 P55-KV

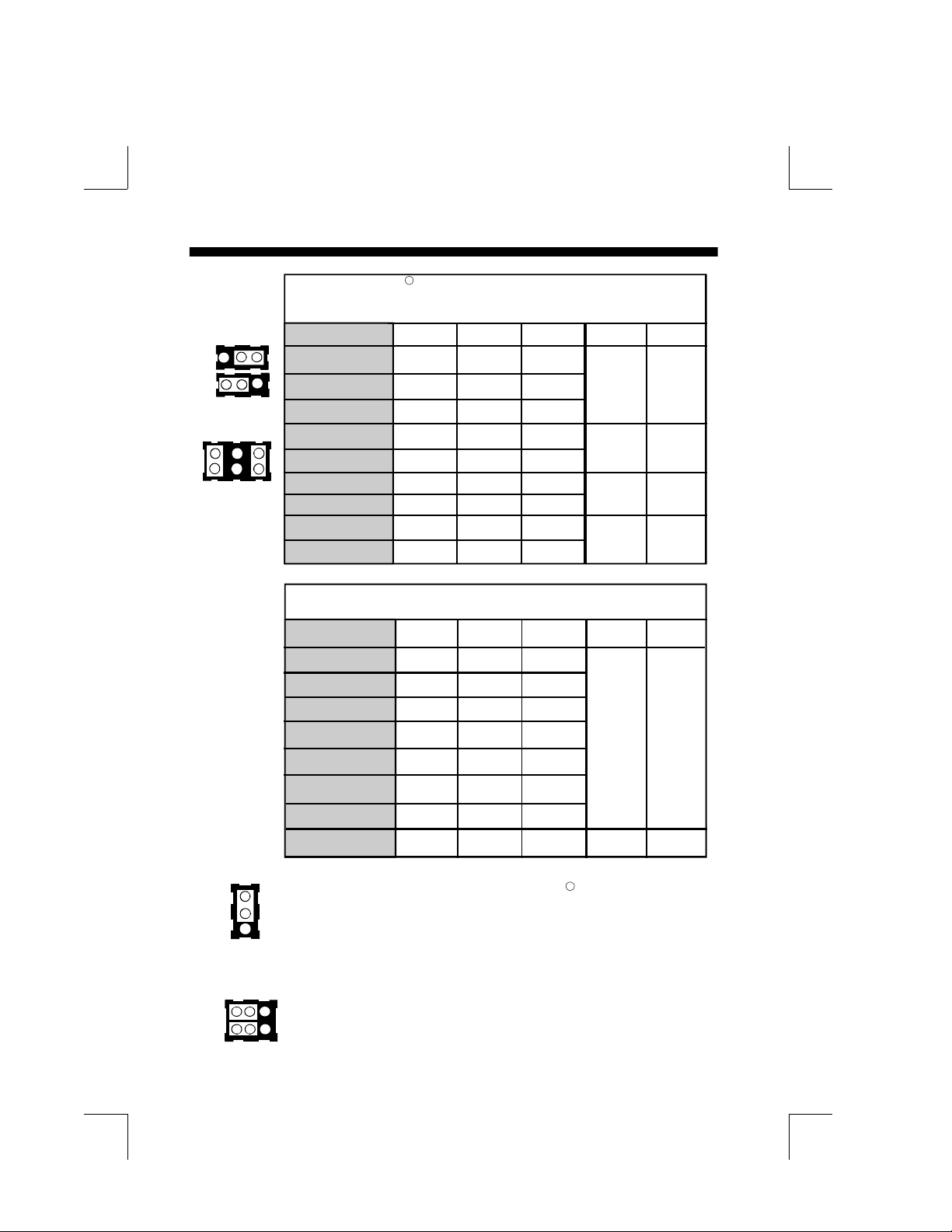

Clock/CPU Op. J7 J8 J9 J4 J5

2-3 1-2

2-3 2-3

ON OFF

OFF OFF

OFF

OFF OFF

OFF

OFF OFF

OFF

OFF OFF

OFF

1-2 1-2

1-2 2-3

50/75 MHz

60/90 MHz

66/100 MHz

60/120 MHz

66/133 MHz

60/150 MHz

66/200 MHz

60/180 MHz

66/166 MHz

OFF

IntelPentium Processor &withMMX technology

J9 J8 J7

1 3

6x86/L-PR120+

6x86/L-PR133+

6x86/L-PR150+

6x86/L-PR166+ 2-3 1-2

(Reserved) 6x86/L-PR200+

OFF

Cyrix/IBM 6x86/L/MXInstallation

J2 CPUVcorevoltageselection:ForPentiumProcessorwith

MMXtechnology,AMDK6,Cyrix 6x86L &6x86MX

2-3:2.8VForPentiumMMX&Cyrix6x86L(Default)

1-2:2.9VForK6-PR166/200&Cyrix6x86MX

Open : 3.2V (Reserved)

J3 CPUSelection

1-2:PentiumProcessor,AMDK5&Cyrix6x86

2-3 : Pentium Processor with MMX technology, AMD K6

, Cyrix 6x86L & 6x86MX

CPU TYPE J7 J8 J9 J4 J5

RTM

AMDK5,K6Installation

1 3

66MHz*2 6x86MX-PR166

75MHz*2 6x86MX-PR200

60MHz * 2.5 6x86MX-PR166 2-3 2-3

OFF

OFF OFF

Hardware Design 2-5

SIMM 2 SIMM 1 Total Size

4MB 4MB 8MB

8MB 8MB 16MB

16MB 16MB 32MB

32MB 32MB 64MB

64MB 64MB 128MB

MemoryConfigurationTable

NOTE : 1. P55-KV supports both Fast Page DRAM and EDO DRAM SIMMs, but

they cannot be used in different SIMM at the same time.

2-3 System Memory Configuration

The P55-KV supports different type of settings for the system memory. The

following table provides all possible memory combinations.

SIMM1

SIMM2

Note 1 : If the Cyrix M1(6x86) is installed on the P55-KV mainboard, one of

the two types of cooling fans(Model NO. 20750 is a normal /standard fan/

heatsink. Model NO. 20832 is a 90 degree rotated fan.) must be selected

correctly to match the regulator heatsink direction. The P55-KV requires the

use of Model NO : 20832.(Customer should request a NMB-B50 fan). Please

Contact the Cyrix CPU suppliers for the details.

Note 2 : If the Cyrix 6x86L-P200+ is installed on the P55-KV mainboard,

there is a limitation : It cannot work properly with the PCI 2.0 SCSI card,such

as Adaptec AHA-2940/3940. For instance, the system will hang up or the data

in the harddisk winn be damage. However, you may use PCI 2.1 SCSI card, such

as AHA-2940AU/UW, because it work well with the CPU.

2-6 P55-KV

2-4 Cache Memory Configuration

The second level (L2) of cache is installed in the mainboard to increase the system

performance. The P55-KV supports two types of combinations for the cache

installation. Please refer to the following configurations for the details.

U34

U37

U41

SYN.CACHE On Board

256KB 32K*32 x 2

512KB 64K*32 x 2

Size (U7,U9)

32K*32

DATA SRAM

TAG SRAM

U13

Hardware Design 2-7

2-5IntegratedPCIBridge

TheP55-KV utilizesVIA82C580VPXPCIsetchipset to supportIntelPentium

Processor PCI/ISA system. The VIA 82C580VPX PCIset chipset consists of one

82C585VPXsystemcontroller(TSC),two82C587VPDataPath(TDP)devices,and

one82C586APCIISA/IDE Acceleratorbridgechip.Itprovides aninterfacewhich

translates CPU cycle into PCI bus cycle and PCI burst read/write capability. In

addition, it provides high performance PCI arbitor to support two PCI Masters,

RotatingPriorityMechanism,andHiddenArbitrationSchemeMinimizesArbitration

Overhead.

Therearefourinterruptsin eachPCIslot:INTA#,INTB#, INTC#,andINTD#.Since

the P55-KV adapts the PCI auto-configuration with the system BIOS Setup utility.

When the system is turned on after adding a PCI add-in card, the BIOS automatically

configure interrupts, DMA channels, I/O space, and other paramaters. You do not

have to configure jumpers or worry potential resource conflicts. Because PCI cards

use the same interrupt resource as ISA cards, you must specify the interrupt used by

ISA add-in cards in the BIOS Setup utility.

However, if a "Legacy card" (such as plug paddle card and cable into the ISA slot.)

ispluggedinthesystem,thefollowingmodificationsintheROMSETUPUTILITY

becomenecessary.First,youmustenter PCICONFIGURATIONSETUPutilityfrom

ROMSETUPUTILITYmainmenutosetthe"PCIIDEIRQMAPTO:ISA".

Then,youmustenterCHIPSETFEATURESSETUPUTILITYfromROMSETUP

UTILITYmainmenuandsetthe"OnboardPrimaryPCIIDE:DisabledandOnboard

SecondaryPCIIDE:Disabled."WhenyouplugthePCI/ISAIDEcardintothe

system,Youshould DisableOnboardPrimaryandSecondaryPCIIDEfrom

CHIPSETFEATURESSETUPUTILITYtoo.

you can set the system interrupt request (IRQ) on some "Legacy cards" which have

no paddle card and cable (refer to user's manual of the card) to a proper system IRQ

level (In general, the card's Primary is assigned to INTA and Secondary is assigned

to INTB). If the card is plugged into slot 1(marked PCI#1), you cannot use second

slot (marked PCI#2) because the Secondary INT signal takes INTB from the slot

(refertoPage3-12forcircuitdiagram).TheuserthenentersPCICONFIGURATION

SETUPutilityfromROMSETUPUTILITYmainmenuandsetsthe"PCIIDEIRQ

MAP TO :PCI-Slot 1" (depend on the slot # where the Legacy card is plugged).

AWARD BIOS 3-1

CHAPTER 3

AWARD BIOS SETUP

Award'sROMBIOSprovidesabuilt-inSetupprogramwhichallowsusertomodifythe

basicsystemconfigurationandhardware parameters. The modified data will be stored

inabattery-backedCMOSRAMsodatawillberetainedevenwhenthepoweristurned

off.Ingeneral,theinformationsavedintheCMOSRAMstaysunchangedunlessthere

isa configuration change in the system, such as a hard drive replacement or a device is

added.

ItispossiblefortheCMOS batterytofail,thiswillcausedataloseinCMOSonly.Ifthis

does happen you will need to reconfigure your configuration parameter.

To enter Setup Propgram

Poweronthecomputerandpress<Del>keyimmediately,thiswillbringyouintoBIOS

CMOSSETUPUTILITY.

ROMPCI/ISABIOS(2A5LDPAD)

CMOSSETUPUTILITY

AWARDSOFTWARE,INC.

STANDARD CMOS SETUP SUPERVISOR PASSWORD

BIOS FEATURES SETUP USER PASSWORD

CHIPSET FEATURES SETUP IDE HDD AUTO DETECTION

POWER MANAGEMENT SETUP HDD LOW LEVEL FORMAT

PNP/PCI CONFIGURATION SAVE & EXIT SETUP

INTEGRATED PERIPHERALS EXIT WITHOUT SAVING

LOAD SETUP DEFAULTS

ESC : QUIT : SELECT ITEM

F10 : Save & Exit Setup (Shift)F2 : Change Color

Time, Date, Hard Disk Type...

Figure 3-1 CMOS SETUP UTILITY

The menu displays all the major selection items. Select the item you need to

reconfigure. The selection is made by moving cursor (press any direction key ) to the

item and press the 'Enter' key. An on-line help message is displayed at the bottom of

the screen as the cursor is moving to various items which provides a better under-

standing of each function. When a selection is made, the menu of selected item will

appear so the user can modify associated configuration parameters.

Table des matières

Autres manuels EPOX Carte mère

EPOX

EPOX 9npa Manuel utilisateur

EPOX

EPOX EP-3VWM Manuel utilisateur

EPOX

EPOX EP-MVP3G-M Manuel utilisateur

EPOX

EPOX AMD Socket et A Processor based AGP (8X)... Manuel utilisateur

EPOX

EPOX EP-8KTA Manuel utilisateur

EPOX

EPOX EP-8HDA5J Manuel utilisateur

EPOX

EPOX MVP4A Manuel utilisateur

EPOX

EPOX EP-5NVA+SLI Manuel utilisateur

EPOX

EPOX KP6-FX2 Manuel utilisateur

EPOX

EPOX MVP3E Manuel utilisateur

EPOX

EPOX EP-8kem Manuel utilisateur

EPOX

EPOX P55-VP 2 Manuel utilisateur

EPOX

EPOX P2-133A Manuel utilisateur

EPOX

EPOX mu-3vsa Manuel utilisateur

EPOX

EPOX MVP4F Manuel utilisateur

EPOX

EPOX EP-5P945-J3 Manuel utilisateur

EPOX

EPOX 6VBA Manuel utilisateur

EPOX

EPOX ADE-9040 Manuel utilisateur

EPOX

EPOX EP-8NPAJ Manuel utilisateur

EPOX

EPOX EP-6WEA4 Manuel utilisateur

EPOX

EPOX 6WEA4I Manuel utilisateur

EPOX

EPOX EP-MVP3G-M Manuel utilisateur

EPOX

EPOX P55-TH Manuel utilisateur

EPOX

EPOX MU-4PEA800 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
