EPOX EP-3VHA Manuel utilisateur
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.2
July 10, 2001
A SocA Soc
A SocA Soc
A Sockk
kk
ket 370 Pret 370 Pr
et 370 Pret 370 Pr
et 370 Processor basedocessor based
ocessor basedocessor based
ocessor based
mainboard (100/133MHz)mainboard (100/133MHz)
mainboard (100/133MHz)mainboard (100/133MHz)
mainboard (100/133MHz)
SupporSuppor
SupporSuppor
Supports PC1600/2100 Memorts PC1600/2100 Memor
ts PC1600/2100 Memorts PC1600/2100 Memor
ts PC1600/2100 Memory Modulesy Modules
y Modulesy Modules
y Modules
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
$ !)
Table of Contents
Section 1 Introduction
Components Checklist ........................................ 1-1
Overview
Mainboard Form-Factor ....................................... 1-2
I O Shield Connector ............................................ 1-3
Power-On Off (Remote) ........................................ 1-3
System Block Diagram .......................................... 1-4
Section 2 Features
Mainboard Features ............................................. 2-1
Section 3 Installation
Mainboard Detailed Layout ................................. 3-1
Easy Installation Procedure
CPU Insertion ....................................................... 3-2
EEPROM BIOS Remover ...................................... 3-4
Jumper Settings .................................................... 3-5
System Memory Configuration ............................ 3-6
Device Connectors ............................................... 3-8
STR (Suspend To RAM) Function....................... 3-11
Section 4 Award BIOS Setup
BIOS Instructions................................................. 4-1
Standard CMOS Setup ......................................... 4-2
Advanced BIOS Features..................................... 4-3
Advanced Chipset Features ................................ 4-7
Integrated Peripherals .......................................... 4-10
Power Management Setup ................................... 4-14
PNP PCI Configuration Setup .............................. 4-17
PC Health Status .................................................. 4-19
Page
Frequency Voltage Control .................................. 4-20
Defaults Menu ..................................................... 4-21
Supervisor User Password Setting ...................... 4-22
Exit Selecting ........................................................ 4-23
Section 5 Driver Installation
Easy Driver Installation ........................................ 5-1
Appendi
Appendi A
GHOST 5.1 6.03 Quick Users Guide .................... A-1
Appendi B
POST Codes ......................................................... B-1
Introduction
Page 1-1
Section 1
INTRODUCTION
Components Checklist
99
99
9A. (1) Mainboard
99
99
9B. (1) Users manual
99
99
9C. (1) Floppy ribbon cable
99
99
9D. (1) ATA-66 100 Hard drive ribbon cable
99
99
9E. (1) USB Cable
99
99
9F. (1) Driver and utility
99
99
9G. (1) ATA-33 Hard drive ribbon cable
A
B
USERS
MANUAL
F
or
D
C
E
G
Introduction
Page 1-2
Mainboard Form-Factor
The board is designed with ATX form factor - the new industry standard of chassis.
ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees within the
chassis enclosure and a new mounting configuration for the power supply. With
these changes the processor is relocated away from the expansion slots, allowing
them all to hold full length add-in cards. ATX defines a double height aperture to
the rear of the chassis which can be used to host a wide range of onboard I O.
Only the size and position of this aperture is defined, allowing PC manufacturers
to add new I O features (e.g.; TV input, TV output, joystick, modem, LAN, etc.) to
systems. This will help systems integrators differentiate their products in the
marketplace, and better meet your needs.
Smaller size promotes a smaller system size.
I O shield does not need to be retooled in an ATX 2.01 or later. The
mainboard should be used in an ATX 2.01 (or later) compliant case.
A smaller power supply can be used. High integration on mainboard
reduces the system costs.
PCI slots
Expandable I O
5 1/4"
Bay
3 1/2"
Bay

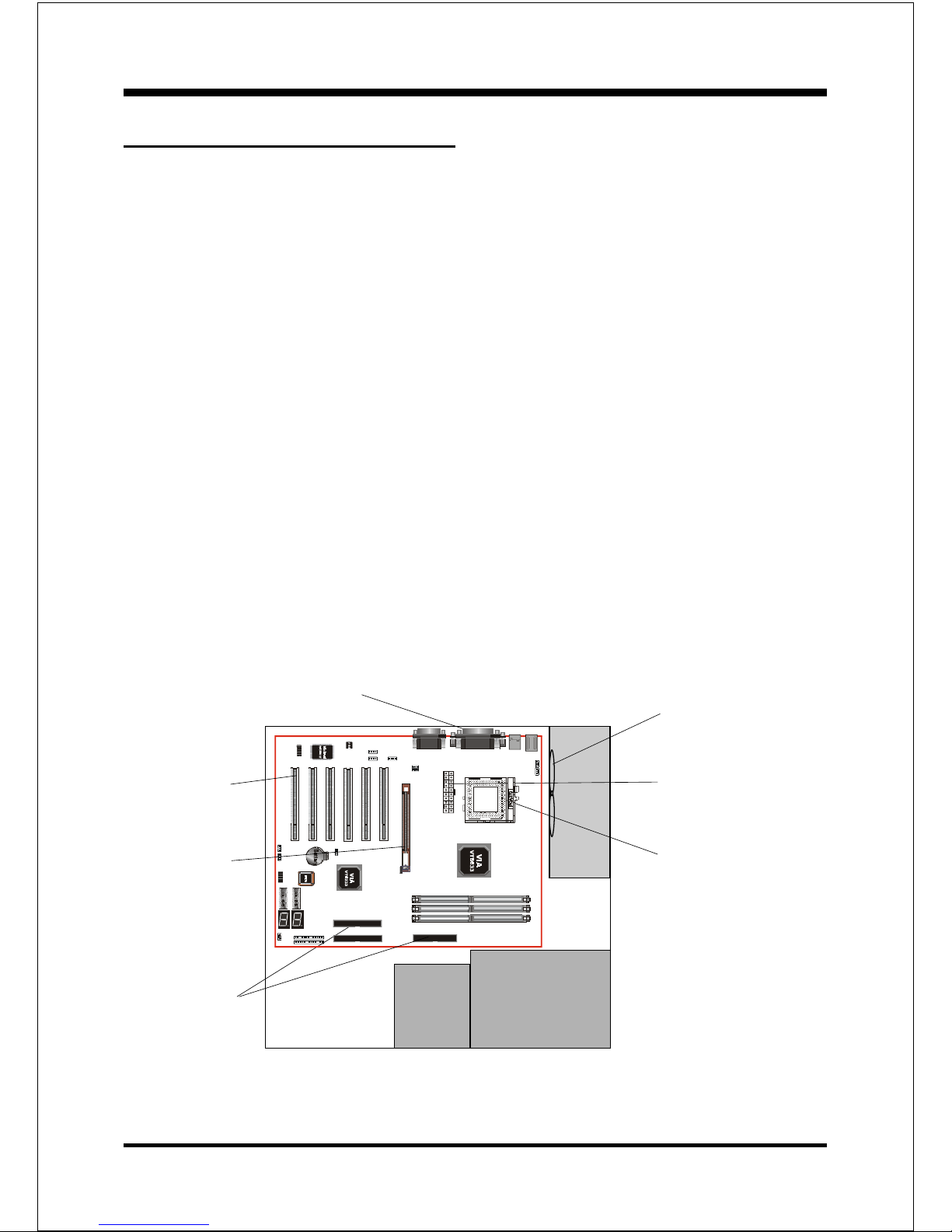

Figure 2: Summary of ATX chassis features
CPU
Single chassis
fan for system
ATX
Power
Supply
ATX power connec-
tor
Floppy IDE
connectors
AGP slot
Introduction
Page 1-3
Power-On/Off (Remote)
The board has a single 20-pin connector for ATX power supplies. For ATX power
supplies that support the Remote On/Off feature, this should be connected to the
systems front panel for system Power On Off button. The systems power On Off
button should be a momentary button that is normally open.
The board has been designed with Soft Off" functions. You can turn Off the
system from one of two sources: The first is the front panel Power On Off
button, and the other is the "Soft Off" function (coming from the M Bs onboard
circuit controller) that can be controlled by the operating system such
asWindows® 95 98 SE ME or Windows®2000.
Figure 4: Simple ATX Power ON/OFF Co troller
J 3
ATX
POWER SUPPLY
Case (chassis) Power
ON/OFF butto (J 3)
I/O Shield Connector
The board is equipped with an I O back panel. Please use the appropriate I O
shield (figure 3).
Figure 3: I/O back pa el layout
PS/2 Mouse
PS/2
KEYBOARD
USB port
COM1 COM2
parallel port
Speaker
Li e_i
MIC
Joystick/Midi port
Introduction
Page 1-4
Figure 5: System Block Diagram
System Block Diagram
PAC
PCI Bridge
and memory
controller
VT8633
266/200MHz
133/100MHz
66MHz
4X
Socket 370
Processors
VT8233
I/O Bridge
)+
'%
USB 0,1 USB 2,3 USB 4,5
Mouse
Keyboard
LPC
W 3697
Serial Port 1
Serial Port 2
LPT Port
FDD
1,-
1,- HDD
(ATA-66/100)
V_Link
MA [0:13]
MDS [0:7]
MD [0:63]
.A=JKHAI
Page 2-1
Section 2
FEATURES
Mainboard Features:
PROCESSOR
- Intel CeleronTM Processors with PPGA / FC-PGA socket 370 packing,
operating at 433 ~ 800 Hz
- Intel Pentium®III /CoppermineTM Processor with FC-PGA socket 370
packing, operating at 500 Hz ~ 1GHz
- VIA Cyrix III Processors with PPGA socket370 packing, operating at 500 ~
600 Hz
CHIPSET
- VIA Apollo Pro266 AGPset (VT8633+VT8233)
DRAM MODULE
- 184pin DDR DI x 3 for PC1600/2100 emory
- DRA Size: 64 B to 1.5GB
EXPANSION SLOT
- PCI x 6, 4X AGP x 1
ONBOARD I/O
Winbond 83697HF LPC I/O integrated with
- FDD, Parallel and Serial, Fast IR
ONBOARD PCI / IDE
- PCI Bus IDE Port with PIO /Ultra D A-100x 2 (Up to 4 Devices)
.A=JKHAI
Page 2-2
I/O CONNECTOR
- PS/2 ouse and PS/2 style Keyboard
- CO 1, CO 2, Printer, Audio-in/out, IC & Game Port connectors
USB
- USB connector x 6 (2 for Opt.)
BIOS
- Award Plug & Play BIOS
Built-in AC9 Digital Audio
- Dual full-duplex Direct Sound channels
- H/W Sound Blaster Pro for DOS legacy compatibility
- F synthesis for legacy compatibility
- Supports game and IDI port
EXTENDED FUNCTION
- Supports Hardware onitoring Function by VT8233
- Supports exclusive KBPO(KeyBoard Power On)
- Supports CPU Vcore/VIO setting via BIOS
- Supports CPU Clock settings via BIOS
- Supports STR(Suspend To RA ) power saving Function
- Supports Wake-On-LAN Function
- Supports Wake-On- odem Function
- P80P Debug(POST) Card onboard design with LED display
FORM FACTOR
- 305mm x 245mm ATX Size
