Operating Instructions

iTEMP TMT162

Temperature field transmitter

°C

BA01801T/09/EN/01.17

71380552

Valid as of version

04.01 (device version)

iTEMP TMT162 Table of contents

Endress+Hauser 3

Table of contents

1 Important document information .... 4

1.1 Function of document and how to use ........ 4

1.2 Symbols used .......................... 4

1.3 Documentation ........................ 6

1.4 Registered trademarks ................... 6

2 Basic safety instructions ............ 7

2.1 Requirements for the personnel ............ 7

2.2 Designated use ........................ 7

2.3 Workplace safety ....................... 7

2.4 Operational safety ...................... 7

2.5 Product safety ......................... 8

2.6 IT security ............................ 8

3 Incoming acceptance and product

identification ....................... 9

3.1 Incoming acceptance .................... 9

3.2 Product identification .................... 9

3.3 Transport and storage .................. 11

4 Installation ....................... 12

4.1 Installation conditions .................. 12

4.2 Mounting the transmitter ............... 12

4.3 Display mounting ...................... 14

4.4 Post-installation check .................. 14

5 Wiring ............................ 15

5.1 Connection conditions .................. 15

5.2 Connecting the sensor .................. 15

5.3 Connecting the measuring device .......... 17

5.4 Special connection instructions ............ 19

5.5 Ensuring the degree of protection .......... 20

5.6 Post-connection check .................. 21

6 Operating options ................. 22

6.1 Overview of operation options ............ 22

6.2 Structure and function of the operating

menu .............................. 25

6.3 Access to the operating menu via the

operating tool ........................ 27

7 System integration ................ 29

7.1 HART device variables and measured values .. 29

7.2 Device variables and measured values ....... 30

7.3 Supported HART® commands ............. 30

8 Commissioning .................... 33

8.1 Post-installation check .................. 33

8.2 Switching on the transmitter ............. 33

8.3 Enabling configuration .................. 33

9 Diagnostics and troubleshooting ... 34

9.1 Troubleshooting ...................... 34

9.2 Diagnostic events ...................... 36

9.3 Software history and overview of

compatibility ......................... 40

10 Maintenance ...................... 40

10.1 Endress+Hauser services ................ 40

11 Repair ............................ 41

11.1 General notes ........................ 41

11.2 Spare parts .......................... 41

11.3 Return .............................. 43

11.4 Disposal ............................ 43

12 Accessories ....................... 43

12.1 Device-specific accessories ............... 43

12.2 Communication-specific accessories ........ 44

12.3 Service-specific accessories ............... 44

12.4 System products ...................... 45

13 Technische Daten ................. 46

14 Operating menu and parameter

description ........................ 62

14.1 "Setup" menu ......................... 69

14.2 "Diagnostics" menu ..................... 84

14.3 "Expert" menu ........................ 91

Index ................................. 117

Important document information iTEMP TMT162

4 Endress+Hauser

1 Important document information

1.1 Function of document and how to use

1.1.1 Document function

These Operating Instructions contain all the information that is required in various phases

of the life cycle of the device: from product identification, incoming acceptance and

storage, to mounting, connection, operation and commissioning through to

troubleshooting, maintenance and disposal.

1.1.2 Safety Instructions (XA)

When using in hazardous areas, the national safety requirements must be met. Separate

Ex documentation is contained in these Operating Instructions for measurement systems

that are to mounted in hazardous areas. Strict compliance with the installation

instructions, ratings and safety instructions as listed in this supplementary documentation

is mandatory. Make sure that you use the right Ex-specific documentation for the right

device with approval for use in hazardous areas! The number of the specific Ex

documentation (XA...) is provided on the nameplate. If the two numbers (on the Ex

documentation and the nameplate) are identical, then you may use this Ex-specific

documentation.

1.1.3 Functional safety

Please refer to Safety Manual SD01632T/09 for the use of approved devices in

protective systems according to IEC 61508.

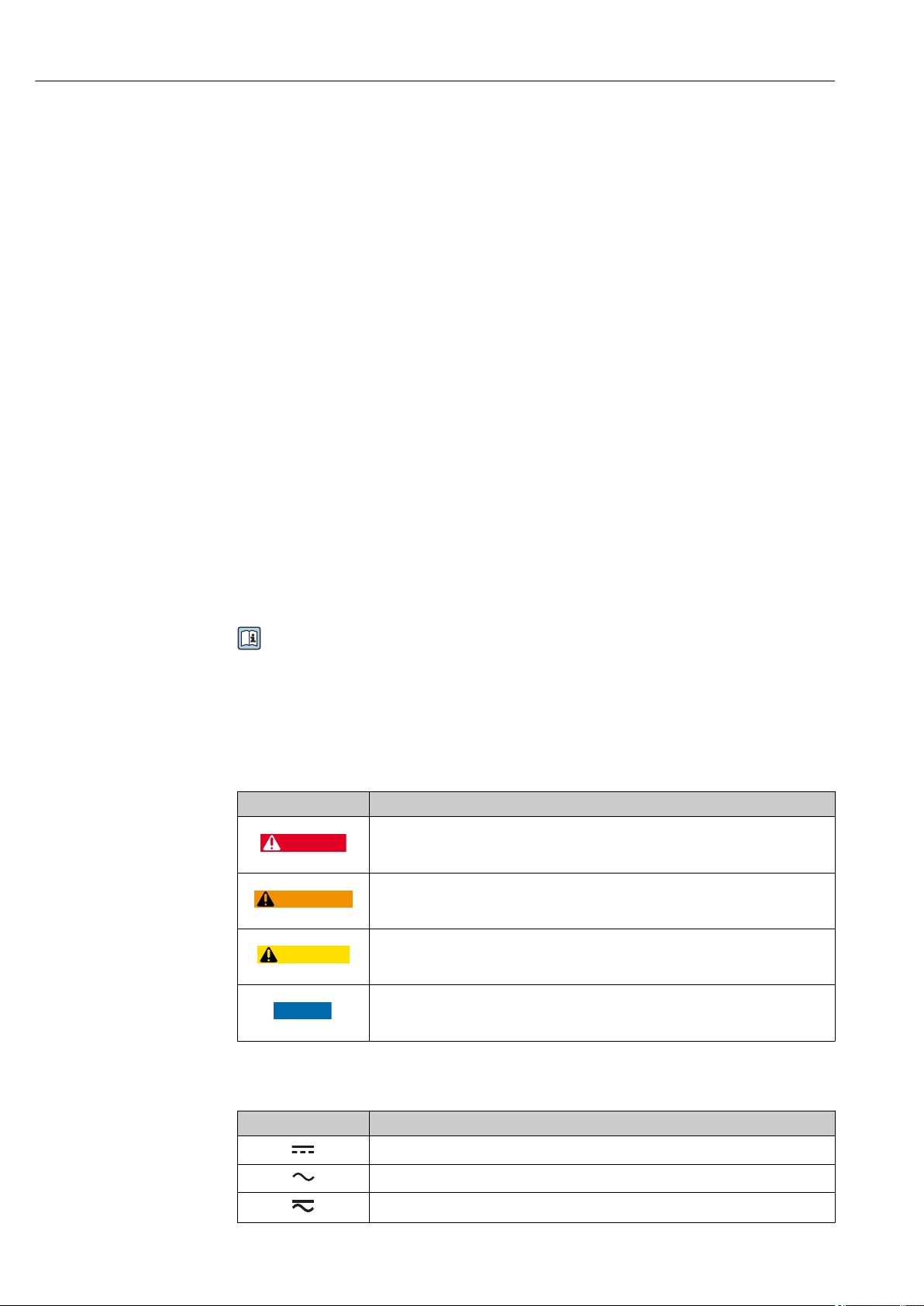

1.2 Symbols used

1.2.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will

result in serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.2.2 Electrical symbols

Symbol Meaning

Direct current

Alternating current

Direct current and alternating current

iTEMP TMT162 Important document information

Endress+Hauser 5

Symbol Meaning

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a

grounding system.

Protective ground connection

A terminal which must be connected to ground prior to establishing any other

connections.

Equipotential connection

A connection that has to be connected to the plant grounding system: This may be a

potential equalization line or a star grounding system depending on national or

company codes of practice.

1.2.3 Symbols for certain types of information

Symbol Meaning

Permitted

Procedures, processes or actions that are permitted.

Preferred

Procedures, processes or actions that are preferred.

Forbidden

Procedures, processes or actions that are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

,…

Series of steps

Result of a step

Help in the event of a problem

Visual inspection

1.2.4 Tool symbols

Symbol Meaning

A0011220

Flat-blade screwdriver

A0011219

Phillips screwdriver

A0011221

Allen key

A0011222

Open-ended wrench

A0013442

Torx screwdriver

Important document information iTEMP TMT162

6 Endress+Hauser

1.3 Documentation

Document Purpose and content of the document

Technical Information

TI01344T/09

Planning aid for your device

The document contains all the technical data on the device and provides

an overview of the accessories and other products that can be ordered for

the device.

Brief Operating Instructions

KA00250R/09

Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information

from incoming acceptance to initial commissioning.

Functional safety manual (SIL)

SD01632T/09

Functional Safety Manual

This manual applies in addition to the Operating Instructions, Technical

Information and ATEX Safety Instructions. The requirements specific for

the protection function are described in this Safety Manual.

The document types listed are available:

In the Download Area of the Endress+Hauser Internet site: www.endress.com →

Downloads

1.4 Registered trademarks

HART®

Registered trademark of the HART® FieldComm Group

iTEMP TMT162 Basic safety instructions

Endress+Hauser 7

2 Basic safety instructions

2.1 Requirements for the personnel

NOTICE

The personnel for installation, commissioning, diagnostics and maintenance must

fulfill the following requirements:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Before beginning work, the specialist staff must have read and understood the

instructions in the Operating Instructions and supplementary documentation as well as

in the certificates (depending on the application)

‣Following instructions and basic conditions

The operating personnel must fulfill the following requirements:

‣Being instructed and authorized according to the requirements of the task by the

facility's owner-operator

‣Following the instructions in these Operating Instructions

2.2 Designated use

The device is a universal and configurable temperature field transmitter with either one or

two temperature sensor inputs for resistance thermometers (RTD), thermocouples (TC)

and resistance and voltage transmitters. The unit is designed for mounting in the field.

The manufacturer is not liable for damage caused by improper or non-designated use.

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

LCAUTION

Risk of injury!

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Power supply

‣The device must only be powered by a 11.5 to 42 VDC voltage supply according to NEC

class 02 (low voltage / current) with short circuit power limitation to 8 A / 150 VA.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with Endress+Hauser.

Repair

To ensure continued operational safety and reliability:

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

Basic safety instructions iTEMP TMT162

8 Endress+Hauser

‣Use original spare parts and accessories from Endress+Hauser only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the

hazardous area (e.g. explosion protection or safety equipment):

‣Based on the technical data on the nameplate, check whether the ordered device is

permitted for the intended use in the hazardous area. The nameplate can be found on

the side of the transmitter housing.

‣Observe the specifications in the separate supplementary documentation that is an

integral part of these Instructions.

Electromagnetic compatibility

The measuring system complies with the general safety requirements in accordance with

EN 61010-1, the EMC requirements of IEC/EN 61326 and NAMUR Recommendation NE

21 and NE 89.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet

state-of-the-art safety requirements, has been tested, and left the factory in a condition in

which it is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EC

directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser

confirms this by affixing the CE mark to the device.

2.6 IT security

We only provide a warranty if the device is installed and used as described in the

Operating Instructions. The device is equipped with security mechanisms to protect it

against any inadvertent changes to the device settings.

IT security measures in line with operators' security standards and designed to provide

additional protection for the device and device data transfer must be implemented by the

operators themselves.

iTEMP TMT162 Incoming acceptance and product identification

Endress+Hauser 9

3 Incoming acceptance and product

identification

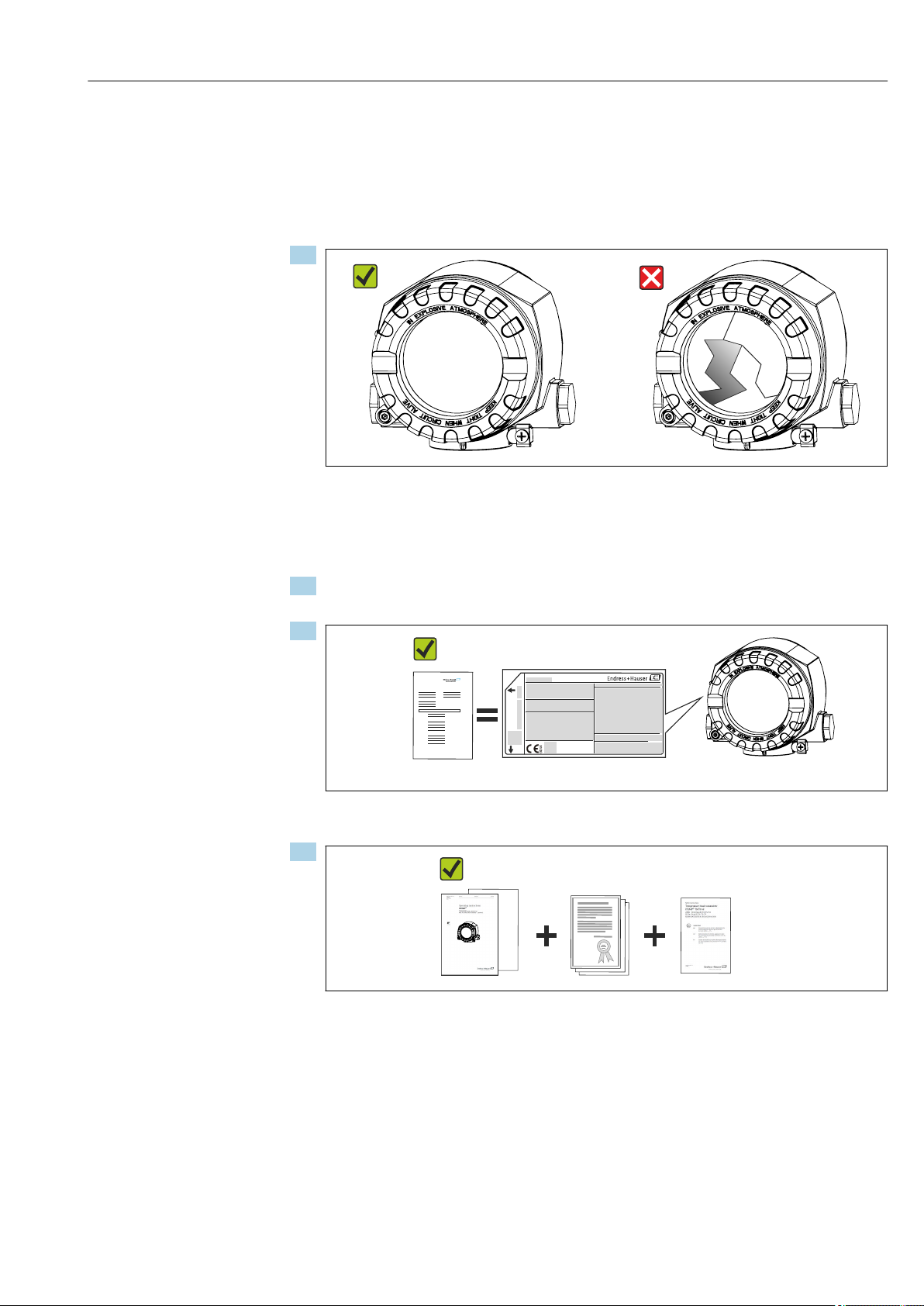

3.1 Incoming acceptance

A0024856

Unpack the temperature transmitter carefully. Is the packaging or content damaged?

 Damaged components may not be installed as the manufacturer can otherwise

not guarantee compliance with the original safety requirements or the material

resistance, and can therefore not be held responsible for any resulting damage.

2. Is the delivery complete or is anything missing? Check the scope of delivery against

your order.

DELIVERY NOTE

A0024857

Does the nameplate match the ordering information on the delivery note?

TMT162 0

A0024858

Are the technical documentation and all other necessary documents provided?

3.2 Product identification

The following options are available for identification of the device:

• Nameplate specifications

• Enter the serial number from the nameplate in the W@M Device Viewer

(www.endress.com/deviceviewer): All data relating to the device and an overview of

the Technical Documentation supplied with the device are displayed.

Incoming acceptance and product identification iTEMP TMT162

10 Endress+Hauser

3.2.1 Nameplate

Is this the correct device?

Check the data on the nameplate of the device and compare them against the requirements

of the measuring point:

Install per XA00032R/09/a3/xx.yy

II2D Ex tb IIIC T110°C Db

Do not open when energized

11.5...40 V

4...20 mA HART

TMT162-

Ta=

-50 ...+55/70/85 °C T6/T5/T4 (-40...+75 °C SIL)

87484 Nesselwang

Made in Germany 2017

TMT162-SIL

IP66/67 TYPE4X Encl.

Current cosum.: 23 mA

0123456789

Ser.No.:

TAG No.: 0123456789ABCDEF

0123456789ABCDEF

Order Code:

Extended order code:

Threads M20x1.5

0044

A0034479

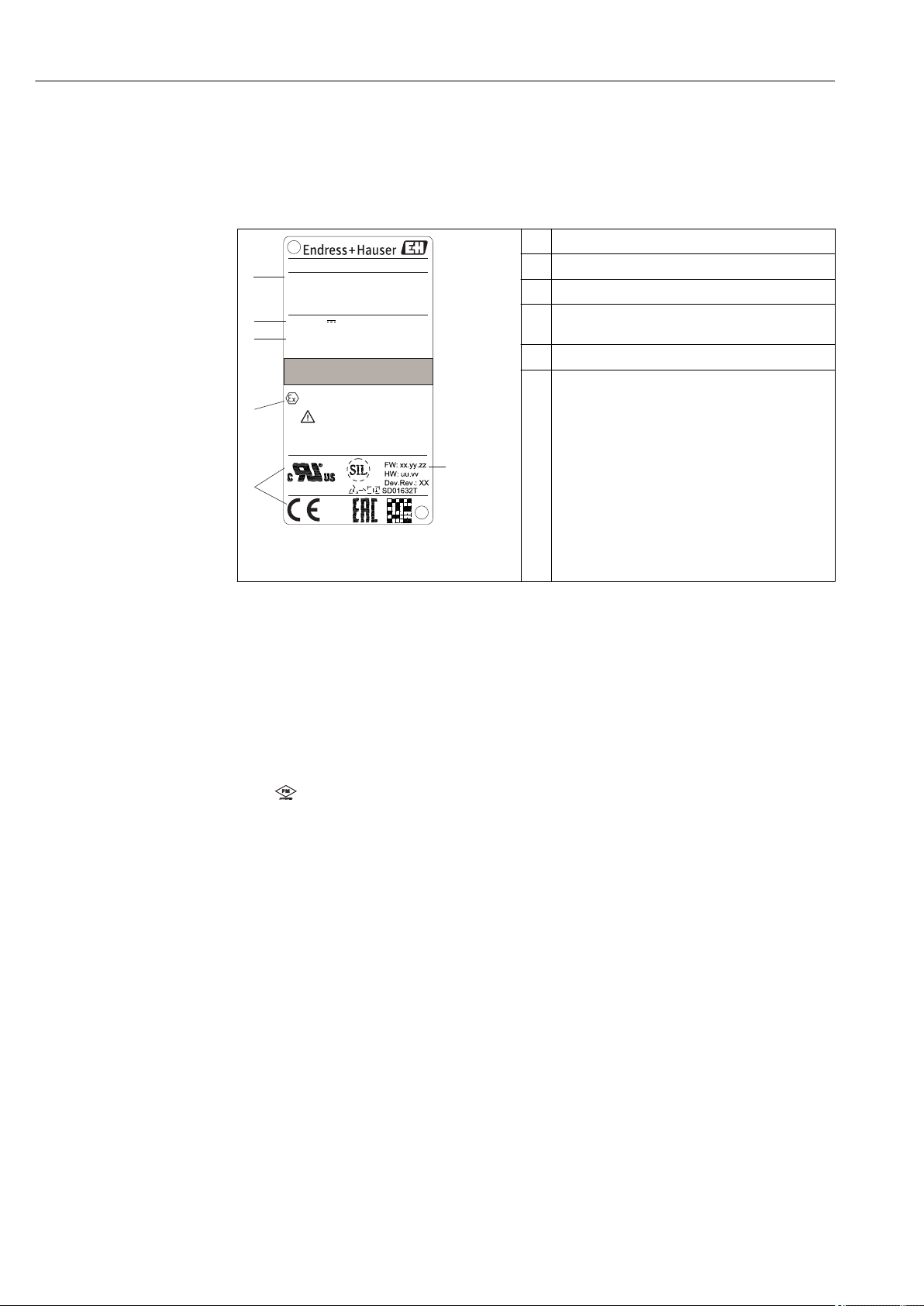

 1 Nameplate of the field transmitter

(example, Ex version)

1Order code, serial number and TAG of device

2 Power supply, degree of protection, etc.

3 Ambient temperature range

4 Approvals in hazardous area with numbers of the

relevant Ex documentation (XA...)

5 Approvals with symbols

6 Device revision and firmware version

3.2.2 Scope of delivery

The scope of delivery of the device comprises:

•Temperature transmitter

•Wall or pipe mounting bracket, optional

•Dummy plugs

• Hard copy of multi-language Brief Operating Instructions

• Additional documentation for devices which are suitable for use in the hazardous area

(0 1), such as Safety Instructions (XA), Control or Installation Drawings (ZD).

• Hard copy of Functional Safety Manual (if SIL mode option selected)

3.2.3 Certificates and approvals

An overview of other approvals and certifications is provided in the "Technical data" section

→  60

CE mark

The product meets the requirements of the harmonized European standards. As such, it

complies with the legal specifications of the EC directives. The manufacturer confirms

successful testing of the product by affixing to it the CE-mark.

EAC mark

The product meets the legal requirements of the EEU guidelines. The manufacturer

confirms the successful testing of the product by affixing the EAC mark.

UL approval

UL recognized component (see www.ul.com/database, search for Keyword "E225237")

Autres manuels pour iTEMP TMT162

Table des matières

Autres manuels Endress+Hauser Émetteur

Endress+Hauser

Endress+Hauser iTEMP TMT82 Manuel utilisateur

Endress+Hauser

Endress+Hauser Heat Caractéristiques techniques

Endress+Hauser

Endress+Hauser CM14 Manuel utilisateur

Endress+Hauser

Endress+Hauser Nivotester FTR525 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline M CM42 Manuel utilisateur

Endress+Hauser

Endress+Hauser Prosonic S FMU95 Manuel utilisateur

Endress+Hauser

Endress+Hauser iTEMP PCP TMT 121 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline 500 digital PROFIBUS DP Caractéristiques techniques

Endress+Hauser

Endress+Hauser Prosonic S FMU95 Instructions d'utilisation et d'installation

Endress+Hauser

Endress+Hauser Promag Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Flowmeter Proline 200 Caractéristiques techniques

Endress+Hauser

Endress+Hauser iTEMP TMT187 Manuel utilisateur

Endress+Hauser

Endress+Hauser iTEMP TMT85 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manuel utilisateur

Endress+Hauser

Endress+Hauser iTEMP TMT84 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Mycom CLM 152 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquisys M CUM223 Manuel utilisateur

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline Compact CM82 Manuel utilisateur

Endress+Hauser

Endress+Hauser iTEMP TMT182 Manuel utilisateur

Endress+Hauser

Endress+Hauser PROline promag 53 Instructions d'installation

Endress+Hauser

Endress+Hauser AT5000 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline CM42 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline 300 Caractéristiques techniques

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur

Endress+Hauser iTEMP TMT162 Manuel utilisateur

Manuels Émetteur populaires d'autres marques
