Emerson Rosemount 708 Manuel utilisateur

Quick Start Guide

00825-0200-4708, Rev DA

June 2016

Rosemount™708 Wireless Acoustic

Transmitter

June 2016

Quick Start Guide

NOTICE

This guide provides basic guidelines for the Rosemount 708. It does not provide instructions for detailed

configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount

708 Reference Manual (document number 00809-0100-4708) for more instruction. This guide and the

manual are available electronically on www.rosemount.com.

Explosions could result in death or serious injury.

Installation of this transmitter in an explosive environment must be in accordance with the appropriate

local, national, and international standards, codes, and practices. Review the Product Certifications

section for any restrictions associated with a safe installation.

Before connecting a Field Communicator in an explosive atmosphere, ensure the instruments are

installed in accordance with intrinsically safe field wiring practices.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired

operation.

This device must be installed to ensure a minimum antenna separation distance of 8-in. (20 cm) from all

persons.

The power module may be replaced in a hazardous area. The power module has surface resistivity greater

than one gigaohm and must be properly installed in the wireless device enclosure. Care must be taken

during transportation to and from the point of installation to prevent a potential electrostatic charging

hazard.

Polymer enclosure has surface resistivity greater than one gigaohm. Care must be taken during

transportation to and from the point of installation to prevent a potential electrostatic charging hazard.

NOTICE

Shipping considerations for wireless products

The unit was shipped without the power module installed. Remove the power module prior to shipping the

unit.

Each power module contains one “D” size primary lithium battery. Primary lithium batteries are regulated in

transportation by the U.S. Department of Transportation, and are also covered by IATA (International Air

Transport Association), ICAO (International Civil Aviation Organization), and ARD (European Ground

Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure compliance with these

or any other local requirements. Consult current regulations and requirements before shipping.

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Wireless considerations . . . . . . . . . . . . . . . . . . . . 3

Physical installation . . . . . . . . . . . . . . . . . . . . . . . 4

Device network configuration . . . . . . . . . . . . . . 8

Verify operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Product certifications. . . . . . . . . . . . . . . . . . . . .13

Quick Start Guide

June 2016

1.0 Overview

Figure 1. Rosemount 708 Wireless Acoustic Transmitter

A. Power module cover — power module is inside device; unscrew cap for access

B. Waveguide — acoustic and temperature sensors

C. Electronics cover — cover is sealed and cannot be removed

D. Stainless steel mounting bands — used to connect the acoustic transmitter to the piping

E. Pipe — the acoustic transmitter is installed directly to the pipe

2.0 Wireless considerations

2.1 Power up sequence

The Emerson™Smart Wireless Gateway should be installed and functioning

properly before any wireless devices are powered. Install the power module,

Smart Wireless 701PGNKF into the Rosemount 708 to power the device. This

results in a simpler and faster network installation. Enabling active advertising on

the Gateway ensures new devices are able to join the network faster. For more

information see the Smart Wireless Gateway Manual (document number

00809-0200-4420).

2.2 Antenna position

The antenna is internal to the acoustic transmitter. To achieve optimal range,

orient the transmitter with the waveguide horizontal and the power module

closest to the ground as shown in Figure 2. Good connectivity can also be

achieved in other orientations. The antenna should also be approximately 3 ft.

(1 m) from any large structure, building, or conductive surface to allow for clear

communication to other devices.

June 2016

Quick Start Guide

Figure 2. Antenna Position

3.0 Field Communicator connections

The power module needs to be installed in the device for the Field Communicator

to interface with the Rosemount 708. This transmitter uses the green power

module; order model number 701PGNKF. Field communication with this device

requires a HART® protocol-based Field Communicator using the correct 708 DD.

Field Communicator connections are located on the power module. The power

module is keyed and can only be inserted in one orientation. Refer to Figure 3 for

instructions on connecting the Field Communicator to the Rosemount 708.

Figure 3. Connection Diagram

4.0 Physical installation

The acoustic transmitter is connected directly to the piping being measured.

4.1 Mounting

For high temperature mounting, see page 5.

1. Locate the Rosemount 708 on a horizontal section of piping as close as

possible to the equipment to be monitored. Align the waveguide of the

transmitter as shown in Figure 4 and Figure 5.

2. The mounting location should be free of foreign matter and corrosion to

ensure good contact between the piping and the waveguide.

3. Tighten each clamp to 90 in-lb (10,2 N-m). Trim the excess clamp band

material to prevent unwanted acoustic noise.

4. If commissioning the device, install the green power module (see Figure 6).

Quick Start Guide

June 2016

5. Ensure the power module cover is fully tightened to prevent moisture ingress.

The lip of the polymer power module cover should be in contact with the

surface of the polymer enclosure to ensure a proper seal. Do not over tighten.

Figure 4. Transmitter Alignment

Figure 5. Transmitter Alignment Top View

Figure 6. Power Module Installation

Note

Wireless devices should be powered up in order of proximity from the Smart Wireless

Gateway, beginning with the closest device to the Smart Wireless Gateway. This will result

in faster network formation.

4.2 Mounting in a high temperature application

High temperature mounting hardware should be used when process

temperatures exceed 260 °C (500 °F).

1. Place the foot of the transmitter in between the standoff mounting hardware

plates as shown in Figure 7.

2. Press standoff plates together so plates and transmitter foot are aligned.

June 2016

Quick Start Guide

3. Tighten each screw to 90 in-lb (10,2 N-m).

4. Locate the Rosemount 708 and high temperature mounting hardware on a

horizontal section of the piping as close as possible to the equipment to be

monitored. The mounting location should be free of foreign matter and

corrosion to ensure good contact between the piping and the mounting

hardware.

5. Insert the U-bolt through the standoff mounting hardware.

6. Tighten each bolt to 90 in-lb (10,2 N-m) (see Figure 8).

7. If commissioning the device, install the green power module (see Figure 6).

8. Ensure the power module cover is fully tightened to prevent moisture ingress.

The lip of the polymer power module cover should be in contact with the

surface of the polymer enclosure to ensure a proper seal. Do not over tighten.

Figure 7. High Temperature Mounting Hardware

Quick Start Guide

June 2016

Figure 8. Rosemount 708 Acoustic Transmitter with High Temperature

Standoff and Fastener Kit

A. For pipe sizes 0.5 to 2.5-in.

Dimensions are in inches (millimeters).

4.3 Mounting considerations

1. Mounting bands should be inspected periodically and re-tightened if

necessary. Some loosening may occur after initial installation due to thermal

expansion/contraction.

2. The waveguide must be in direct contact with the pipe unless the high

temperature mounting hardware is being used.

3. Insulate process piping to minimize ambient temperature effects (see Figure

9). Insulation thickness over the top of the waveguide foot should not exceed

1-in. (2,54 cm).

4. For best results, mount the transmitter within 6-in. (15,24 cm) of the

equipment to be monitored.

5. The stainless steel mounting bands could be affected by stress corrosion and

potentially fail when in the presence of chlorides.

6. The transmitter should be installed such that steam or other high temperature

fluids do not directly impinge the housing of the device.

7. If installing the device on a steam trap, the device should be installed on the

upstream side of the trap.

6.86

(174)

1.81

(46)

3.80

(

)

June 2016

Quick Start Guide

Figure 9. Piping Insulation Side View

5.0 Device network configuration

In order to communicate with the Smart Wireless Gateway, and ultimately the

information system, the transmitter must be configured to communicate with

the wireless network. This step is the wireless equivalent of connecting wires

from a transmitter to the host system. Using a Field Communicator or AMS®

Device Manager, enter the network ID and join key so they match the network ID

and join key of the Gateway and other devices in the network. If the network ID

and join key are not the same as the Gateway, the acoustic transmitter will not

communicate with the network. The network ID and join key may be obtained

from the Smart Wireless Gateway on the Setup>Network>Settings page on the

web server, shown in Figure 10.

Figure 10. Gateway Network Settings

1-in.

Quick Start Guide

June 2016

5.1 AMS Device Manager

Right click on the acoustic transmitter and select Configure. When the menu

opens, select Join Device to Network and follow the method to enter the

network ID and join key.

5.2 Field Communicator

The network ID and join key may be changed in the wireless device by using the

following Fast Key sequence. Set both network ID and join key.

Table 1. Setting the Network ID and Join Key

6.0 Verify operation

There are three ways to verify operation: using the Field Communicator, using the

Smart Wireless Gateway’s integrated web interface, or by using AMS Suite

Wireless Configurator or AMS Device Manager.

If the Rosemount 708 was configured with the network ID and join key, and

sufficient time has passed, the transmitter will be connected to the network. If

network ID and join key were not configured, reference “Troubleshooting” on

page 11.

Note

It may take several minutes for the device to join the network.

6.1 Field Communicator

For HART protocol Wireless transmitter communication, a Rosemount 708

Device Driver (DD) is required. To obtain the latest DD, visit the Emerson Process

Management Easy Upgrade site at:

http://www2.emersonprocess.com/en-US/documentation/deviceinstallkits. The

communication status may be verified in the wireless device using the following

Fast Key sequence.

Table 2. Communication Status Verification Fast Key Sequence

Function Fast Key sequence Menu items

Join Device to Network 2, 1, 2 Network ID, Set Join Key

Function Fast Key sequence Menu items

Communications 3, 4

Join Status, Wireless Mode, Join Mode, Number of

Available Neighbors, Number of Advertisements Heard,

Number of Join Attempts

June 2016

Quick Start Guide

6.2 Smart Wireless Gateway

Using the Smart Wireless Gateway’s integrated web interface, navigate to the

Explorer page as shown in Figure 11. Locate the device in question and verify all

status indicators are good (green).

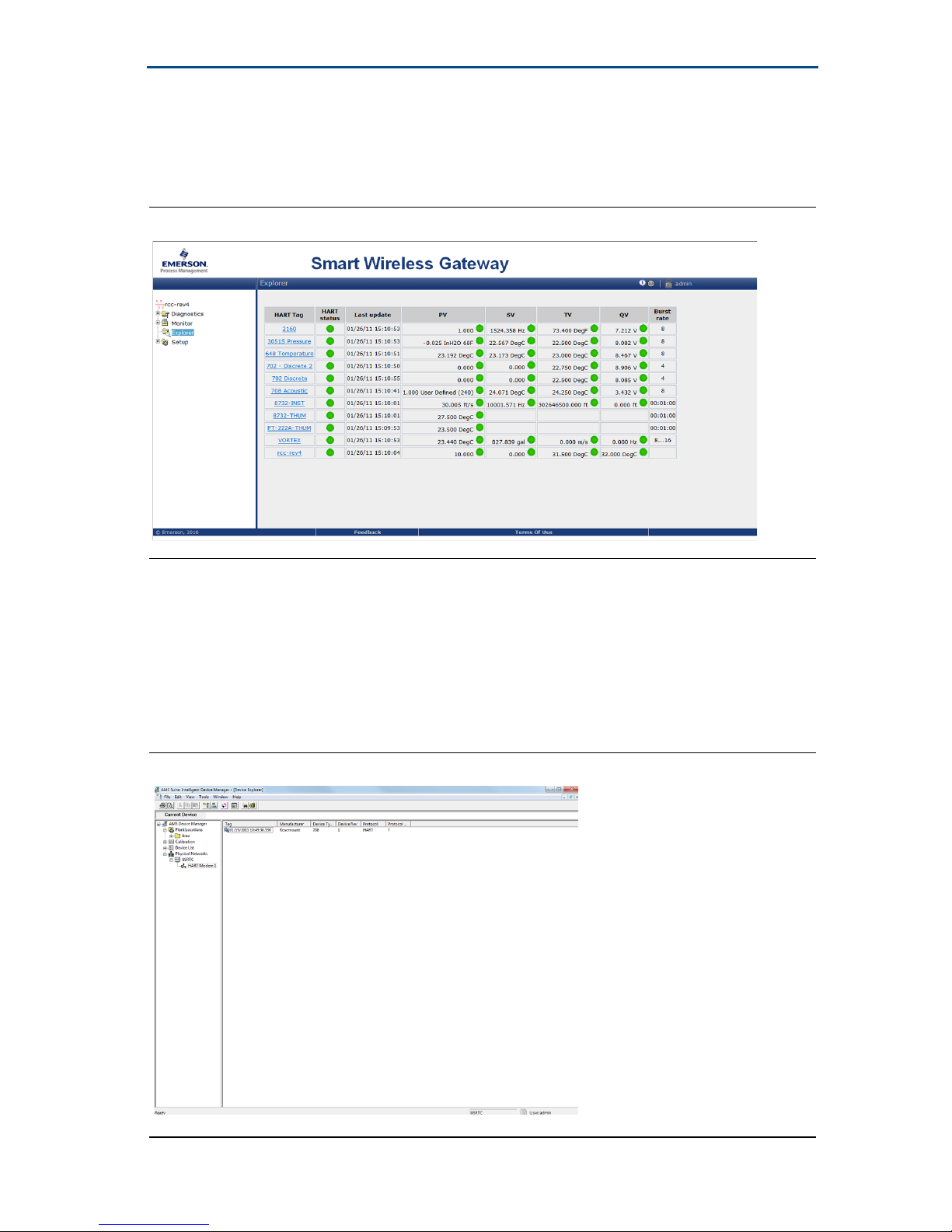

Figure 11. Smart Wireless Gateway Explorer Page

6.3 AMS Suite Wireless Configurator

When the device has joined the network, it will appear in the Device Manager as

illustrated in Figure 12. For HART protocol Wireless transmitter communication, a

708 DD is required. To obtain the latest DD, visit the Emerson Process

Management Easy Upgrade site at:

http://www2.emersonprocess.com/en-US/documentation/deviceinstallkits.

Figure 12. Device Manager

Autres manuels pour Rosemount 708

Table des matières

Autres manuels Emerson Émetteur

Emerson

Emerson Rosemount 5408 Manuel utilisateur

Emerson

Emerson Rosemount HART Modbus VeriCase 3308 Series Manuel utilisateur

Emerson

Emerson Rosemount 148 Manuel utilisateur

Emerson

Emerson Rosemount 248 Manuel utilisateur

Emerson

Emerson Micro Motion 5700 Manuel utilisateur

Emerson

Emerson Micro Motion 2400S Manuel utilisateur

Emerson

Emerson Micro Motion 5700 Manuel utilisateur

Emerson

Emerson Rosemount 3051SF Series Manuel utilisateur

Emerson

Emerson Rosemount 3152 Manuel utilisateur

Emerson

Emerson Rosemount 5408 Manuel utilisateur

Emerson

Emerson Rosemount 3144P Manuel utilisateur

Emerson

Emerson Rosemount 8782 Manuel utilisateur

Emerson

Emerson Rosemount 848T Manuel utilisateur

Emerson

Emerson Rosemount MultiVariable 3051SMV Manuel utilisateur

Emerson

Emerson 6081-P Manuel utilisateur

Emerson

Emerson Rosemount CX1100 Manuel utilisateur

Emerson

Emerson Micro Motion ELITE Manuel utilisateur

Emerson

Emerson Rosemount 3051 Manuel utilisateur

Emerson

Emerson Rosemount 2051 Manuel utilisateur

Emerson

Emerson MAS 2600 Manuel utilisateur

Emerson

Emerson Rosemount 8750W Manuel utilisateur

Emerson

Emerson Rosemount 8732EM Manuel utilisateur

Emerson

Emerson Rosemount X-STREAM O2 Transmitter Manuel utilisateur

Emerson

Emerson Rosemount 3408 Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
