EK-Quantum Vector2 Strix RTX 3080 D-RGB Manuel utilisateur

USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² Strix/TUF RTX 4080 D-RGB

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion-inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water! For best results, EK

recommends the use of EK-CryoFuel coolants!

To reach optimal performance, make sure to thoroughly

bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

NICKEL ACETAL 7

PREPARING THE GRAPHICS CARD 8

REMOVING THE STOCK COOLER 8

ASUS TUF GAMING GEFORCE RTX 4080 8

PREPARING THE WATER BLOCK FOR INSTALLATION 10

CUTTING AND PLACING THERMAL PADS 11

APPLYING THERMAL COMPOUND 12

ATTACHING THE WATER BLOCK (Option 1: GeForce RTX 4080 ROG Strix) 13

ATTACHING THE WATER BLOCK (Option 2: GeForce RTX 4080 TUF) 14

INSTALLING THE BACKPLATE 16

ATTACHING THE BACKPLATE 17

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 17

FITTINGS AND TUBING 18

CONNECTING THE D-RGB LED STRIP 18

TESTING THE LOOP 19

WARRANTY 19

SUPPORT AND SERVICE 20

SOCIAL MEDIA 20

- 4 -

6 mm

Thermal Grease (1 pc)

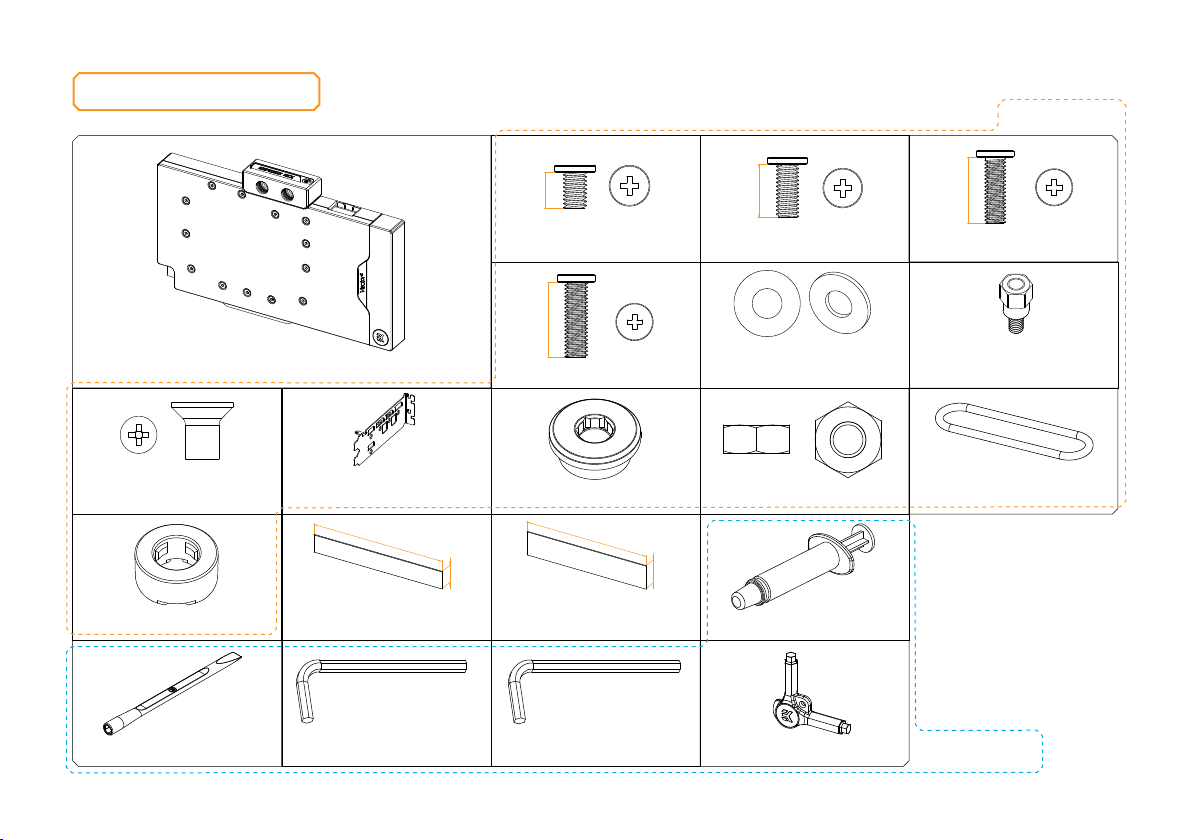

BOX CONTENTS

4 mm

8 mm

10 mm

Allen Key 2 mm (1 pc) EK-Loop Multi Allen Key (1 pc)

Allen Key 2.5 mm (1 pc)

M2.5x8 AX1 Screw (1 pc)

M3x10 AX1 Screw (1 pc)EK-Quantum Vector2Strix/TUF RTX 4080 D-RGB

M2.5x4 AX1 Screw (11 pcs)

Polyamid Washer M2.5

0.5mm (11 pcs)

M2.5x6 AX1 Screw (1 pc)

Standoff Ø4.5/2.5 (1 pc)

Quantum Plug (2 pcs) Terminal OR 14x1 mm (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Replacement I/O Bracket

(1 pc)

M3 x 6 DIN7991 Screw

(2 pcs)

Standoff M2.5-M3 x 6.6mm

(1 pc)

Nut M2.5 (2 pcs)

EAN: 105934

EAN: 106046

Thermal Pad F 1.0 mm (7 pcs)

(3830046996732)

Thermal Pad G 2.0 mm (2 pcs)

(3830046996794)

120 mm

16 mm

120 mm

24 mm

- 5 -

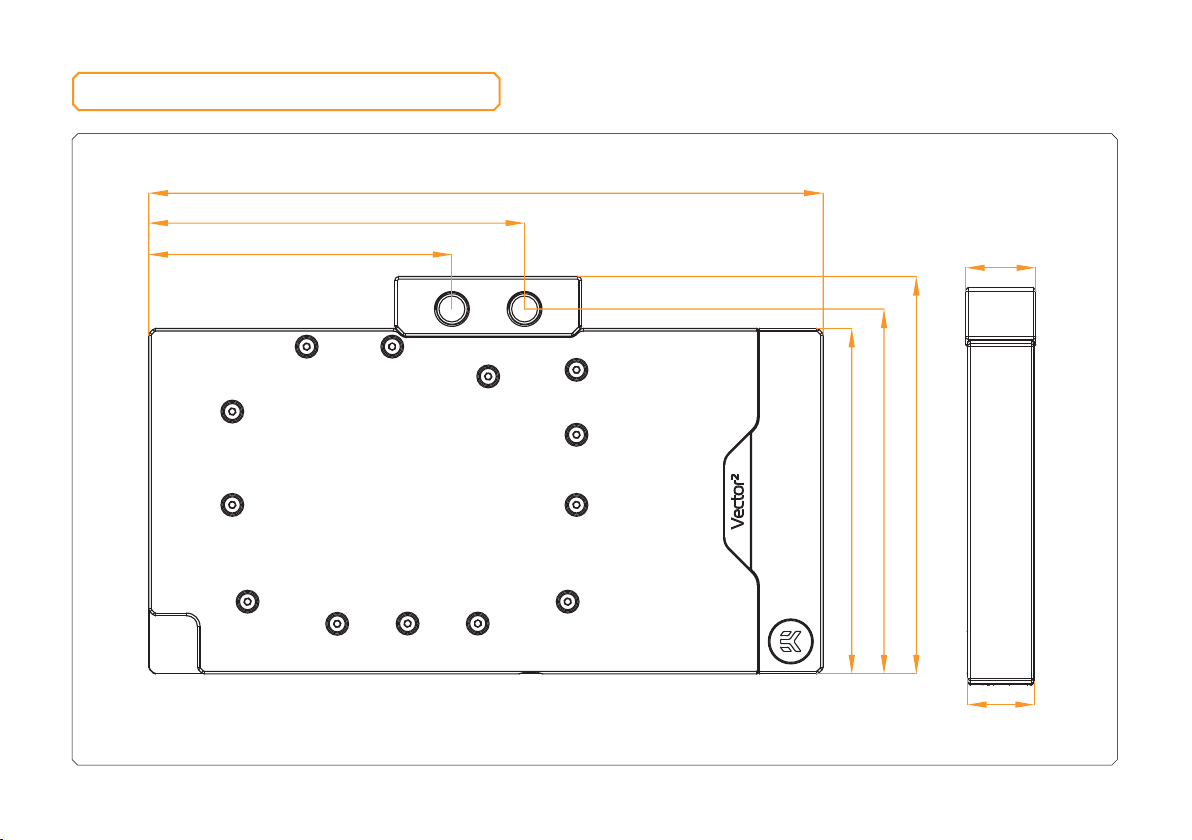

WATER BLOCK DIMENSIONS

260 mm

117 mm

145 mm

140.5 mm

153 mm

133 mm

27 mm

25.5 mm

- 6 -

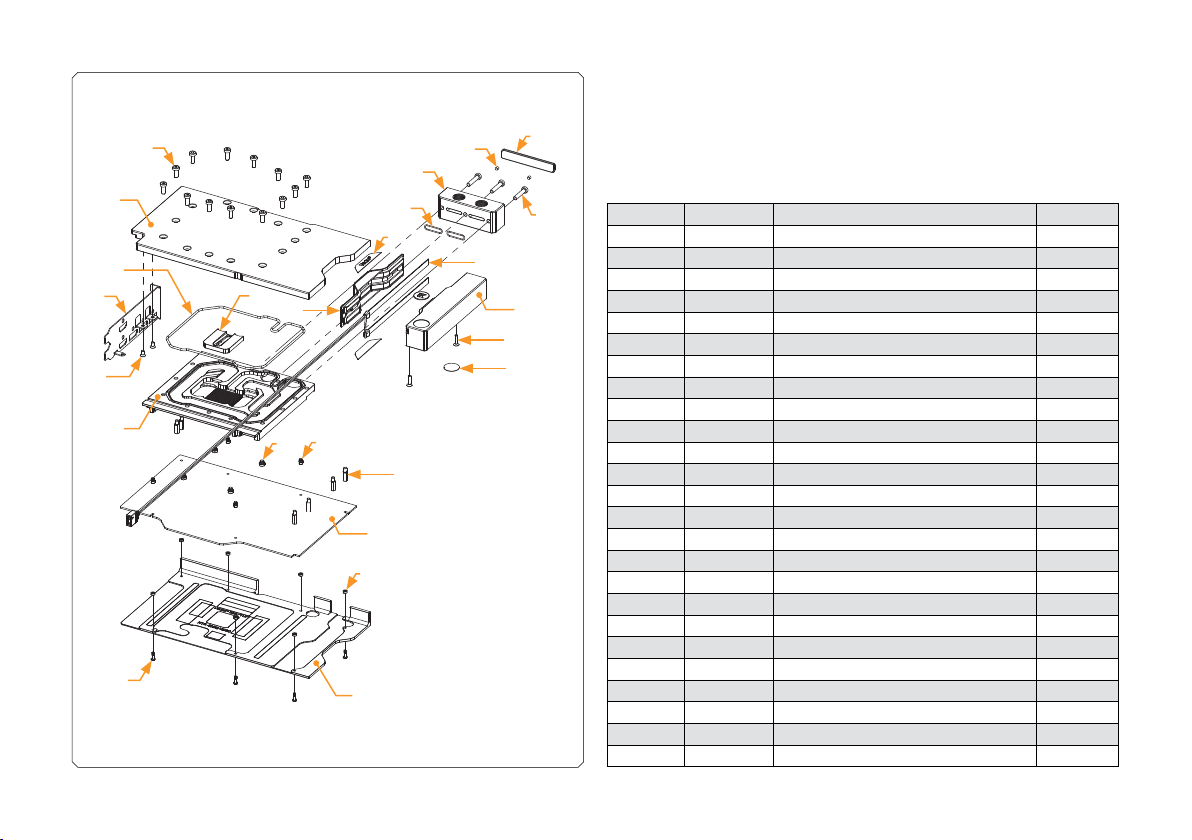

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (L x H x W): 260 x 153 x 27 mm

- D-RGB LED count: 12

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

(Pinout: +5V | Data | Blocked | Ground)

Position EAN Description Quantity

1106211 Backplate (Bl. Elox) 1

2106228 Top plate (Plexi) 1

3105926 LED Cover (Nat. Elox) 1

4103962 Plexi insert 1

5103987 Standoff M3.5-M2.5 x 3 mm 4

6103988 Standoff M4-M2.5 x 3 mm 4

7103986 Standoff M3.5-M2.5 x 11.3 mm 6

8105988 FC Terminal (Acetal) 1

9103942 Terminal Badge 1

10 104216 Disc magnet 3 x 3 2

11 104106 Terminal OR - 14 x 1 mm 2

12 8311 Screw M4 x 20 DIN7984 3

13 105561 Replacement I/O Bracket 1

14 8472 Screw M3 x 6 DIN7991 2

15 103971 Stand Out (Acetal) 1

16 8208 Screw M3 x 8 7991DIN 2

17 100663 EK - Badge 2

18 103964 Mylar sticker 2

19 9024 Screw M4 x 10 DIN7984 13

20 104188 Standoff 4.5/2.5 mm 7

21 104187 Screw M2.5 x 8 AX1 7

22 105932 Main OR - 144 x 2 mm 1

23 106214 PCB cardboard 1

24 101556 LED D-RGB strip 500/300 mm 1

25 106208 Coldplate (Ni) 1

- 7 -

NICKEL ACETAL

- Dimensions: (L x H x W): 260 x 153 x 27 mm

- D-RGB LED count: 38

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

(Pinout: +5V | Data | Blocked | Ground)

Position EAN Description Quantity

1106211 Backplate (Bl. Elox) 1

2106230 Top plate (Acetal) 1

3103962 Plexi insert 1

4103987 Standoff M3.5-M2.5 x 3 mm 4

5103988 Standoff M4-M2.5 x 3 mm 4

6103986 Standoff M3.5-M2.5 x 11.3 mm 6

7105988 FC Terminal (Acetal) 1

8103942 Terminal Badge 1

9104216 Disc magnet 3 x 3 2

10 104106 Terminal OR - 4 x 1 mm 2

11 8311 Screw M4 x 20 DIN7984 3

12 105561 Replacement I/O Brakcet 1

13 8472 Screw M3 x 6 DIN7991 2

14 100663 EK - Badge 2

15 9024 Screw M4 x 10 DIN7984 13

16 104188 Standoff ﬁ 4.5/2.5 mm 7

17 104187 Screw M2.5 x 8 AX1 7

18 103968 Light guide 1

19 104296 LED D-RGB Strip Double - 500/130 mm 1

20 8202 Screw M3 x 12 DIN7991 2

21 104211 Mylar sticker 2

22 103974 Stand out (Acetal) 1

23 105932 Main OR 144 x 2 mm 1

24 106214 PCB cardboard 1

25 106208 Coldplate (Ni) 1

- 8 -

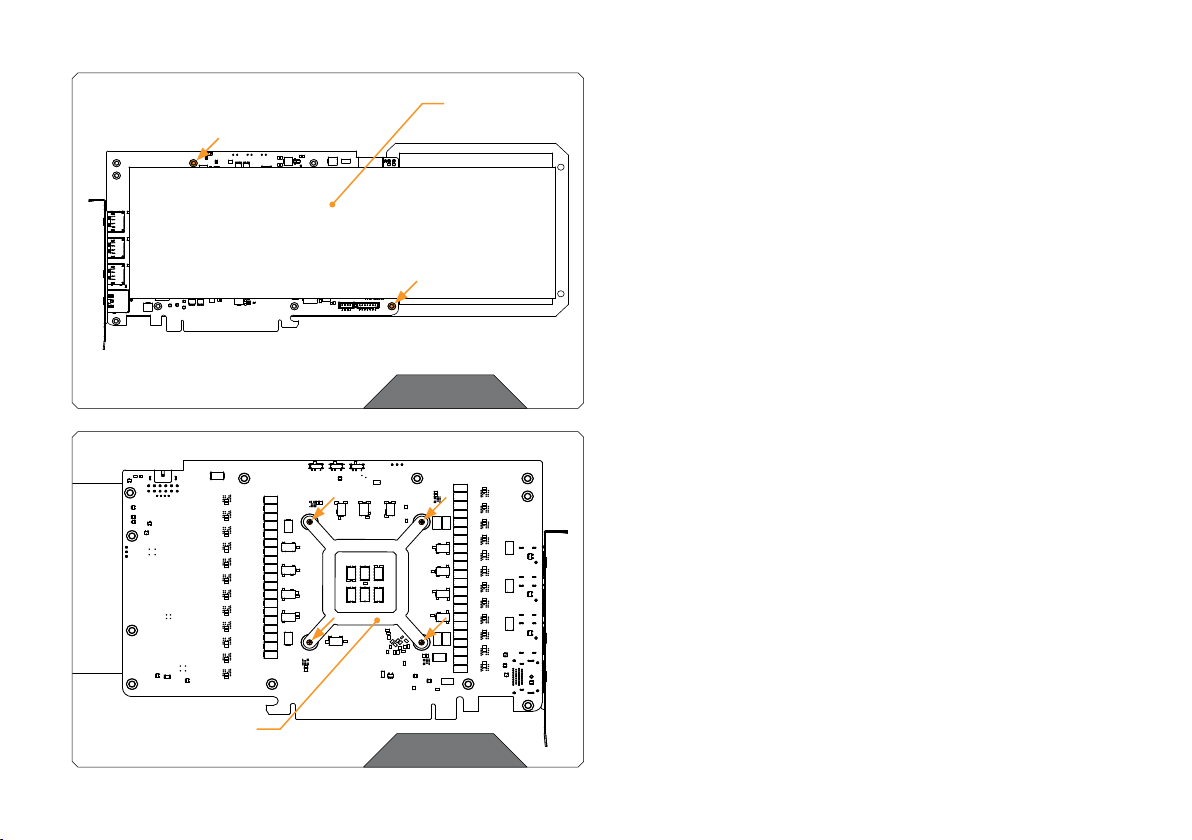

PREPARING THE GRAPHICS CARD

REMOVING THE STOCK COOLER

ASUS TUF GAMING GEFORCE RTX 4080

Important! Before starting, make sure to have a clean, ﬂat

surface to work on. It is recommended to put foam or soft

material to lay the graphics card on.

STEP 1

First, remove eight (8) screws from the backside of the Stock cooler

(using Phillips head screwdriver).

STEP 2

Unscrew three (3) screws from the I/O Bracket (using Phillips head

screwdriver). Unplug the connectors in order to remove the stock

cover from the GPU PCB.

STEP 1

STEP 2

- 9 -

STEP 3

From the front side of the GPU, an additional two (2) screws must be

removed (using Phillips head screwdriver). Detach the GPU Backplate.

STEP 4

Rotate the GPU and unscrew four (4) Screws from the retention

bracket (using Phillips head screwdriver). Remove the bracket and

Stock Cooler from the GPU PCB.

STEP 3

STEP 4

RETENTION

BRACKET

STOCK

COOLER

- 10 -

Phillips Head Screwdriver

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

Unscrew seven (7) Screws AX1 M2.5 x 8 mm. Remove the backplate

together with the Screws and backplate standoffs. Standoffs must stay

on Screws AX1 M2.5 x 8 mm. Remove the PCB cardboard. Save the

removed parts for later steps.

Do not remove standoffs from screws! In case the

standoff detaches from the screw, replace it with a

spare one. When replacing the standoff make sure

that you screw it on the AX1 M2.5 x 8 screws. Do not

push the standoff onto the screw AX1 M2.5 x 8 mm.

STEP 1

For this step, you will need:

BACK PL AT E

M2.5 x 8 AX1

BACK PL AT E S TAND OF F

DO NOT REMOVE

STANDOFFS

FROM SCREWS!

PCB

CARDBOARD

STEP 5

Lastly, unscrew four (4) Screws and detach the I/O Bracket (using

Phillips head screwdriver).

EK provides the replacement I/O Bracket with the water block.

STEP 5

I/O BRACKET
